Product gallery: CF101P | 10/100mb / s 2 ports poe alimenté media converter

CF101P | 10/100mbps 2 port poe powered media converter

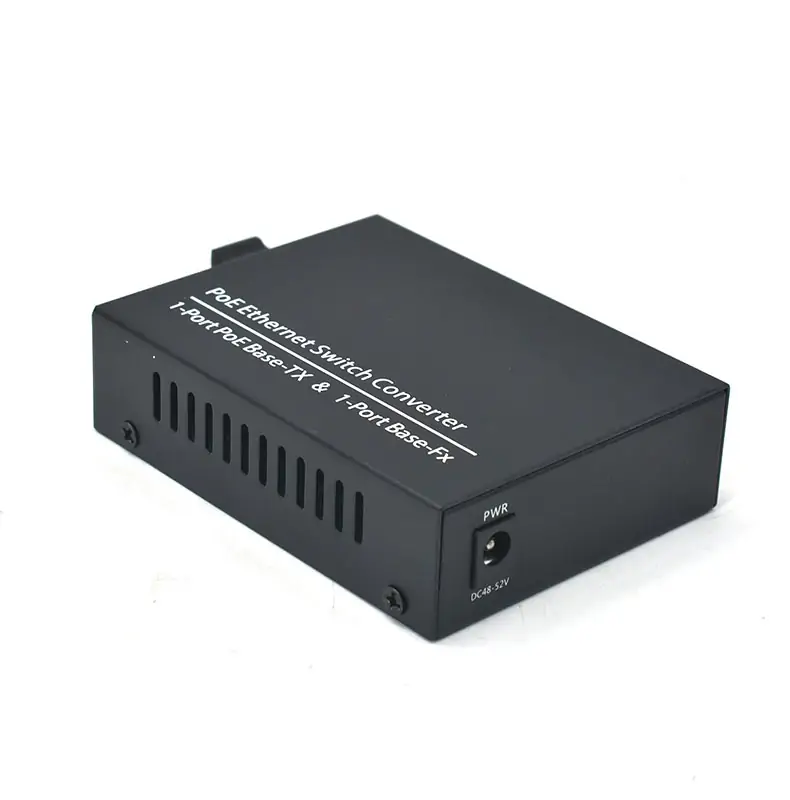

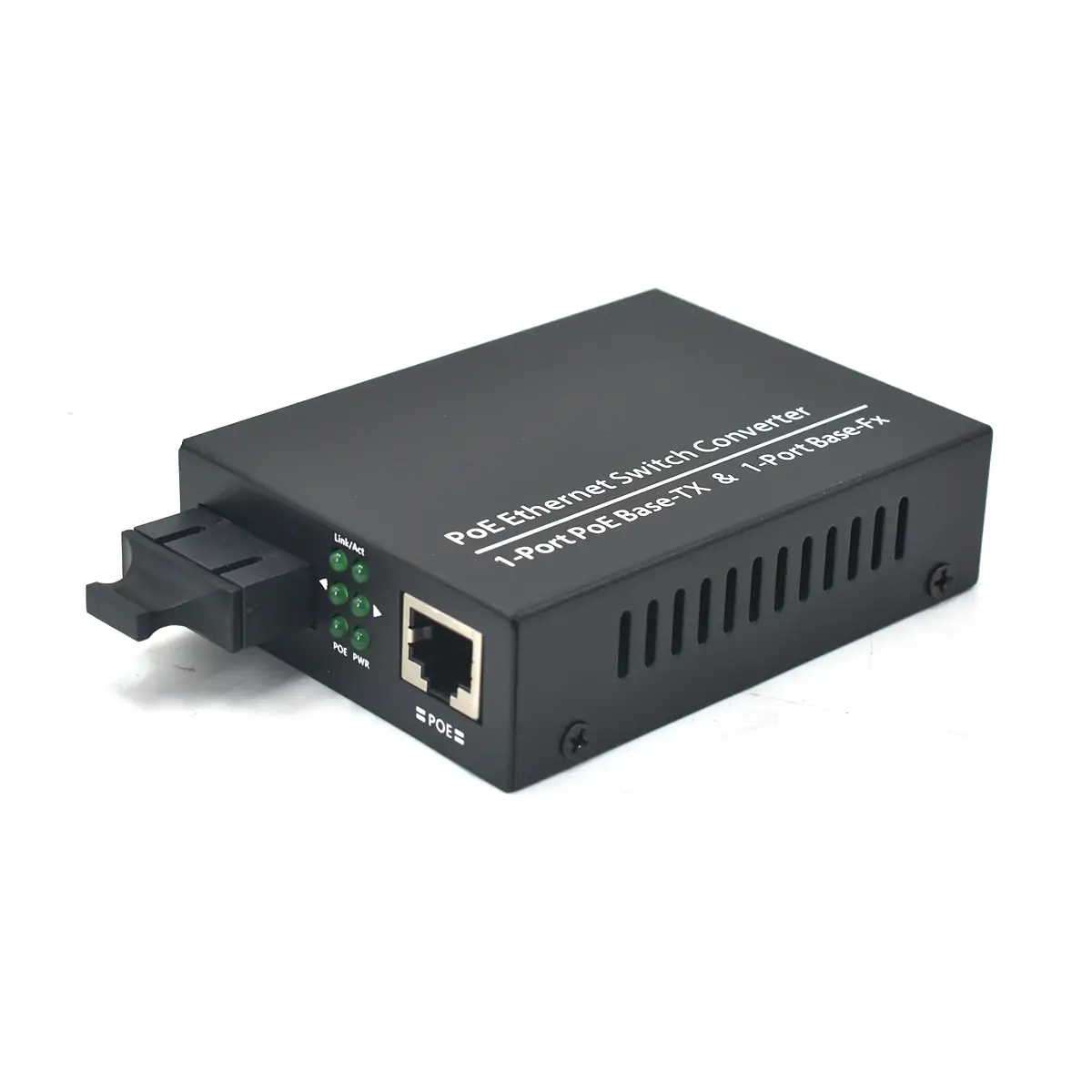

The CF101P PoE Powered Media Converter features a 10/100Mbps Ethernet port and a SC fiber port, supporting 30W PoE for seamless connectivity in various commercial applications.

Product Overview

The CF101P PoE Powered Media Converter is a versatile and efficient solution designed for connecting fiber optic and Ethernet networks seamlessly. This device features 1 155Mbps SC fiber port and 1 10/100Mbps Ethernet port that supports the IEEE802.3 af/at Power over Ethernet (PoE) standards, delivering a maximum power output of 30W per port. It intelligently detects connected powered devices and provides power only to PoE-compliant devices, protecting non-PoE devices from potential damage.

Key Features

One 10/100Base-TX Ethernet port and one 100Base-X SC fiber optic port for flexible connectivity.
Fully compliant with IEEE 802.3 af/at PoE standards, supplying up to 30W of power via the RJ45 Ethernet port.
Supports 10/100Mbps speed auto-negotiation for optimal compatibility.
Ethernet ports feature half/full duplex auto-negotiation and automatic MDI/MDI-X crossover for easy setup and operation.
All ports support wire-speed forwarding for smoother data transmission without bottlenecks.
Designed with low-power consumption chips to ensure stable performance and easy maintenance.
Plug-and-play design allows for quick installation with no configuration needed.
Constructed with a metal housing for enhanced heat dissipation, ensuring long-term stable operation.

Ideal Applications

The CF101P PoE Powered Media Converter is perfect for various commercial environments, including hotels, shops, supermarkets, residential homes, and small to medium-sized enterprises, particularly for video surveillance networking.

Product Parameters

Standards and protocols	IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3z 100Base-SX/LX standards IEEE 802.3af/at Power Over Ethernet IEEE802.3x Flow control,
Interface information	Single mode SC optical port: 1 100Base-X optical ports(SC/FC/SFP optional)
	Transmission rate: 155m
	Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
	Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm
	RJ45 ethernet port: 1 10/100M Base-T ethernet ports (standard RJ45)
	10/100Mbps auto-negotiation
	10Base-T: ≤100m (CAT5e or above)
	100Base-TX: ≤100m (CAT5e or above)
Mechanical Properties	Shell material: metal shell
	Appearance size (length * depth * height): 90mm×70mm×25mm
	Installation method: Desktop, Rack-mount
	Cooling method: natural cooling, no fan
	Weight: < 0.18Kg
Environmental properties	Working temperature: -20℃～+60℃
	Storage temperature: -20℃～+75℃
	Relative humidity: 5% ~ 95% (non-condensing)
Exchange properties	Bandwidth: 0.4Gbps
	Packet forwarding rate (entire device): 0.2976 Mpps.
	Switching method: Store-and-forward.
	MAC address table: 2K entries.
	Packet buffer: 768 Kbits.
	Jumbo frame: 2K.

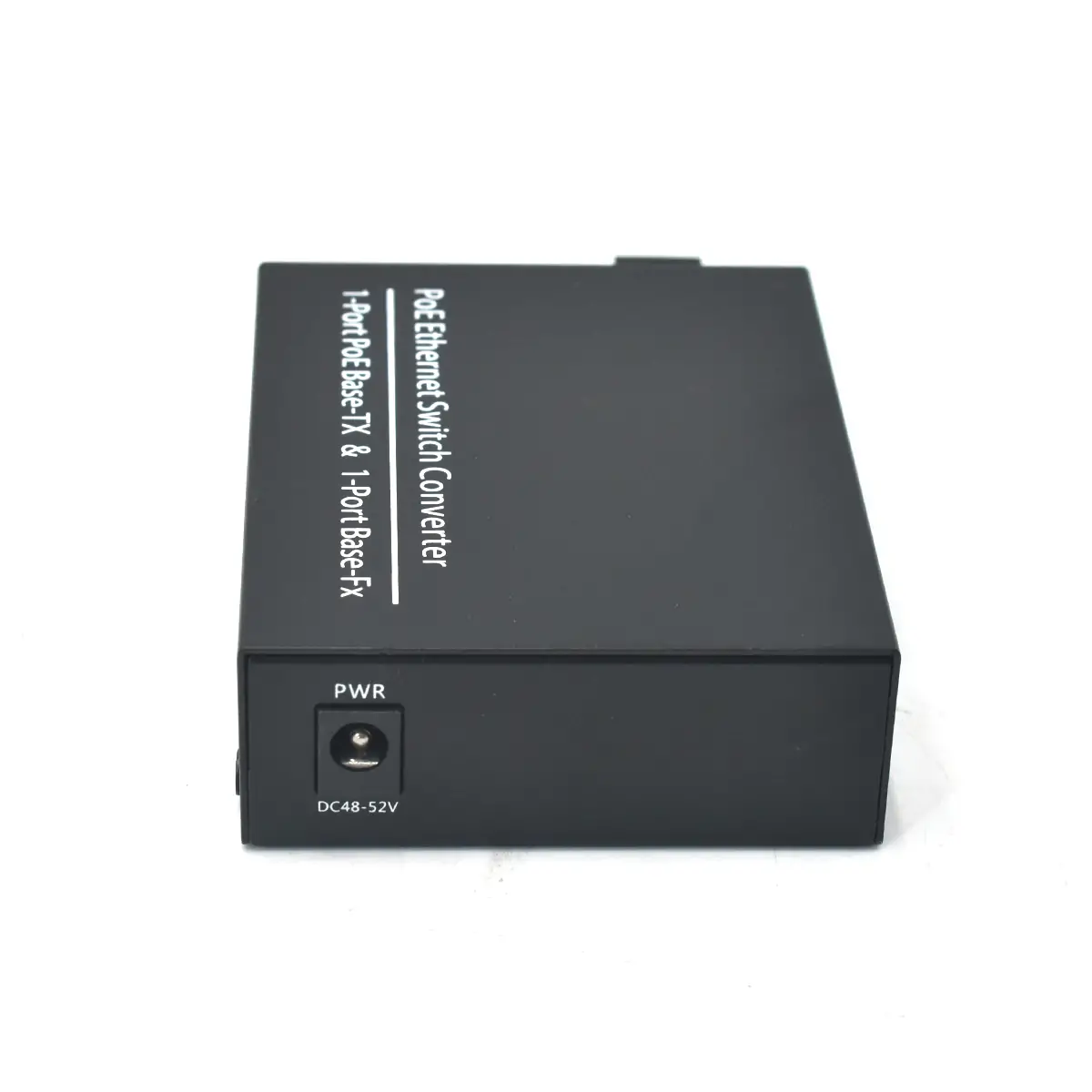

Power supply	Input voltage: DC 44V-52V
Power supply	Power consumption: < 3 W
Indicators	Ethernet Port LEDs: POE Indicator: YellowLINK/ACT Indicator: Green
	Optical Port LED:FX Indicator: Green
	Power LED (PWR): Green

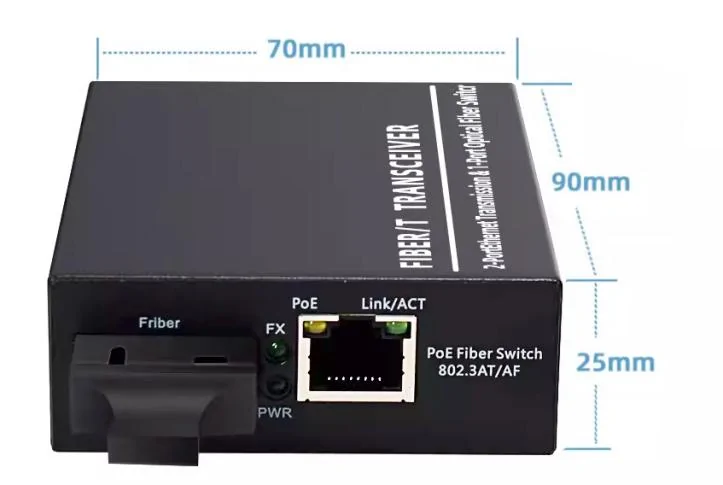

Product size

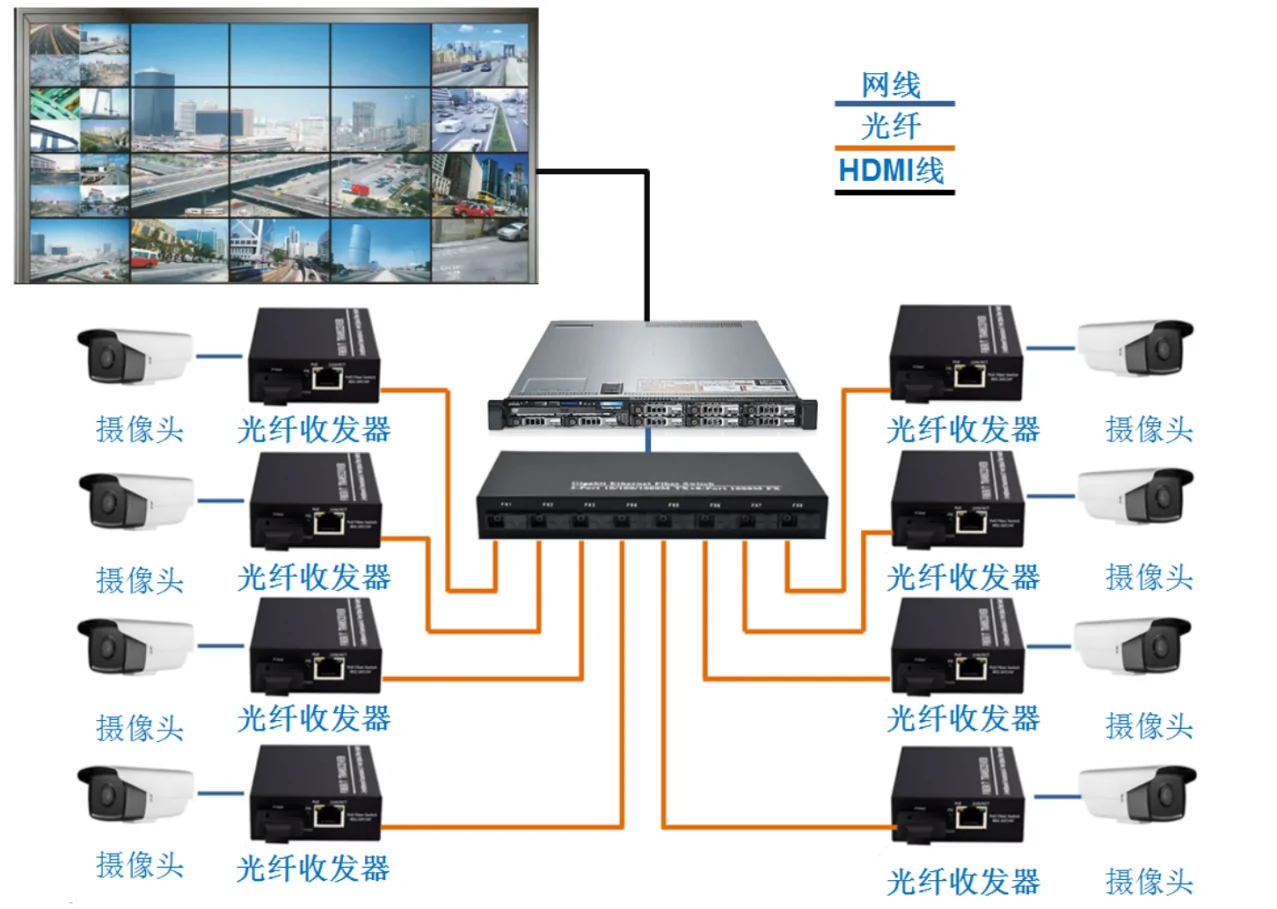

Application
