CF208 | 10 100tx to 100fx media converter 2 Port RJ45 8 SFP/SC/LC/FC/ST

Explore the CF208 10/100TX to 100FX media converter, featuring 8 optical ports and 2 Ethernet ports, extending distances up to 120km with easy plug-and-play installation.

Email:

Sample order

Product Overview

The CF208 is a high-performance 10/100TX to 100FX media converter designed for seamless data transfer between 100Base-T twisted pair cables and 100Base-SX/LX optical fibers. This Ethernet Fiber Switch features eight 155MM SC optical ports and two 10/100Mbps Ethernet ports, allowing you to extend network transmission distances from the 100 meters limit of twisted pair cables to an impressive 120 kilometers over optical fibers. The installation of this fiber optic switch is user-friendly, utilizing a plug-and-play design that requires no configuration. All optical and electrical interfaces comply with international standards, ensuring broad compatibility. The CF208 provides robust isolation protection, ensures data confidentiality, operates reliably, and is easy to maintain, making it ideal for various commercial and industrial environments.

Key Features

  • Port Configuration: Includes two 10/100Base-TX Ethernet ports and eight 100Base-X optical ports.
  • Jumbo Frame Support: Capable of handling 2K jumbo frame transmission for efficient data transfer.
  • Auto-Negotiation: All Ethernet ports support 10/100Mbps auto-negotiation, allowing for flexible connectivity options.
  • Duplex Compatibility: Supports both half and full duplex auto-negotiation on all ports to optimize data flow.
  • Automatic Crossover: Features automatic MDI/MDI-X crossover for easy installation and integration into existing networks.
  • Wire-Speed Forwarding: All ports support wire-speed forwarding to ensure smoother and more efficient data transmission.
  • User-Friendly Design: Designed for plug-and-play operation, allowing for simple installation with no configuration required.
  • Durable Construction: Built with a metal casing for excellent heat dissipation, ensuring long-term stable performance.

Product Parameters

Standards and protocolsIEEE802.3 10Base-T Ethernet
IEEE802.3u,100Base-TX/FX Fast Ethernet
IEEE802.3x Flow control
Interface informationSingle-mode SC optical port: 8 100Base-X optical port (SC/FC/SFP optional)
Transmission rate: 155M
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm
RJ45 network port: 2 10/100M Base-TX network ports (standard RJ45)
10/100Mbps adaptive
10Base-T: ≤100m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height): 218mm×101mm×27mm
Installation method: Desktop, wall-mounted
Heat dissipation method: natural cooling, no fan
Weight: <50G
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 2Gbps
Packet forwarding rate (whole machine) : 1.488 Mpps
Exchange method: store-and-forward
MAC table : 2K
Packet buffer : 768Kbit
Jumbo frame: 2048b
Power supplyInput voltage: DC 5V-12V
Power consumption: < 3 W
IndicatorEthernet port:100M Indicator: 10/100M Green;
Fiber Port(SC1-8): Green;
Power supply: Green

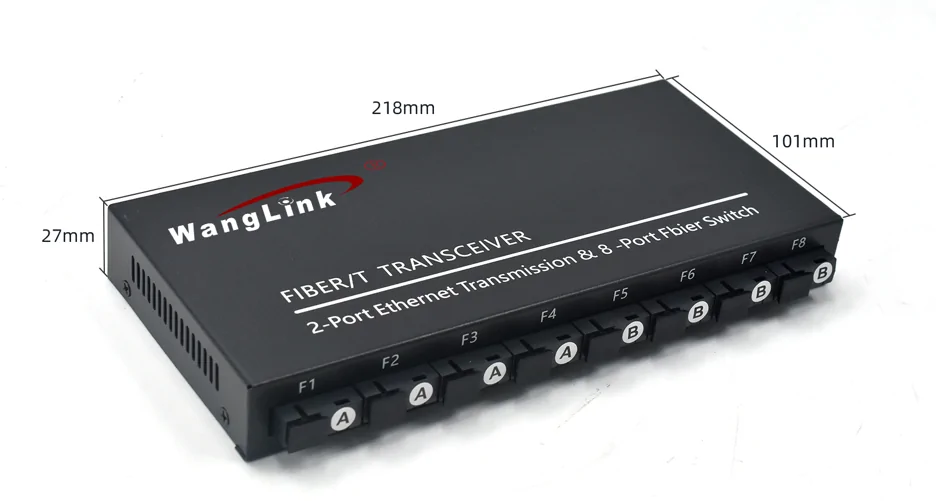

Product size

Product size: CF208 | 10 100tx zu 100fx media converter 2 Port RJ45 8 SFP/SC/LC/FC/ST

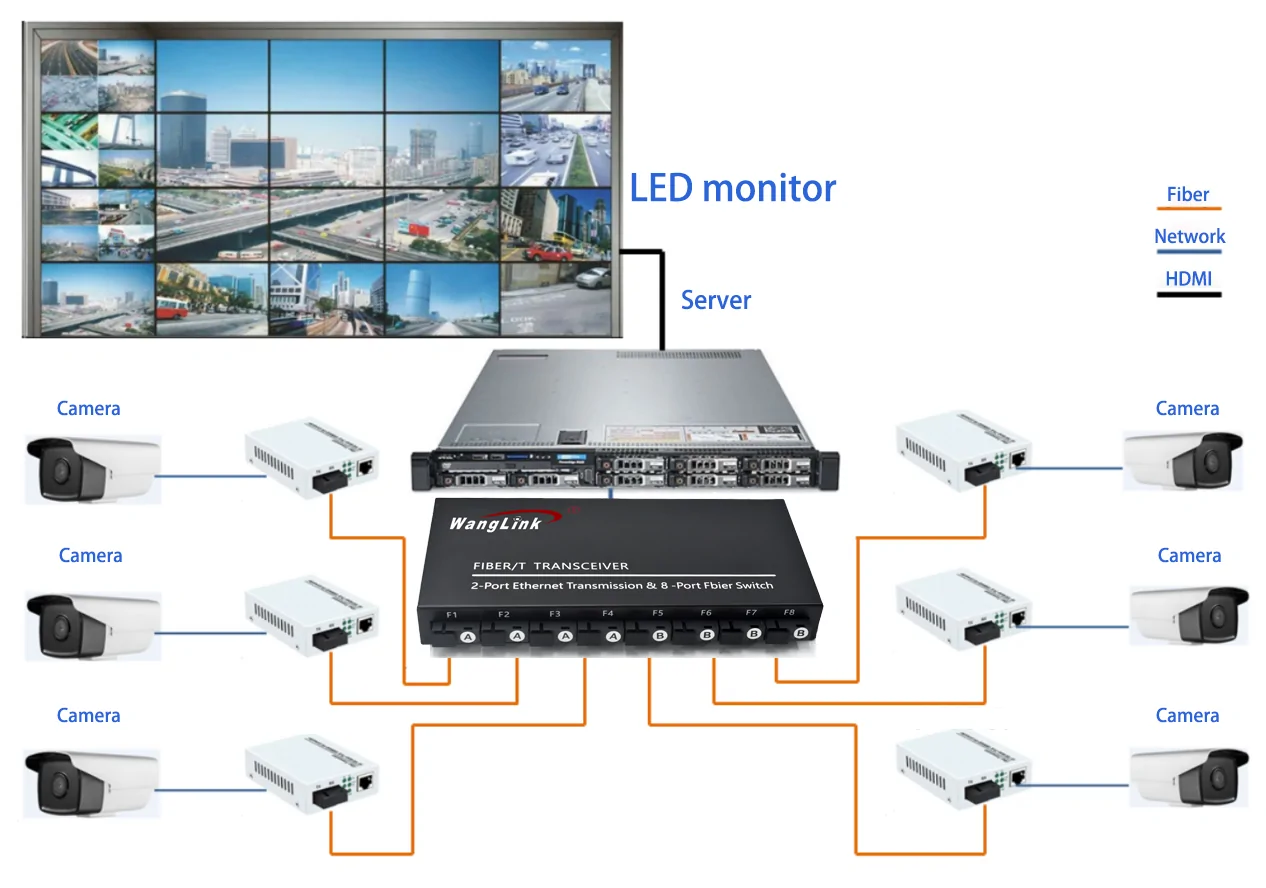

Application

Application: CF208 | 10 100tx zu 100fx media converter 2 Port RJ45 8 SFP/SC/LC/FC/ST
Product size: CF208 | 10 100tx zu 100fx media converter 2 Port RJ45 8 SFP/SC/LC/FC/ST
Application: CF208 | 10 100tx zu 100fx media converter 2 Port RJ45 8 SFP/SC/LC/FC/ST
