Product Overview

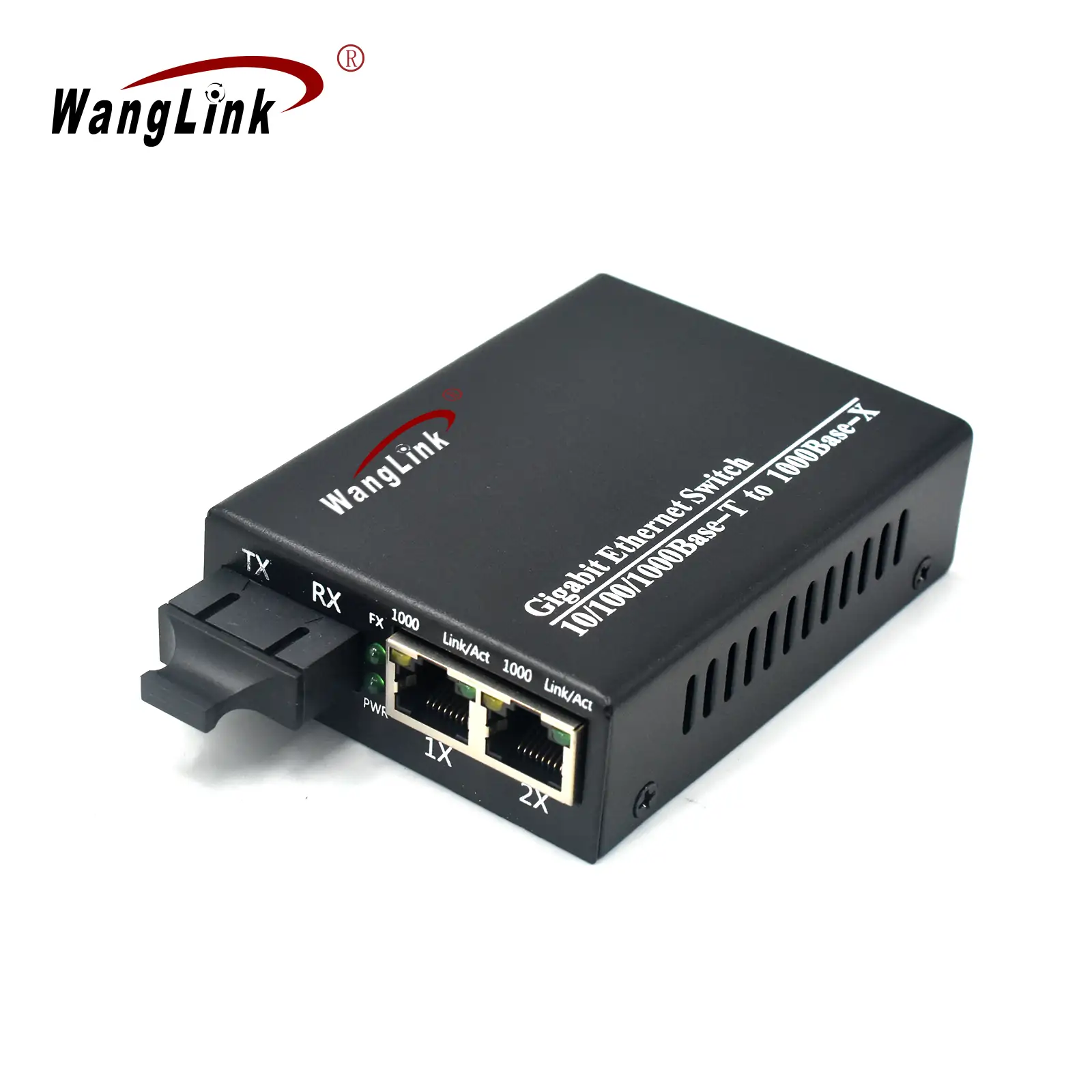

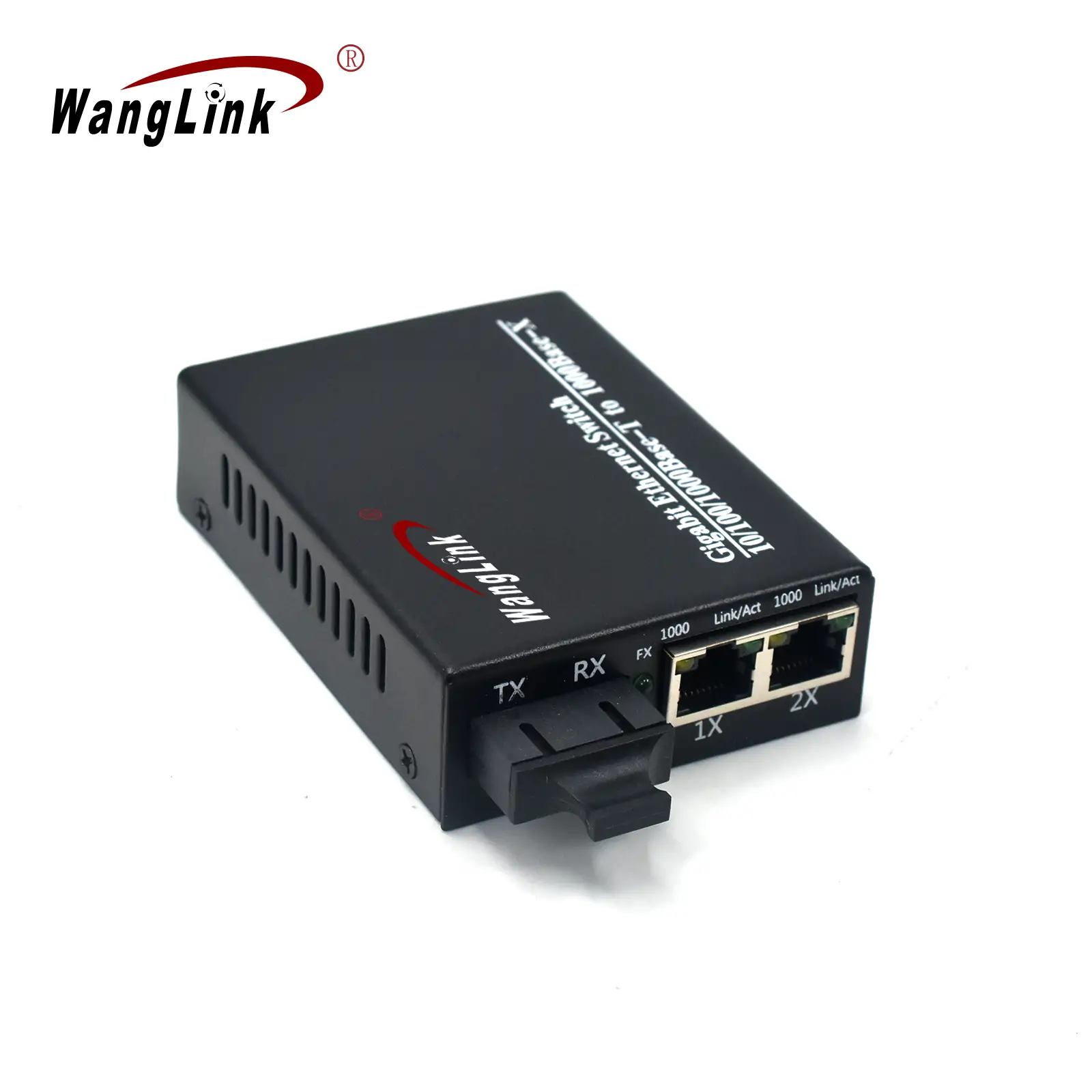

The CG201 is a high-performance Gigabit Ethernet media converter featuring one 1.25Gbps fiber optic port and two 10/100/1000Mbps Ethernet ports. This device facilitates seamless data communication between 100Base-TX twisted pairs and 1000Base-FX optical cables. The CG201 greatly enhances network transmission distances, extending the maximum range from the 100-meter limit of twisted pairs to an impressive 120 kilometers when using fiber optic cables. This plug-and-play device is user-friendly and requires no additional configuration. All fiber optic ports conform to international standards, ensuring compatibility. With strong data confidentiality, reliable operation, and minimal maintenance needs, the CG201 is ideal for various commercial and industrial applications.
Key Features
- Port Configuration:
- 2 x 10/100/1000Base-T Ethernet ports
- 1 x 1000Base-X optical port
- Duplex Capability: Supports half/full duplex auto-negotiation and automatic MDI/MDI-X functionality for flexible network setups.
- LED Indicators: Equipped with a complete set of indicators for both fiber optic and Ethernet ports to facilitate installation and maintenance.
- Installation Flexibility: Supports both desktop and wall-mounted installation options for versatile deployment.
- Energy Efficiency: Utilizes low-power chips for reduced energy consumption without sacrificing performance.
- User-Friendly Operation: Designed for plug-and-play simplicity, requiring no configuration for instant use.
- Durable Design: Constructed with a robust metal casing and an external power supply; provides excellent heat dissipation for long-term stable operation.
Product Parameters
| Solutions | Realtek RTL8363SC |
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE802.3x Flow control |
| Interface information | Single-mode SC optical port: 1 1000Base-X optical port (SC/FC/SFP optional) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 2 10/100/1000M Base-T ethernet ports (standard RJ45) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

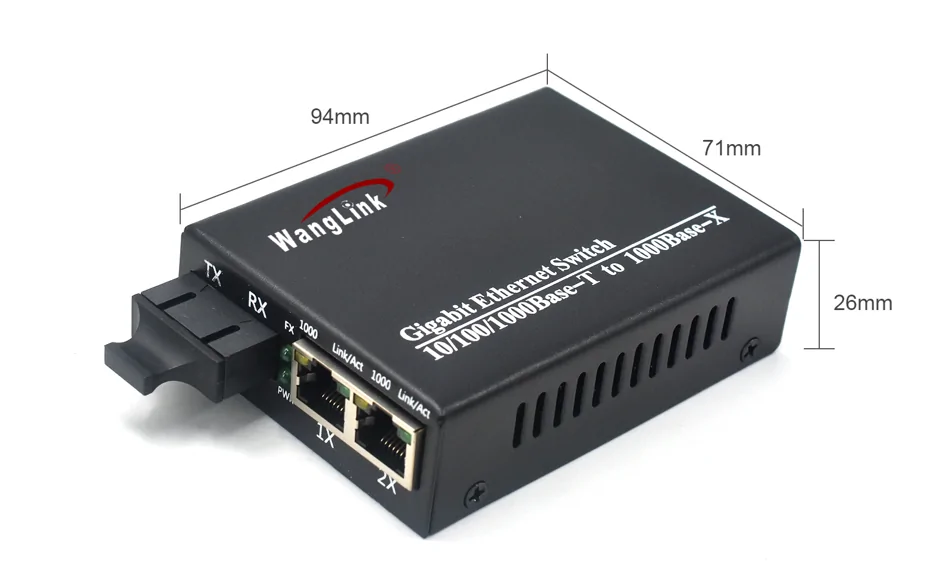

| Appearance dimensions (length*depth*height): 93mm×70mm×25mm | |
| Installation method: Desktop, wall-mounted | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <0.18KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 6.0Gbps |
| Packet forwarding rate (whole machine) : 4.467 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Packet buffer : 768Kbit | |
| Jumbo frame: 2048b | |

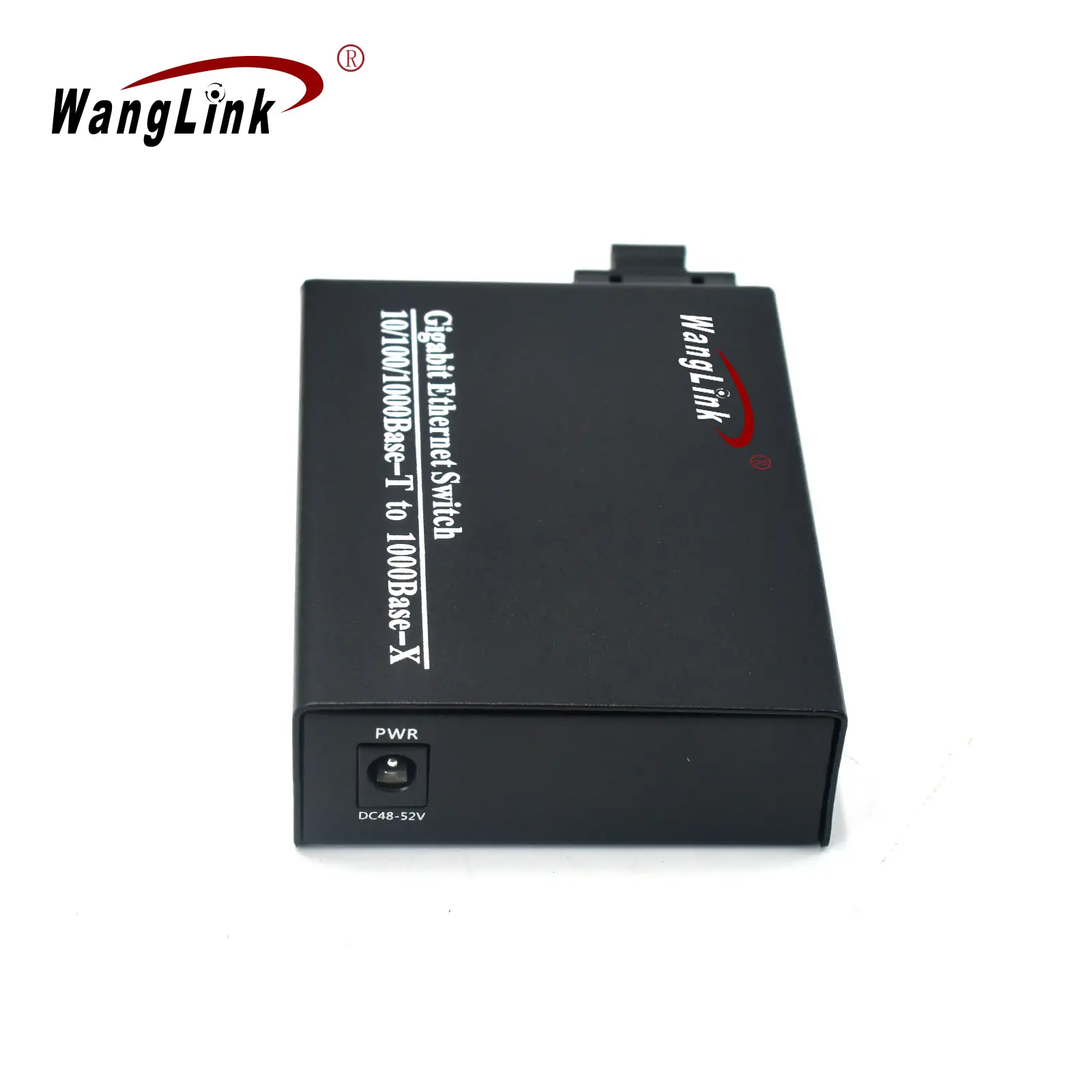

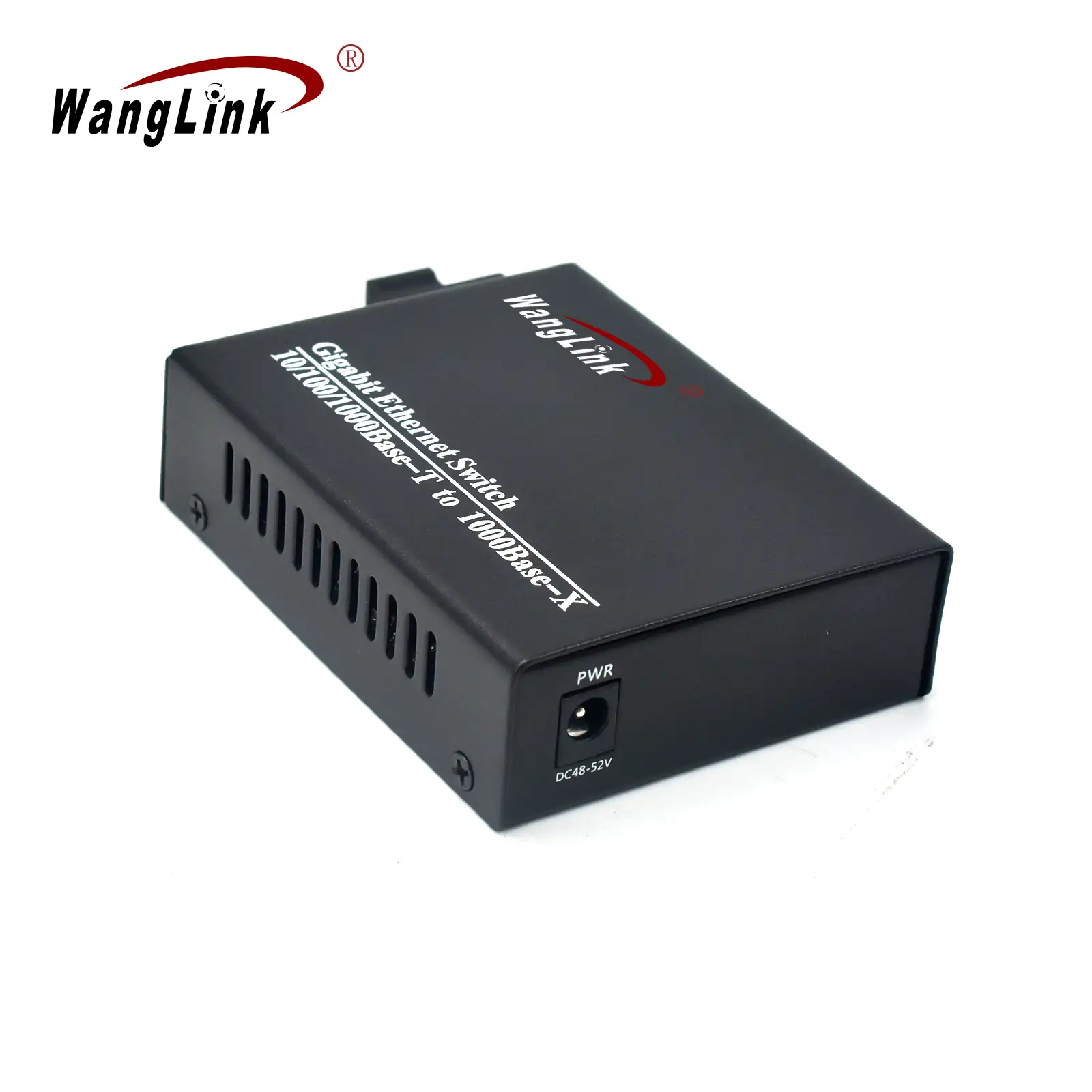

| Power supply | Input voltage: DC 5V-12V |
| Power consumption: < 3 W | |
| Indicator | Ethernet port: 1000m: YellowLink/ Act: Green |
| Fiber port:FX: Green. | |
| Power supply: Green |
