CG202 | 1 gig media converter 2 Port RJ45 2 SFP/SC/LC/FC/ST

Explore the CG202 1 Gig media converter, featuring 2 Ethernet ports and 2 fiber optic ports that extend distances up to 120km with hassle-free plug-and-play operation.

Email:

Sample order

Product Overview

The CG202 is a robust 1 Gig media converter designed to facilitate seamless data communication. It features two 1.25Gbps fiber optic ports and two 10/100/1000Mbps Ethernet ports, enabling connectivity between 100Base-TX twisted pairs and 1000Base-FX optical cables. The CG202 significantly extends the maximum transmission distance of networks from the 100-meter limit of twisted pairs to up to 120 kilometers when utilizing fiber optic cables.

This plug-and-play device is user-friendly and requires no additional configuration, making it easy to set up. All fiber optic ports comply with international standards, ensuring reliability. With strong data confidentiality, dependable operation, and minimal maintenance needs, this transceiver is well-suited for a variety of commercial and industrial environments.

Key Features

  • Port Configuration:
    • 2 x 10/100/1000Base-T Ethernet ports
    • 2 x 1000Base-X optical ports
  • Duplex Capability: Supports half/full duplex auto-negotiation and includes automatic MDI/MDI-X features for flexible deployment.
  • User-Friendly Indicators: Features a complete set of indicators for both fiber optic and Ethernet ports to facilitate installation and maintenance.
  • Installation Flexibility: Supports both desktop and wall-mounted installation options to accommodate various settings.
  • Energy Efficiency: Utilizes low-power chips to minimize energy consumption without sacrificing performance.
  • Plug-and-Play Operation: Designed for simple operation, requiring no configuration to start using immediately.
  • Durable Design: Constructed with a robust metal casing and an external power supply, providing excellent heat dissipation for long-term stable operation.

Product Parameters

Chipset SolutionMarvell 88E6320
Standards and protocolsIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE802.3x Flow control,
Interface informationSingle-mode SC optical port: 2 1000Base-X optical port (SC/FC/SFP optional)
Transmission rate: 1.25G
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm
RJ45 network port: 2 10/100/1000M Base-T ethernet ports (standard RJ45)
10/100/1000Mbps adaptive
10Base-T: ≤100m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height): 119mm×91mm×25mm
Installation method: Desktop, wall-mounted
Heat dissipation method: natural cooling, no fan
Weight: <0.18KG
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 8.0Gbps
Packet forwarding rate (whole machine) : 5.952 Mpps
Exchange method: store-and-forward
MAC table : 8K
Packet buffer : 1m
Jumbo frame: 10k
Power supplyInput voltage: DC 5V-12V
Power consumption: < 3 W
IndicatorEthernet port: 1000m: GreenLink/ Act: Green
Fiber port:FX: Green.
Power supply: Green

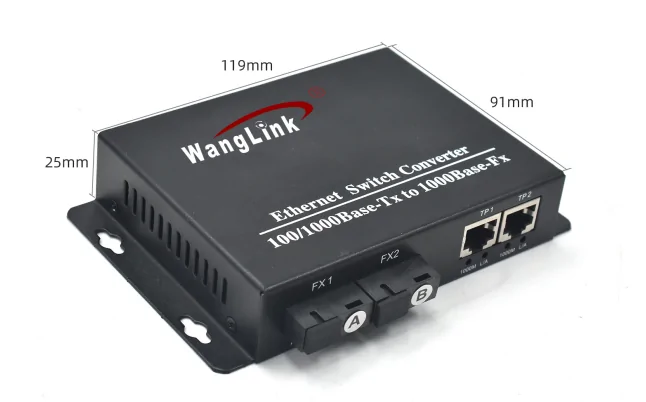

Product size

Product size: CG202 | 1 GB media converter 2 Port RJ45 2 SFP – /SC/LC/FC/ST

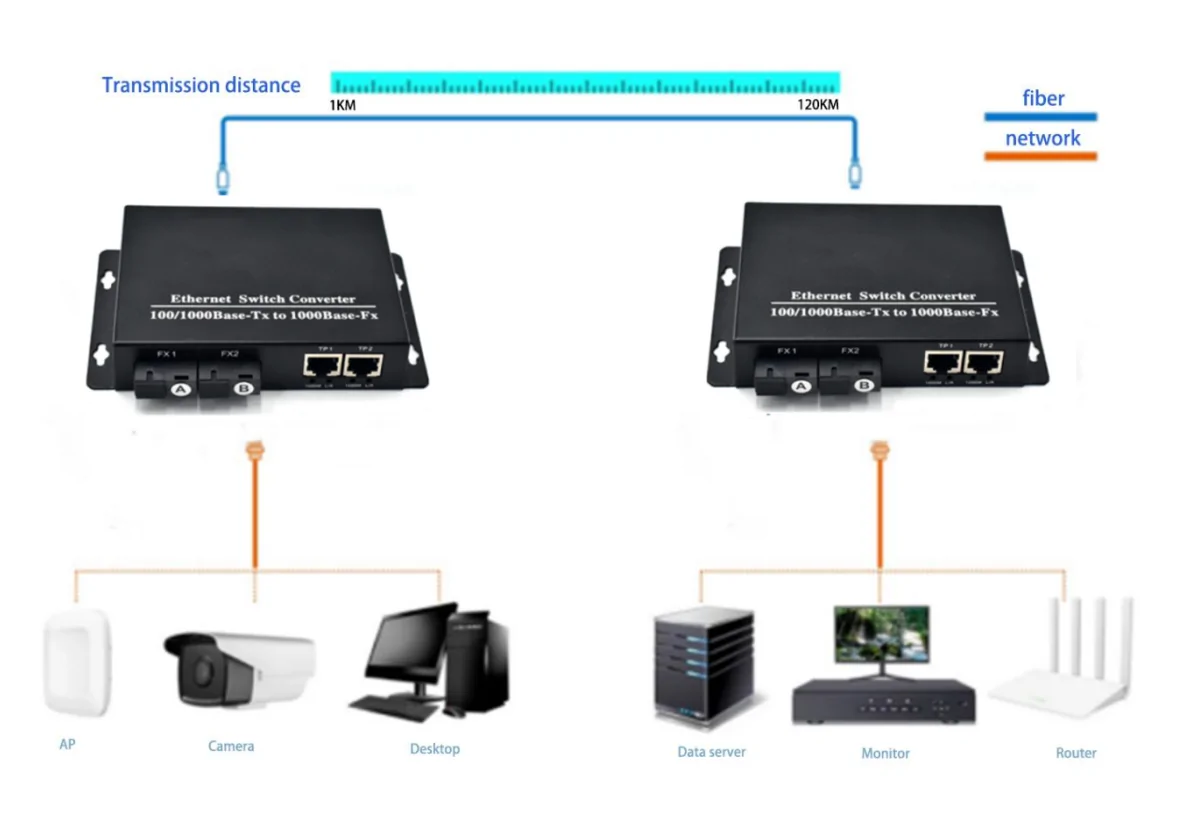

Application

Application: CG202 | 1 GB media converter 2 Port RJ45 2 SFP – /SC/LC/FC/ST
Product size: CG202 | 1 GB media converter 2 Port RJ45 2 SFP – /SC/LC/FC/ST
Application: CG202 | 1 GB media converter 2 Port RJ45 2 SFP – /SC/LC/FC/ST
