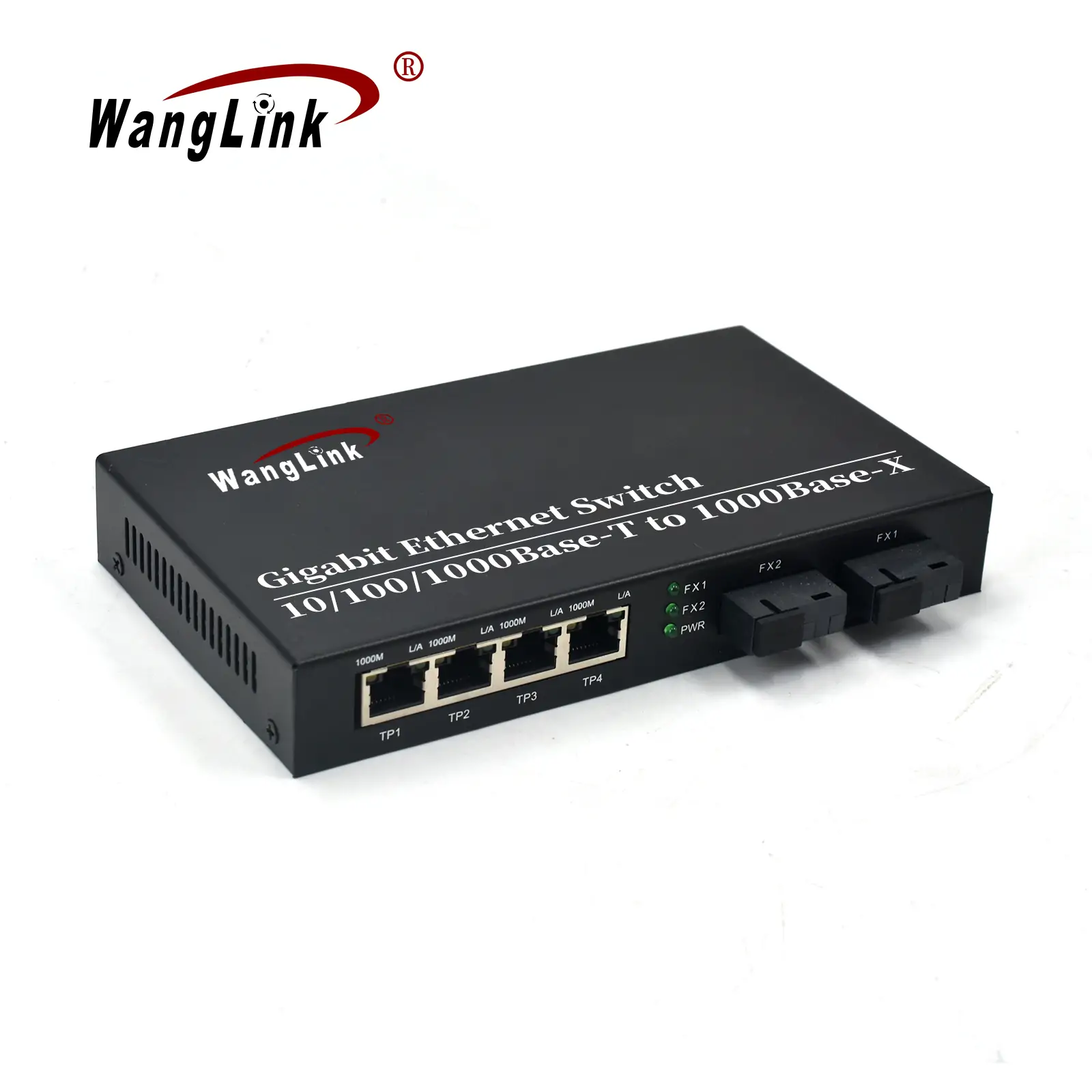

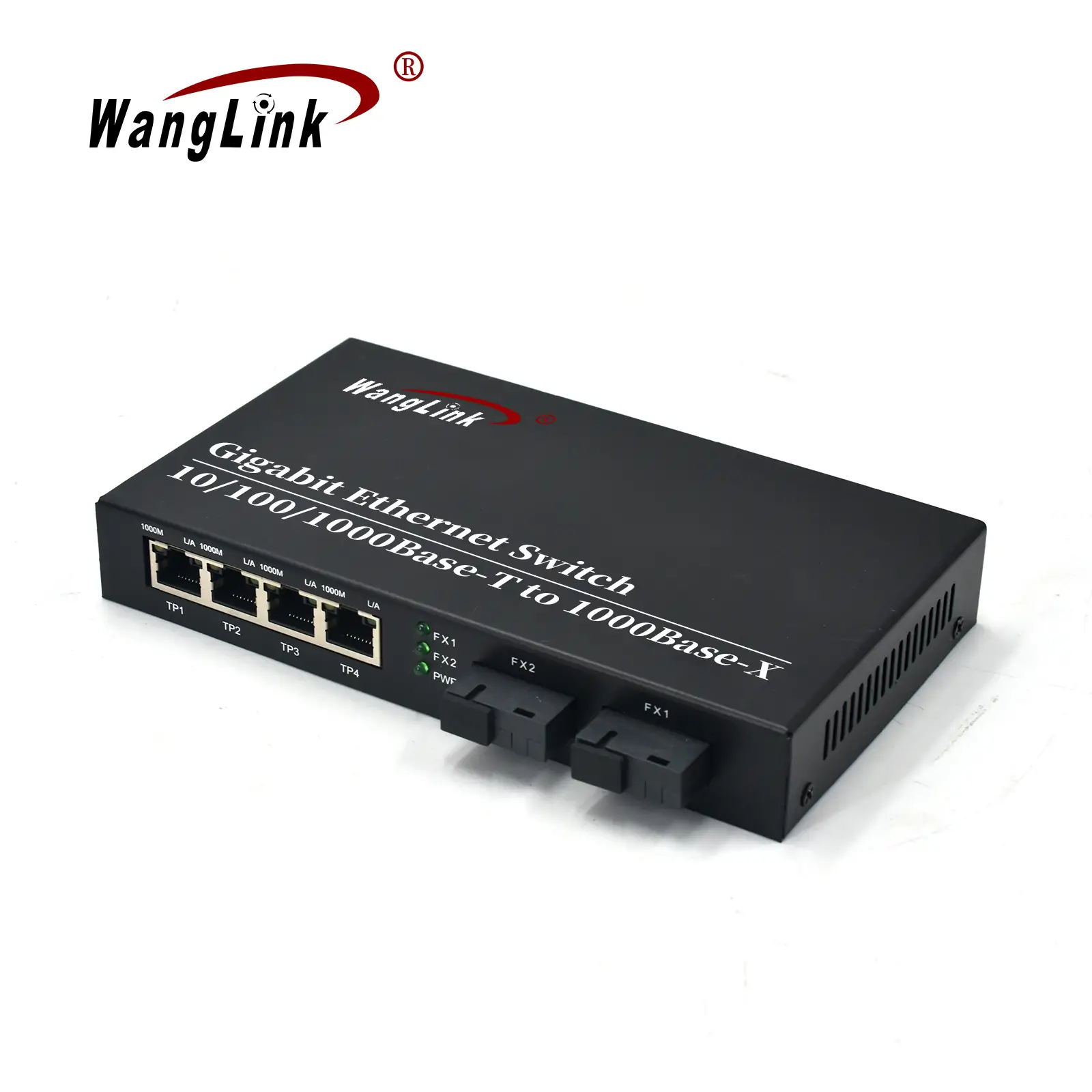

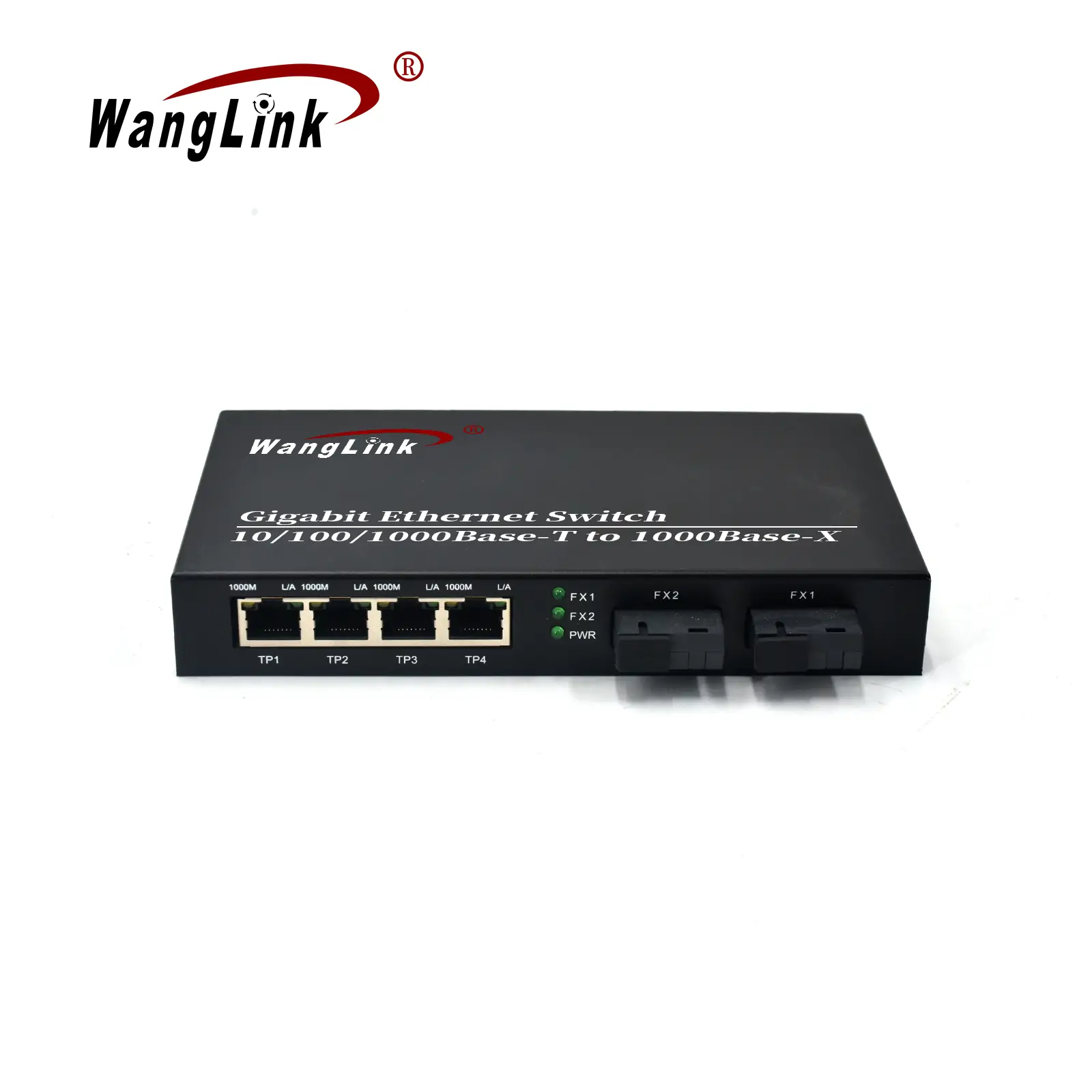

CG402 | 2 SFP/SC/FC/LC/ST Gigabit fiber media converter single mode with 4 RJ45

Explore the CG402 single mode fiber media converter, featuring 4 Ethernet ports and 2 SFP fiber ports, extending distances up to 120km with hassle-free plug-and-play installation.

Email:

Sample order

Product Overview

The CG402 is a reliable single mode fiber media converter designed to facilitate high-speed data communication. It features two 1.25Gbps SFP fiber ports and four 10/100/1000Mbps Ethernet ports, enabling seamless connectivity between 1000Base-T twisted-pair cables and 1000Base-SX/LX optical cables. This converter significantly extends the maximum transmission distance from 100 meters over twisted-pair cables to an impressive 120 kilometers when using optical fibers.

The CG402 is easy to install and operate, supporting plug-and-play functionality with no additional configuration required. All optical fiber and Ethernet port interfaces comply with international standards, ensuring broad compatibility. With features like isolation protection, excellent data security, stable operation, and minimal maintenance, the CG402 is ideally suited for a variety of commercial and industrial environments.

Key Features

  • Port Configuration:
    • 4 x 10/100/1000Base-T Ethernet ports
    • 2 x 1000Base-X fiber ports
  • Jumbo Frame Support: Capable of transmitting 10K jumbo frames for efficient data handling.
  • Adaptive Speed: All Ethernet ports support 10/100/1000Mbps adaptive speeds for flexible connectivity.
  • Duplex Capability: Supports half/full duplex mode with automatic MDI/MDI-X functionality for easy integration.
  • Wire-Speed Forwarding: All Ethernet ports support wire-speed forwarding, ensuring smoother and faster data transmission.
  • User-Friendly Design: Plug-and-play operation that requires no configuration for immediate use.
  • Durable Construction: Built with a metal housing that provides excellent heat dissipation, ensuring long-term stable operation.

Product Parameters

ProtocolStandardIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3x flow control
Ethernet port CharacteristicConnector TypeRJ45
Transmission rate10/100/1000M auto-negotiate;
Transmission distance10Base-T: ≤250m(CAT3,4,5 UTP)100Base-TX: ≤100m(CAT3,4,5 UTP)1000Base-T: ≤100m(CAT3,4,5 UTP
Fiber PortConnector TypeSFP
Transmission rate1.25Gbps
Transmission distance550m~100km
Exchange performanceForward methodStore-and-forward
MAC address table1K
Packet buffer1m
Jumbo frame10K
Packet forwarding rate8.928Mpps@64byte
Bandwidth12G(no)
IndicatorPower IndicatorPWR,Green
Fiber Port IndicatorSFP1/SFP2,Green
Link/Act IndicatorTP1/TP2/TP3/TP4,Green

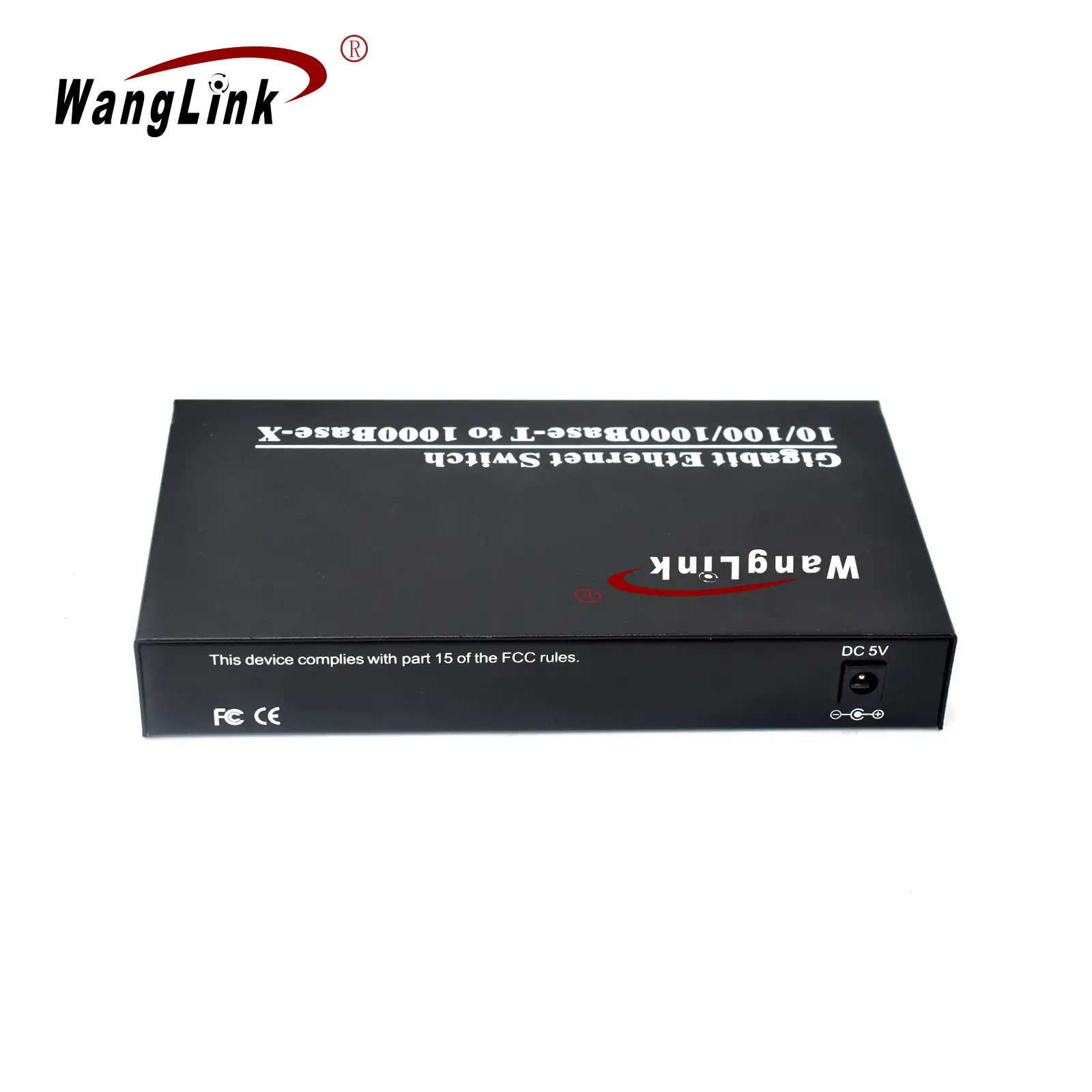

Power parametersInput voltageDC 5V-12V
Power consumption< 6w
EnvironmentOperating Temperature-20℃~60℃
Storage Temperature:-40℃~85℃
Operating Humidity5%~95% non-condensing
Heat dissipation methodNatural heat dissipation
Physical propertiesSize176×99×26mm
Weight0.4kg

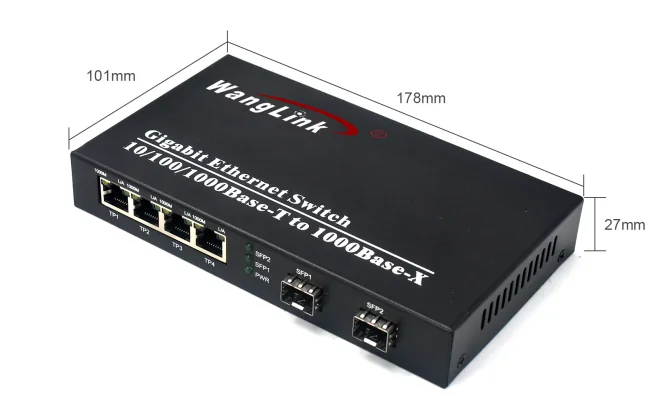

Product size

Product size: CG402 | 2 SFP/SC/FC/LC/ST Gigabit fiber media Konverter einzigen Modus 4 RJ45

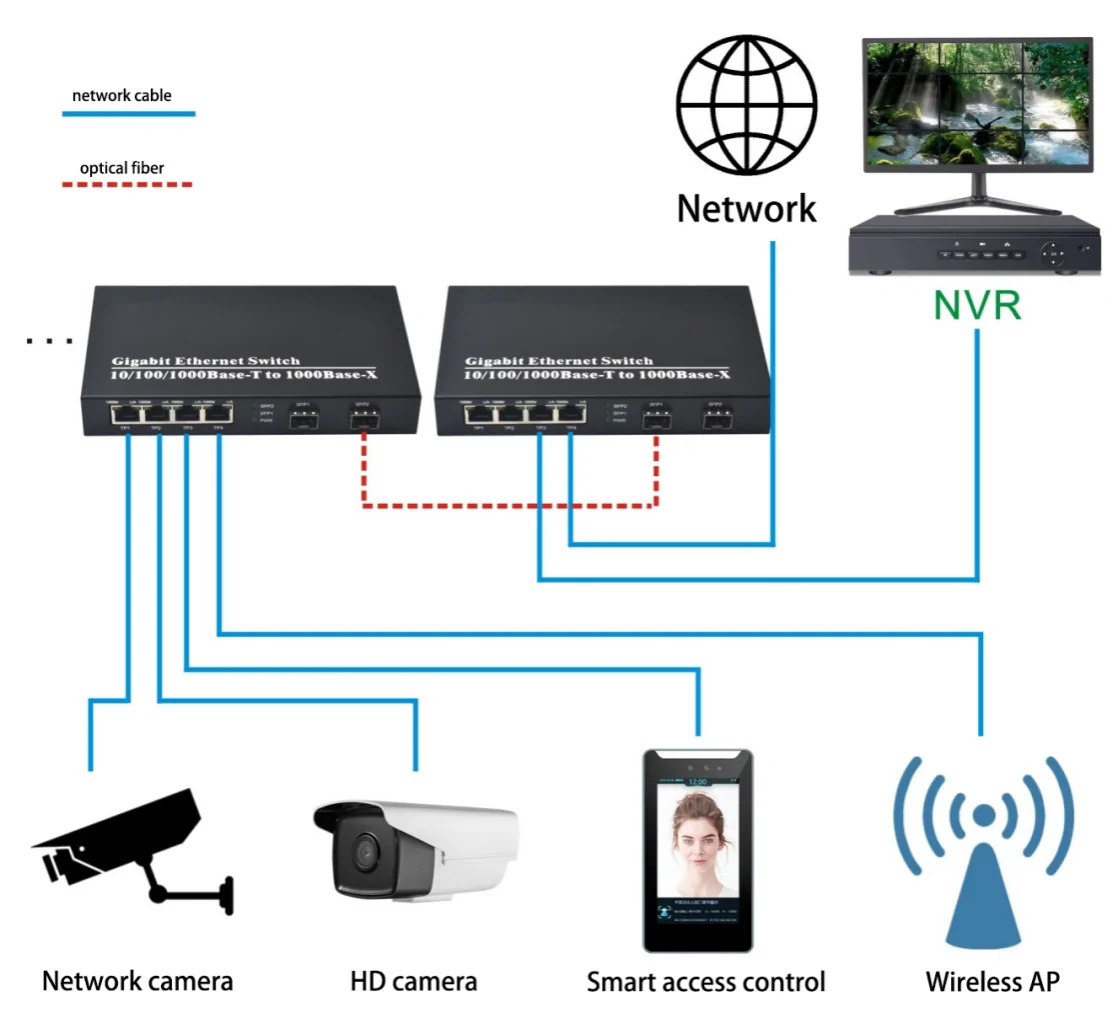

Application

Application: CG402 | 2 SFP/SC/FC/LC/ST Gigabit fiber media Konverter einzigen Modus 4 RJ45
Product size: CG402 | 2 SFP/SC/FC/LC/ST Gigabit fiber media Konverter einzigen Modus 4 RJ45
Application: CG402 | 2 SFP/SC/FC/LC/ST Gigabit fiber media Konverter einzigen Modus 4 RJ45
