CG801 | Gigabit ethernet media converter fiber 8 port 1 SFP/SC/LC/FC/ST

Discover the Ethernet Media Converter Fiber with 8 Ethernet ports and 1 fiber port, extending network reach up to 120km efficiently with plug-and-play convenience.

Email:

Sample order

Product Overview

The Ethernet Media Converter Fiber is a robust networking solution featuring one 1.25Gbps fiber optic port and eight 10/100/1000Mbps Ethernet ports. This device enables efficient data communication between 100Base-TX twisted pairs and 1000Base-FX optical cables. By utilizing fiber optic cable, it significantly expands the maximum transmission distance from the standard 100 meters to an impressive 120 kilometers. Designed for plug-and-play simplicity, this user-friendly media converter requires no additional configuration, and all its fiber optic ports meet international standards. With superior data confidentiality, reliable operation, and minimal maintenance, it is suitable for various commercial and industrial applications.

Key Features

  • 8 x 10/100/1000Base-T Ethernet Ports and 1 x 1000Base-X SC Fiber Port
  • Supports 9K jumbo frame transmission for enhanced data handling
  • Adaptive speeds on all Ethernet ports (10/100/1000Mbps)
  • All Ethernet ports support half/full duplex mode with auto MDI/MDI-X capability
  • Wire-speed forwarding on all Ethernet ports ensures smooth data transmission
  • Plug-and-play functionality for simple operation with no configuration required
  • Durable metal housing provides excellent heat dissipation for long-term stable operation

Product Parameters

Standards and protocolsIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE802.3x Flow control
Interface informationSingle-mode SC optical port: 1 1000Base-X optical port (SC/FC optional)
Transmission rate: 1.25G
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm
RJ45 network port: 8 10/100/1000M Base-T ethernet ports (standard RJ45)
10/100/1000Mbps adaptive
10Base-T: ≤100m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height): 244mm×106mm×28mm
Installation method: Desktop, wall-mounted
Heat dissipation method: natural cooling, no fan
Weight: <0.26KG
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 18.0Gbps
Packet forwarding rate (whole machine) : 13.392 Mpps
Exchange method: store-and-forward
MAC table : 1K
Packet buffer : 1m
Jumbo frame: 9k
Power supplyInput voltage: DC 5V-12V
Power consumption: < 3 W
IndicatorEthernet port: 100m: Green1000m: YellowLink/ Act: Green
Fiber port:FX: Green.
Power supply: Green

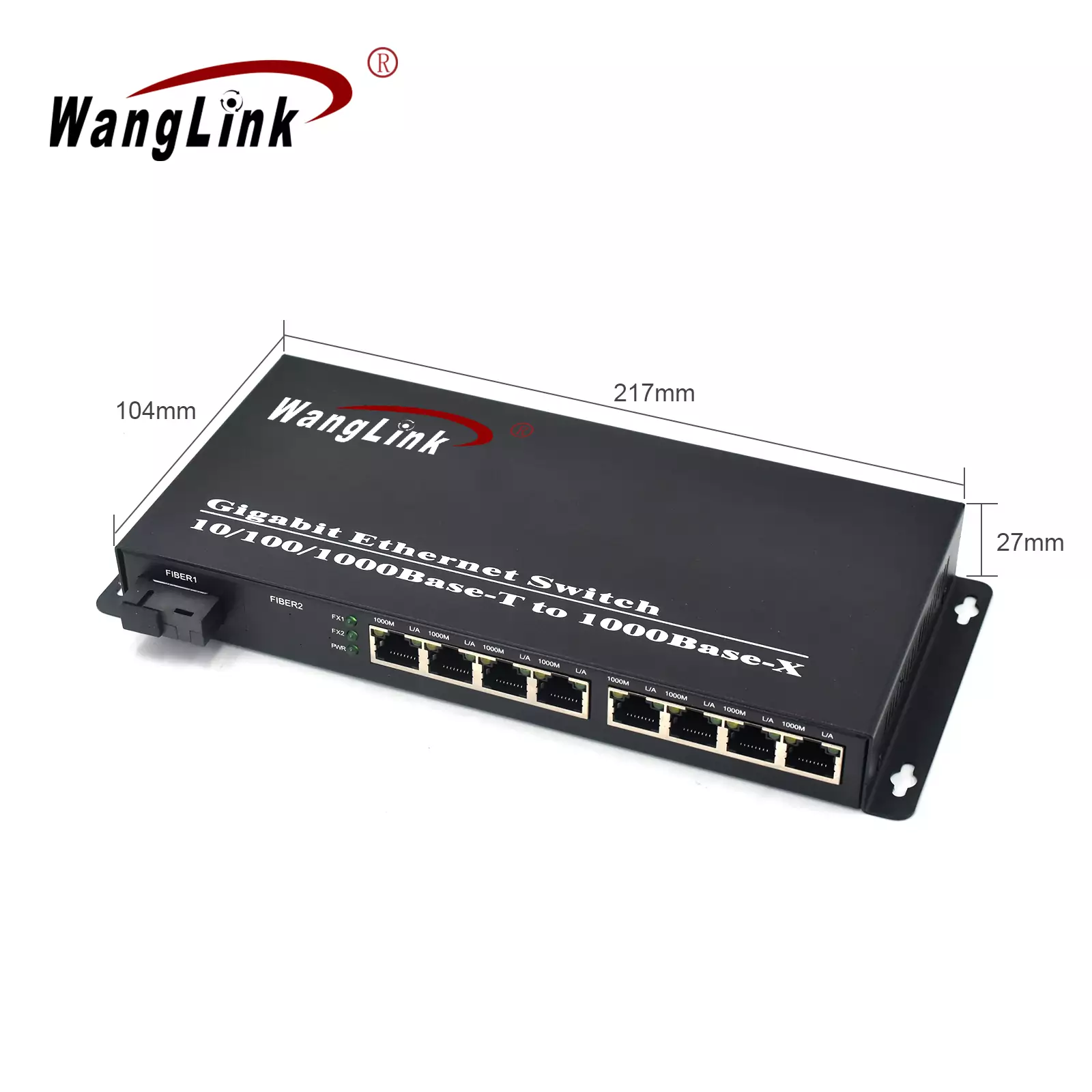

Product size

Product size: CG801 | Gigabit ethernet Medien Konverter fiber 8-port 1 SFP/SC/LC/FC/ST

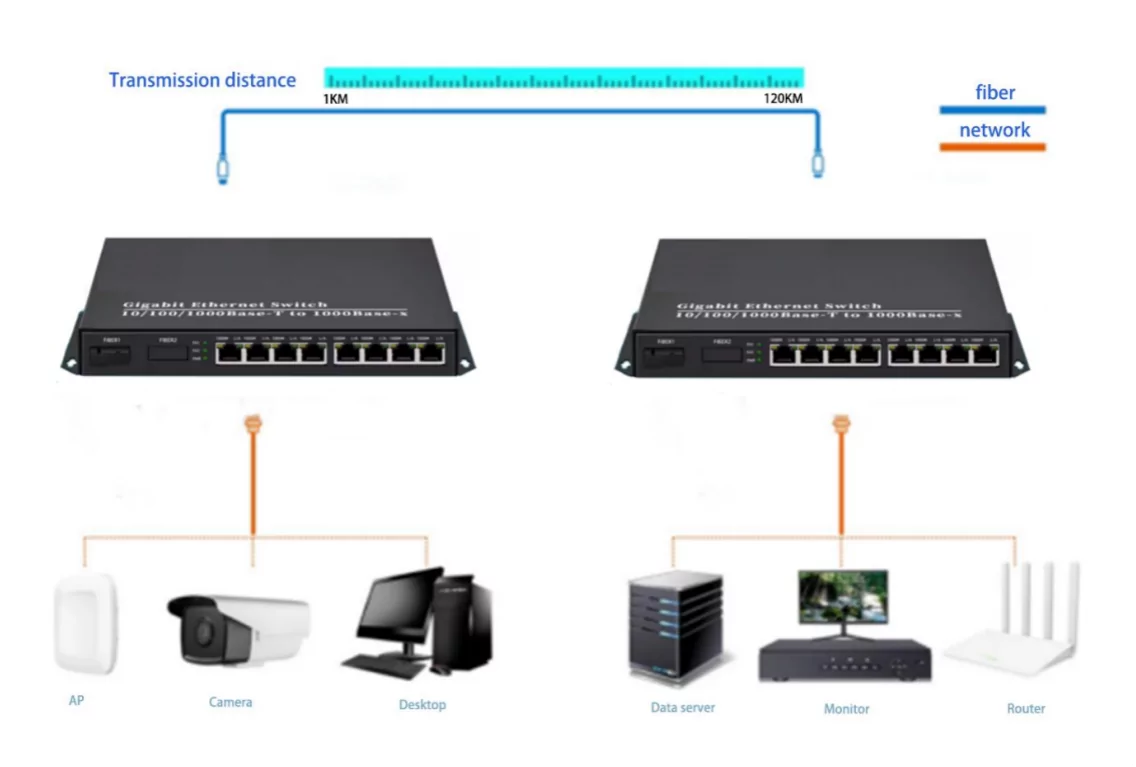

Application

Application: CG801 | Gigabit ethernet Medien Konverter fiber 8-port 1 SFP/SC/LC/FC/ST
Product size: CG801 | Gigabit ethernet Medien Konverter fiber 8-port 1 SFP/SC/LC/FC/ST
Application: CG801 | Gigabit ethernet Medien Konverter fiber 8-port 1 SFP/SC/LC/FC/ST
