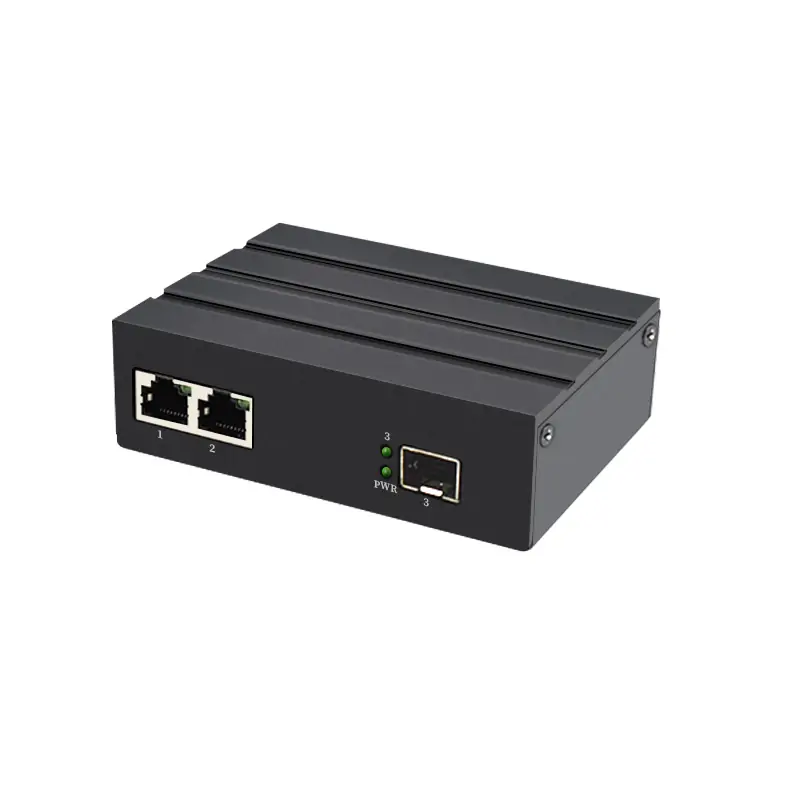

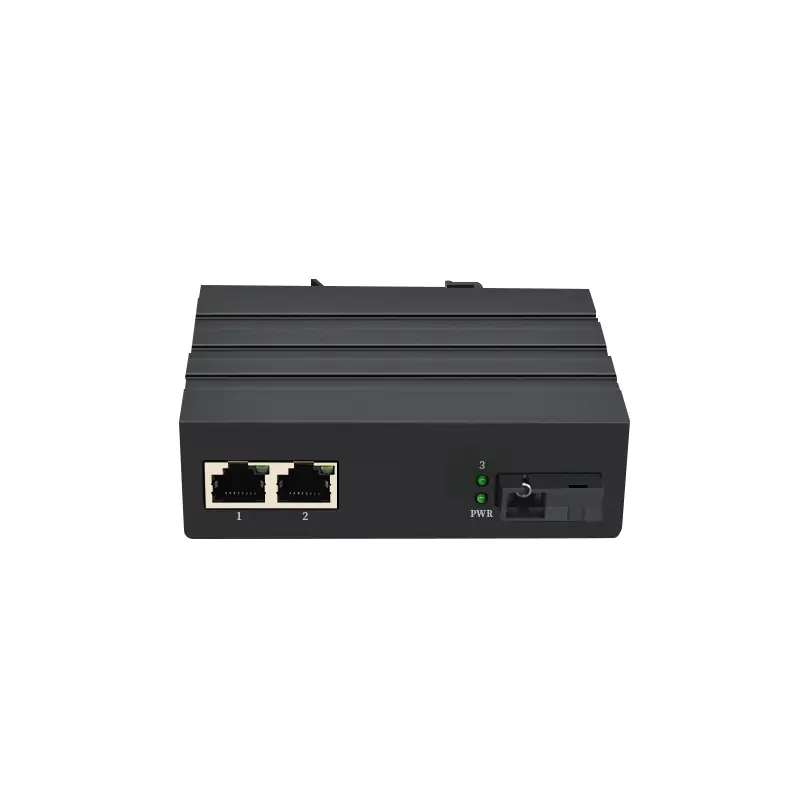

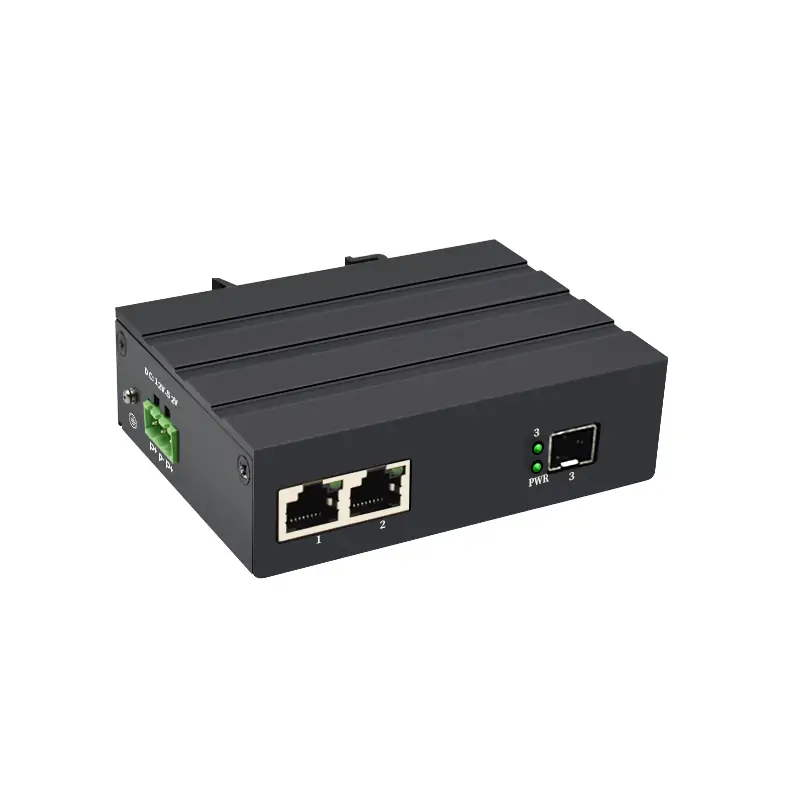

ISF201-1005 | Fast ethernet 3 port industrial ethernet switch 2 RJ45 1 SFP/SC/LC/FC/ST

Discover the ISF201-1005 3-port industrial Ethernet switch, designed for reliability in harsh environments, ideal for various industrial applications and IIoT solutions.

Email:

Sample order

Product Overview

The ISF201-1005 is a 3-port unmanaged industrial Ethernet switch designed for reliable performance in demanding environments. It features 2 x 10/100Base-TX RJ45 Ethernet ports and 1 x 100Base-SX/LX SC optical port, providing flexible networking capabilities. This switch is ideal for a wide range of industrial applications, including industrial control automation, road traffic management, building automation systems, and computer room monitoring. The ISF201-1005 operates stably and efficiently, making it an essential component for establishing a robust Industrial Internet of Things (IIoT) infrastructure.

Key Features

  • 2 x 10/100Base-TX RJ45 ports and 1 x 100Base-X optical port
  • Supports 10/100 Mbps speed adaptation
  • All ports support automatic half/full duplex negotiation and MDI/MDI-X functionality
  • High backplane bandwidth ensures line-speed forwarding on all ports
  • Broadcast storm suppression function enhances overall network stability
  • Equipped with a redundant DC power supply for enhanced reliability
  • IEC Class A electromagnetic protection level for superior EMC (electromagnetic compatibility)
  • Wide temperature range from -40°C to +85°C, ensuring adaptability in harsh environments

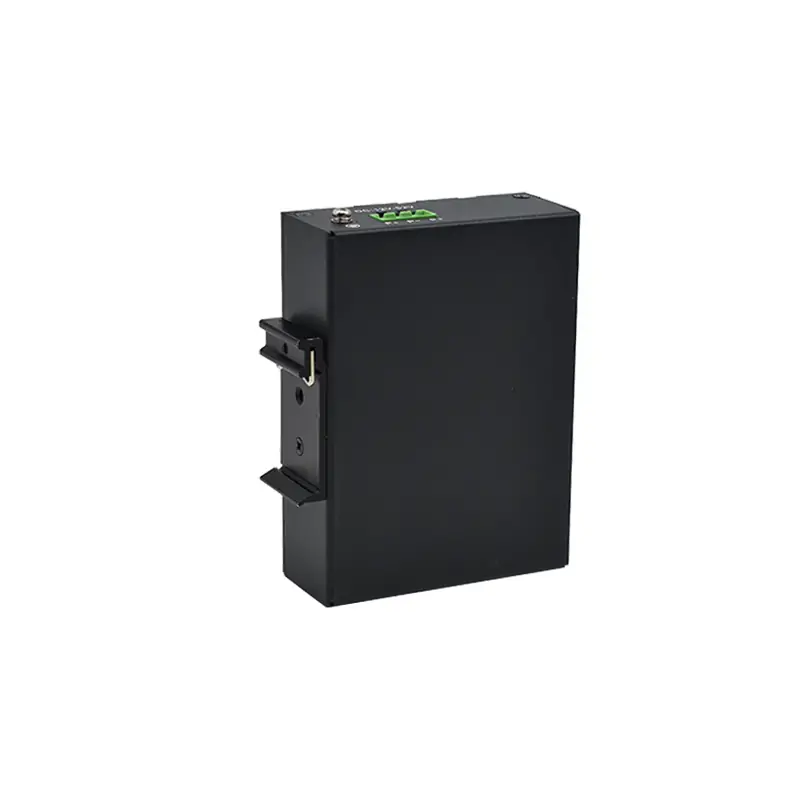

  • DIN rail type installation for easy mounting
  • IP40-rated protection with a robust, high-strength metal casing; fanless design for low power consumption

Product Parameters

Standards and protocolsIEEE802.310Base-T
IEEE802.3u100Base-TX
IEEE802.3z100Base-SX/LX standards
IEEE 802.3x flow control
Interface informationRJ45 port: 2 10/100M Base-T X port
Single-mode SC optical port: 1 100Base-X optical port
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height): 108 mm× 80 mm× 33 mm
Installation method: DIN rail type
Heat dissipation method: natural cooling, no fan
Weight: < 550 G
Environmental propertiesWorking temperature: -40 ℃ ~+ 85 ℃
Storage temperature: -40 ℃ ~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 1.5Gbps
Packet forwarding rate (whole machine) : 0.8 Mpps
Exchange method: store-and-forward
MAC table : 2K
Case space : 1mb
Power supplyInput voltage: DC 12 V-57V (dual redundant)
Power interface: 3- core Phoenix terminal
Power supply protection: positive and negative pole misconnection protection
Power consumption: < 5 W
indicator lightPort light (fluctuation switch control):Indicator light: 100M Link/ACT green;
Power light: green
      Security propertiesShell protection: IP40
Surge impact IEC61000-4-5 : (optional)Signal end: common mode ± 4KV, differential mode ± 2KVPower supply end: common mode ± 4KV, differential mode ± 2KV
Anti-static interference IEC61000-4-2 : contact discharge ± 8KV, air discharge ± 15KV
Pulse immunity IEC61000-4-4 : signal terminal: ± 2KV, power terminal: ± 2KV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
MTBF: 100000 hours
warranty period5 years

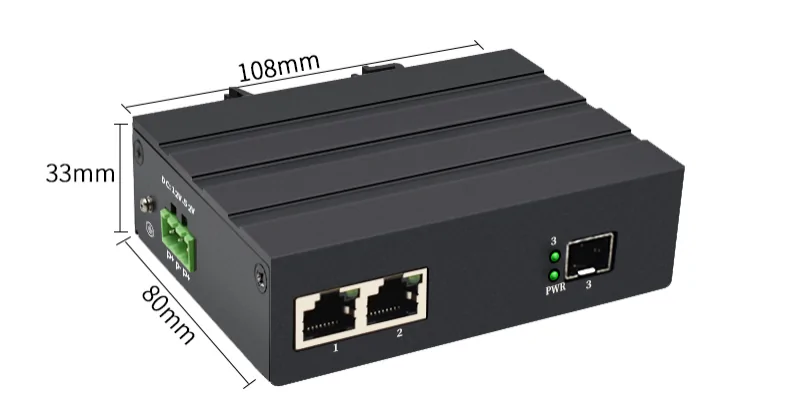

Product size

Product size: ISF201-1005 | Fast ethernet 3 port industrial ethernet switch 1 SFP 2 RJ45/SC/LC/FC/ST

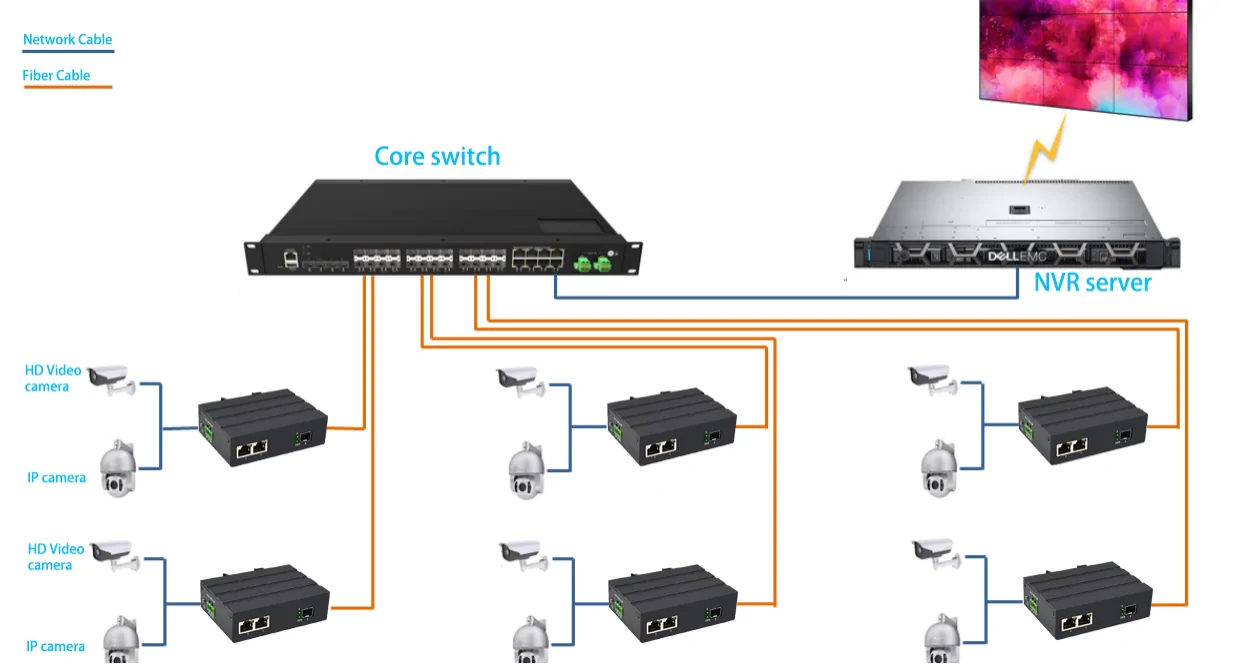

Application

Application: ISF201-1005 | Fast ethernet 3 port industrial ethernet switch 1 SFP 2 RJ45/SC/LC/FC/ST
Product size: ISF201-1005 | Fast ethernet 3 port industrial ethernet switch 1 SFP 2 RJ45/SC/LC/FC/ST
Application: ISF201-1005 | Fast ethernet 3 port industrial ethernet switch 1 SFP 2 RJ45/SC/LC/FC/ST
