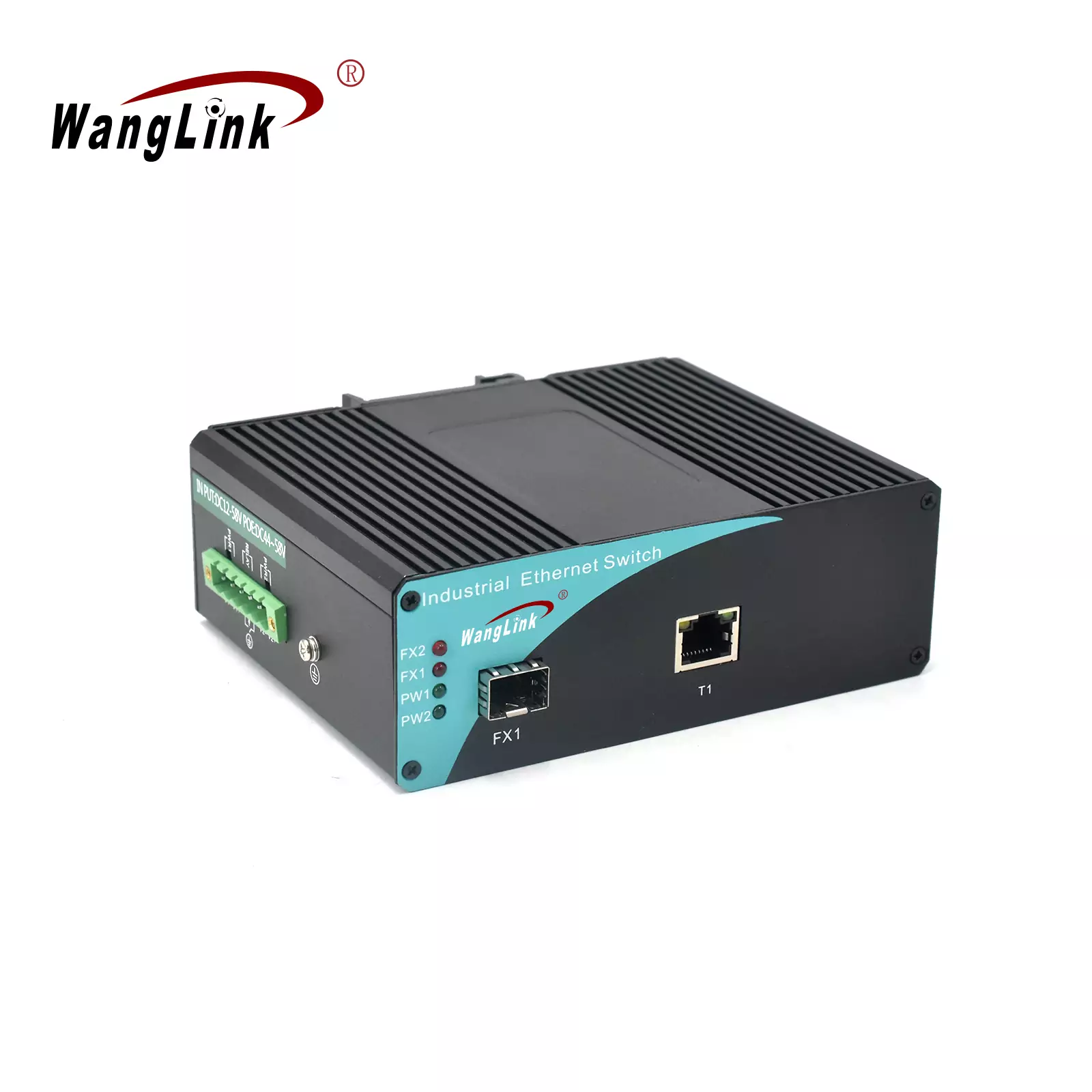

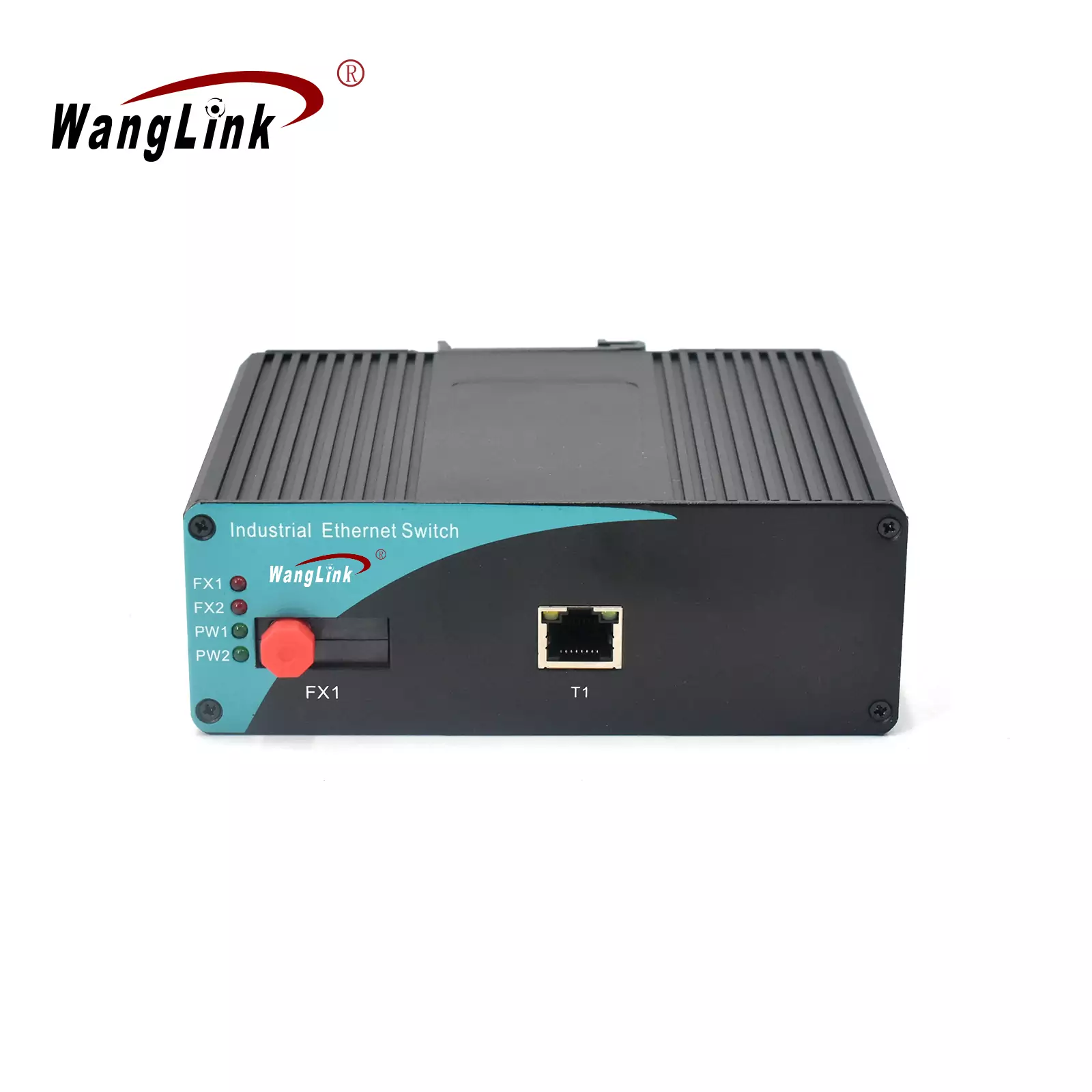

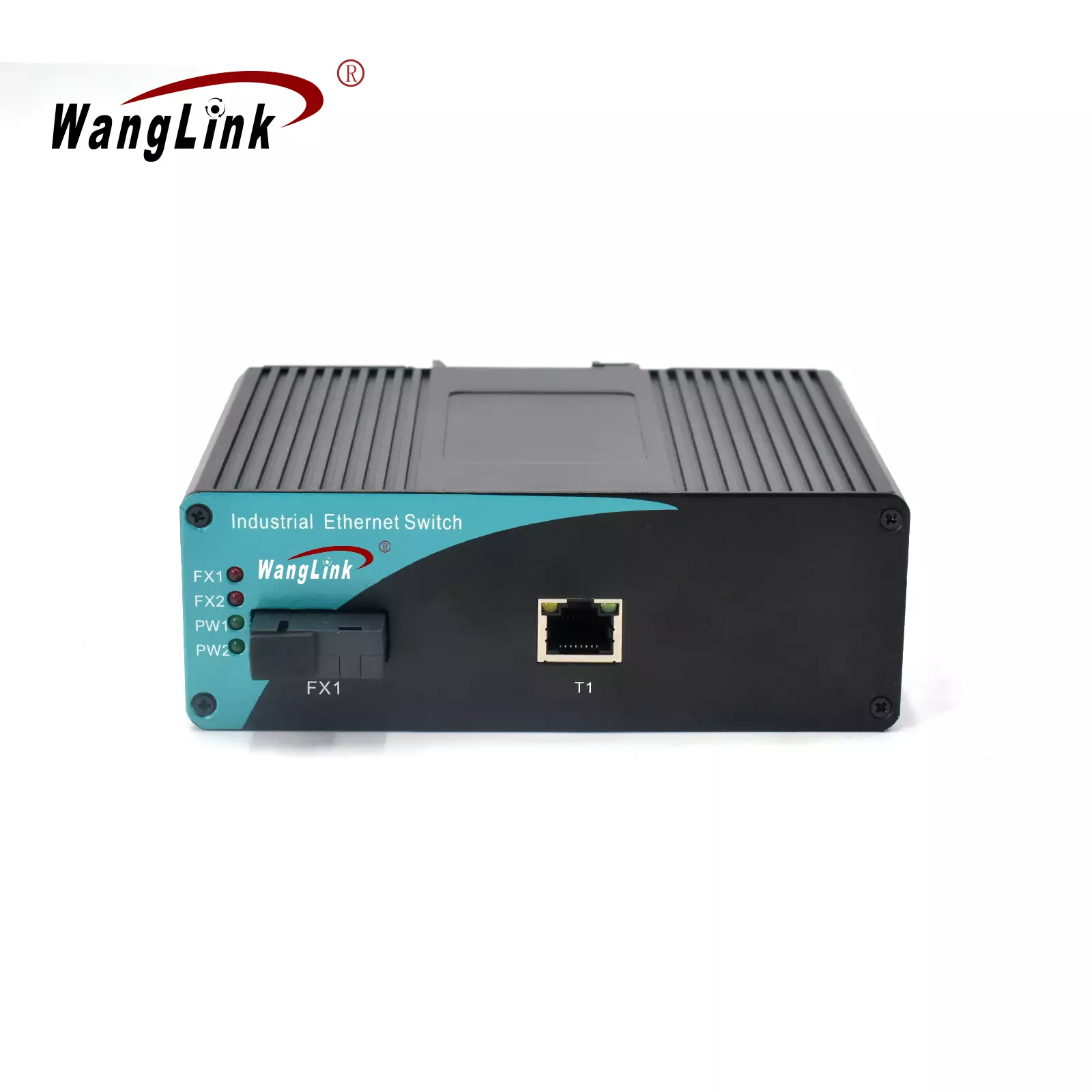

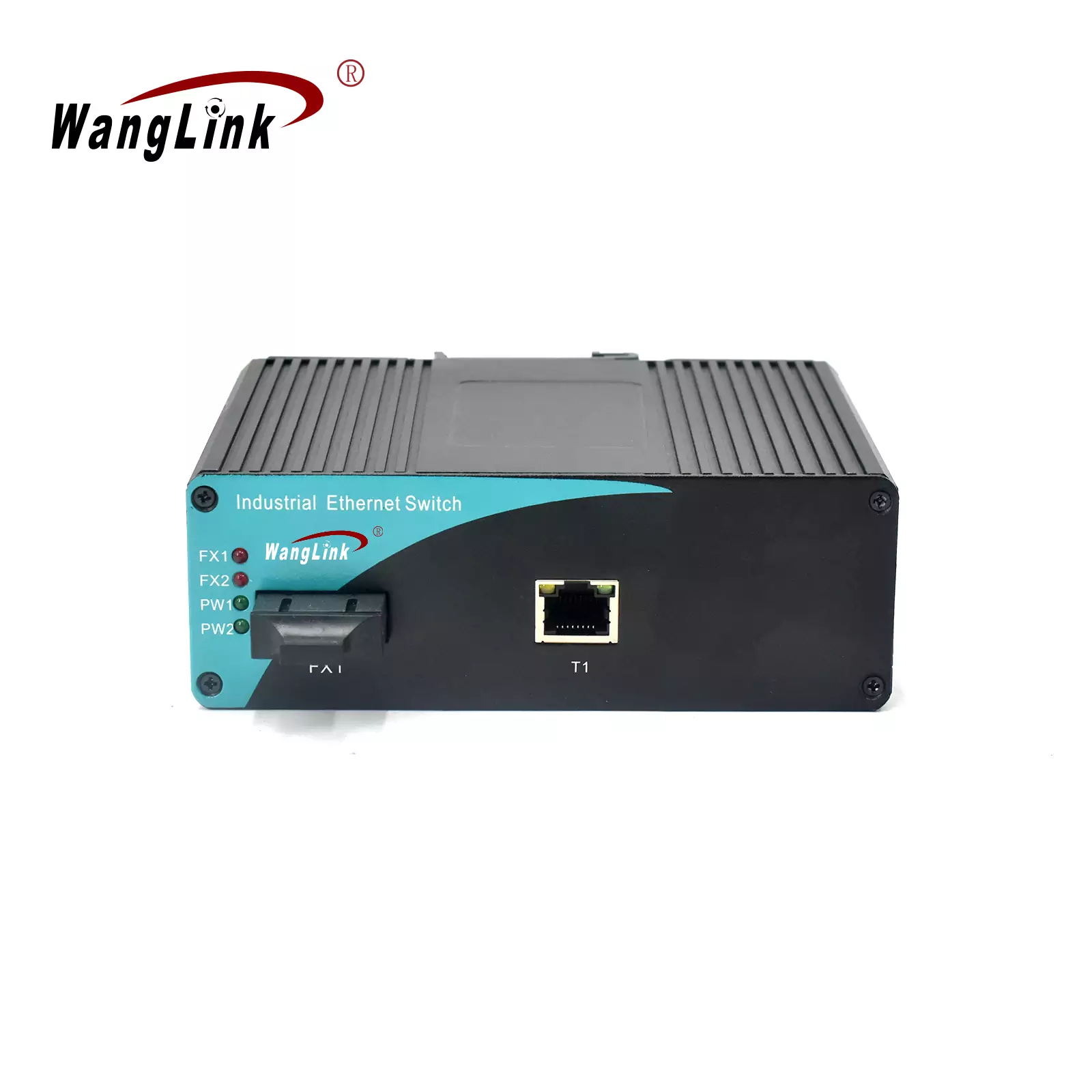

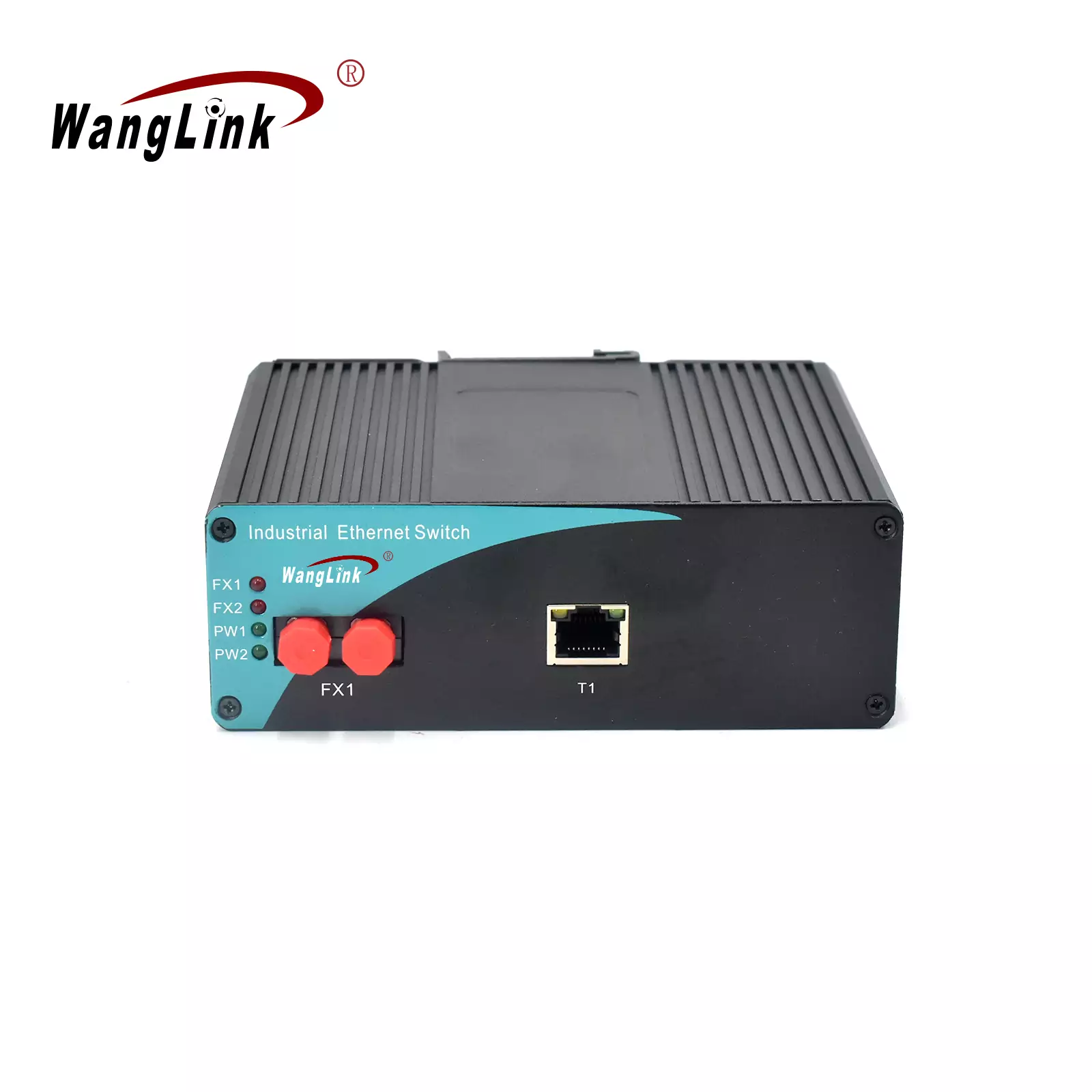

ISG101 | Gigabit unmanaged switch ethernet industrial 1 Port 1 SFP/SC/LC/FC/ST

Discover our industrial-grade Gigabit optical fiber media converter, featuring dual ports, robust protection, wide temperature range, and reliable performance for industrial applications. Perfect for harsh environments and easy to operate.

Email:

Sample order

Product Overview

The Gigabit industrial-grade optical fiber media converter is an unmanaged industrial Ethernet switch designed for robust performance in challenging environments. It features 1 10/100/1000Base-T RJ45 port and 1 1000Base-X SC optical fiber port, utilizing advanced switching and store-and-forward technologies for seamless data transmission between different network media. This switch is built to withstand harsh conditions, making it ideal for applications in industrial control automation, traffic management, building automation systems, and computer room monitoring.

Key Features

  • Dual Port Configuration: 1 x 10/100/1000Base-T Ethernet port and 1 x 1000Base-X Fiber port for versatile connectivity.
  • Adaptive Performance: All RJ45 ports support 10/100/1000Mbps rate adaptation, half/full duplex, and automatic MDI/MDI-X functions.
  • Reliable Data Transmission: Line-speed forwarding ensures smooth data transfer across all RJ45 ports.
  • Enhanced Protection: Equipped with imported lightning protection devices to guard against surges and induced high voltage.
  • Wide Operating Temperature: Designed to operate in extreme temperatures ranging from -45℃ to +85℃.
  • Redundant Power Supply: Supports dual redundant power supply with overload and reverse connection protection for enhanced reliability.
  • User-Friendly Design: Plug and play functionality requires no configuration, ensuring easy operation.
  • Durable Construction: IP40 protection level with a corrugated high-strength metal casing, fanless design, and low power consumption.
  • High Electromagnetic Compatibility: Complies with IEC Class A electromagnetic protection standards for superior EMC performance.

Product Parameters

Standards and protocolsIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3x flow control
Interface informationSingle-mode SC optical fiber port: 1 1000Base-X fiber port (SC/FC/SFP optional)
Transmission rate: 1.25G
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm
RJ45 network port: 1 10/100/1000M Base-T ethernet port (standard RJ45)
10/100/1000Mbps adaptive
10Base-T: ≤100m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height): 139mm×108mm×50mm
Installation method: DIN rail type
Heat dissipation method: natural cooling, no fan
Weight: < 0.6kg
Environmental propertiesWorking temperature: -45 ℃ ~+ 85 ℃
Storage temperature: -45 ℃ ~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 10Gbps
Packet forwarding rate (whole machine) : 7.44 Mpps
Exchange method: store-and-forward
MAC table : 1K
Case space : 1M
Jumbo Frame: 10K
Power supplyInput voltage: DC 12 V-58V (dual redundant)
Power interface: 6- core Phoenix terminal
Power supply protection: positive and negative pole misconnection protection
Power consumption: < 5 W
IndicatorEthernet Port:Indicator: 1000M Link/ACT yellow;Indicator: 100M Link/ACT green;
Fiber port Indicator: Red
Power supply indicator: Green
Security propertiesShell protection: IP40
Surge impact IEC61000-4-5:Signal end: common mode ±4KV, differential mode ±2KV;Power supply end: common mode ±4KV, differential mode ±2KV
Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV
Pulse immunity IEC61000-4-4: signal terminal: ±2KV, power terminal: ±2KV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
MTBF: 300000 hours
warranty period3 years

Product size

Product size: ISG101 | Gigabit unmanaged switch ethernet industrial 1-Port 1 SFP/SC/LC/FC/ST

Application

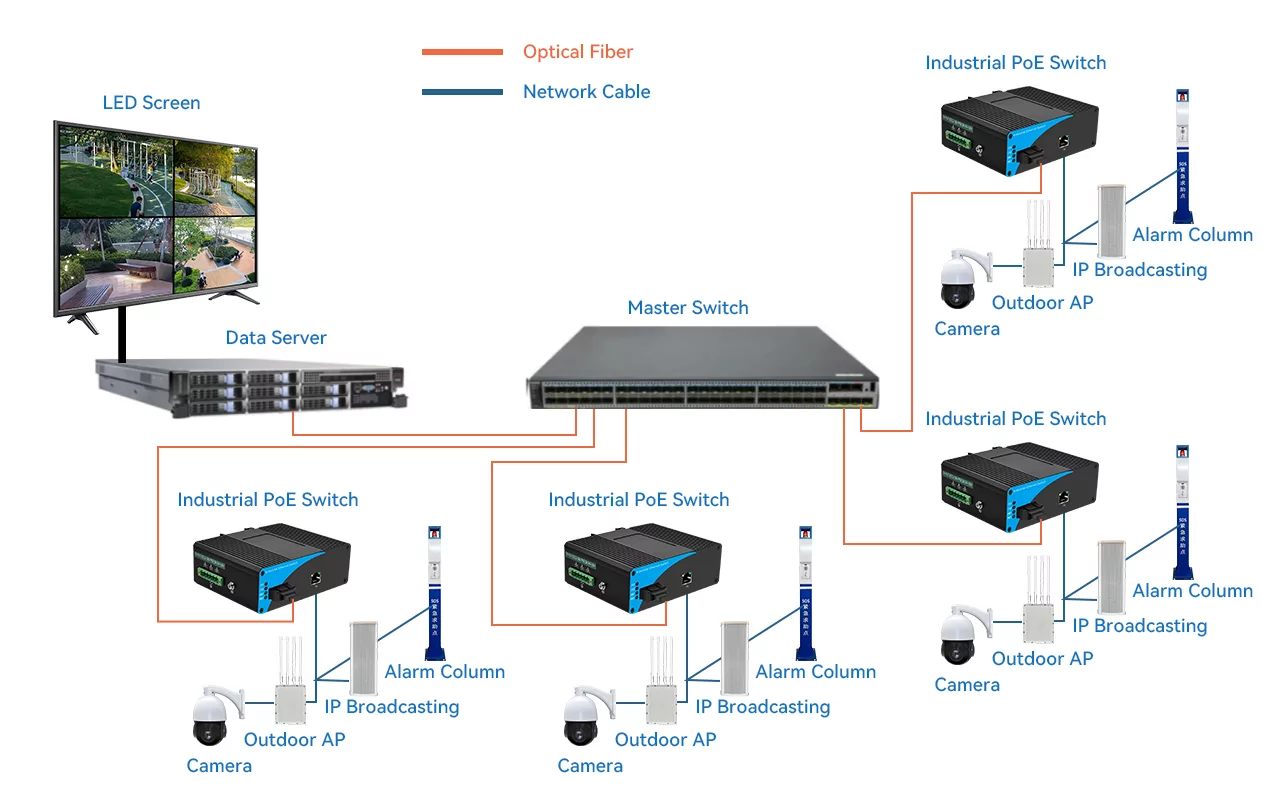

Application: ISG101 | Gigabit unmanaged switch ethernet industrial 1-Port 1 SFP/SC/LC/FC/ST
Product size: ISG101 | Gigabit unmanaged switch ethernet industrial 1-Port 1 SFP/SC/LC/FC/ST
Application: ISG101 | Gigabit unmanaged switch ethernet industrial 1-Port 1 SFP/SC/LC/FC/ST
