ISG1602P | Industrial PoE Switch 16 Port 2 SFP/SC/LC/FC/ST

Discover the Industrial PoE Switch 16 Port, designed for harsh environments with robust PoE support, dual fiber ports, and a wide temperature range. Ideal for unmanaged Ethernet network switches and industrial automation applications.

Email:

Sample order

Product Overview

Introducing the Industrial PoE Switch 16 Port, specifically engineered for harsh industrial environments. This robust switch features two 1.25G SC fiber ports and sixteen 10/100/1000Mbps Ethernet ports. All Ethernet ports support the IEEE802.3 af/at PoE power supply standard, providing a maximum of 25.4W per port. The switch automatically detects whether connected devices support PoE, ensuring safe operation by supplying power only to compliant devices and preventing damage to non-PoE equipment.

Designed to meet industrial-grade standards, this switch supports dual redundant power supplies and is equipped with dustproof, moisture-proof, lightning protection, and high/low-temperature resistance features. With an average mean time between failures (MTBF) of 100,000 hours, it is highly reliable and efficient, making it ideal for applications such as industrial automation, road traffic control, building automation systems, and data center monitoring. This Industrial PoE Switch 16 Port ensures stable and reliable operation even in challenging conditions, making it perfect for building a resilient industrial IoT network.

Key Features

  • Ports: 16 x 10/100/1000Base-T Ethernet ports and 2 x 1000Base-X SFP fiber ports.
  • PoE Support: 16 x RJ45 Ethernet ports supporting IEEE802.3 af/at PoE standards, with a maximum output power of 25.4W per port.
  • Adaptive Rate: All Ethernet ports support 10/100/1000Mbps adaptive rate.
  • Duplex Mode: All Ethernet ports support half/full duplex adaptive mode and automatic MDI/MDI-X functionality.
  • Line-Speed Forwarding: Ensures smooth data transmission.
  • Surge Protection: Equipped with imported surge protection devices to withstand lightning strikes and high voltage surges.
  • Wide Temperature Range: Operates in temperatures from -40°C to +75°C, suitable for various harsh environments.
  • Power Supply: Supports dual redundant power supply, overload protection, and reverse polarity protection.
  • User-Friendly: Plug-and-play design requires no configuration.
  • Durability: IP40 protection level with a corrugated high-strength metal casing, fanless design, and low power consumption.
  • EMC Compliance: IEC Class A electromagnetic protection level for high EMC compatibility.

Product Parameters

ItemsSpercifiactions
Standard & ProtocolIEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE802.3ab 1000Base-TIEEE802.3z 1000Base-SX/LX standardsIEEE 802.3af/at Power Over EthernetIEEE 802.3x flow control
InterfaceSingle mode SFP fiber port: 2*1000Base-X fiber port
Transmission rate: 1.25G
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm
RJ45 network port: 16 10/100/1000M Base-T network ports (standard RJ45)
10/100/1000Mbps adaptive
10Base-T: ≤100m (CAT3,4,5 UTP)
 100Base-TX: ≤100m (CAT3,4,5 UTP)
 1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance size (length * depth * height): 165mm × 140mm × 45mm
Installation method: DIN rail type
Heat dissipation method: natural cooling, no fan
Weight: <0.6KG
Environment propertiesWorking temperature: -40℃~+75℃
Storage temperature: -45℃~+85℃
Relative humidity: 5%~95% (non-condensing)
Exchange attributesBandwidth: 56Gbps
Packet forwarding rate (whole machine): 41.664Mpps
Switching mode: store-and-forward
MAC table: 8K
Packet buffer: 4M
Jumbo frame: 10K
Power RequirementsInput voltage: DC44V-58V (dual redundancy)
Power interface: 6-core Phoenix terminal
Power protection: positive and negative polarity misconnection protection
Minimum power consumption: < 5W, maximum power consumption: < 480W
POE PIN802.3AF/AT(1/2+,3/6-)
IndicatorNetwork port light (dip switch control):Indicator light: green (POE/100/1000M);
Optical port indicator light: green
Power light: green
Security attributesHousing protection: IP40
Surge impact IEC61000-4-5:
Signal end: common mode ±4KV, differential mode ±2KV
Power end: common mode ±4KV, differential mode ±2KV
Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV
Pulse immunity IEC61000-4-4: signal end: ±2KV, power end: ±2KV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32

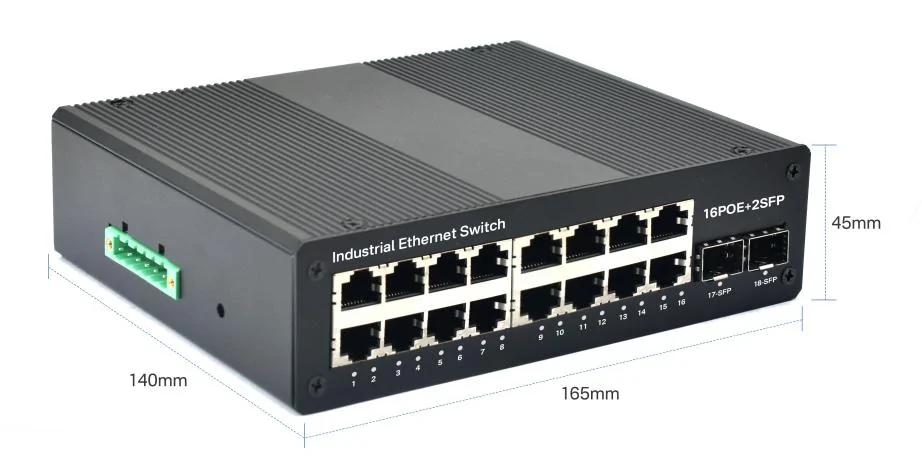

Product size

Product size: ISG1602P | Industrial PoE Switch 16 Port 2 SFP – /SC/LC/FC/ST

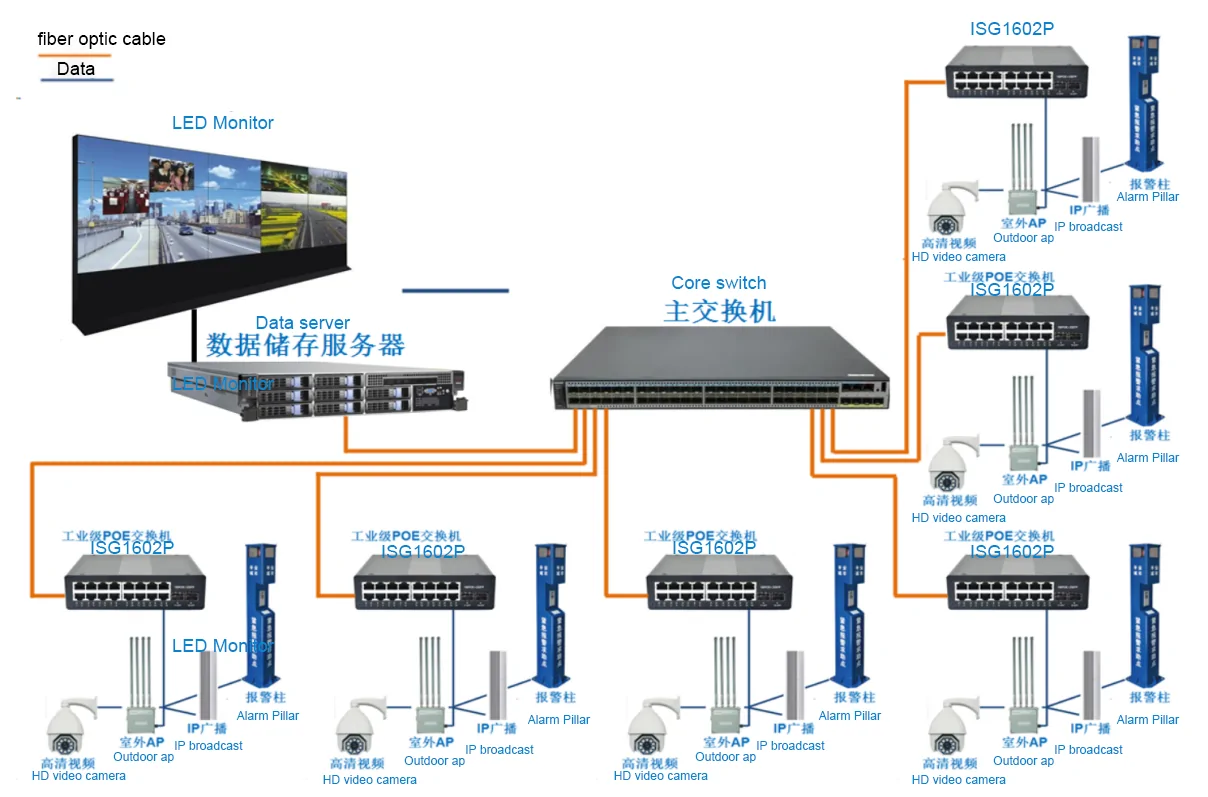

Application

Application: ISG1602P | Industrial PoE Switch 16 Port 2 SFP – /SC/LC/FC/ST
Product size: ISG1602P | Industrial PoE Switch 16 Port 2 SFP – /SC/LC/FC/ST
Application: ISG1602P | Industrial PoE Switch 16 Port 2 SFP – /SC/LC/FC/ST
