Product Overview

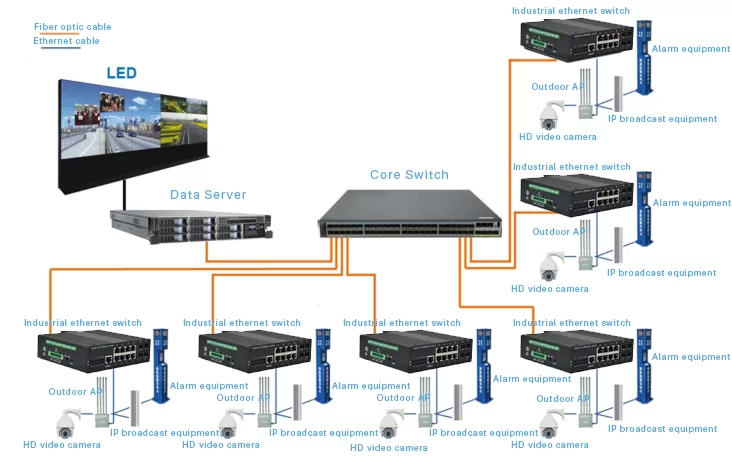

Introducing our industrial managed PoE Ethernet switch, designed for exceptional performance in demanding environments. This robust switch features 8 x 10/100/1000Base-T RJ45 Ethernet ports and 4 x 1000M SFP optical ports. The 8 Ethernet ports support the IEEE 802.3 af/at PoE standard, delivering up to 25.4W of power per port. Engineered for durability, this switch is ideal for installation in compact control boxes and can withstand harsh operational conditions. Its versatile hardware and software capabilities allow flexible networking, making it suitable for various industrial applications, including control automation, road traffic systems, building automation, and data center monitoring. This switch ensures stable, reliable, and efficient operations, creating a rock-solid foundation for your Industrial Internet of Things (IIoT) infrastructure.
Key Features
- Port Configuration: 8 x 10/100/1000Base-T RJ45 ports and 4 x 1000Base-X SFP optical ports.
- POE Support: Compliant with IEEE 802.3 af/at standards, delivering power through RJ45 ports.
- Buffer Capacity: Supports a 4.1M port cache to avoid video storage congestion.
- Intelligent PoE: Features smart power supply strategies and scheduled power options for efficient energy management.
- Data Control: Utilizes 802.3X full-duplex flow control and incorporates network storm suppression to maintain performance.
- Redundant Networking: Supports STP/RSTP/MSTP protocols and industrial ERPS ring network functionality to enhance network stability.
- Multicast Management: Implement IGMP Snooping V1/V2/V3 for efficient multicast traffic management.
- VLAN Support: Compliant with IEEE 802.1Q VLAN for effective broadcast domain isolation.
- Quality of Service (QoS): Supports COS/DSCP with 4 priority queues and WRR/SP scheduling modes.
- Security Management: Includes ACL access control lists, 802.1X authentication, and tiered user management.
- Management Options: Manageable via CLI, WEB, and SNMP for flexibility and ease of use.
- Monitoring and Maintenance: Features port mirroring, interface status monitoring, and log management for comprehensive oversight.
- Wide Temperature Range: Operates effectively in temperatures ranging from -40℃ to +75℃, ensuring reliability in harsh environments.
- IP40 Protection: Built with a durable corrugated metal casing; fanless design for low power consumption.
- Electromagnetic Compatibility: Meets IEC Class A for high electromagnetic interference (EMI) protection.
Product Parameters
| Standards & Protocol | 10Base-T, compliant with IEEE 802.3100Base-TX, compliant with IEEE 802.3u1000Base-T, compliant with IEEE 802.3ab1000Base-X, compliant with IEEE 802.3zFlow control, following IEEE 802.3xEnvironmentally friendly, compliant with IEEE 802.3azPOE, comply with IEEE 802.3af/at |
| Interface information | SFP: 4 1000Base-X（compatible with 100M) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multimode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 8 10/100/1000M Base-T ethernet ports (standard RJ45) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Reset interface | Reset button |
| Fluctuation switch | 1 indicator light fluctuation switch (2nd gear: DATA, POE) |
| Mechanical properties | Shell material: metal shell |

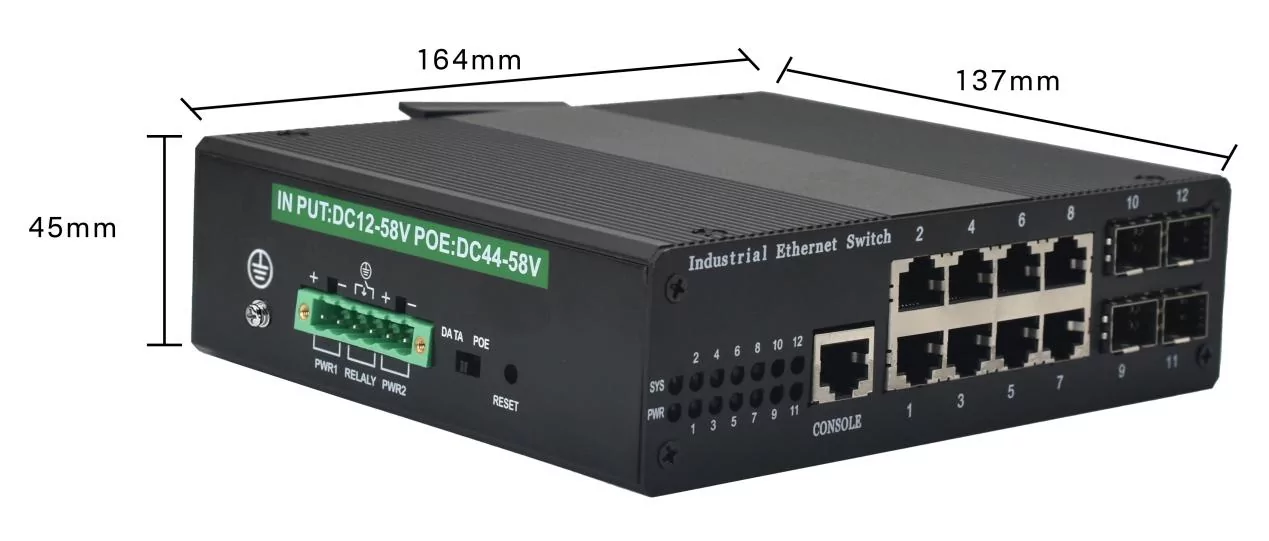

| Appearance dimensions (length*depth*height): 164mm×137mm×45mm | |
| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <1.5KG | |
| Environmental properties | Working temperature: -40℃～+75℃ |
| Storage temperature: -40℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 24Gbps |
| Packet forwarding rate (whole machine) : 18Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 4.1m | |
| Power supply | Input voltage: DC 44V-58V |
| Power interface: 6-core Phoenix terminal | |
| Power supply protection: positive and negative pole misconnection protection | |
| Power consumption: < 10 W | |
| PoE | 802.3AF/AT(1/2+，3/6-) |
| Indicator | Port indicator(fluctuation switch control):When Switch Point to Data : 10/100M Link/ACT yellow, 1000M Link/ACT green;When Switch Point to PoE: PoE yellow |
| Power supply: Green | |
| System: Green | |
| Security properties | Shell protection: IP40 |
| Surge impact IEC61000-4-5 (optional):Signal end: common mode ±4KV, differential mode ±2KVPower supply end: common mode ±4KV, differential mode ±2KV | |
| Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
| Pulse immunity IEC61000-4-4: signal terminal: ±2KV, power terminal: ±2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 100000 hours | |
| Warranty | 3 years |
Software features
| Monitoring function | Information such as device model, serial number, MAC, hardware version, software version, system time, running time, CPU utilization, memory utilization, etc. can be viewed |
| Support port statistics | |
| VLAN function | Support management VLAN |
| Support management IP configuration | |
| Support port VLAN | |
| Supports VLANs for IP subnets | |
| Support MAC VLAN | |
| Support Voice VLAN | |
| Support GVRP | |
| Port function | Support port configuration |
| Support port aggregation | |
| Support port mirroring | |
| Support port speed limit | |
| Support port isolation | |
| Support port energy saving | |
| POE function | Support POE power supply |
| Support POE power supply priority | |
| Support POE total power setting | |
| Support POE timing strategy | |
| Support POE intelligent power supply strategy | |
| Scene function | Support MAC configuration (static binding and dynamic binding) |
| Support DHCP Snooping | |
| Support IGMP-Snooping, MLD Snooping | |
| Support LLDP configuration | |
| Support QOS configuration | |
| Support Jumbo Frame | |
| security function | Support ARP configuration |
| Support storm control | |
| Support ACL (based on IP, MAC, time) | |
| Support attack prevention (DOS, Icmp-echo) | |
| Support DHCP Snooping | |
| Support 802.1X | |
| Support Radius authentication | |
| Ring network function | Support STP |
| Support RSTP | |
| Support MSTP | |
| Support ERPS | |
| Troubleshooting function | Support loop protection |
| Support log management | |
| Support Ping detection | |
| Support traceroute | |
| Support line detection | |
| Device management function | Support HTTP/HTTPS |
| Support TELNET | |
| Support SNMP | |
| Support RMON | |
| Equipment maintenance function | Support system time (local and NTP) |
| Support account management (hierarchical management of accounts and password protection) | |
| Support configuration management (configuration import, export, restore factory settings) | |
| Support system upgrade | |
| Support device restart |
