Product Overview
The SG16-MINI is a 16-port unmanaged Gigabit Ethernet switch designed for efficient network management. This switch features high-quality, high-speed network ICs and a fanless, silent design that effectively eliminates noise, making it ideal for office environments. With 16 RJ45 ports supporting 10/100/1000M Ethernet, it provides seamless connectivity for various applications.

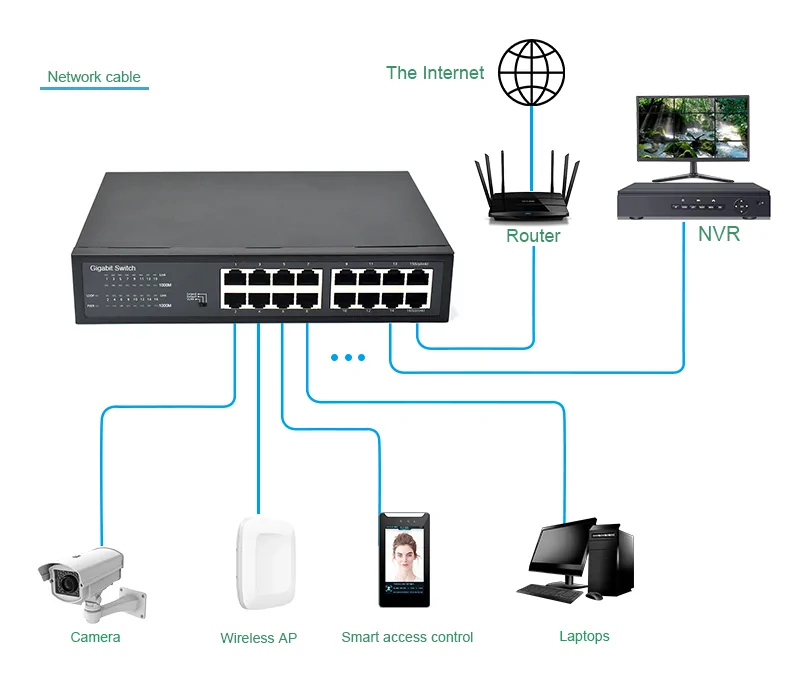

The SG16-MINI supports three working modes and allows users to switch between them effortlessly with a single click using the DIP switch. This product is easy to manage and maintain, making it suitable for security network video surveillance, hotels, campuses, and small to medium-sized enterprise network setups.
Key Features
- 16 x 10/100/1000Base-TX Ethernet RJ45 ports
- Supports 9K jumbo frames for improved data transfer
- Features an 8K MAC address table
- All ports support 10/100/1000 Mbps rate adaptation
- Automatic half/full duplex adaptation and MDI/MDI-X functionalities on all ports
- Line-speed forwarding on all ports, ensuring smooth transmission
- Compatible with both desktop and wall-mounted installations
- Panel indicators to monitor operational status and assist in fault analysis
- Three-position one-touch intelligent DIP switch, supporting VLAN, Default, and Extend modes
- Plug-and-play operation for easy setup, requiring no configuration
- Constructed with a metal shell for superior heat dissipation, ensuring stable long-term operation
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Interface information | RJ45 port: 16 10/100/1000M Base-T ports (standard RJ45) |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤250m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Mechanical properties | Shell material: metal shell |

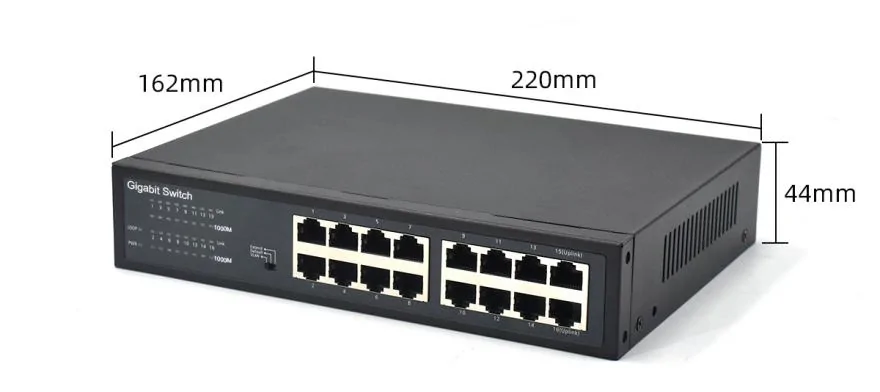

| Appearance dimensions (length*depth*height): 220mm×162mm×44mm | |
| Installation method: Desktop, Rack-mount | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <1.0KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth:32Gbps |
| Packet forwarding rate (whole machine) : 23.808Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 4m | |
| Jumbo frame: 4K | |

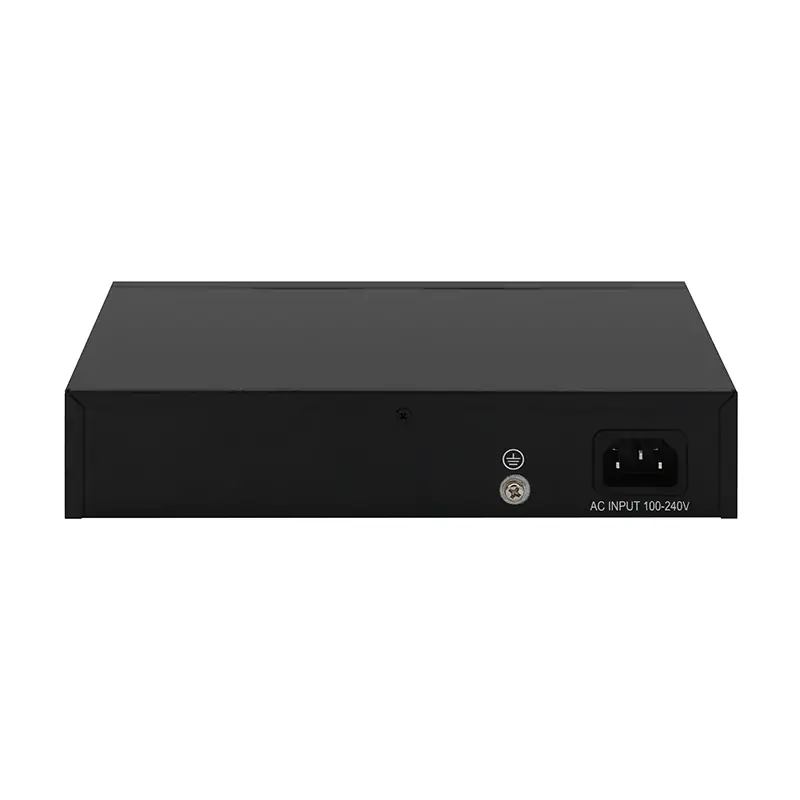

| Power supply | Input voltage: AC100V-240V |
| Power consumption: < 5 W | |
| Indicator light | Port light (fluctuation switch control):Network port light: 100M green;LOOP (loop alarm): green (flashing);Link/Act (link & data): green (flashing);VLAN mode: Port isolation, ports 1-14 are isolated from each other, and all communicate with ports 15 and 16;Default mode: Default mode, supports loop alarm;Extend mode: Monitoring mode, ports 1-14 support 100M speed reduction negotiation, 10M mode supports 250 meters, ports 15-16 serve as aggregation. |
| POWER(Power system indicator light): Green |
