Product Overview

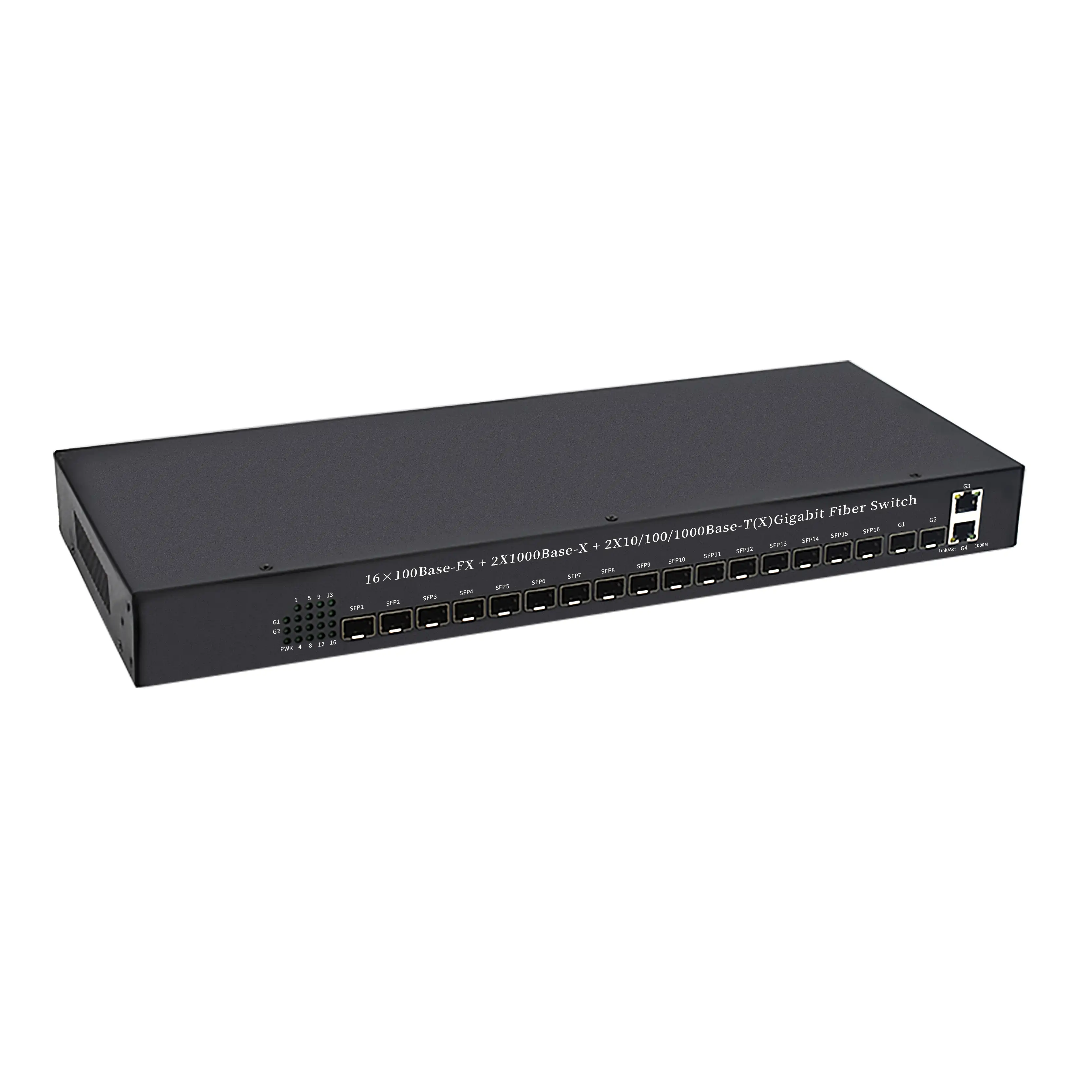

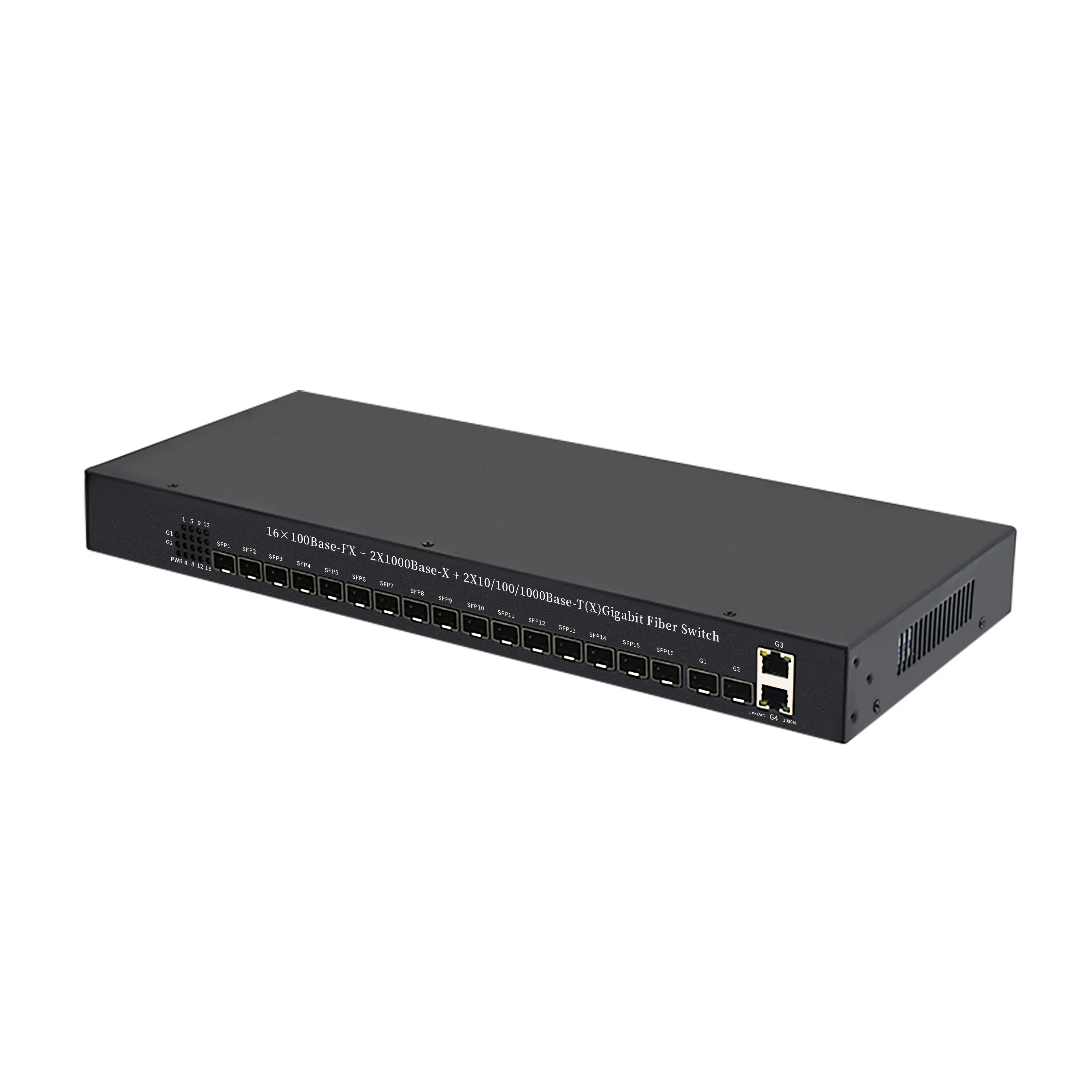

The SL2216-R is a fiber optic to Ethernet switch designed for small and medium-sized network environments. It features 16 100Base-X SFP slots, 2 1000Base-X SFP slots, and 2 adaptive 10/100/1000Base-T uplink Ethernet ports. This versatile switch provides reliable connectivity and is ideal for building small to medium-sized enterprise networks.
All Ethernet ports support automatic MDI/MDIX functionality, allowing for easy connection of both straight-through and crossover cables. Additionally, the switch supports full-duplex bidirectional transmission rates, ensuring efficient data transfer. Its simple installation and maintenance make it a convenient choice for various networking applications.
Key Features
- 16 x 100Base-X downlink SFP slots
- 2 x 1000Base-X uplink SFP slots
- 2 x 10/100/1000Base-T adaptive uplink ports
- Supports 10K ultra-large data packet transmission
- Equipped with an 8K MAC address table
- Built-in 1 Mbit large cache space
- All ports support 10/100/1000 Mbps rate adaptation
- Automatic half/full duplex adaptation and MDI/MDI-X functionality on all ports
- Line-speed forwarding on all ports for smoother data transmission
- Suitable for both desktop and rack installations
- Plug-and-play design for easy operation, requiring no configuration
- Constructed with a metal casing and fan for effective heat dissipation, ensuring long-term stable operation
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 100/1000Base-SX/LX standards IEEE 802.3x flow control |
| Interface information | SFP optical port: 16 100Base-X SFP slots (downlink port) |
| Transmission rate: 155M | |
| SFP optical port: 2 1000Base-X SFP slots (uplink port) | |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 2 10/100/1000M Base-T network ports (Internet access port) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

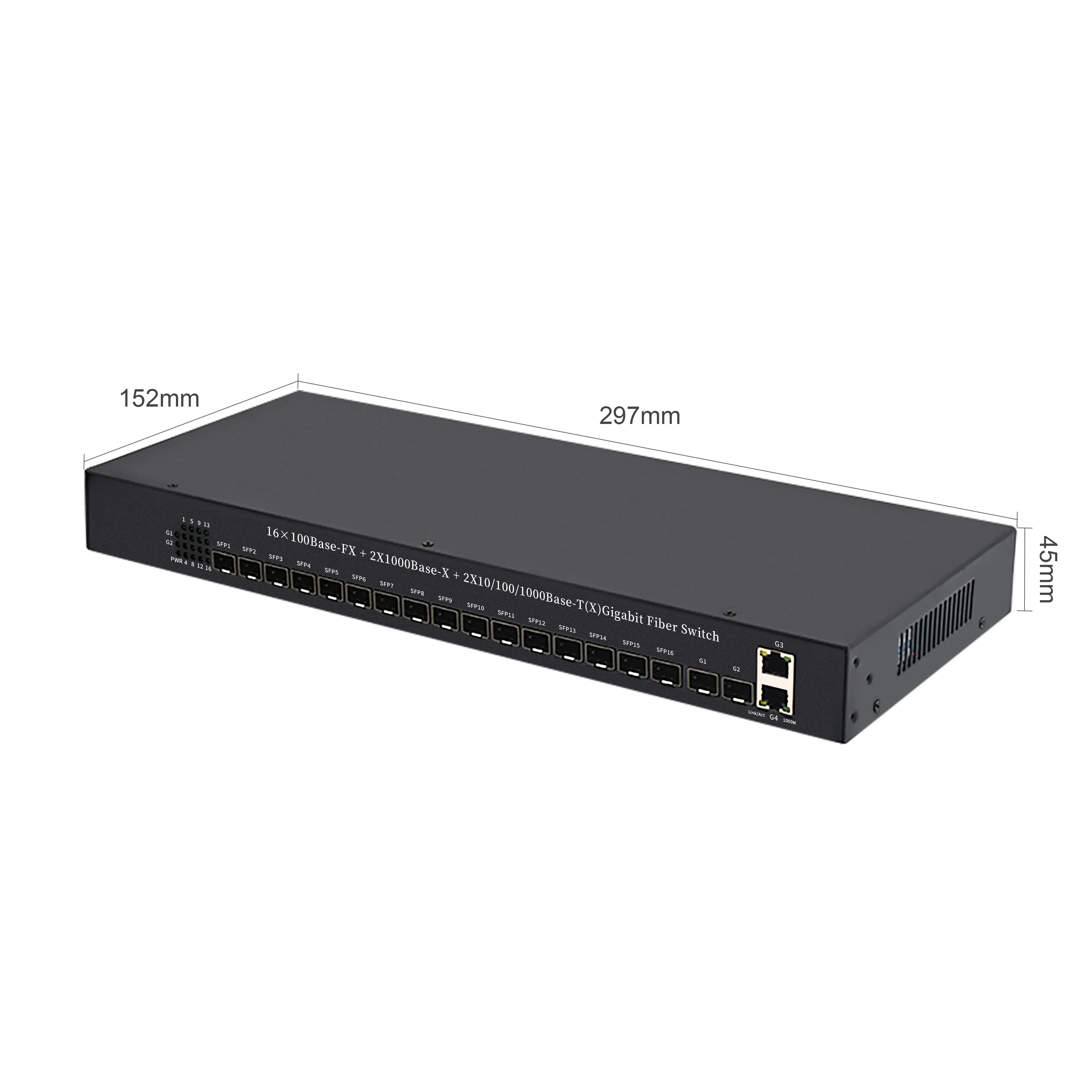

| Product size:(length*depth*height): 297×152×45mm | |
| Installation method: Desktop, Rack-mount | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <2.2KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 11.2Gbps |
| Packet forwarding rate (whole machine) : 8.3328Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 1m | |
| Jumbo frame: 10K | |

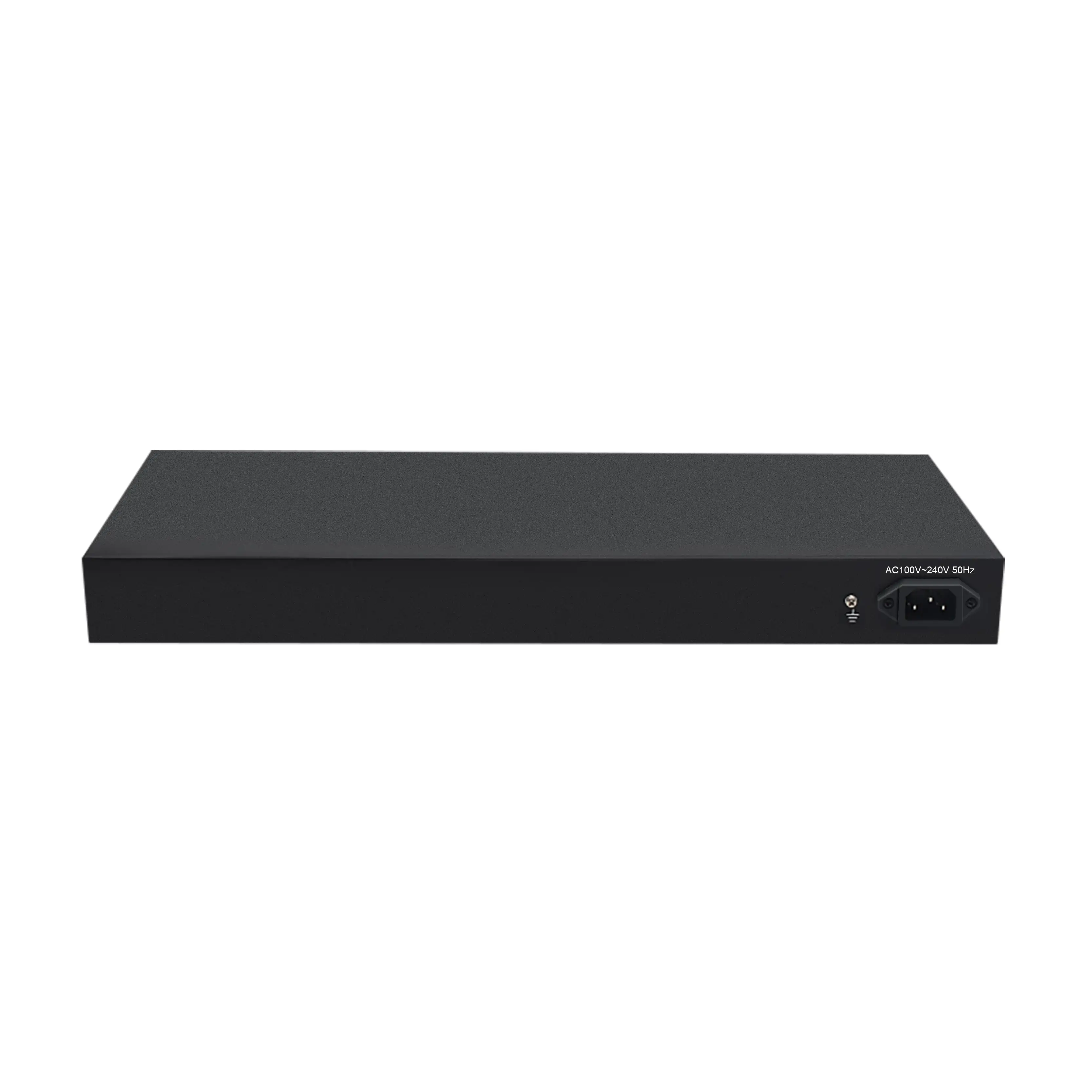

| Power supply | Input voltage: AC100~240V，50Hz |
| Standby: ≤6 | |
| PoE | 802.3AF/AT(1/2+，3/6-) |
| indicator light | Port light (fluctuation switch control):Link/ACT Indicator: 10/100M(Green);1000M (Yellow) |
| SFP port indicator: Green | |
| Power(Power system indicator light): Green |
