CF101-MINI | Fast ethernet 1 Port RJ45 1 SFP/SC/LC/FC/ST fiber ethernet media converter

Explore the fiber Ethernet media converter CF101-MINI, a compact solution offering 10/100Mbps Ethernet and 155Mbps fiber connectivity, extending distances up to 120km with excellent heat dissipation.

Email:

Sample order

Product Overview

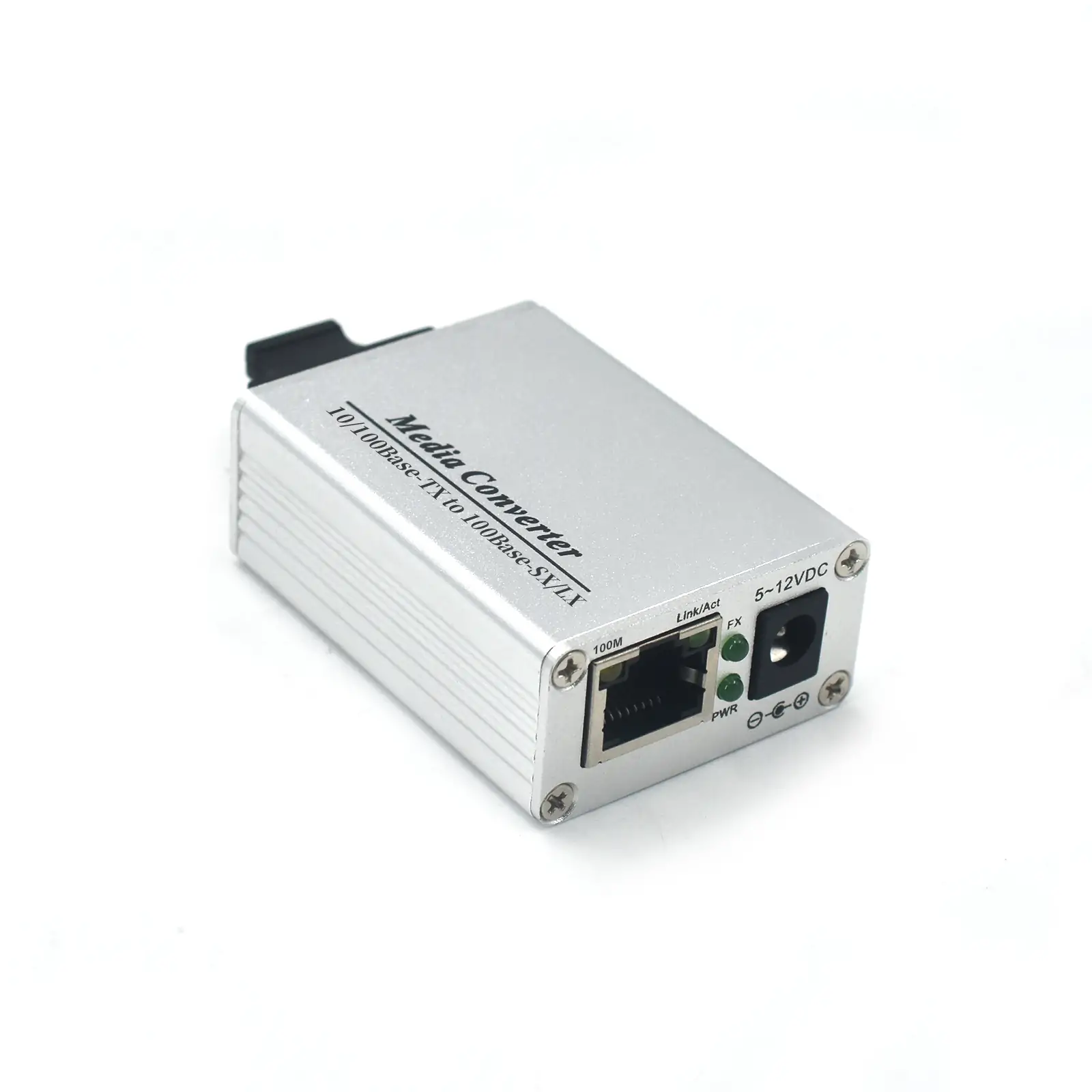

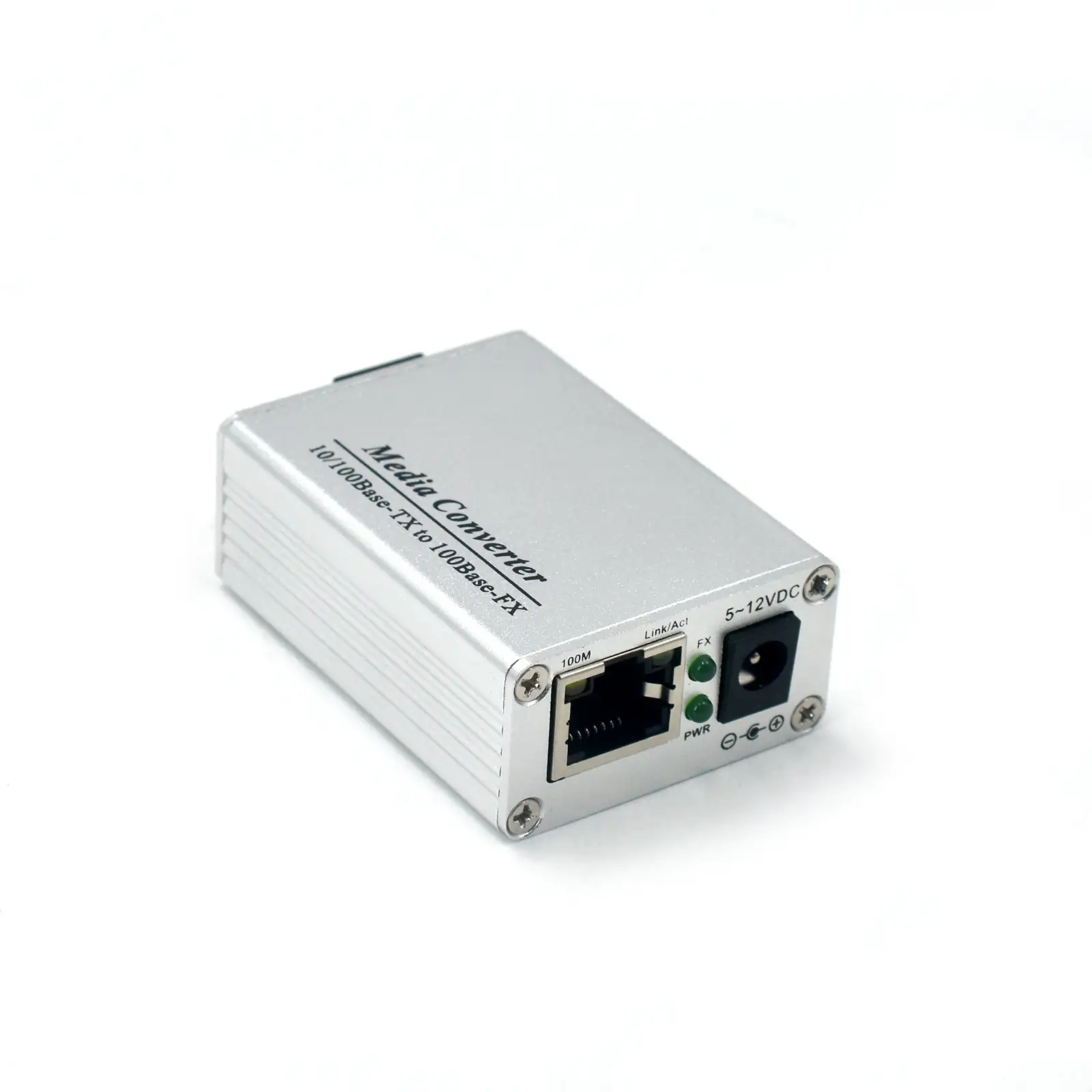

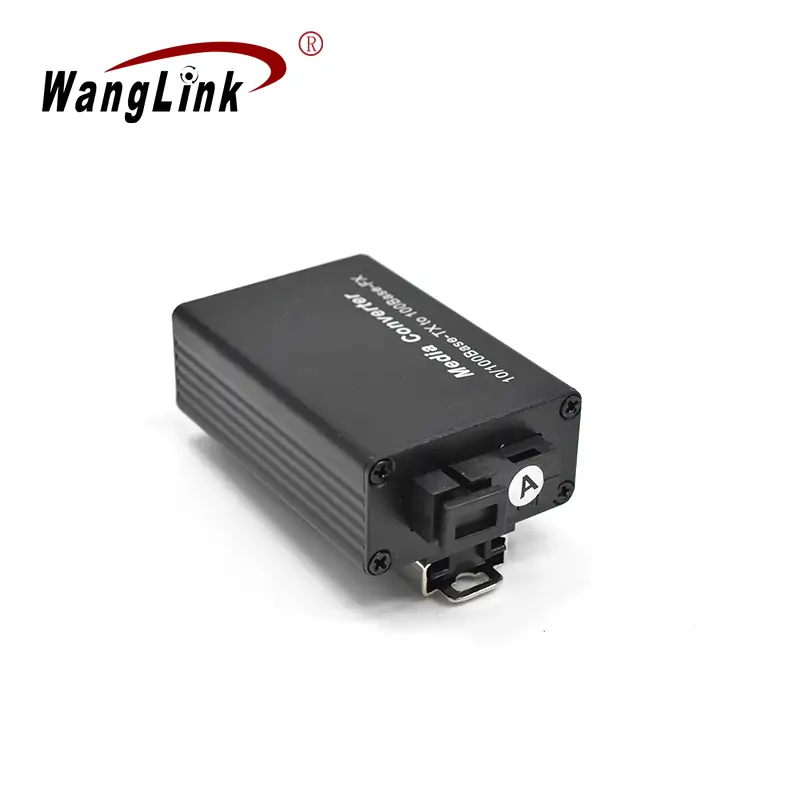

The fiber Ethernet media converter, model CF101-MINI, is a compact 10/100Mbps adaptive Fast Ethernet mini media converter. It features one 10/100Mbps Ethernet port and one 155Mbps fiber port, extending network transmission distances from 100m to an impressive 120km via copper cables. This mini media converter offers numerous advantages, including isolation protection, enhanced data security, operational stability, and ease of maintenance. Its aluminum alloy casing not only ensures effective heat dissipation but also contributes to its sleek and delicate appearance.

Key Features

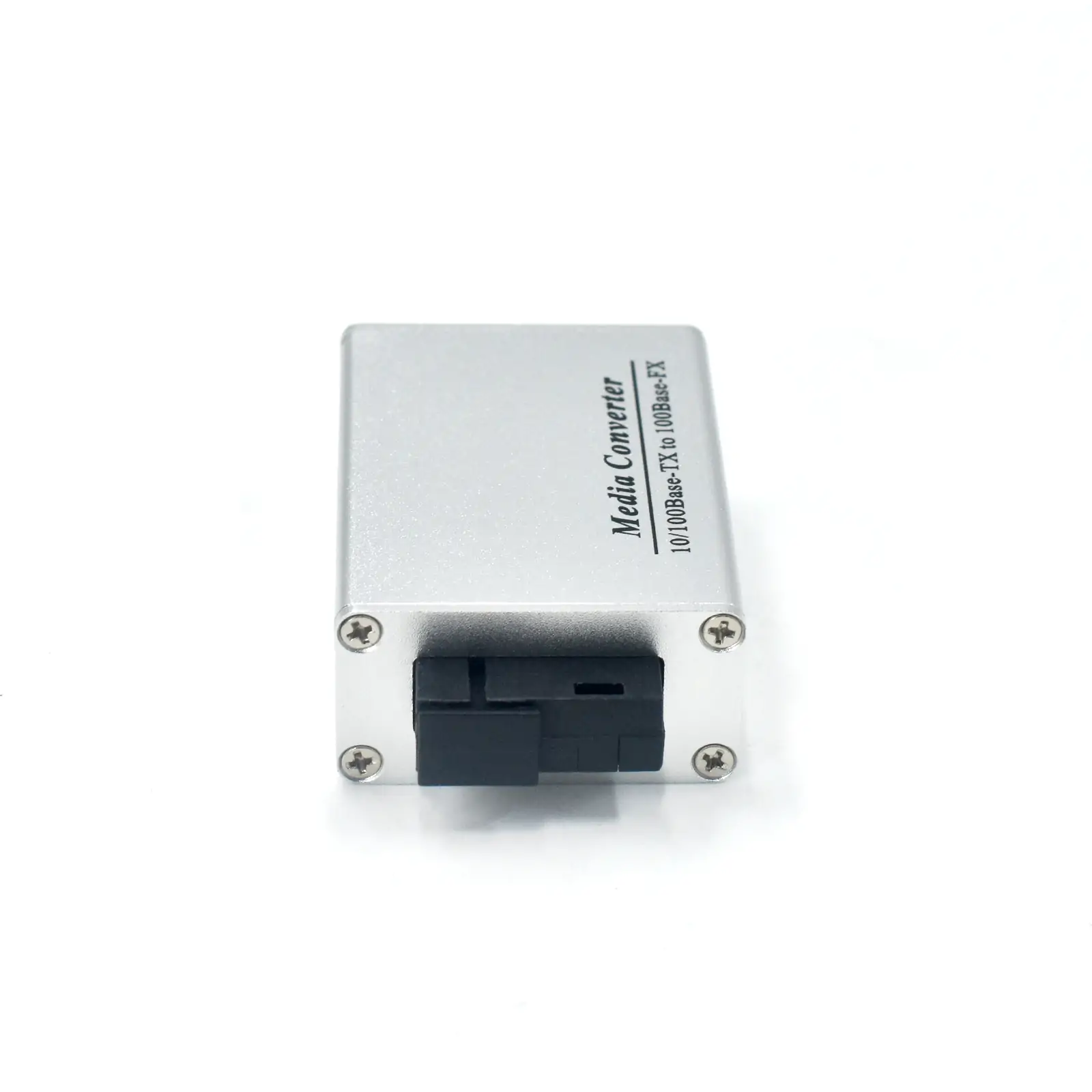

  • Equipped with one 10/100Base-T Ethernet port and one 100Base-X SC fiber port.
  • Supports 9K jumbo frames for improved data transmission efficiency.
  • Provides 10/100Mbps rate adaptation for all Ethernet ports.
  • Supports half/full-duplex adaptation and automatic MDI/MDI-X functionality for seamless connectivity.
  • Facilitates line-speed forwarding for smoother data transmission across Ethernet ports.
  • Designed for low-latency transmission and includes 4KV lightning protection for the ports.
  • Features a plug-and-play design for simple operation—no configuration is required.
  • Constructed with a metal casing for excellent heat dissipation, ensuring long-term stable operation.

Product Parameters

Standards and protocolsIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3z 100Base-SX/LX standards
IEEE802.3x Flow control

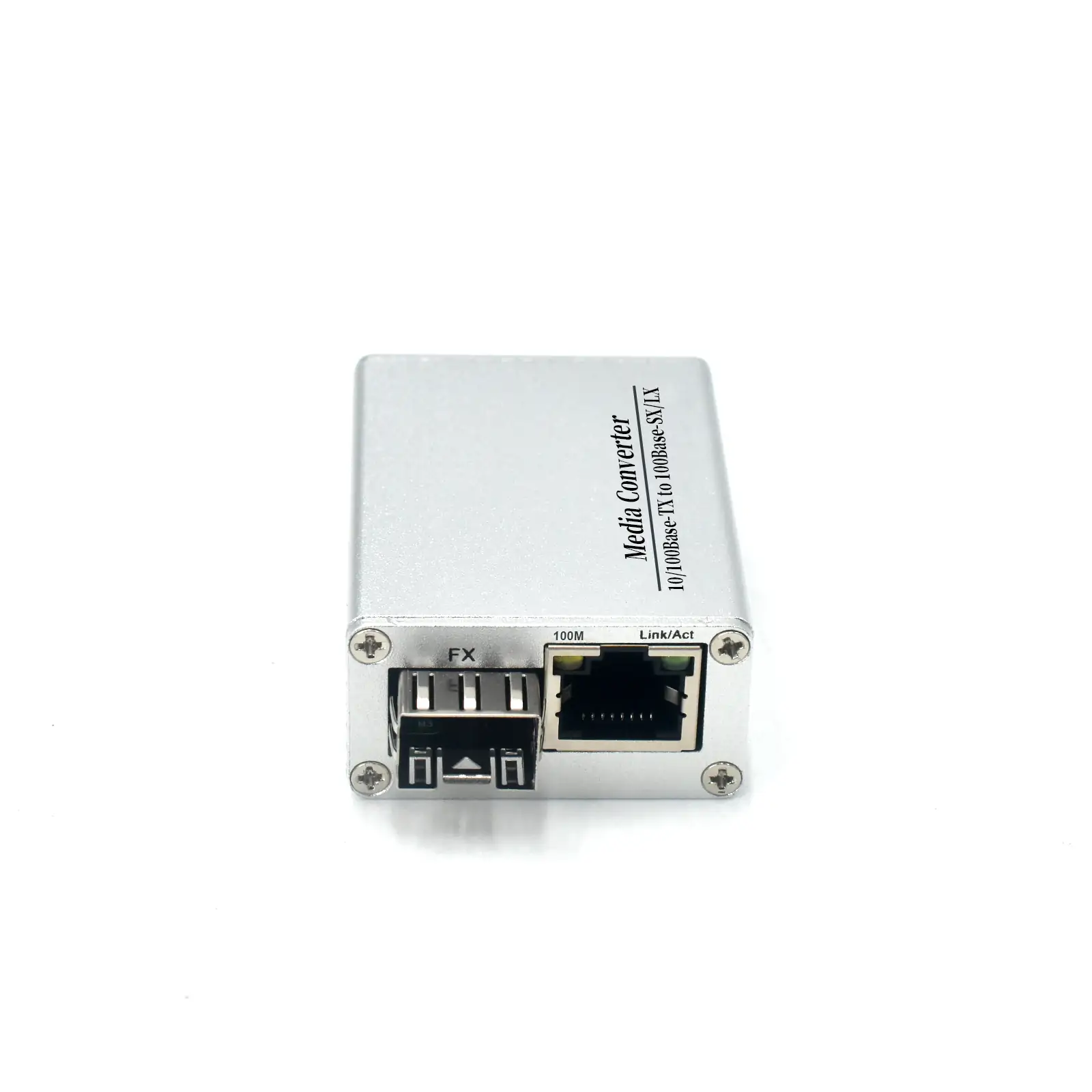

Interface informationSingle-mode SC optical port: 1 100Base-X optical port (SC/FC/SFP optional)
Transmission rate: 155M
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm
RJ45 network port: 1 10/100M Base-T network port (standard RJ45)
10/100Mbps adaptive
10Base-T: ≤100m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height): 58mm×42mm×22mm

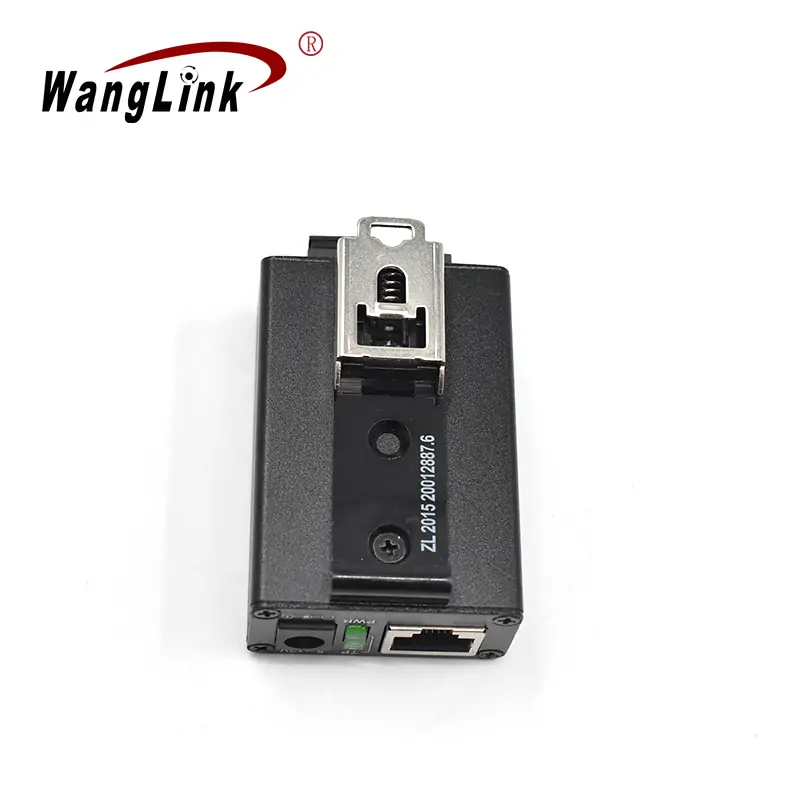

Installation method: Desktop, wall-mounted
Heat dissipation method: natural cooling, no fan
Weight: <0.10KG
Environmental propertiesWorking temperature: -10℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 0.40Gbps
Packet forwarding rate (whole machine) : 0.2976 Mpps
Exchange method: store-and-forward
MAC table : 2K
Case space : 1mb
Jumbo frame: 9k
Latency ≤5μS
Power supplyInput voltage: DC 5V-12V
Power consumption: < 3 W
indicator lightEthernet port:100m: Yellow;Link/ACT indicator: Green
Fiber port indicator:FX:  Green
Power supply: Green

Product size

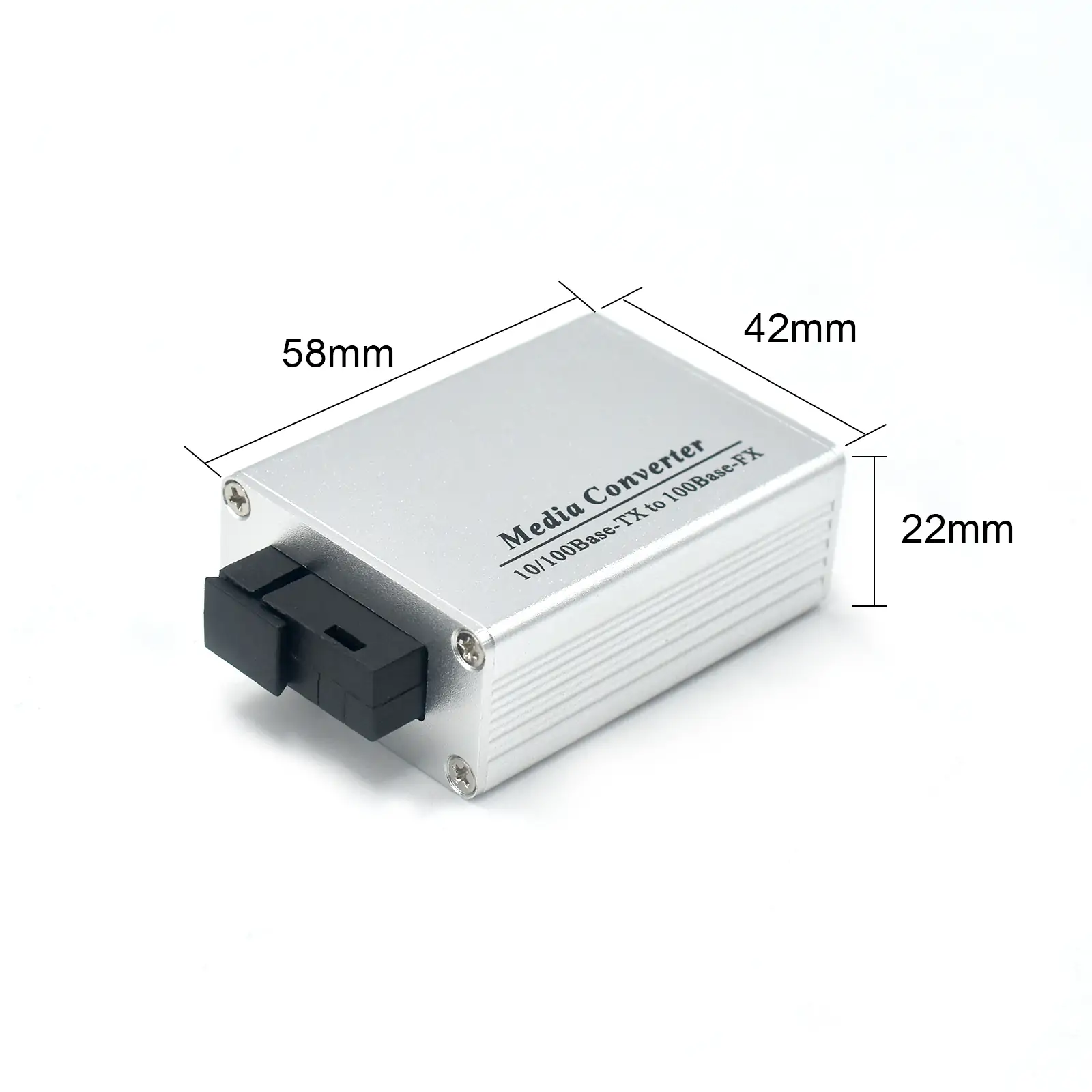

Product size: CF101-MINI | Fast ethernet 1 Port RJ45 1 SFP/SC/LC/FC/ST fibre ethernet media converter

Application

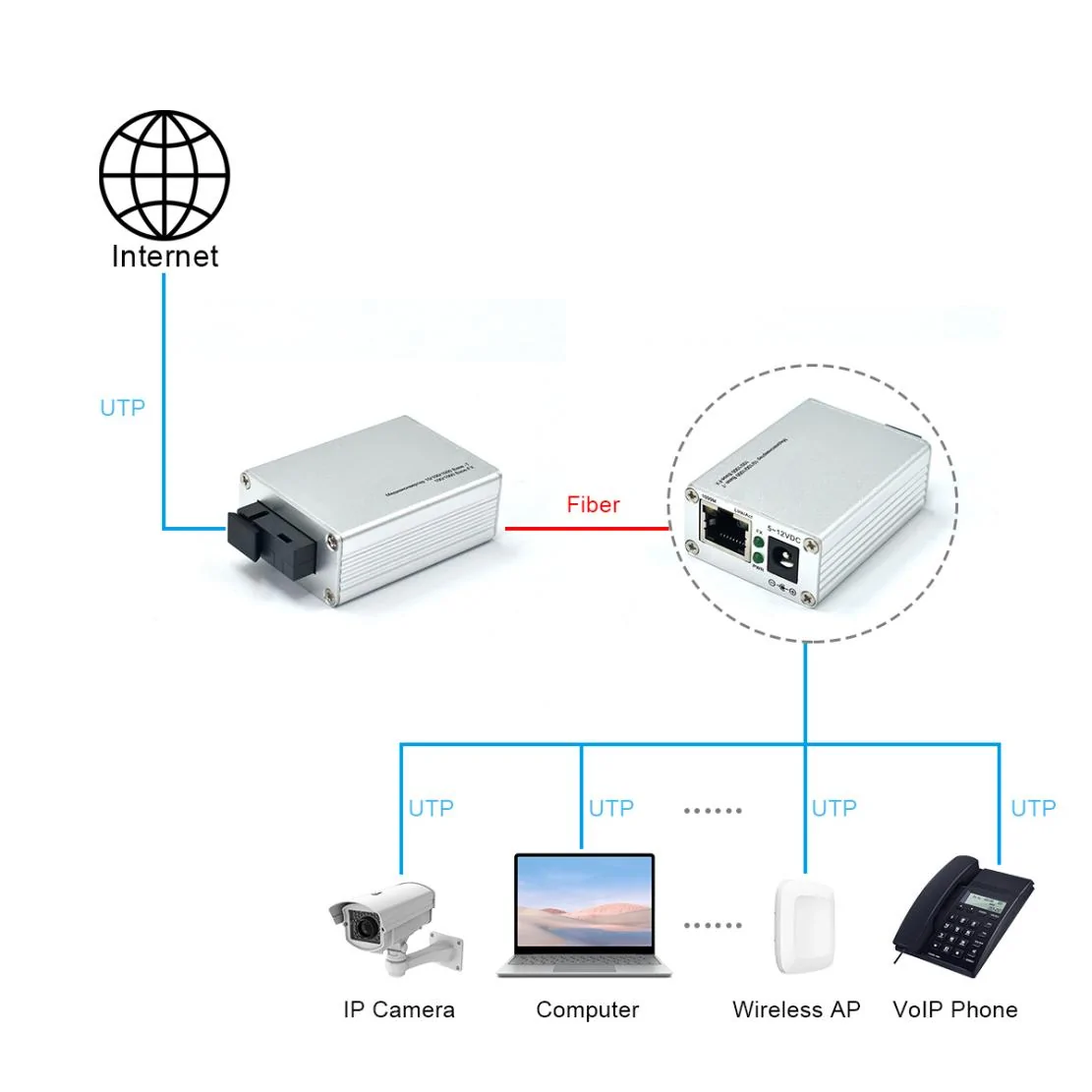

Application: CF101-MINI | Fast ethernet 1 Port RJ45 1 SFP/SC/LC/FC/ST fibre ethernet media converter
Product size: CF101-MINI | Fast ethernet 1 Port RJ45 1 SFP/SC/LC/FC/ST fibre ethernet media converter
Application: CF101-MINI | Fast ethernet 1 Port RJ45 1 SFP/SC/LC/FC/ST fibre ethernet media converter
