Product Overview

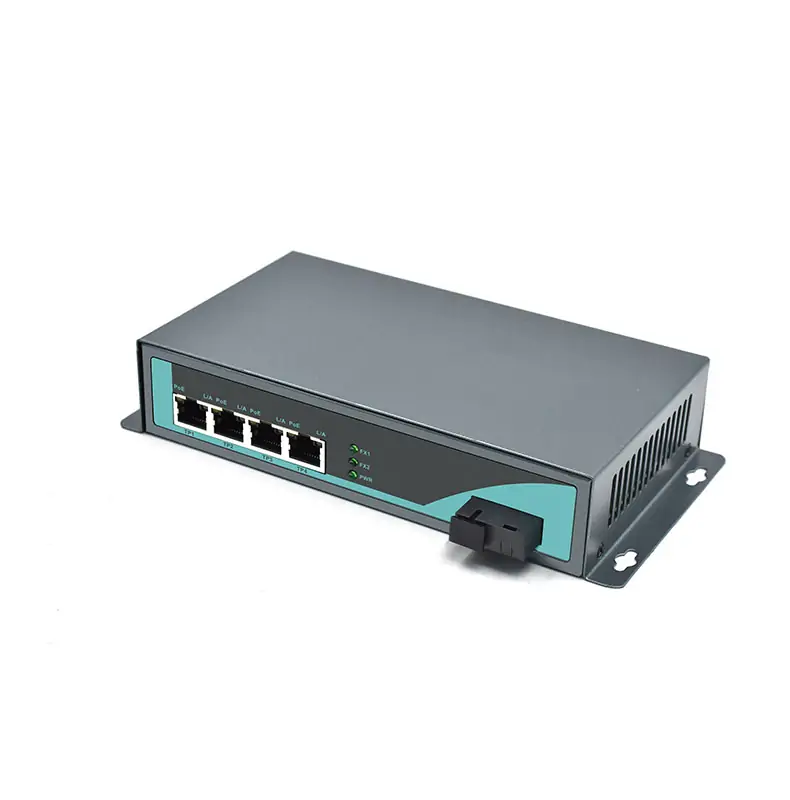

The CG104P Fiber to Ethernet Media Converter with PoE is a robust solution designed for seamless integration between fiber optic and Ethernet networks. This device features 1 1.25Gbps SC fiber port and 4 10/100/1000Mbps Ethernet ports. Compliant with IEEE 802.3 af/at Power over Ethernet (PoE) standards, it provides a maximum power output of 25.4W per Ethernet port. The converter automatically detects connected powered devices, supplying power only to compliant devices and protecting non-PoE equipment from potential damage.
Key Features
- Four 10/100/1000Base-TX Ethernet ports and one 1000Base-X SC fiber optic port for versatile and high-speed connectivity.
- Fully compliant with IEEE 802.3 af/at PoE standards, delivering up to 25.4W per RJ45 Ethernet port.
- All Ethernet ports support 10/100/1000Mbps speed auto-negotiation for optimal network performance.
- Capable of half/full duplex auto-negotiation and automatic MDI/MDI-X crossover for easy deployment.
- Features wire-speed forwarding across all Ethernet ports to enhance data transmission efficiency.
- Built with low-power consumption chips, ensuring stable performance and minimal maintenance requirements.
- Plug-and-play design allows for easy installation with no configuration needed, making it ideal for immediate use.
- Constructed with a durable metal housing for excellent heat dissipation, ensuring long-term reliable operation.
Ideal Applications

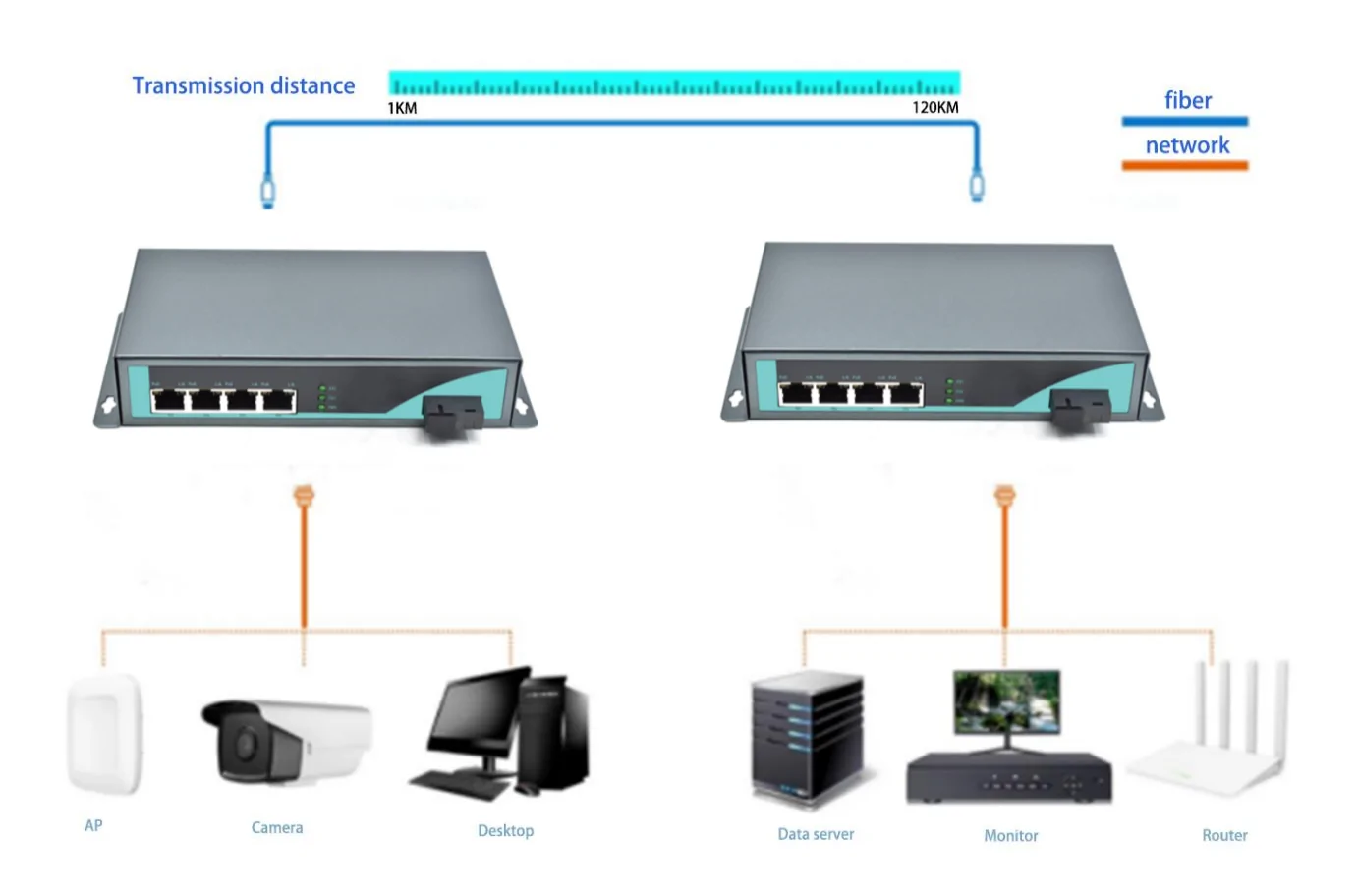

The CG104P Fiber to Ethernet Media Converter with PoE is perfect for video surveillance networking and is well-suited to a variety of commercial environments, including hotels, retail shops, supermarkets, residential homes, and small to medium-sized enterprises.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3af/at Power Over Ethernet IEEE802.3x Flow control, |
| Interface information | Single mode SC optical port: 1 1000Base-X optical ports(SC/FC/SFP optional) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| RJ45 ethernet port: 4 10/100/1000M Base-T ethernet ports (standard RJ45) | |
| 10/100/1000Mbps auto-negotiation | |
| 10Base-T: ≤100m (CAT5e or above) | |
| 100Base-TX: ≤100m (CAT5e or above) | |
| 1000Base-TX: ≤100m (CAT5e or above) | |
| Mechanical Properties | Shell material: metal shell |

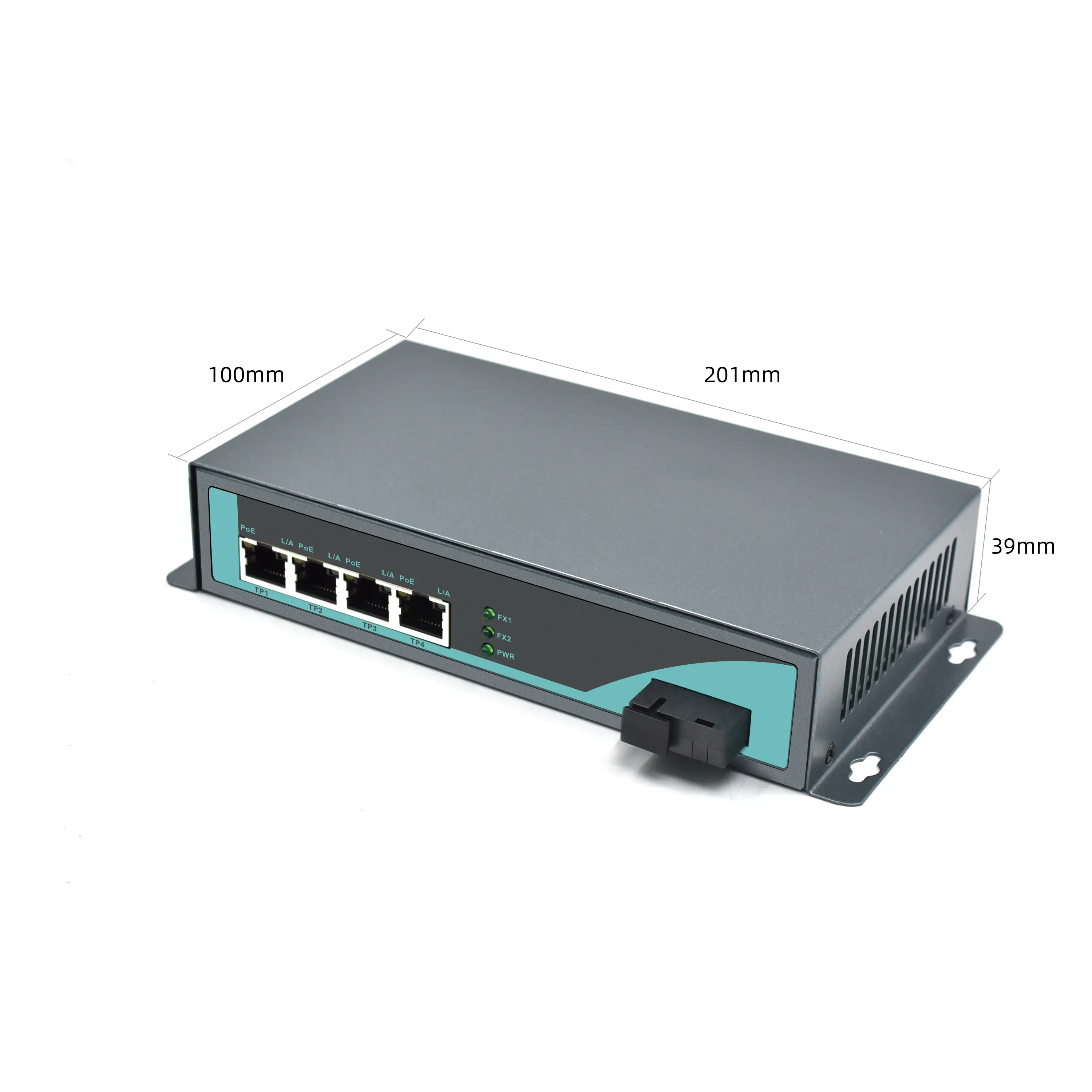

| Appearance size (length * depth * height): 201×100×39mm | |
| Installation method: Desktop, Rack-mount | |
| Cooling method: natural cooling, no fan | |
| Weight: < 0.30Kg | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 10.0Gbps |
| Packet forwarding rate (entire device): 7.44 Mpps. | |
| Switching method: Store-and-forward. | |
| MAC address table: 4K | |
| Packet buffer: 5m. | |
| Jumbo frame: 9K. | |

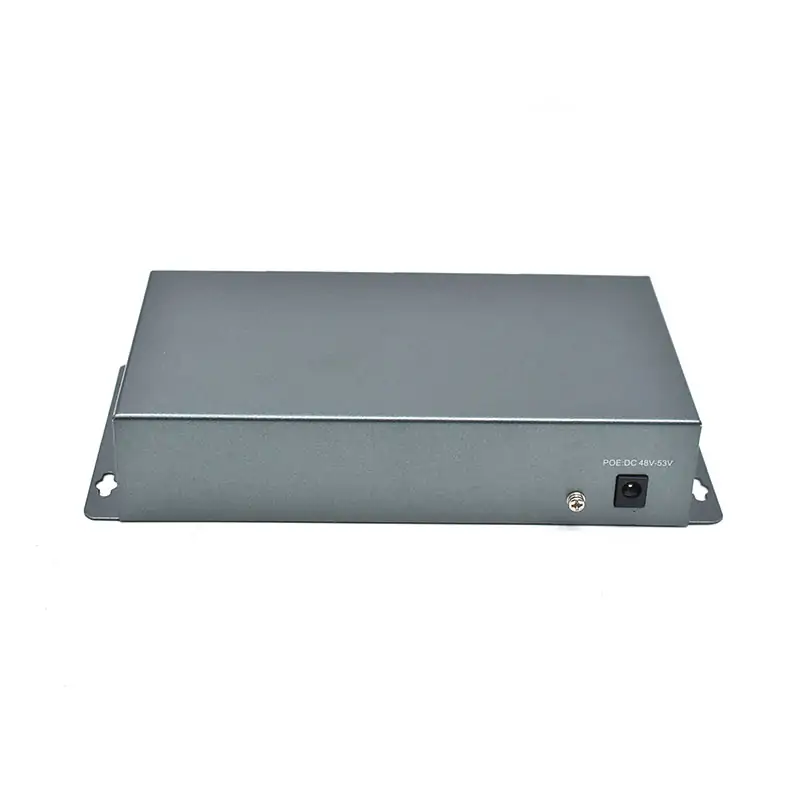

| Power supply | Input voltage: DC 48V-53V |
| Power consumption: < 3 W | |
| PoE pin | 802.3AF/AT(1/2+，3/6-) |
| Indicators | Ethernet Port LEDs: POE Indicator: YellowLINK/ACT Indicator: Green(10/100/1000M) |
| Optical Port LED:FX Indicator: Green | |
| Power LED (PWR): Green |
