Product Overview

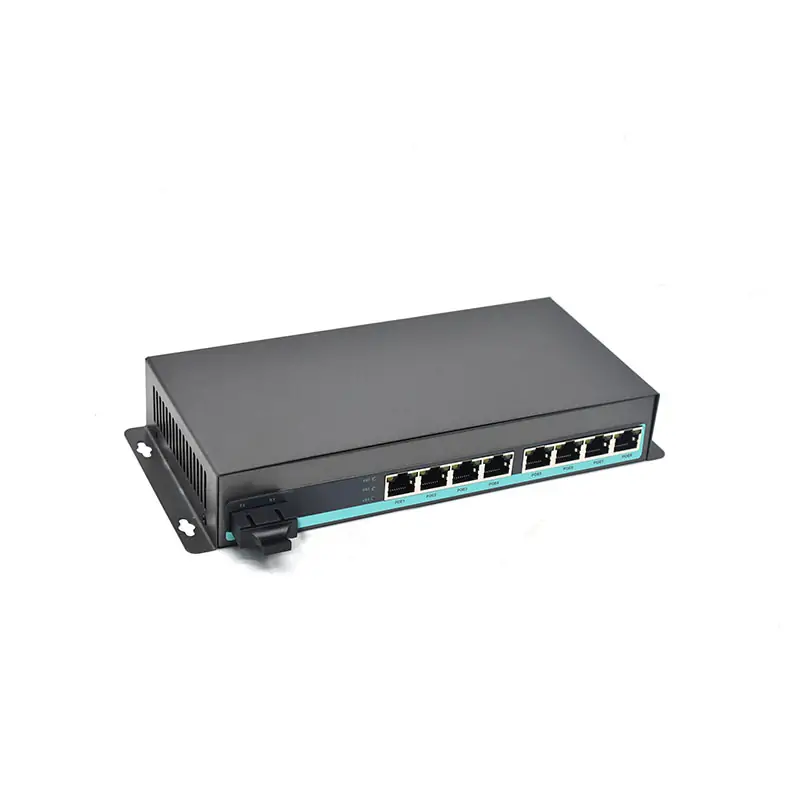

The CG801P Fiber to PoE Media Converter is a robust solution designed to facilitate seamless connectivity between fiber optic and Ethernet networks. This transceiver features 1 1.25Gbps SC fiber port and 8 10/100/1000Mbps Ethernet ports, all while supporting IEEE 802.3 af/at Power over Ethernet (PoE) standards with a maximum power output of 25.4W per Ethernet port. The device intelligently detects connected powered devices, supplying power only to PoE-compliant devices and protecting non-PoE equipment from damage.
Key Features
- Eight 10/100/1000Base-TX Ethernet ports and one 1000Base-X SC fiber optic port for versatile and high-speed connectivity.
- Fully compliant with IEEE 802.3 af/at PoE standards, delivering up to 25.4W of power per RJ45 Ethernet port.
- All Ethernet ports support 10/100/1000Mbps speed auto-negotiation for optimal network performance.
- Capable of half/full duplex auto-negotiation and automatic MDI/MDI-X crossover, simplifying installation and setup.
- Features wire-speed forwarding on all Ethernet ports, enhancing data transmission efficiency and performance.
- Built with low-power consumption chips to ensure stable operation and easy maintenance.
- Plug-and-play design allows for quick installation with zero configuration required, making it ideal for immediate use.
- Constructed with a durable metal housing for excellent heat dissipation, ensuring long-term reliable operation.
Ideal Applications

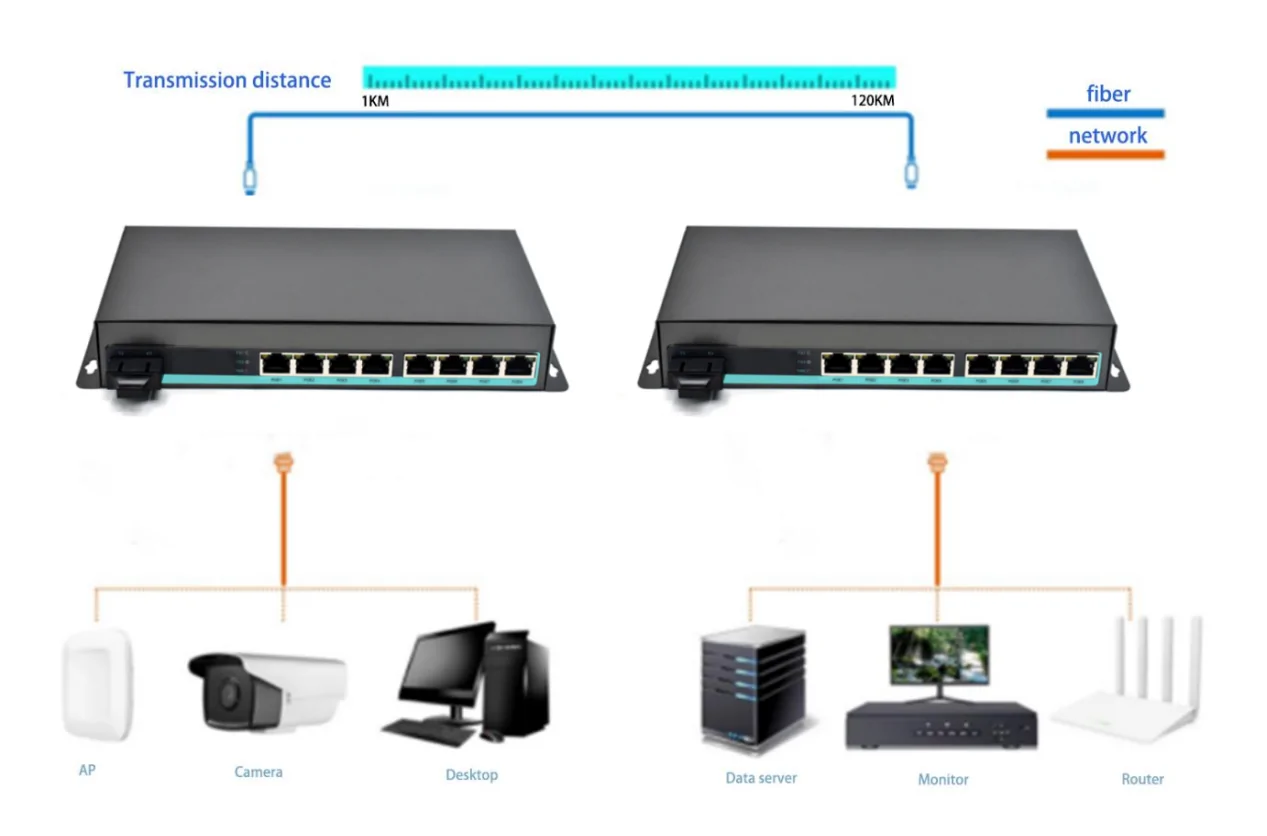

The CG801P Fiber to PoE Media Converter is perfect for video surveillance networking and is suitable for various commercial environments, including hotels, retail shops, supermarkets, residential homes, and small to medium-sized enterprises.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3af/at Power Over Ethernet IEEE802.3x Flow control |
| Interface information | Single mode SC optical port: 1 1000Base-X optical ports(SC/FC/SFP optional) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| RJ45 ethernet port: 8 10/100/1000M Base-T ethernet ports (standard RJ45) | |
| 10/100/1000Mbps auto-negotiation | |
| 10Base-T: ≤100m (CAT5e or above) | |
| 100Base-TX: ≤100m (CAT5e or above) | |
| 1000Base-TX: ≤100m (CAT5e or above) | |
| Mechanical Properties | Shell material: metal shell |

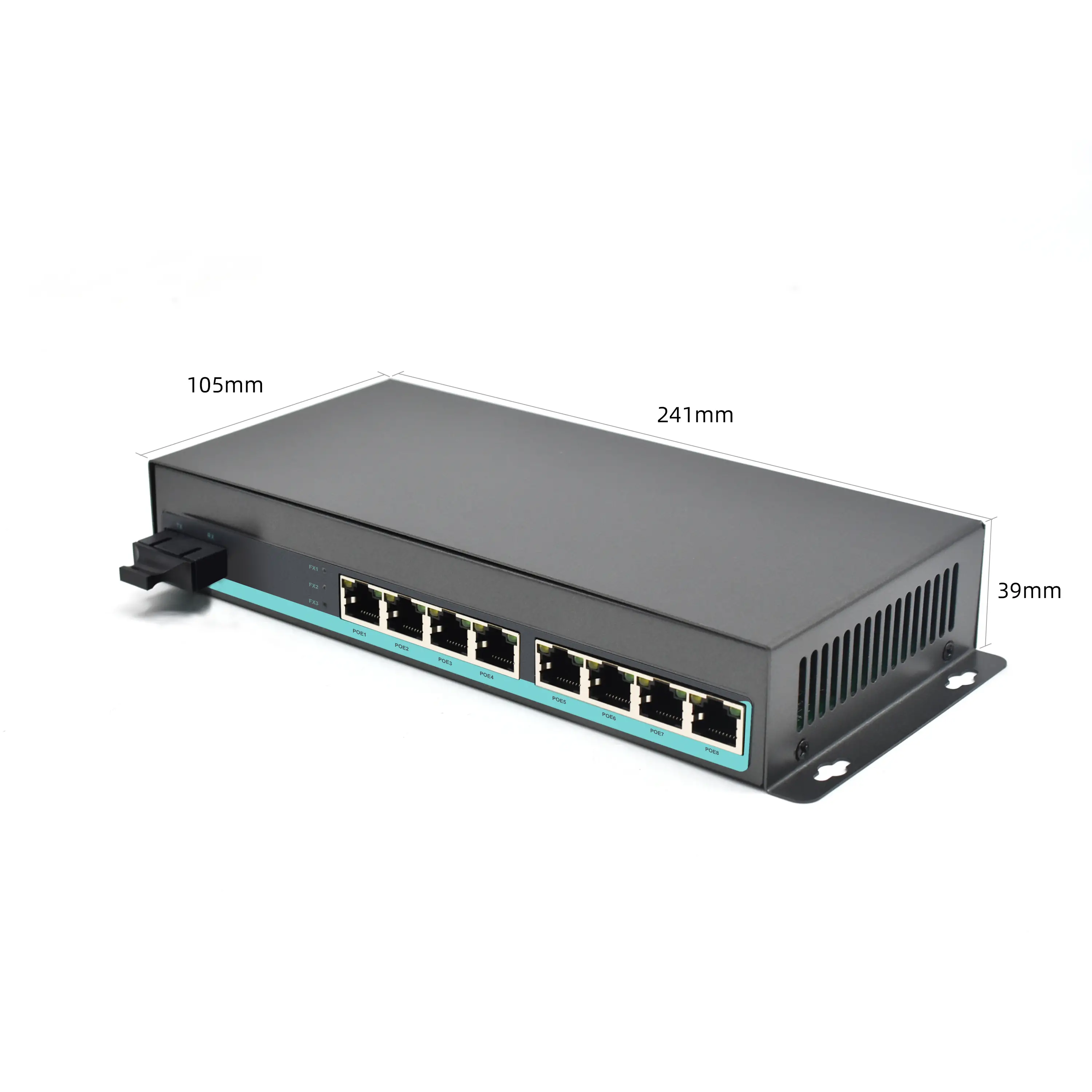

| Appearance size (length * depth * height): 241×105×39mm | |
| Installation method: Desktop, Rack-mount | |
| Cooling method: natural cooling, no fan | |
| Weight: < 0.60Kg | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 18.0Gbps |
| Packet forwarding rate (entire device): 13.392 Mpps. | |
| Switching method: Store-and-forward. | |
| MAC address table: 4K | |
| Packet buffer: 1.5m. | |
| Jumbo frame: 9K. | |

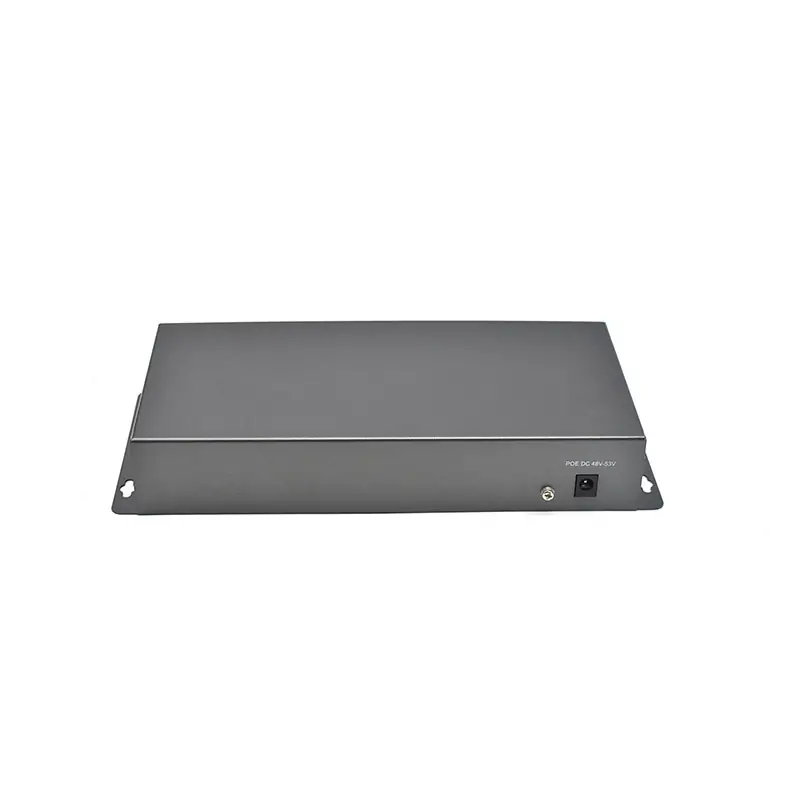

| Power supply | Input voltage: DC 48V-53V |
| Power consumption: < 3 W | |
| PoE pin | 802.3AF/AT(1/2+，3/6-) |
| Indicators | Ethernet Port LEDs: POE Indicator: YellowLINK/ACT Indicator: Green(10/100/1000M) |
| Optical Port LED:FX Indicator: Green | |
| Power LED (PWR): Green |
