Product Overview

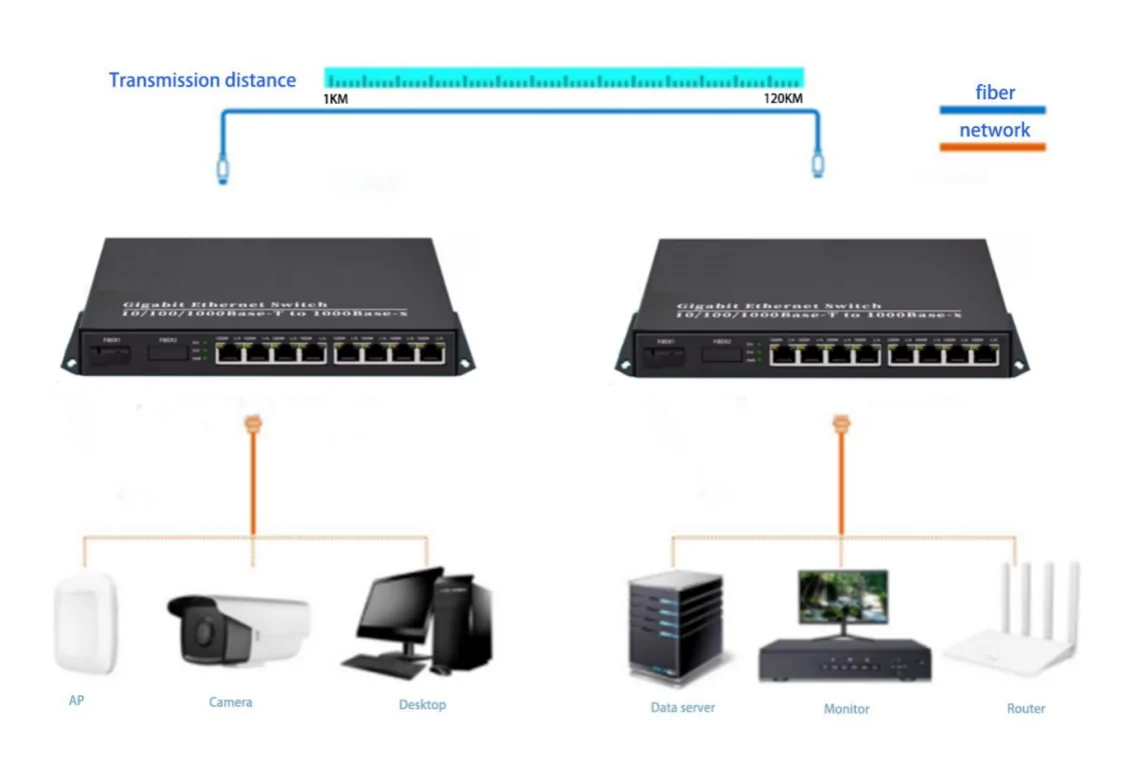

The CG801 is a versatile 10/100/1000 media converter designed to enhance network connectivity. It features one 1.25Gbps fiber optic port and eight 10/100/1000Mbps Ethernet ports, enabling seamless data communication between 100Base-TX twisted pairs and 1000Base-FX optical cables. This converter significantly extends the maximum transmission distance of networks from the 100 meter limit of twisted pairs to an impressive 120 kilometers using fiber optic cables.
The CG801 is a user-friendly, plug-and-play device that requires no additional configuration. All fiber optic ports comply with international standards, providing superior data confidentiality, reliable operation, and minimal maintenance requirements, making it ideally suited for various commercial and industrial environments.
Key Features
- Port Configuration:
- 8 x 10/100/1000Base-T Ethernet ports
- 1 x 1000Base-X SC fiber port
- Jumbo Frame Support: Capable of supporting 9K jumbo frame transmission for efficient data handling.
- Adaptive Speed: All Ethernet ports support adaptive speeds of 10/100/1000Mbps for flexible connectivity.
- Duplex Mode Compatibility: Supports both half and full duplex modes with automatic MDI/MDI-X capability on all ports.
- Wire-Speed Forwarding: All ports support wire-speed forwarding for smoother and more efficient data transmission.
- User-Friendly Design: Plug-and-play functionality ensures simple operation and requires no configuration.
- Durable Construction: Designed with a metal housing for excellent heat dissipation, ensuring long-term stable operation.
Product Parameters
| Standards and protocols | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE802.3x Flow control |
| Interface information | Single-mode SC optical port: 1 1000Base-X optical port (SC/FC optional) |
| Transmission rate: 1.25G | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm | |
| RJ45 network port: 8 10/100/1000M Base-T ethernet ports (standard RJ45) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

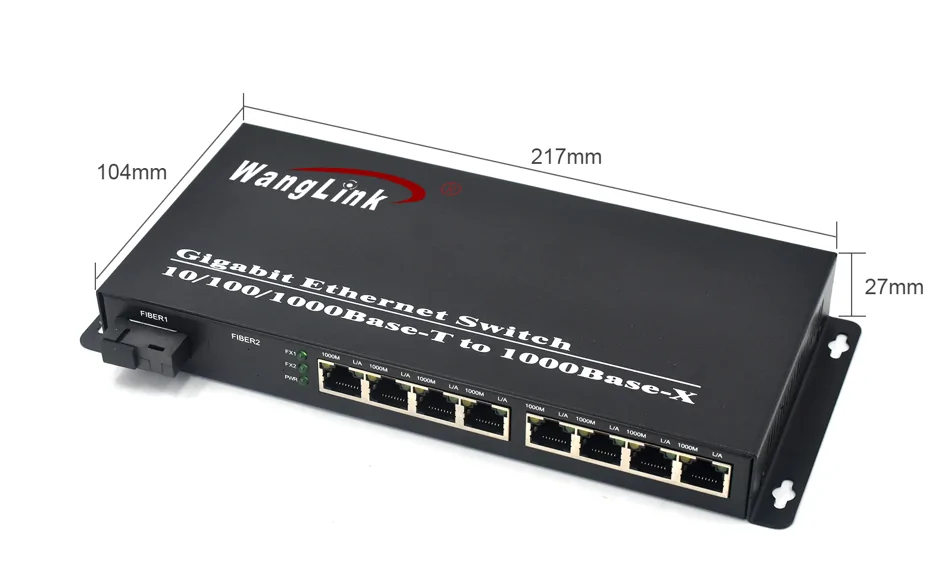

| Appearance dimensions (length*depth*height): 244mm×106mm×28mm | |
| Installation method: Desktop, wall-mounted | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <0.26KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 18.0Gbps |
| Packet forwarding rate (whole machine) : 13.392 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 1K | |
| Packet buffer : 1m | |
| Jumbo frame: 9k | |

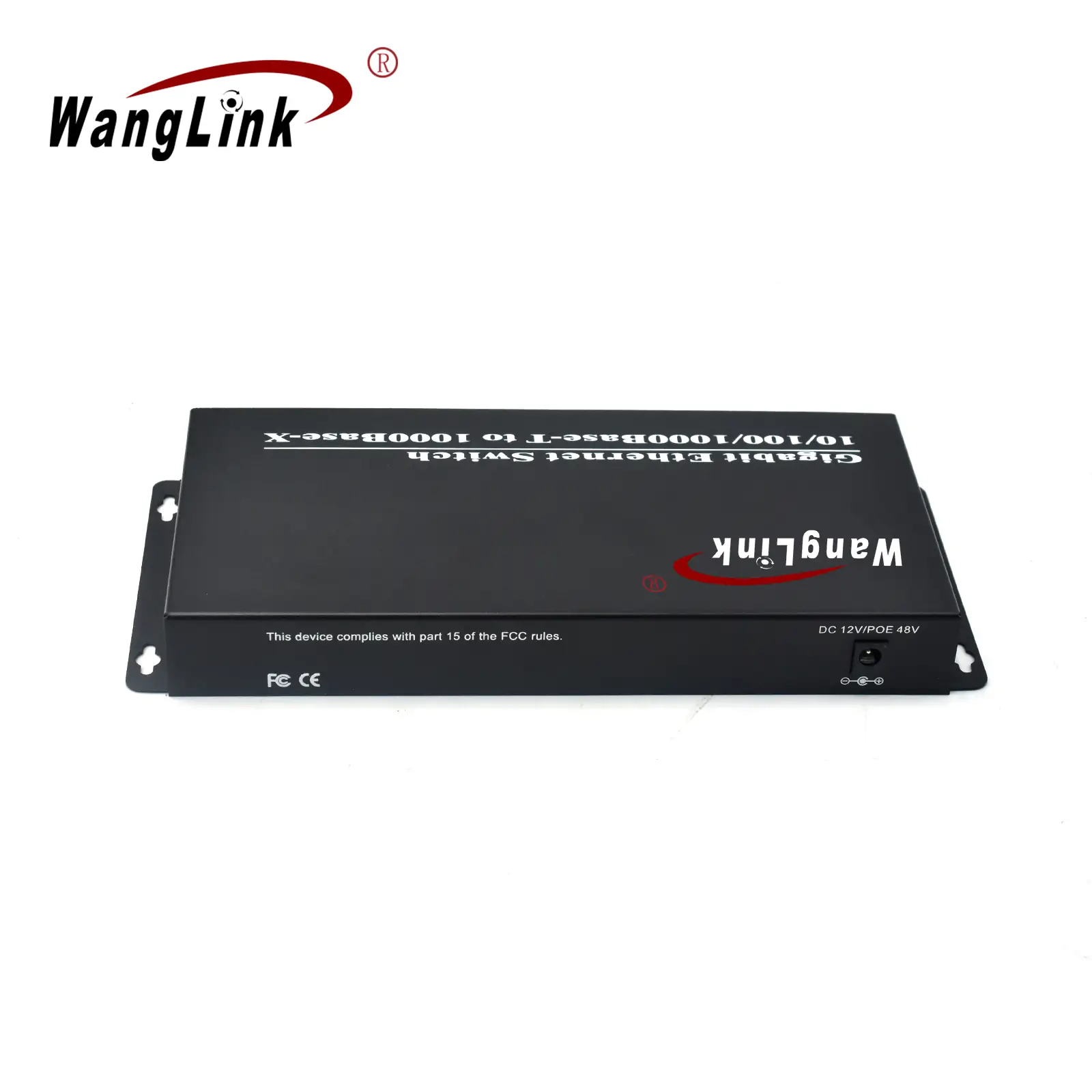

| Power supply | Input voltage: DC 5V-12V |
| Power consumption: < 3 W | |
| Indicator | Ethernet port: 100m: Green1000m: YellowLink/ Act: Green |
| Fiber port:FX: Green. | |
| Power supply: Green |
