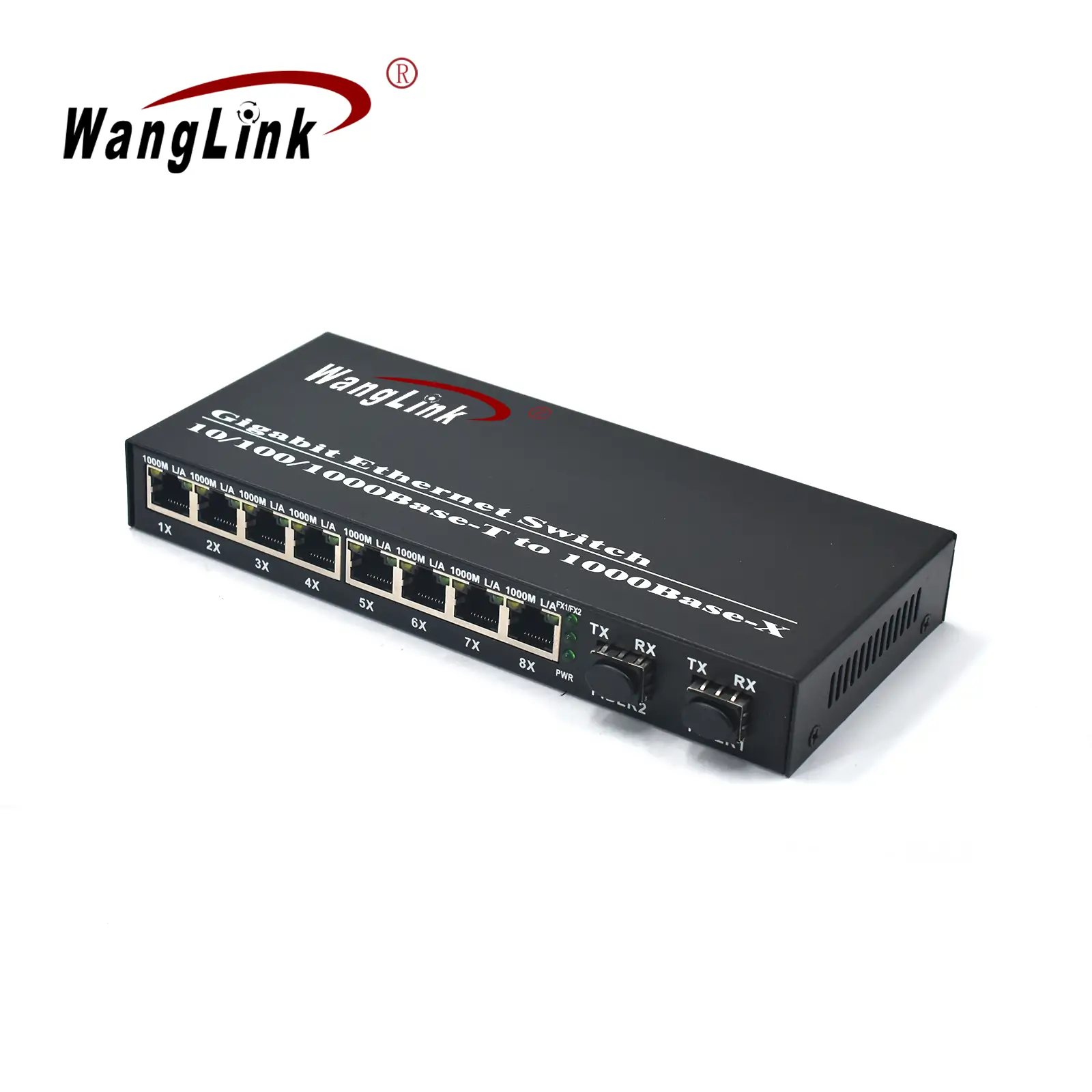

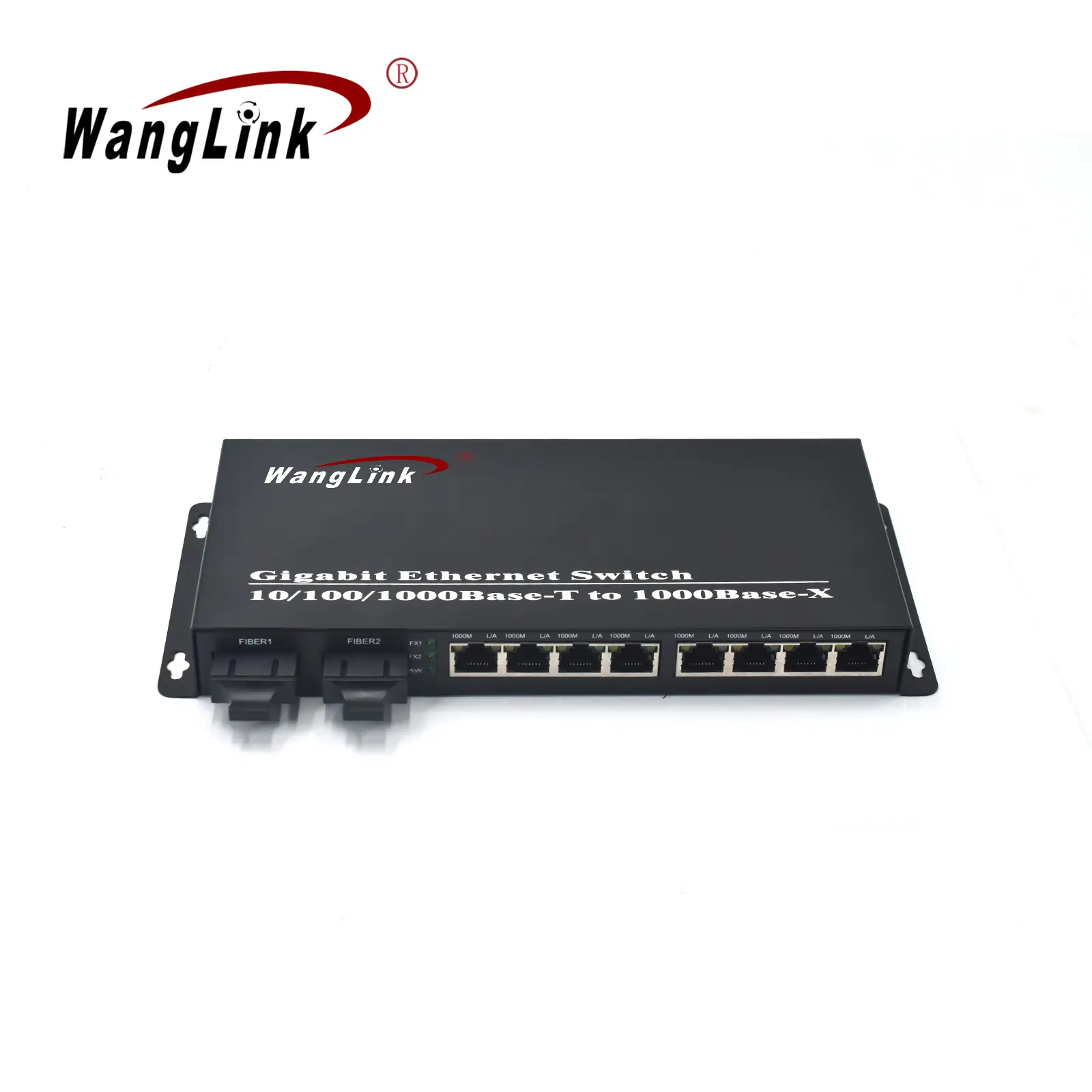

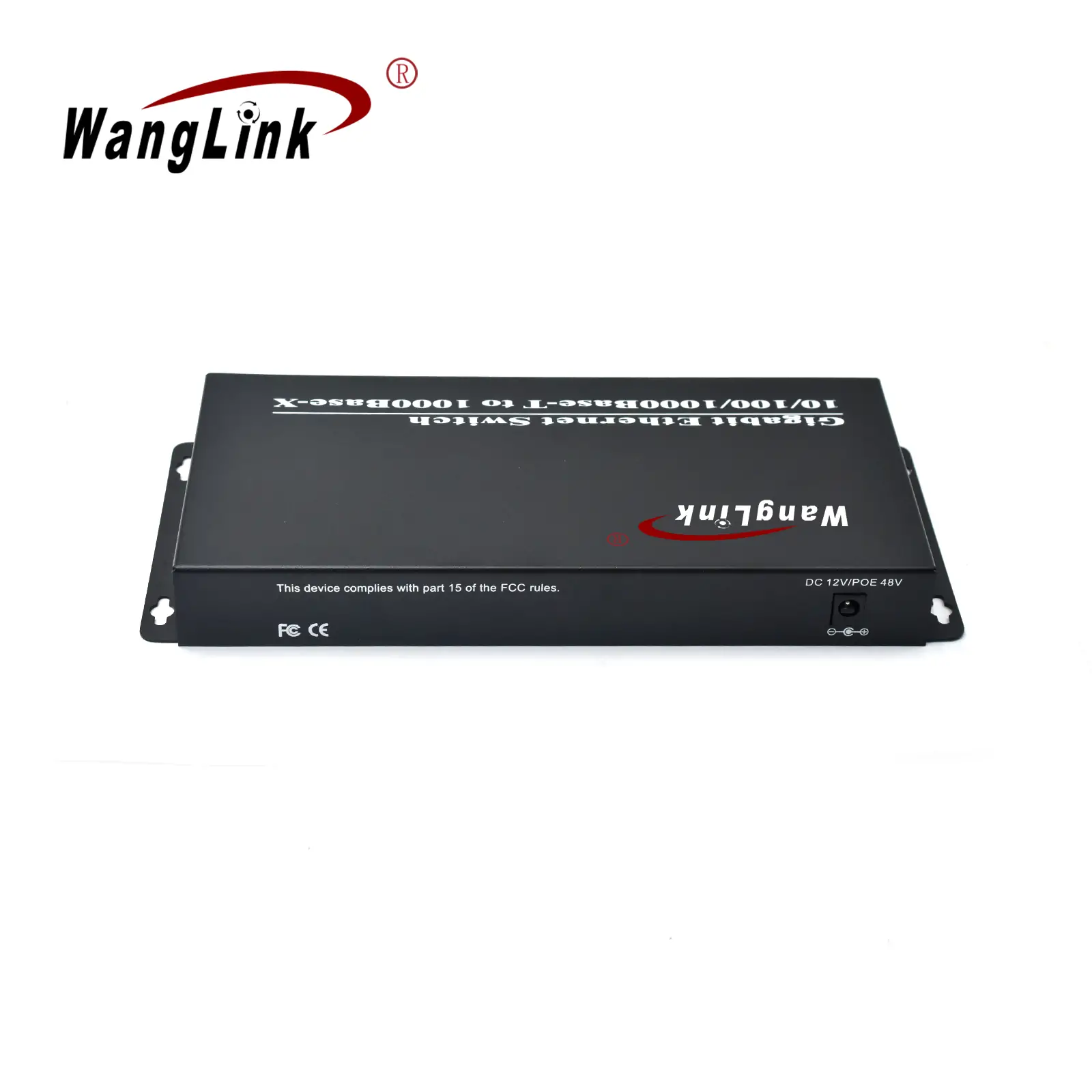

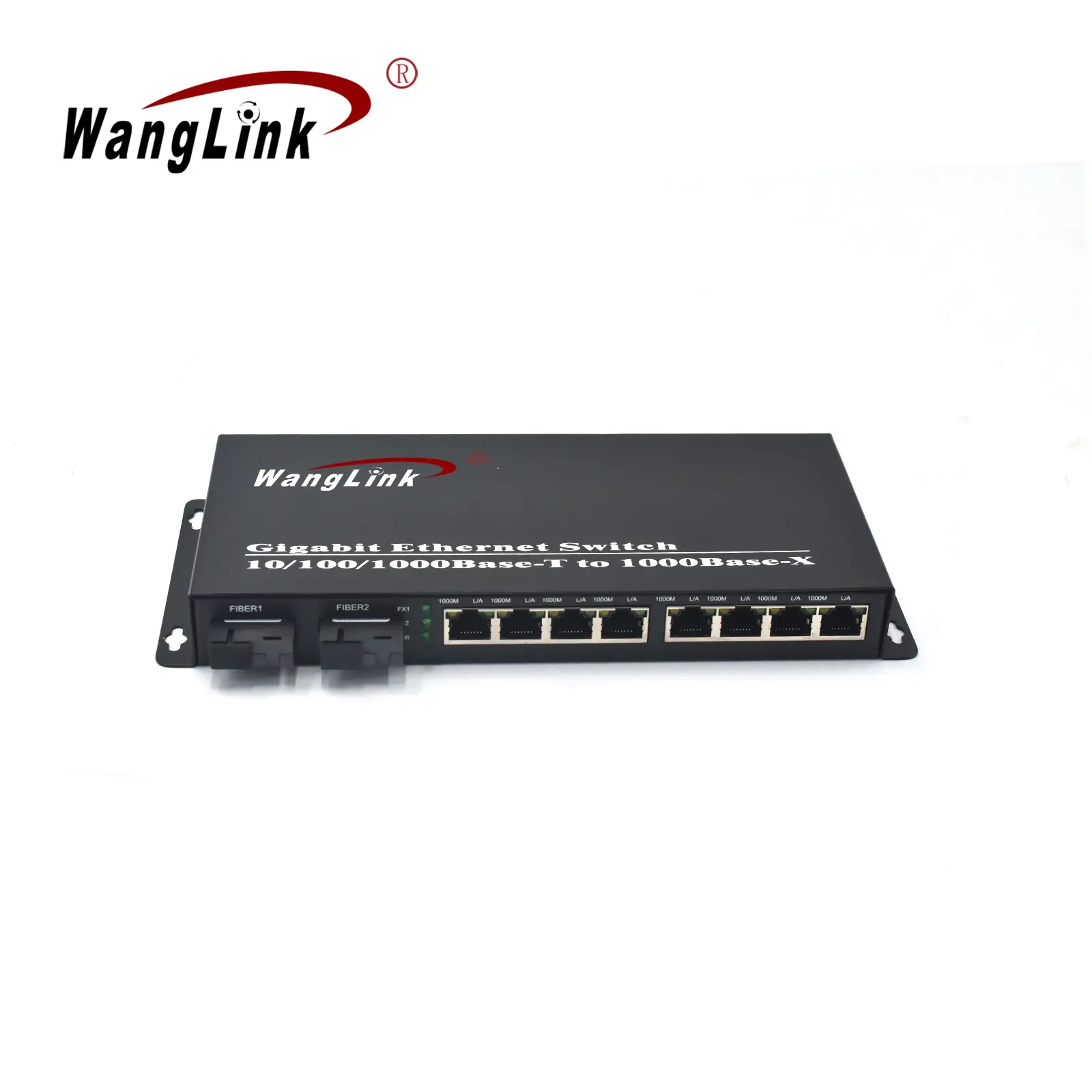

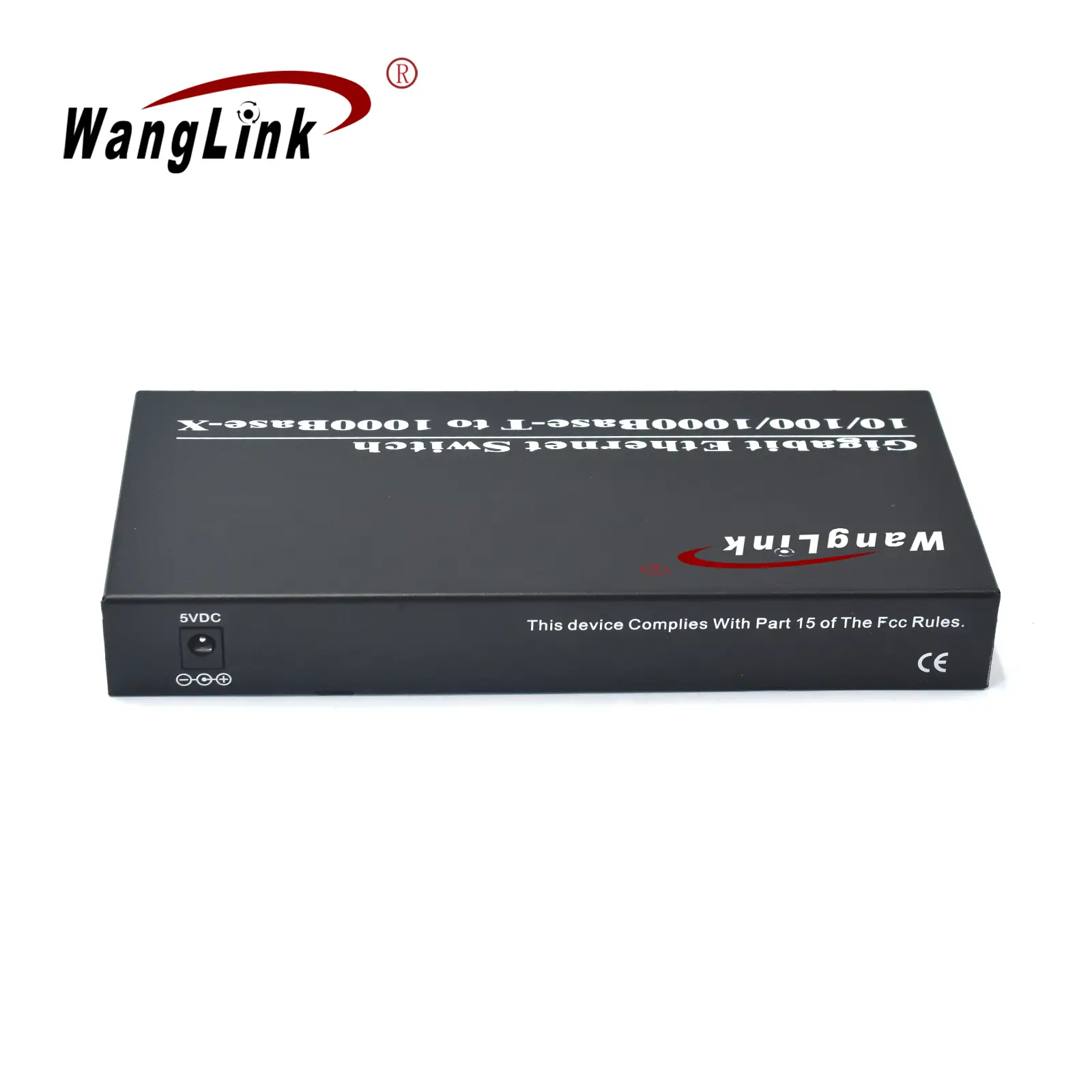

CG802 | 2 SFP/SC/LC/FC/ST Gigabit single mode single fiber media converter 8 RJ45

Discover the CG802 single mode single fiber media converter, featuring 8 Ethernet ports and 2 SFP fiber ports, extending distances up to 120km with hassle-free plug-and-play operation.

Email:

Sample order

Product Overview

The CG802 is a versatile single mode single fiber media converter designed for efficient data communication. It features two 1.25Gbps SFP fiber ports and eight 10/100/1000Mbps Ethernet ports, enabling seamless connectivity between 1000Base-T twisted pair cables and 1000Base-SX/LX optical cables. This converter significantly enhances the maximum transmission distance of a network from a standard 100 meters to an impressive 120 kilometers.

Installing the CG802 is straightforward, thanks to its plug-and-play design that requires no configuration. All optical and electrical interfaces comply with international standards, ensuring reliability and broad compatibility. The unit is equipped with isolation protection, excellent data confidentiality, stable operation, and easy maintenance, making it suitable for various commercial and industrial applications.

Key Features

  • Port Configuration:
    • 8 x 10/100/1000Base-T Ethernet ports
    • 2 x 1000Base-X optical ports
  • Packet Size Support: Capable of transmitting data packets of up to 9K in size for efficient data handling.
  • Adaptive Speed: All ports support auto-negotiation for 10/100/1000Mbps speeds, ensuring flexible connectivity.
  • Duplex Capability: Each port supports both half/full duplex adaptation and includes automatic MDI/MDI-X functionality for easy integration.
  • Line-Speed Forwarding: All ports support line-speed forwarding, enabling smoother and more efficient data transfer.
  • User-Friendly Design: Plug-and-play operation that simplifies installation, requiring no configuration for immediate use.
  • Durable Construction: Housed in a robust metal shell for excellent heat dissipation, ensuring stable operation during extended use.

Product Parameters

ProtocolStandardIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3x flow control
Fiber Port CharacteristicConnector TypeSFP
Transmission rate1.25Gbps
Transmission distanceMulti-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km
WavelengthMulti-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm
Ethernet port CharacteristicConnector Type1×4×2 RJ45
Transmission rate10/100/1000Mbps auto-negotiate
Transmission distance10Base-T: ≤250m(CAT3,4,5 UTP)100Base-TX: ≤100m(CAT3,4,5 UTP)1000Base-T: ≤100m(CAT3,4,5 UTP)
Exchange performanceForward methodStore-and-forward(full wire-speed)
Transmission modeHalf/Full duplex adaptive
MAC address table2K
Case space1Mb
Jumbo frames9K
Packet Forwarding Rate14.88Mpps@64byte
Bandwidth20G(non-blocking)
LED indicatorPower indicatorGreen, PWR
Fiber indicatorGreen, FX1/FX2
Link/Act indicatorYellow, L/A
Power parametersInput voltageDC5~12V
Power consumption≤6W
EnvironmentOperating Temperature-20℃~60℃
Storage Temperature:-40℃~85℃
Operating Humidity5%~95% non-condensing
Heat dissipation methodNatural heat dissipation
Physical propertiesSize198×87×26mm
Weight0.5kg

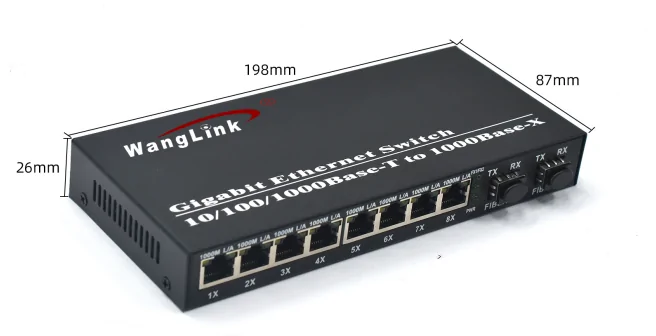

Product size

Product size: CG802 | 2 SFP/SC/LC/FC/ST Gigabit single Modus single fiber media-Konverter RJ45-8

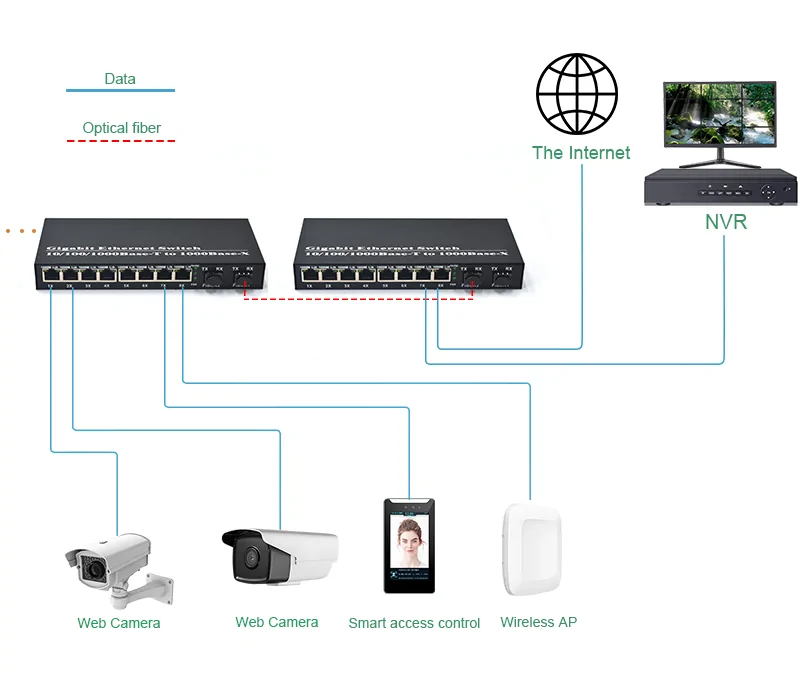

Application

Application: CG802 | 2 SFP/SC/LC/FC/ST Gigabit single Modus single fiber media-Konverter RJ45-8
Product size: CG802 | 2 SFP/SC/LC/FC/ST Gigabit single Modus single fiber media-Konverter RJ45-8
Application: CG802 | 2 SFP/SC/LC/FC/ST Gigabit single Modus single fiber media-Konverter RJ45-8
