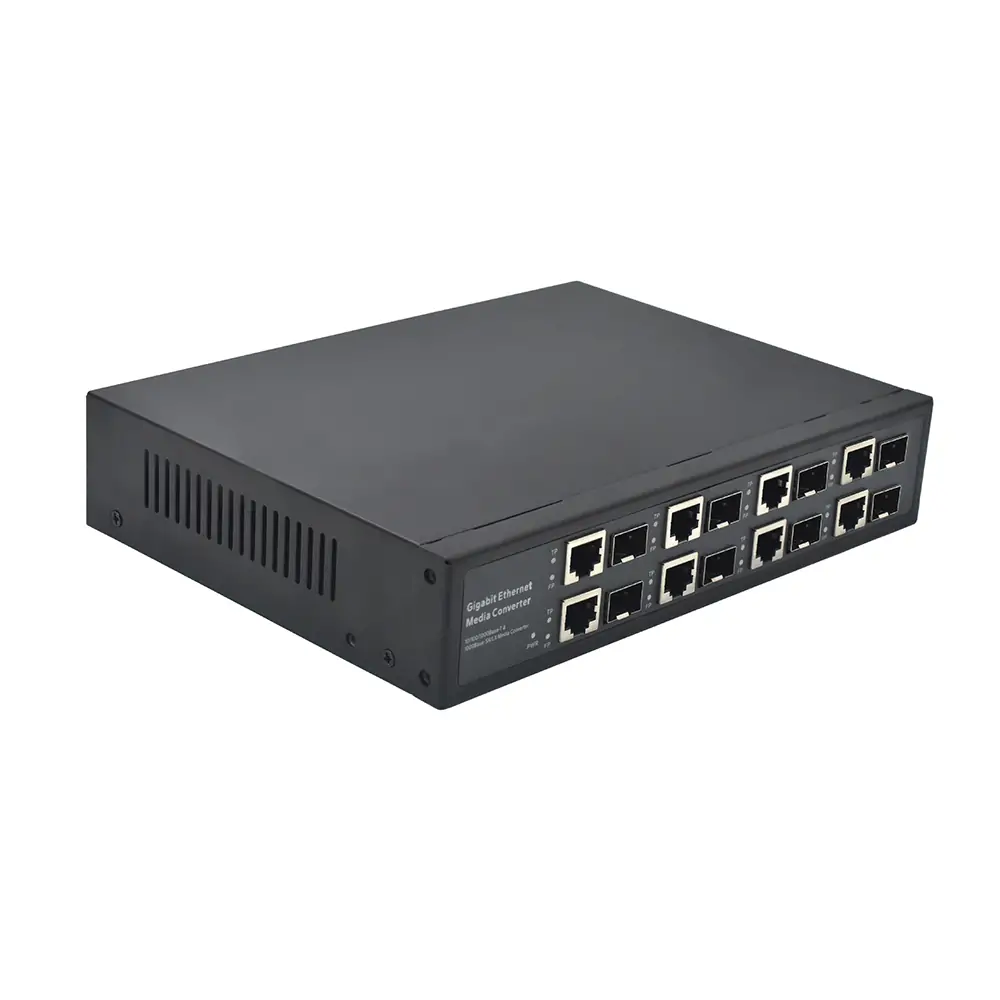

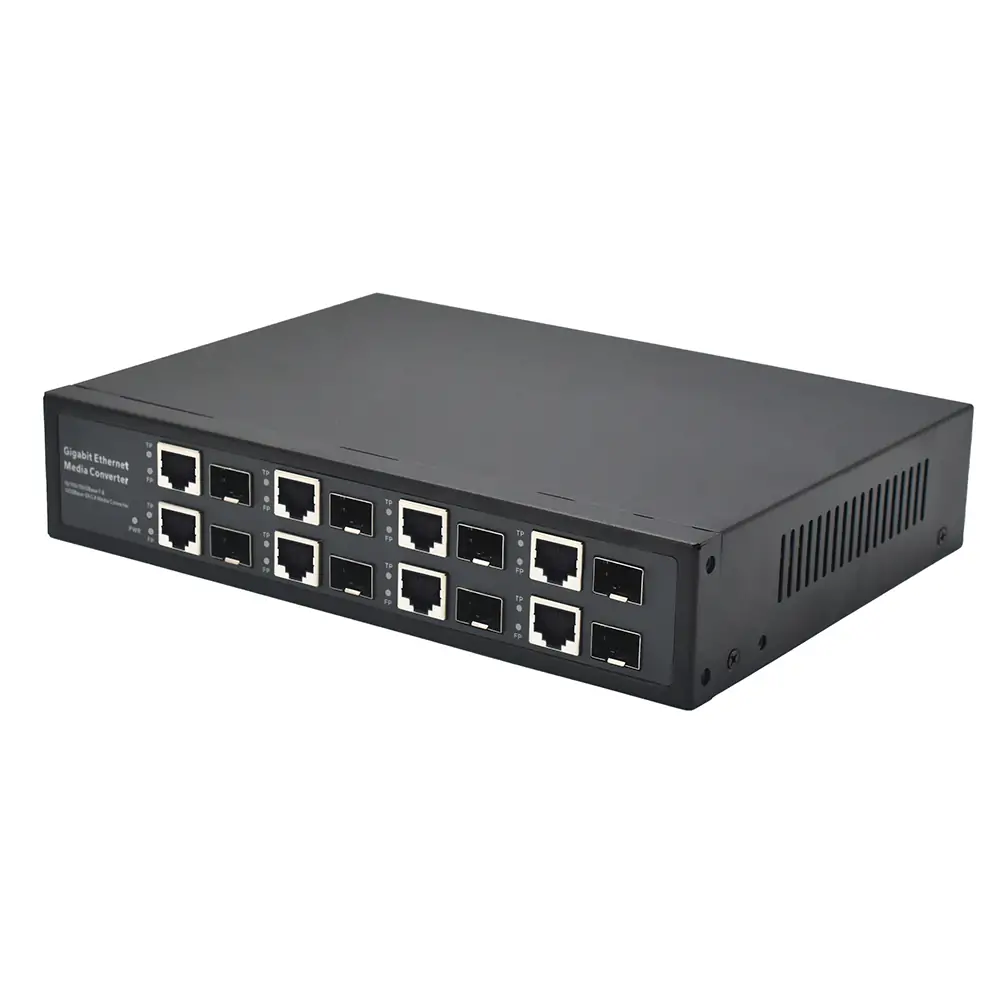

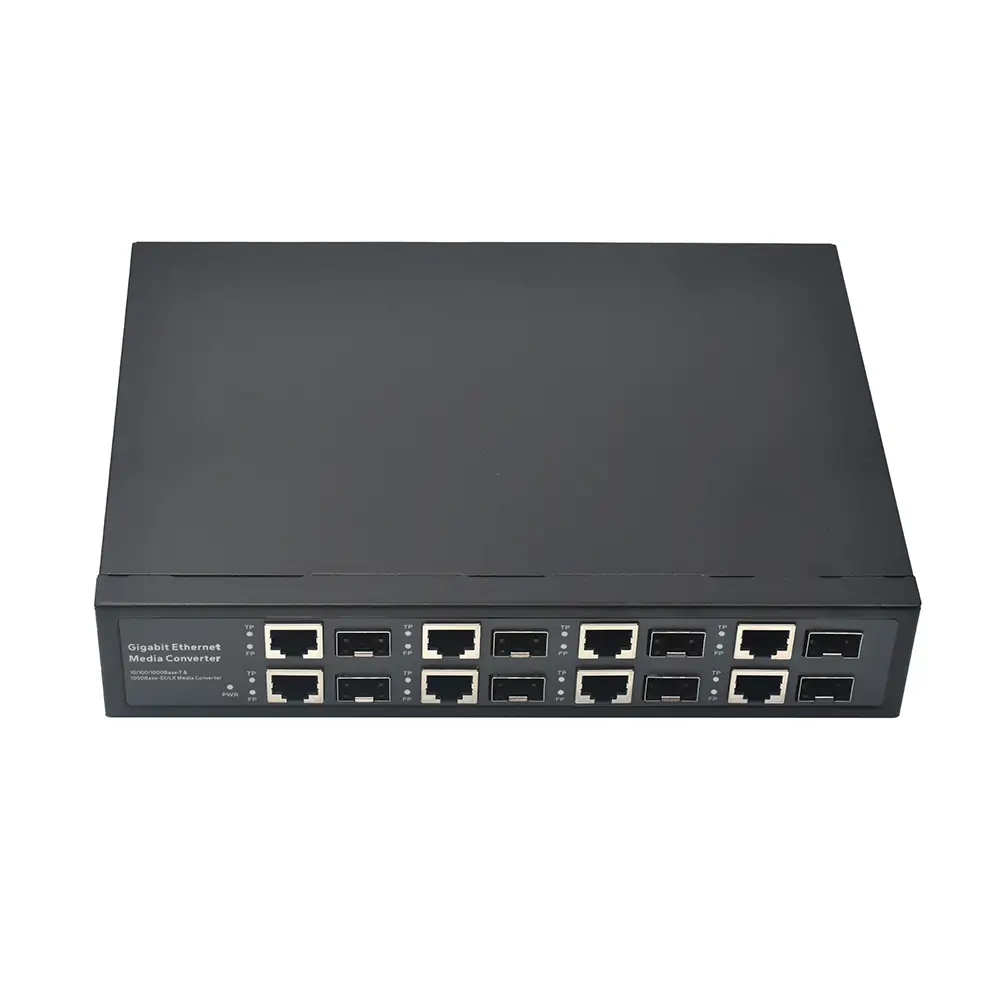

CG808 | Gigabit media converter sfp 8 Port RJ45 and 8 Fiber Port Physical isolation

Explore the CG808 SFP media converter, featuring 8 optical ports and 8 Ethernet ports, supporting distances up to 120km with efficient plug-and-play installation.

Email:

Sample order

Product Overview

The CG808 is a powerful media converter designed for high-capacity networking solutions. This switch features 8 SFP optical ports (1.25G) and 8 Ethernet ports (10/100/1000Mbps), providing users with 8 groups of physical isolation. Each group facilitates effective data communication between 1000Base-TX twisted pair cables and 1000Base-SX/LX optical fibers, significantly extending the maximum transmission distance from 100 meters over twisted pairs to an impressive 120 kilometers over optical fibers.

Installing the CG808 is easy and hassle-free, thanks to its plug-and-play design that requires no additional configuration. Both the optical and Ethernet ports comply with international standards, ensuring great reliability. Key features include isolation protection, non-interference, strong data security, stable operation, and minimal maintenance. Utilizing low-power chips, this converter is suitable for various commercial and industrial applications.

Key Features

  • Port Configuration:
    • 8 x 10/100/1000Base-T Ethernet ports
    • 8 x 1000Base-X SFP optical ports
  • Physical Isolation: Supports 8 groups of physical isolation for enhanced network integrity.
  • Jumbo Frame Support: Capable of transmitting 16K jumbo frames for efficient data transfer.
  • Auto-Negotiation: All Ethernet ports support 10/100/1000Mbps speeds with auto-negotiation for flexible connectivity.
  • Duplex Mode: Supports both half-full duplex modes and features automatic MDI/MDI-X functionality.
  • Versatile Installation: Can be easily installed on desktops or mounted on walls for flexibility in various environments.
  • Low Power Consumption: Designed with low-power consumption chips for energy efficiency.
  • Plug-and-Play Operation: Simple setup with no configuration needed, enabling immediate use.
  • Durable Construction: Features a metal casing with a built-in power supply for excellent heat dissipation, ensuring long-term stable operation.

Product Parameters

Standards and protocolsIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE802.3x Flow control,
Interface informationSFP optical port: 8 1000Base-X optical ports
Transmission rate: 1.25G
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm
RJ45 ethernet port: 8 10/100/1000M Base-T ethernet ports (standard RJ45)
10/100/1000Mbps adaptive
10Base-T: ≤100m (CAT5e or above)
100Base-TX: ≤100m (CAT5e or above)
1000Base-T: ≤100m (CAT5e or above)
Mechanical PropertiesShell material: metal shell
Appearance size (length * depth * height): 220mm*160mm*44mm
Installation method: Desktop, Rack-mount
Cooling method: natural cooling, no fan
Weight: < 0.87Kg
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesExchange method:Cut-through
Jumbo: 16K
Port isolation group:8
Power supplyInput voltage: AC 100V-240V
Power consumption: < 25 W
IndicatorsEthernet ports: 10/100/1000M LINK/ACT Green
SFP optical ports: Green
PWR: Green

Product size

Product size: CG808 | Gigabit media Konverter sfp 8-Port RJ45 und 8 Fiber Port Physische isolation

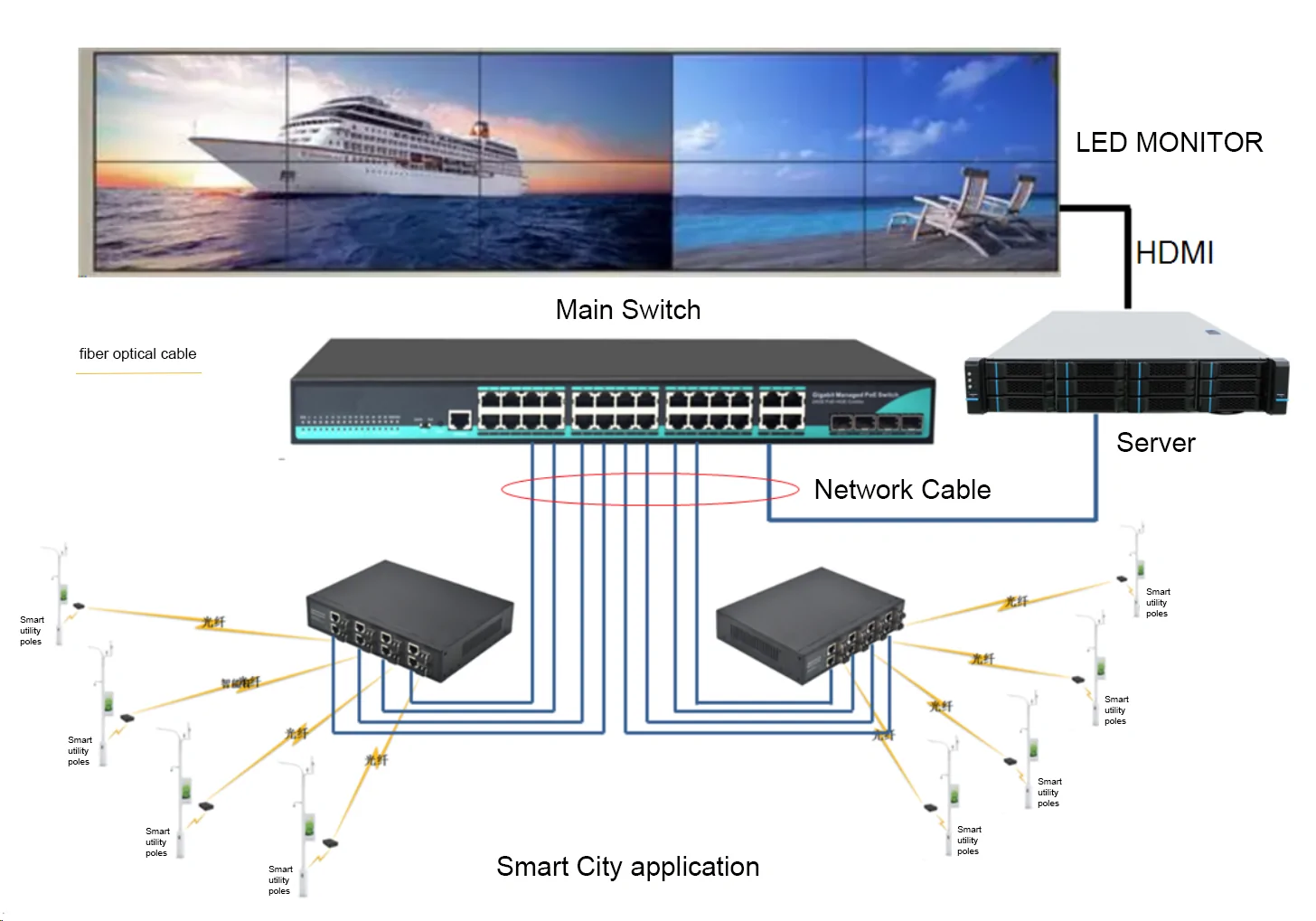

Application

Application: CG808 | Gigabit media Konverter sfp 8-Port RJ45 und 8 Fiber Port Physische isolation
Product size: CG808 | Gigabit media Konverter sfp 8-Port RJ45 und 8 Fiber Port Physische isolation
Application: CG808 | Gigabit media Konverter sfp 8-Port RJ45 und 8 Fiber Port Physische isolation
