ISF201P | Unmanaged Fast Ethernet Industrial Network Switch PoE

Discover the Industrial Network Switch PoE, designed for harsh environments with 2 Ethernet ports and 1 fiber port, ensuring reliable power delivery and performance.

Email:

Sample order

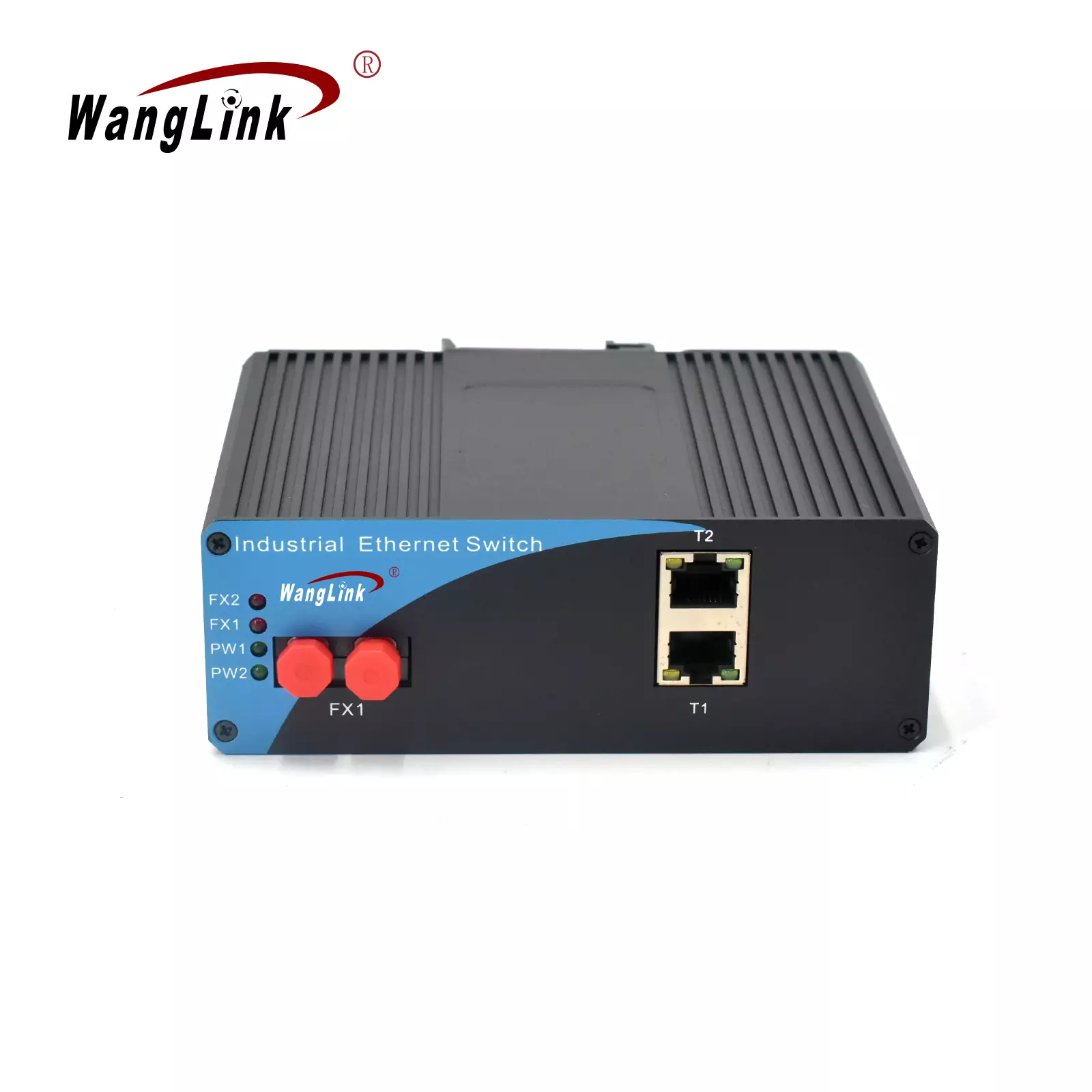

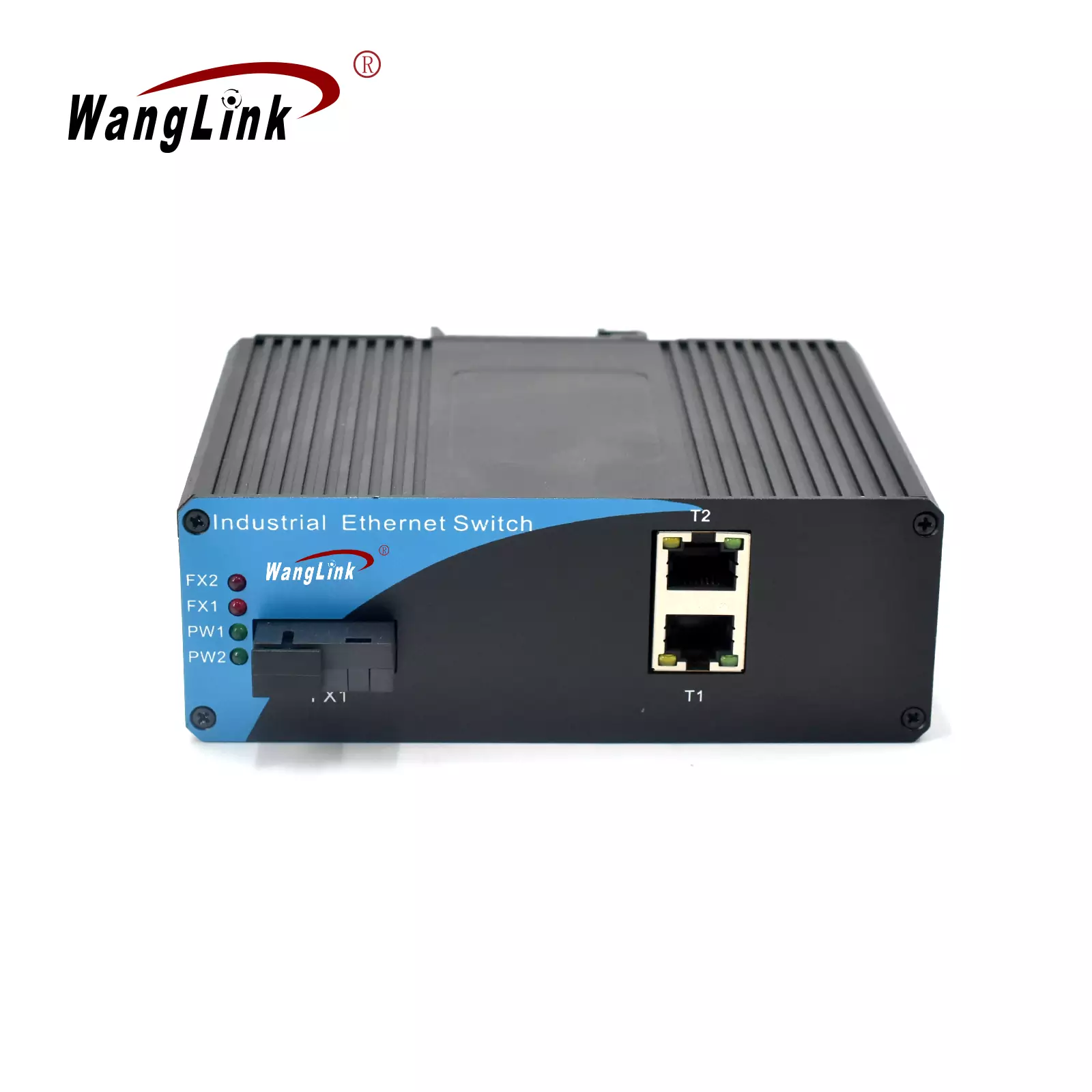

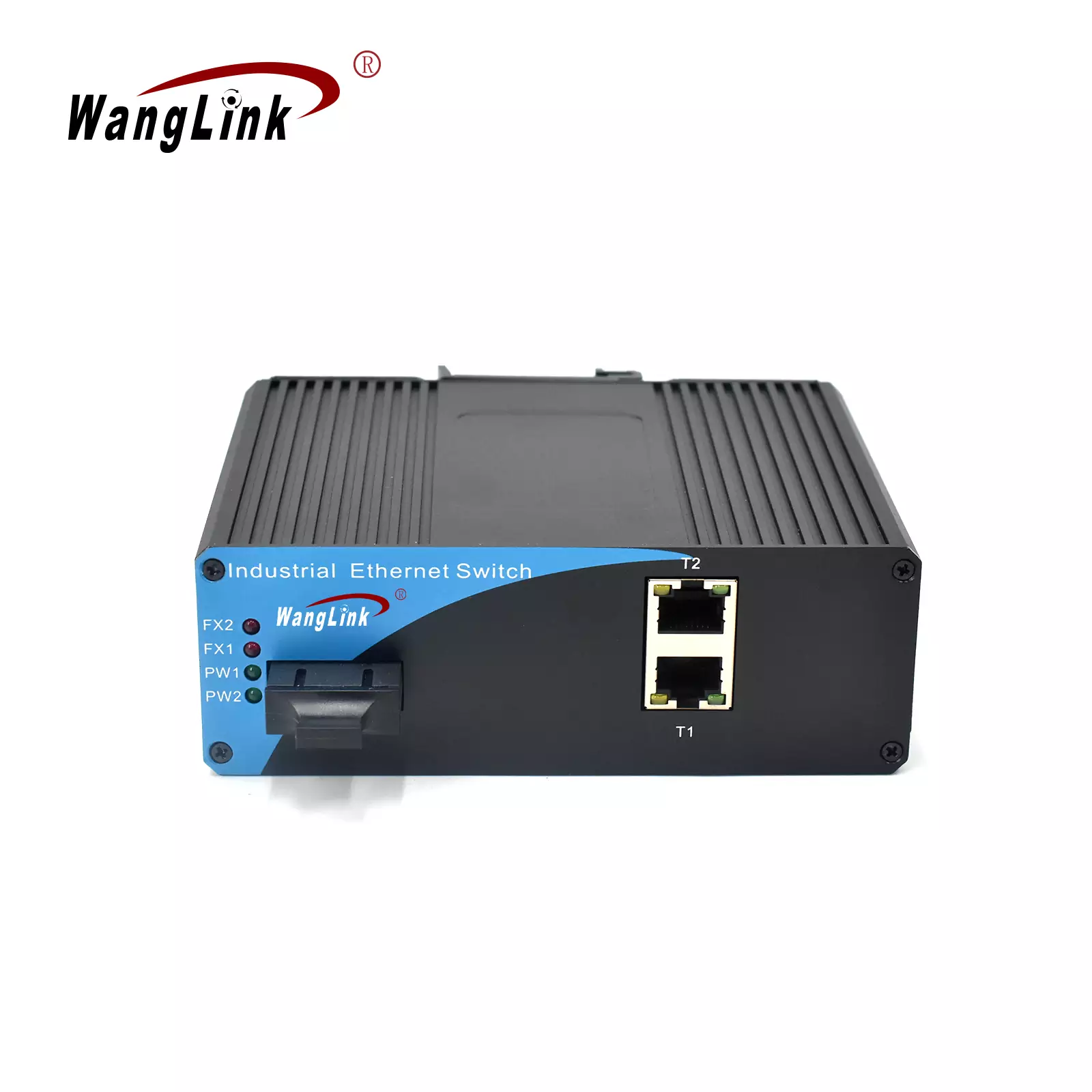

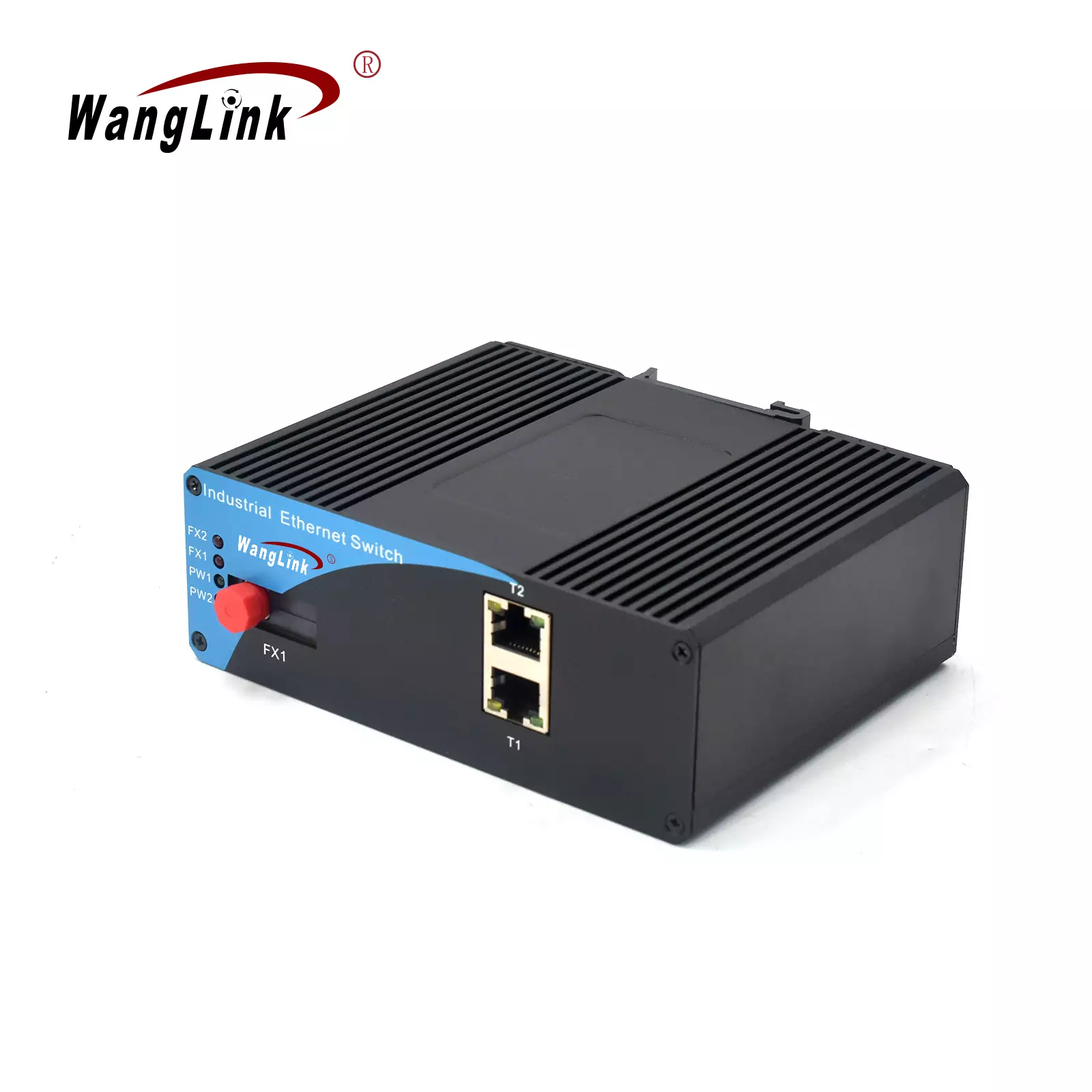

Product overview

This industrial PoE switch is specifically designed for harsh industrial environments, featuring 1 x 155M SC fiber port and 2 x 10/100Mbps Ethernet ports. All ports comply with the IEEE 802.3 af/at PoE power supply standard, providing up to 25.4W of power per port. The switch automatically detects whether connected devices support PoE, ensuring safe power delivery and preventing damage to non-PoE devices.

Key Features:

  • Port Configuration: 2 x 10/100Base-TX Ethernet ports and 1 x 100Base-X optical port. Each RJ45 Ethernet port supports IEEE 802.3 af/at PoE standards, with a maximum output of 25.4W.
  • Adaptive Performance: All Ethernet ports support 10/100Mbps adaptive rates, half/full duplex modes, and automatic MDI/MDI-X functionality for seamless integration.
  • Robust Protection: Equipped with imported surge protection devices to withstand lightning strikes and voltage surges, ensuring reliable operation in extreme conditions.
  • Wide Temperature Range: Designed to operate in temperatures from -45°C to +85°C, making it suitable for various harsh environments.
  • High Reliability: With a mean time between failures (MTBF) of 300,000 hours, this unmanaged industrial network switch PoE is ideal for industrial automation, road traffic control, building automation, and data center monitoring systems.
  • User-Friendly: The plug-and-play design allows for easy installation with no configuration required. The IP40 protection level and corrugated high-strength metal casing ensure durability, while the fanless design promotes low power consumption.
  • Electromagnetic Compatibility: Complies with IEC Class A electromagnetic protection standards, ensuring high EMC compatibility.

This industrial PoE switch is perfect for building a robust industrial IoT network, ensuring stable and reliable operation even in the most challenging environments. With its combination of power, protection, and performance, it is the ideal choice for your industrial networking needs.

Product Parameters

Standards and protocolsIEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE802.3z 100Base-SX/LX standardsIEEE 802.3af/at Power Over EthernetIEEE 802.3x flow control
Interface informationSingle-mode SC fiber port: 1 100Base-X fiber optic port (options: SC/FC/SFP).
Transmission rate: 155 Mbps
Multimode fiber distance: 550 m/2 km; Single-mode fiber distance: 2/20/40/60/80/100 km
Multimode wavelength: 850 nm/1310 nm; Single-mode wavelength: 1310 nm/1550 nm/1490 nm
RJ45 Ethernet port: 2 10/100Base-TX Ethernet port (standard RJ45)
10/100 Mbps auto-negotiation
10Base-T: ≤100 m (CAT3, CAT4, CAT5 UTP)
100Base-TX: ≤100 m (CAT3, CAT4, CAT5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height): 139mm×108mm×50mm
Installation method: DIN rail type
Heat dissipation method: natural cooling, no fan
Weight: < 0.6KG
Environmental propertiesWorking temperature: -40 ℃ ~+ 85 ℃
Storage temperature: -40 ℃ ~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 1.2Gbps
Packet forwarding rate (whole machine) : 0.8928 Mpps
Exchange method: store-and-forward
MAC table : 1K
Packet buffer : 512K
Jumbo frame: 10K

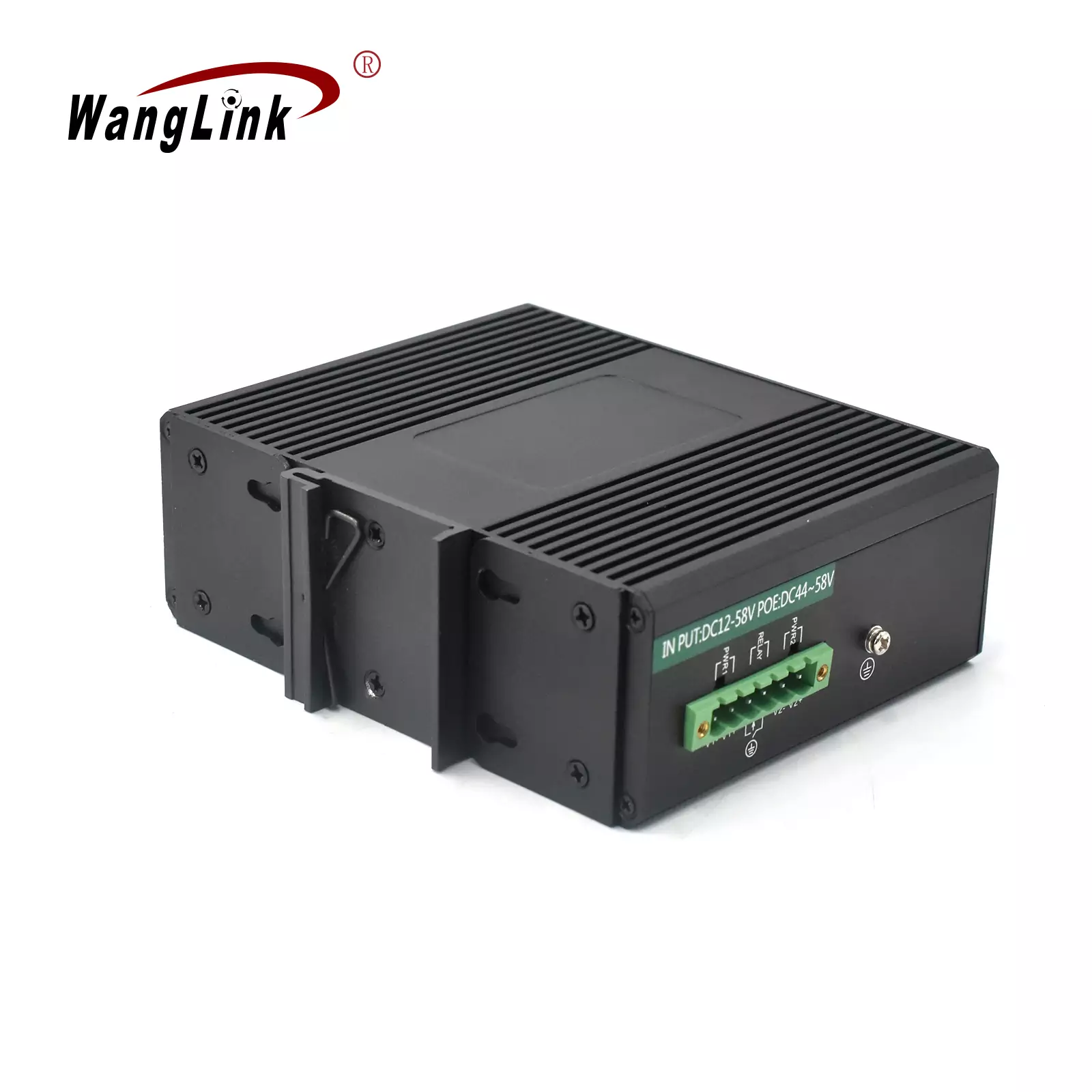

Power supplyInput voltage: DC 44 V-58V (dual redundant)
Power supply protection: positive and negative pole misconnection protection
Minimum power consumption: < 5W, maximum power consumption: < 60W.
PoE pin802.3AF/AT(1/2+,3/6-)
indicator lightEthernet port :100M Link/ACT yellow, Link/Act green;PoE: POET green
Fiber port: Red
Power light: Green(PW1-PW2)
      Security propertiesShell protection: IP40
Surge impact IEC61000-4-5 : (optional)Signal end: common mode ± 4KV, differential mode ± 2KVPower supply end: common mode ± 4KV, differential mode ± 2KV
Anti-static interference IEC61000-4-2 : contact discharge ± 8KV, air discharge ± 15KV
Pulse immunity IEC61000-4-4 : signal terminal: ± 2KV, power terminal: ± 2KV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
MTBF: 100000 hours
warranty period3 years

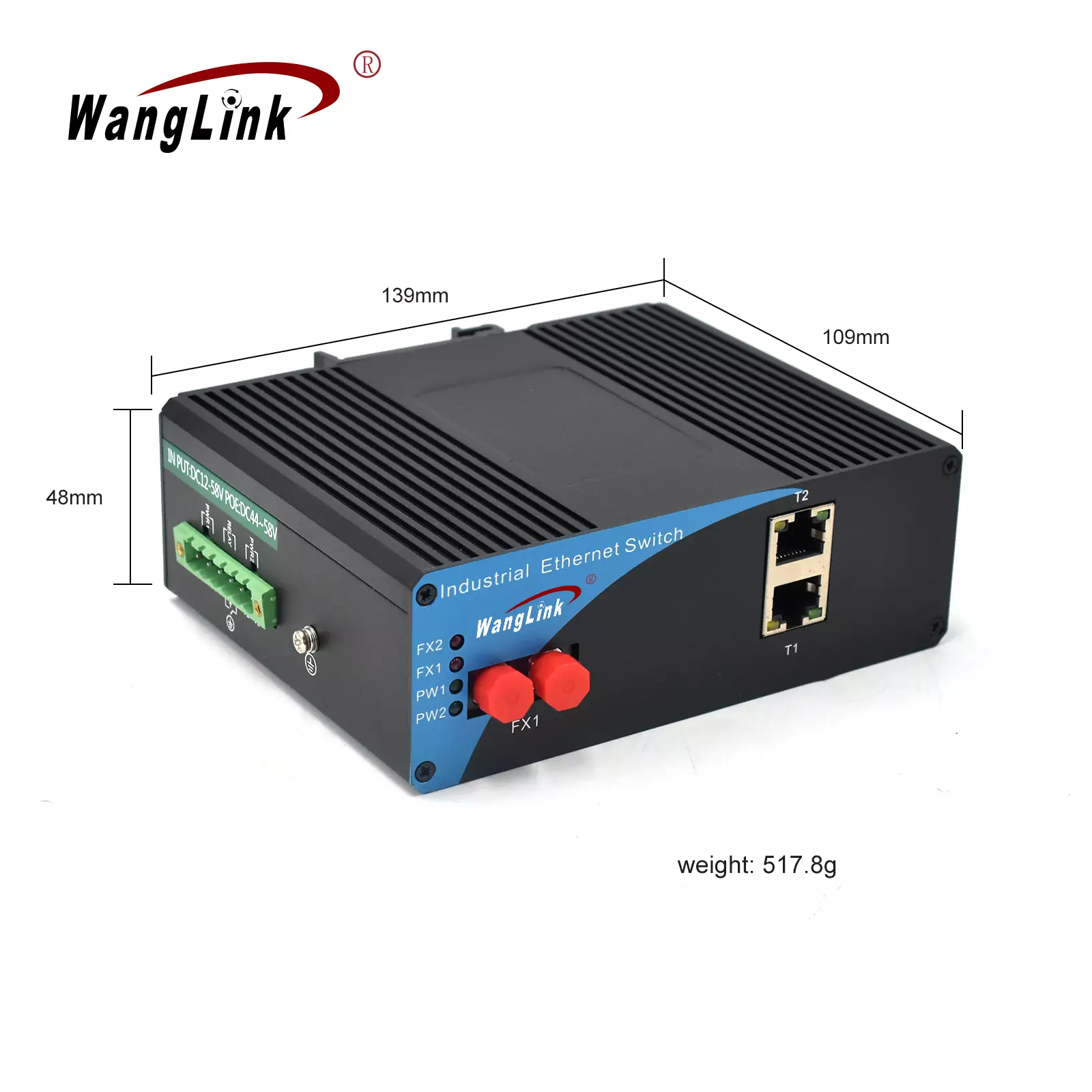

Product size

Product size: ISF201P | non gérés Fast Ethernet Industriel de Commutateur de Réseau PoE

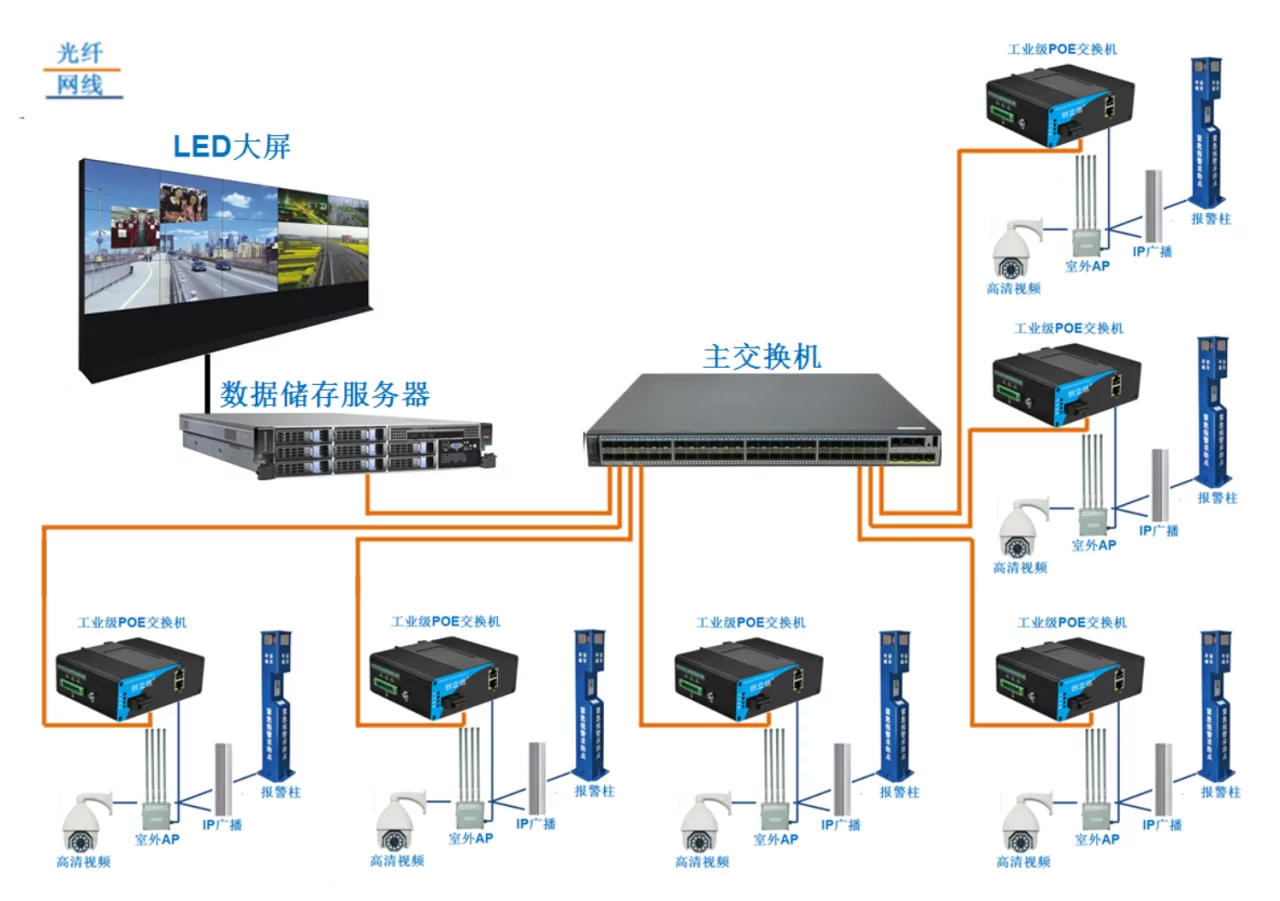

Application

Application: ISF201P | non gérés Fast Ethernet Industriel de Commutateur de Réseau PoE
Product size: ISF201P | non gérés Fast Ethernet Industriel de Commutateur de Réseau PoE
Application: ISF201P | non gérés Fast Ethernet Industriel de Commutateur de Réseau PoE
