SF422P | Unmanaged Fast Ethernet Poe network switch 4 port with 2 RJ45 and 2 Fiber Port Uplink

Upgrade your network with our 4 port PoE network switch, featuring 4 PoE ports for reliable power delivery, ideal for IP cameras and VoIP devices in various settings.

Email:

Sample order

Product overview

Upgrade your network with our 4 Port PoE Network Switch, a versatile solution designed to deliver Power over Ethernet (PoE) and reliable connectivity. This 4 port PoE switch features 4 IEEE802.3af/at PoE ports, 2 uplink Ethernet ports, and 2 fiber ports, providing up to 25.4W per PoE port and a total PoE output power of 65W. Perfect for powering IP cameras, VoIP phones, and other PoE devices, this PoE powered switch 4 port ensures seamless integration and long-range network performance.

Key Features:

  • 4 Port PoE Network Switch: 4 PoE ports (Ports 1-4) and 2 uplink Ethernet ports for flexible network expansion.
  • Dual Fiber Ports: 2 fiber ports support transmission distances up to 120km, ideal for long-range networking.
  • PoE Powered Switch 4 Port: Automatically detects and powers compatible PoE devices, protecting non-PoE devices from damage.
  • 4 Port Unmanaged PoE Switch: Plug-and-play design with no configuration required, perfect for small to medium networks.
  • 4 Port PoE Switch for CCTV: Ideal for video surveillance in hotels, shops, supermarkets, and homes.
  • 250m Long-Distance Mode: Extend transmission distances up to 250m by reducing the port speed to 10Mbps.
  • VLAN Mode: One-key VLAN support isolates broadcast domains, reducing network congestion and improving efficiency.
  • Industrial-Grade Durability: Metal casing, excellent heat dissipation, and optional 6KV surge protection for enhanced reliability.
  • AI Network Self-Healing: Optional watchdog function ensures uninterrupted network performance.

Why Choose Our 4 Port PoE Switch?

  • Best 4 Port PoE Switch: Combines affordability with enterprise-grade performance.
  • PoE Ethernet Switch 4 Port: Simplifies installation by delivering power and data over a single Ethernet cable.
  • 4 Port PoE Switch for IP Cameras: Ensures reliable power and connectivity for demanding applications.
  • Unmanaged PoE Switch: Easy to deploy, making it perfect for non-technical users.

Whether you need a 4 port PoE switch for CCTV, a 4 port PoE switch for IP cameras, or a 4 port unmanaged PoE switch, our solution ensures reliable performance and scalability. Upgrade your network today with the best 4 port PoE switch on the market!

Spercifications

ProtocolStandardIEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE 802.3x  Flow control
Fiber Port CharacteristicConnector TypeSC/ST/FC
Transmission rate155Mbps
Transmission distance550m/2km/20km/40km/60km/80km/100km/120km
Ethernet port CharacteristicConnector Type1×4RJ45,1×2 RJ45
Transmission rate10/100Mbps auto-negotiate;
Transmission distance10Base-T: ≤250m(CAT3,4,5 UTP)100Base-TX: ≤100m(CAT3,4,5 UTP)
Exchange performanceForward methodStore-and-forward(full wire-speed)
Transmission modeHalf/Full duplex adaptive
MAC address table2K
Case space768Kb
Jumbo frames2048b
Packet Forwarding Rate1.1904Mpps@64byte
Bandwidth1.6G(non-blocking)
LED indicatorPower indicatorGreen, PWE
Ethernet indicatorGreen, per ethernet port
Fiber indicatorGreen, per fiber port
DIP switch indicatorGreen, extend mode.
DIP switch100mStandard mode – All ports can communicate with each other.
250mExtend mode, port 1-4 are isolated from each other, transmission distance can up to 250m, and can communicate with port 5-6.
Power parametersInput voltageAC100~240V, 50Hz
Power consumptionStandby: ≤4W; whole: ≤65W
PoE pin1/2+,3/6-
The port max rate≤25.4W
EnvironmentOperating Temperature-20℃~60℃
Storage Temperature:-40℃~85℃
Operating Humidity5%~95% non-condensing
Heat dissipation methodNatural heat dissipation
Physical propertiesSize305×182×44mm
WeightNet weight:2.0kg,Gross weight: 2.2kg

Product size

Product size: SF422P | Unmanaged Fast-Ethernet Poe-Netzwerk-switch 4 port mit 2 RJ45 und 2 Fiber Port Uplink

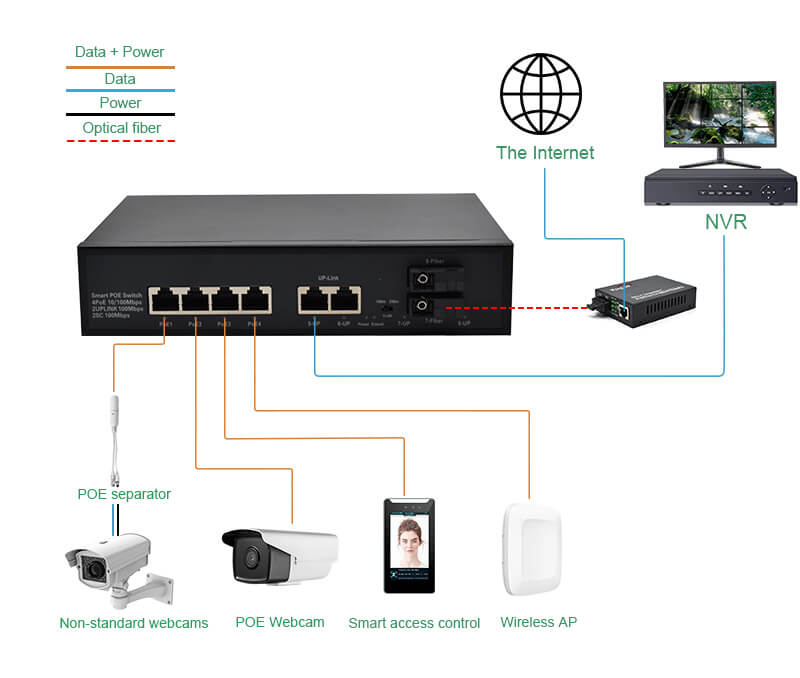

Application

Application: SF422P | Unmanaged Fast-Ethernet Poe-Netzwerk-switch 4 port mit 2 RJ45 und 2 Fiber Port Uplink
Product size: SF422P | Unmanaged Fast-Ethernet Poe-Netzwerk-switch 4 port mit 2 RJ45 und 2 Fiber Port Uplink
Application: SF422P | Unmanaged Fast-Ethernet Poe-Netzwerk-switch 4 port mit 2 RJ45 und 2 Fiber Port Uplink
