Overview

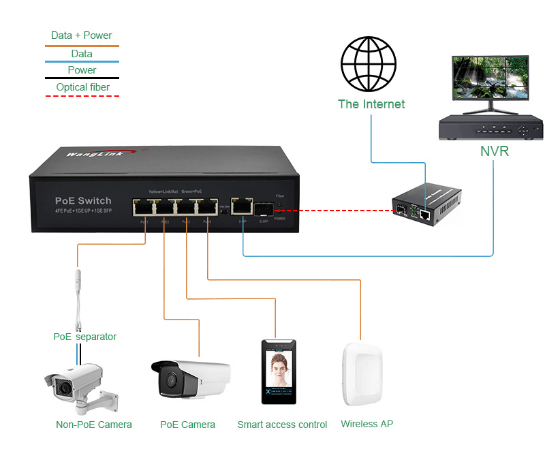

Enhance your network with our Four Port PoE Switch, a compact and efficient solution designed to deliver Power over Ethernet (PoE) and flexible connectivity. This 4 port PoE switch features 4 IEEE802.3af/at PoE ports, 1 Gigabit Ethernet uplink port, and 1 SFP slot, providing up to 25.4W per PoE port and a total PoE output power of 65W. Perfect for powering IP cameras, VoIP phones, and other PoE devices, this 10/100 PoE switch ensures seamless integration and reliable performance.
Key Features:
- Four Port PoE Switch: 4 PoE ports (Ports 1-4) and 1 Gigabit uplink port for flexible network expansion.
- SFP Uplink Slot: 1 SFP slot supports fiber connectivity for extended network reach.
- PoE Network Switch 4 Port: Automatically detects and powers compatible PoE devices, protecting non-PoE devices from damage.
- 10/100 PoE Switch: Ports 1-4 support 10/100Mbps auto-negotiation, while Ports 5-6 support 10/100/1000Mbps for high-speed data transfer.
- 250m Long-Distance Mode: Extend transmission distances up to 250m by reducing the port speed to 10Mbps.
- VLAN Mode: One-key VLAN support isolates broadcast domains, reducing network congestion and improving efficiency.
- Auto MDI/MDI-X: Simplifies cable connections with automatic crossover detection.
- Industrial-Grade Durability: Metal casing and excellent heat dissipation ensure long-term stability.
- Flexible Installation: Supports both desktop and wall-mounted installation.
Why Choose Our Four Port PoE Switch?
- Best 4 Port PoE Switch: Combines affordability with enterprise-grade performance.
- PoE Powered Switch 4 Port: Simplifies installation by delivering power and data over a single Ethernet cable.
- 4 Port PoE Gigabit Ethernet Switch: Ensures high-speed connectivity for demanding applications.
- Unmanaged PoE Switch: Easy to deploy, making it perfect for non-technical users.
Whether you need a 4 port PoE switch for IP cameras, a 10/100 PoE switch, or a 100m PoE switch, our solution ensures reliable performance and scalability. Upgrade your network today with the best four port PoE switch on the market!
Spercifications
| Model | WOR-SL411P-SFP | |
| Protocol | Standard | IEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE802.3ab 1000Base-TIEEE802.3z 1000Base-SX/LX standardsIEEE 802.3x flow control |
| Fiber Port Characteristic | Connector Type | SFP Slot |
| Transmission rate | 1.25Gbps | |
| Transmission distance | Multi-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km | |
| Wavelength | Multi-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm | |
| Ethernet port Characteristic | Connector Type | 1×4 RJ45，1×1 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate；10/100/1000Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 1Mb | |
| Jumbo frames | 9216b | |
| Packet Forwarding Rate | 3.5712Mpps@64byte | |
| Bandwidth | 4.8G（non-blocking） | |
| LED indicator | Power indicator | Green, Power |
| Fiber indicator | Green, per SFP optical fiber port | |
| Link/Act indicator | Yellow, per ethernet port | |
| PoE indicator | Extend, per PoE port | |
| DIP switch | 100m | Standard mode – All ports can communicate with each other. |
| 250m | Extend mode, port 1-4 is isolated from each other, transmission distance can up to 250m, and can communicate with port 5-6. | |
| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | Standby: ≤2W; whole: ≤65W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | ≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

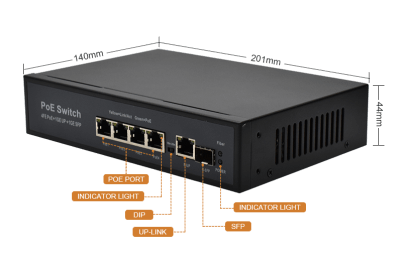

| Physical properties | Size | 201×140×44mm |
| Weight | Net weight:0.7kg,Gross weight: 0.9kg | |
