Product Overview
The ISG1602M 16-Port Managed Ethernet Switch is a high-performance Gigabit industrial switch that features 16 downlink 10/100/1000Base-T ports and 2 uplink 1000M SFP fiber ports. Engineered to operate efficiently in extreme temperatures ranging from -40℃ to 75℃, this switch is robust enough to withstand harsh environmental conditions, making it ideal for deployment in compact control cabinets.
Designed with flexibility in mind, the ISG1602M supports various Layer 2 Ethernet protocols and multiple loop protection protocols, ensuring network stability. Its versatile networking capabilities make it suitable for a range of applications, including industrial automation, traffic control systems, building automation, and data center monitoring systems. This switch delivers reliable, high-performance operations essential for establishing a resilient industrial IoT network.
Key Features
- Uplink Ports: 2 independent SFP ports for long-distance interconnectivity, enhancing network flexibility.
- Port Buffering: Supports a 4.1M port buffer, effectively preventing congestion during video storage and transmission.
- Data Control: Implements 802.3X full-duplex flow control and network storm suppression to optimize network performance.
- Redundant Networking: Features support for STP, RSTP, MSTP, and industrial ERPS ring network functionality to maintain network integrity and redundancy.
- Multicast Management: Supports IGMP Snooping (V1/V2/V3) to manage multicast traffic efficiently.
- VLAN Support: Implements IEEE 802.1Q VLAN for effective isolation of broadcast domains, enhancing network security and performance.
- Quality of Service (QoS): Supports COS/DSCP, with four queues and WRR/SP scheduling modes to prioritize critical traffic.
- Security Management: Features ACL (Access Control List), 802.1X, and user-level management to ensure secure access and operation.
- Management Functions: Supports various management methods including CLI, WEB, and SNMP for comprehensive network management.
- Monitoring and Maintenance: Offers capabilities for port mirroring, interface status monitoring, and log management for proactive system maintenance.
- Wide Temperature Design: Operates efficiently in extreme temperatures from -40℃ to +75℃, ensuring reliability in challenging environments.
- IP40 Protection: Constructed with rugged metal housing and designed without a fan, ensuring low power consumption and durability.
- EMC Protection: High EMC compatibility with IEC Class A electromagnetic protection, promoting interference resistance.
Product Parameters
| Standards & Protocol | 10Base-T, compliant with IEEE 802.3 100Base-TX, compliant with IEEE 802.3u 1000Base-T, compliant with IEEE 802.3ab 1000Base-X, compliant with IEEE 802.3z Flow control, following IEEE 802.3x Environmentally friendly, compliant with IEEE 802.3az |
| Interface information | Downlink Ports: 16 x 10/100/1000Base-T |
| Uplink Ports: 2 x 1000Base-X SFP (compatible with 100M) | |
| Management Port: 1 x Console port | |
| Reset interface | Reset button |
| Mechanical properties | Shell material: metal shell |

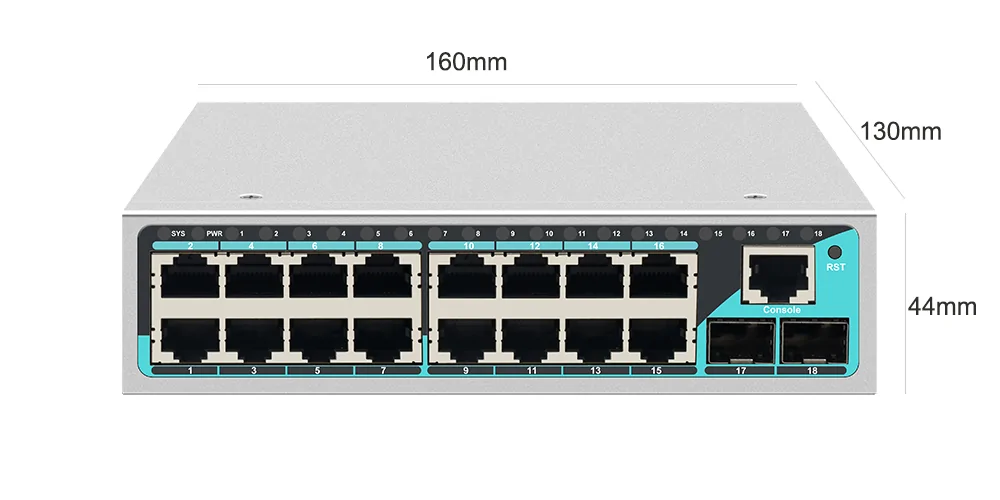

| Appearance dimensions (length*depth*height): 160mm×130mm×44mm | |
| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <2KG | |
| Environmental properties | Working temperature: -40℃～+75℃ |
| Storage temperature: -40℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 36Gbps |
| Packet forwarding rate (whole machine) : 26.8Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 4.1m | |
| Power supply | Input voltage: DC 12-52V (dual redundant) |
| Power interface: 6-pin Phoenix terminal | |
| Power Protection: Reverse polarity protection | |
| Power consumption: < 10W | |
| Indicator light | Port Indicators: 10/100M Link/ACT (yellow), 1000M Link/ACT (green) |
| POWER: Green | |
| System: Green | |
| Security properties | Shell protection: IP40 |
| Surge impact IEC61000-4-5 (optional):Signal end: common mode ±4KV, differential mode ±2KVPower supply end: common mode ±4KV, differential mode ±2KV | |
| Anti-static interference IEC61000-4-2: contact discharge ±8KV, air discharge ±15KV | |
| Pulse immunity IEC61000-4-4: signal terminal: ±2KV, power terminal: ±2KV | |
| Shock: IEC 60068-2-27 | |
| Free fall: IEC 60068-2-32 | |
| Vibration: IEC 60068-2-6 | |
| MTBF: 100000 hours | |
| Warranty | 3 years |
Software features
| Monitoring function | Information such as device model, serial number, MAC, hardware version, software version, system time, running time, CPU utilization, memory utilization, etc. can be viewed |
| Support port statistics | |
| VLAN function | Support management VLAN |
| Support management IP configuration | |
| Support port VLAN | |
| Supports VLANs for IP subnets | |
| Support MAC VLAN | |
| Support Voice VLAN | |
| Support GVRP | |
| Port function | Support port configuration |
| Support port aggregation | |
| Support port mirroring | |
| Support port speed limit | |
| Support port isolation | |
| Support port energy saving | |
| Scene function | Support MAC configuration (static binding and dynamic binding) |
| Support DHCP Snooping | |
| Support IGMP-Snooping, MLD Snooping | |
| Support LLDP configuration | |
| Support QOS configuration | |
| Support Jumbo Frame | |
| security function | Support ARP configuration |
| Support storm control | |
| Support ACL (based on IP, MAC, time) | |
| Support attack prevention (DOS, Icmp-echo) | |
| Support DHCP Snooping | |
| Support 802.1X | |
| Support Radius authentication | |
| Ring network function | Support STP |
| Support RSTP | |
| Support MSTP | |
| Support ERPS | |
| Troubleshooting function | Support loop protection |
| Support log management | |
| Support Ping detection | |
| Support traceroute | |
| Support line detection | |
| Device management function | Support HTTP/HTTPS |
| Support TELNET | |
| Support SNMP | |
| Support RMON | |
| Equipment maintenance function | Support system time (local and NTP) |
| Support account management (hierarchical management of accounts and password protection) | |
| Support configuration management (configuration import, export, restore factory settings) | |
| Support system upgrade | |
| Support device restart |
