Product Overview
The SF05P-E 5 Port PoE Switch is a reliable and efficient networking solution designed for easy integration into various commercial environments. This 5 port PoE switch features 5 10/100Base-TX Ethernet ports, all of which support IEEE802.3 af/at PoE power supply standards with a maximum output of 25.4W per port. The switch intelligently detects whether connected devices support PoE, supplying power only to compliant devices and effectively protecting non-PoE devices from damage.
Key Features
- 5 10/100Base-TX PoE ports for versatile connectivity.
- Fully compliant with IEEE802.3 af/at PoE standards, allowing for a maximum output of 25.4W per port.
- All ports support 10/100Mbps adaptive speeds for seamless connectivity.
- Supports wire-speed forwarding, ensuring smooth data transmission across all ports.
- Designed for desktop and wall-mounted installation, providing flexibility in deployment.
- Plug-and-play operation means no configuration is required, simplifying setup.
- Constructed with a robust metal casing and equipped with a built-in power supply for optimal heat dissipation, ensuring long-term stable operation.

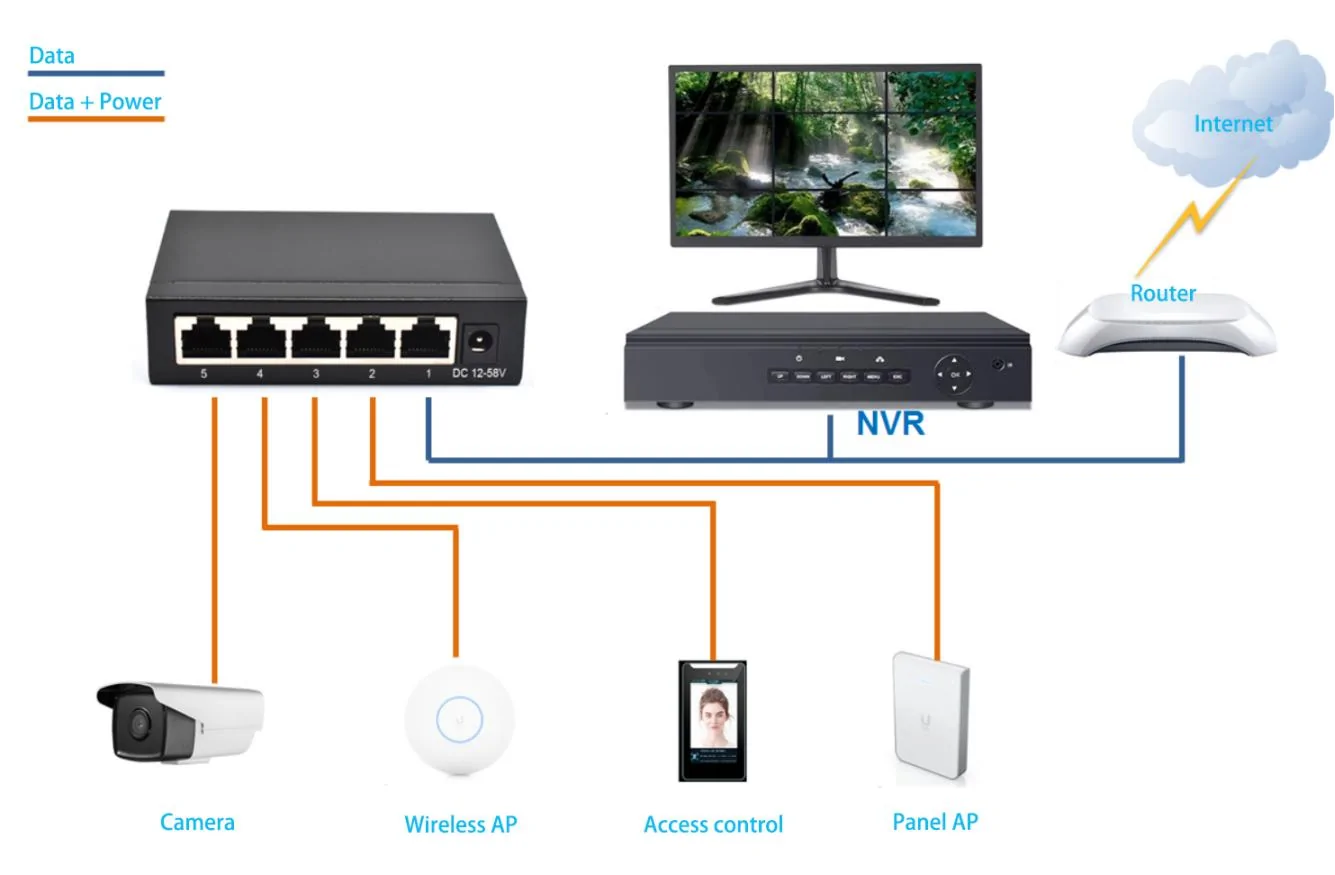

Ideal Applications
The SF05P-E 5 Port PoE Switch is perfect for various applications, including video surveillance, and is well-suited for deployment in hotels, shops, supermarkets, residential homes, and small to medium-sized enterprises.
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.3af/at Power Over Ethernet IEEE 802.3x flow control |
| Interface Information | RJ45 network port:5 10/100Base-T ethernet ports (standard RJ45) |
| 10/100Mbps adaptive | |
| 10Base-T: ≤100m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

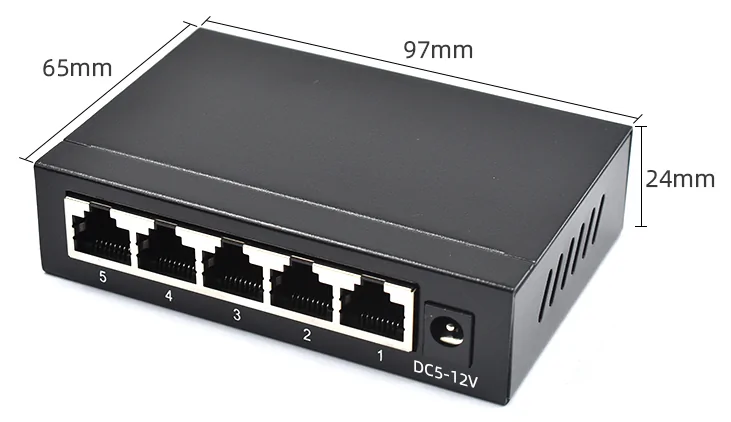

| Appearance dimensions (length*depth*height): 97mm×65mm×24mm | |
| Installation method: DIN rail type | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <230G | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth: 1.0Gbps |
| Packet forwarding rate (whole machine) : 0.744Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 1K | |
| Case space : 768m | |
| Jumbo frame:2K | |
| Power supply | Input voltage: DC 12-58V |
| Power consumption: < 3 W | |
| PoE | 802.3AF/AT (1/2+, 3/6-); Maximum Power per Port: 25.4W |
| Indicator light | Green (100M) |
| POWER: Green |
