Product Overview

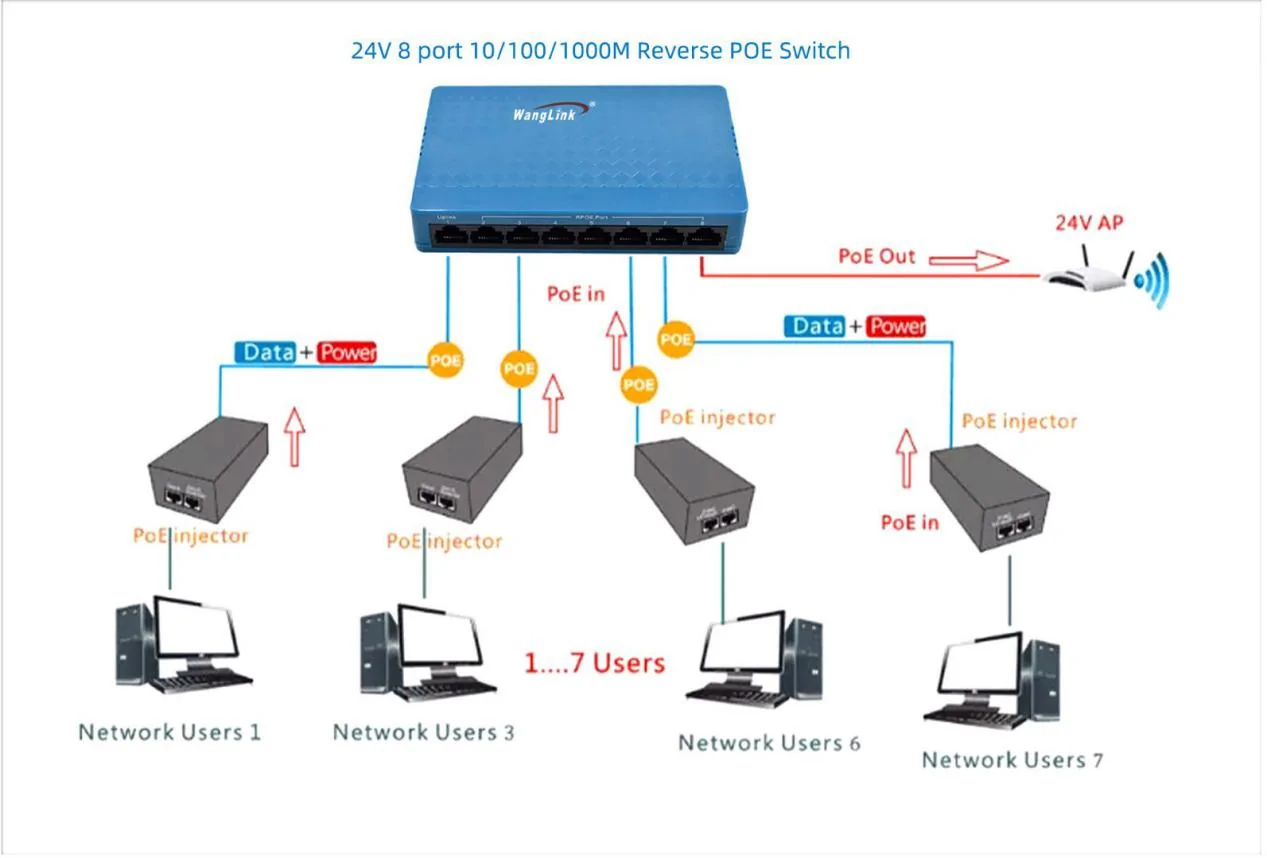

The SF08RP Reverse PoE Switch is a reliable networking solution equipped with 7 ports of PoE and designed for seamless network connectivity. This switch integrates 10/100 Mbps Fast Ethernet capabilities. Ports 1 through 7 are configured for PoE input, while Port 8 is designated for PoE output, supporting 24-48V Passive PoE for both Power Sourcing Devices (PSD) and Powered Devices (PD).
Key Features
- Ports 1-7 for PoE In and Port 8 for PoE Out, facilitating flexible power distribution.
- Supports a fixed VLAN configuration: Ports 1 through 7 cannot communicate with each other but can all communicate with Port 8, enhancing network security.
- Compatible with 24V-48V Passive PoE for efficient power management to connected devices.
- Outputs a 12V DC power supply via a DC jack, which can be used to power ONTs, and provides 5V power for media converters.
- Plug-and-play functionality ensures simple installation and operation without the need for configuration.
- Incorporates Green Ethernet technology to save energy and reduce operational costs.
- Features transient voltage suppressors for enhanced ESD protection, ensuring device safety.
- Constructed with a metal shell, promoting effective heat dissipation for long-term reliability.
Product Parameters
| POE | Port | PoE in : 1-7 port PoE out: 8 Port |
| pin | 4 5+,7 8- | |
| Poe voltage | 12-48V | |
| Speed | 8*10/100Mbps RJ45 Ports | |
| Power ouput | 24V DC | |
| Exchange Mechanism | Store-and-forward | |
| Bandwidth | 1.6G | |
| MAC | 1K | |
| Functional | Support 1~8 Reverse POE In(45+ 78-) Support 8 POE out(45+ 78-) DC port can be customized 5V/12V output can switch Inhibition network storm, anti ARP virus attack, anti DHCP conflict | |
| Environment | Working Temperature: -10℃～55℃ Storage temperature: -40℃～70℃ Working Humidity ：10%～90% RH non-condensing Storage Humidity：5%～90% RH non-condensing | |

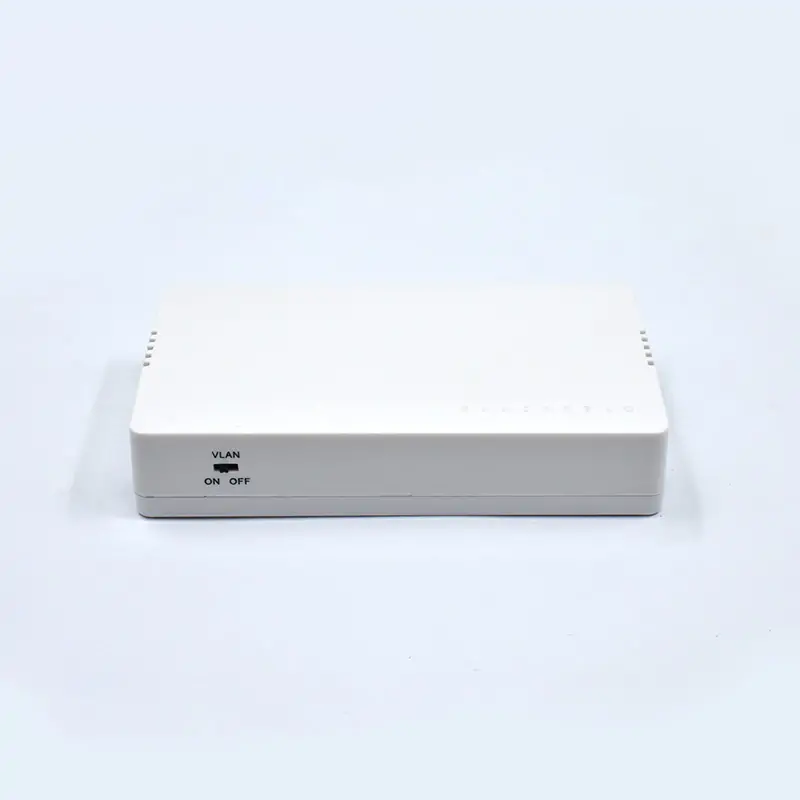

| System mode | Standard sharing / VLAN isolation | |
| Standards Protocols | IEEE 802.3 IEEE 802.3i 10BASE-T 802.3u 100BASE-TX IEEE 802.3x | |

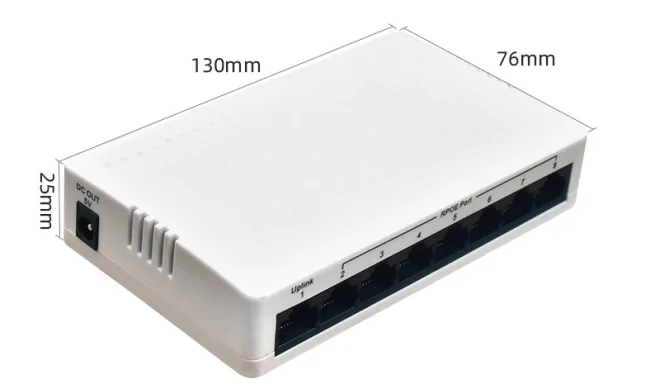

| Dimensions | 130mm*72mm*20mm（L*W*H） | |
| Weight | 0.15KG | |
