SL710RP | Fast ethernet reverse poe switch 8 port​ 1 Gigabit Uplink

Explore the SL710RP Reverse PoE Switch with 7 PoE ports and 1 uplink port. Designed for efficient power and data transmission, it simplifies installation with plug-and-play operation.

Email:

Sample order

Product Overview

The SL710RP Reverse PoE Switch is an efficient networking solution designed to streamline power delivery and data connectivity. It features 7 ports of 10/100Base-TX and 1 port of 10/100/1000Base-T, with 7 ports providing PoE power output and 1 port enabling PoE power input. This innovative switch effectively addresses the challenge of powering devices in demanding environments, thereby simplifying installation and maintenance while reducing power supply costs and minimizing maintenance workloads.

Key Features

  • 7 x 10/100Base-TX ports and 1 x 10/100/1000Base-T uplink port for versatile connectivity.
  • Supports a 2K MAC address table for efficient management of network devices.
  • Includes a one-key switch to enable VLAN physical isolation mode for enhanced security.
  • Wide input voltage range of 15~56VDC caters to diverse power requirements.
  • Two DC output ports provide 12V and 5V power for connecting additional devices.
  • Port 1 can power other devices using unused pairs 4/5+ and 7/8-.
  • Ports 2-8 can receive power over unused pairs 4/5+ and 7/8- for flexible deployment.
  • All ports support half/full duplex, auto-sensing 10/100/1000 Mbps, and automatic MDI/MDI-X functionality.
  • Supports wire-speed forwarding on all ports for smoother data transmission.
  • Versatile installation options for both desktop and wall-mount setups.
  • Plug-and-play functionality ensures easy operation with no configuration necessary.
  • Constructed with a plastic housing that facilitates excellent heat dissipation, ensuring long-term stable operation.

Product Parameters

Standards & ProtocolIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE 802.1p tagged frames
IEEE 802.3x flow control
lInterface informationEthernet port: 8 10/100/1000M Base-T ports (rj45)
10/100Mbps adaptive; 10/100/1000Mbps adaptive
10Base-T: ≤250m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: plastic shell
Appearance dimensions (length*depth*height):130×76×25mm
Installation method: Desktop, Wall-mount
Heat dissipation method: natural cooling, no fan
G.W.: 0.15KG
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -40℃~+75℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 3.4Gbps
Packet forwarding rate (whole machine) : 2.53Mpps@64byte
Exchange method: store-and-forward
MAC table : 2K
Packet buffer : 768b
Power supplyInput Voltage: 16~56V DC
Power consumption: ≤2W
PoE pin4/5+,7/8-
IndicatorLink/Act: Port 1-8 Green
PWR: Green
VlanVlan on: Ports 2-8 are isolated from each other but can communicate with Port 1.
Vlan off: Normal Mode- All ports can communicate with each other.

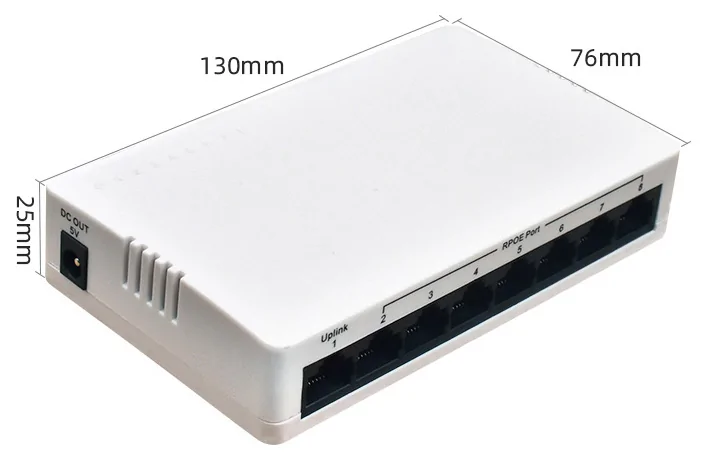

Product size

Product size: SL710RP | Fast ethernet inverse commutateur poe 8 ports 1 Uplink Gigabit

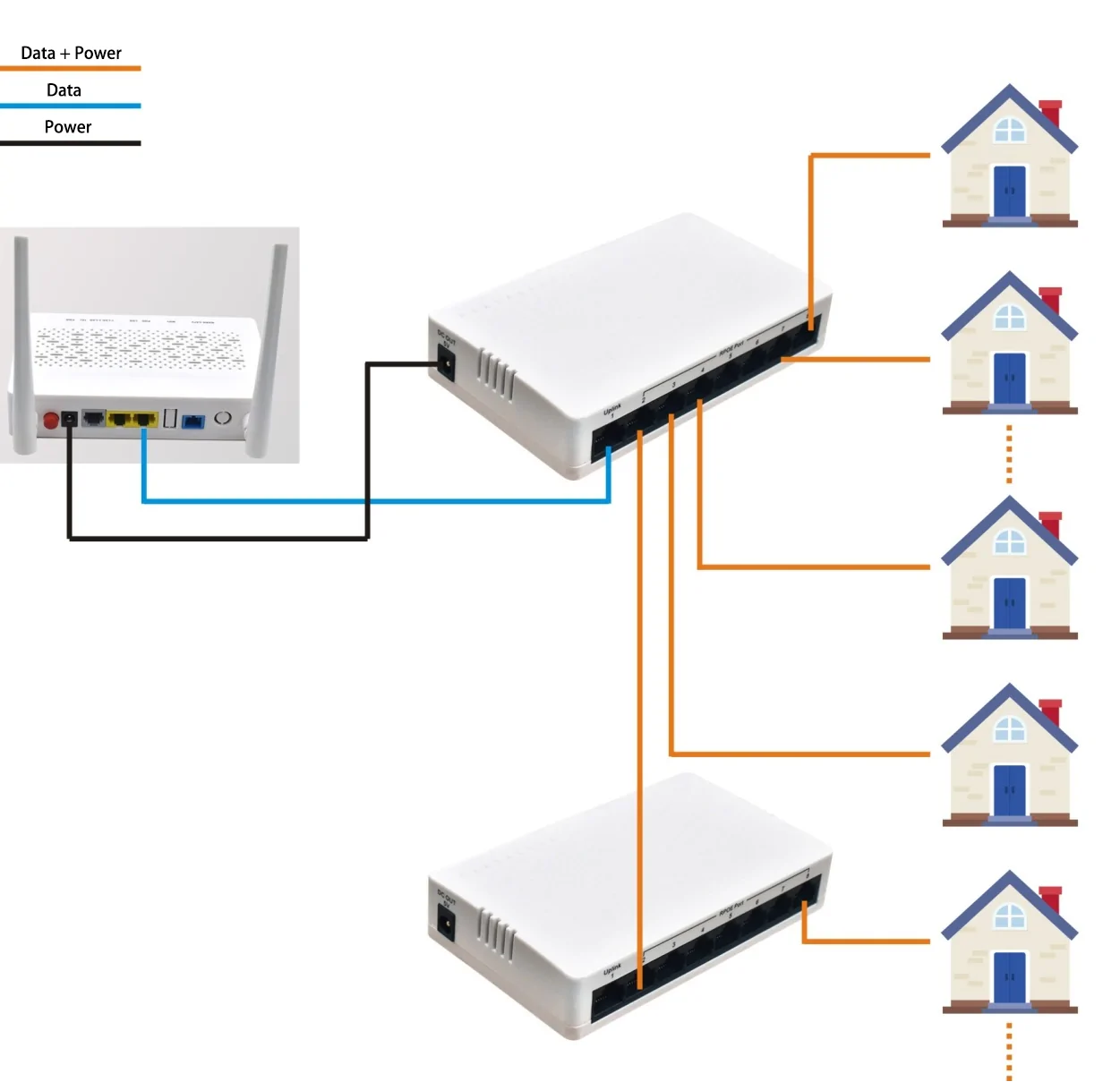

Application

Application: SL710RP | Fast ethernet inverse commutateur poe 8 ports 1 Uplink Gigabit
Product size: SL710RP | Fast ethernet inverse commutateur poe 8 ports 1 Uplink Gigabit
Application: SL710RP | Fast ethernet inverse commutateur poe 8 ports 1 Uplink Gigabit
