Product Overview

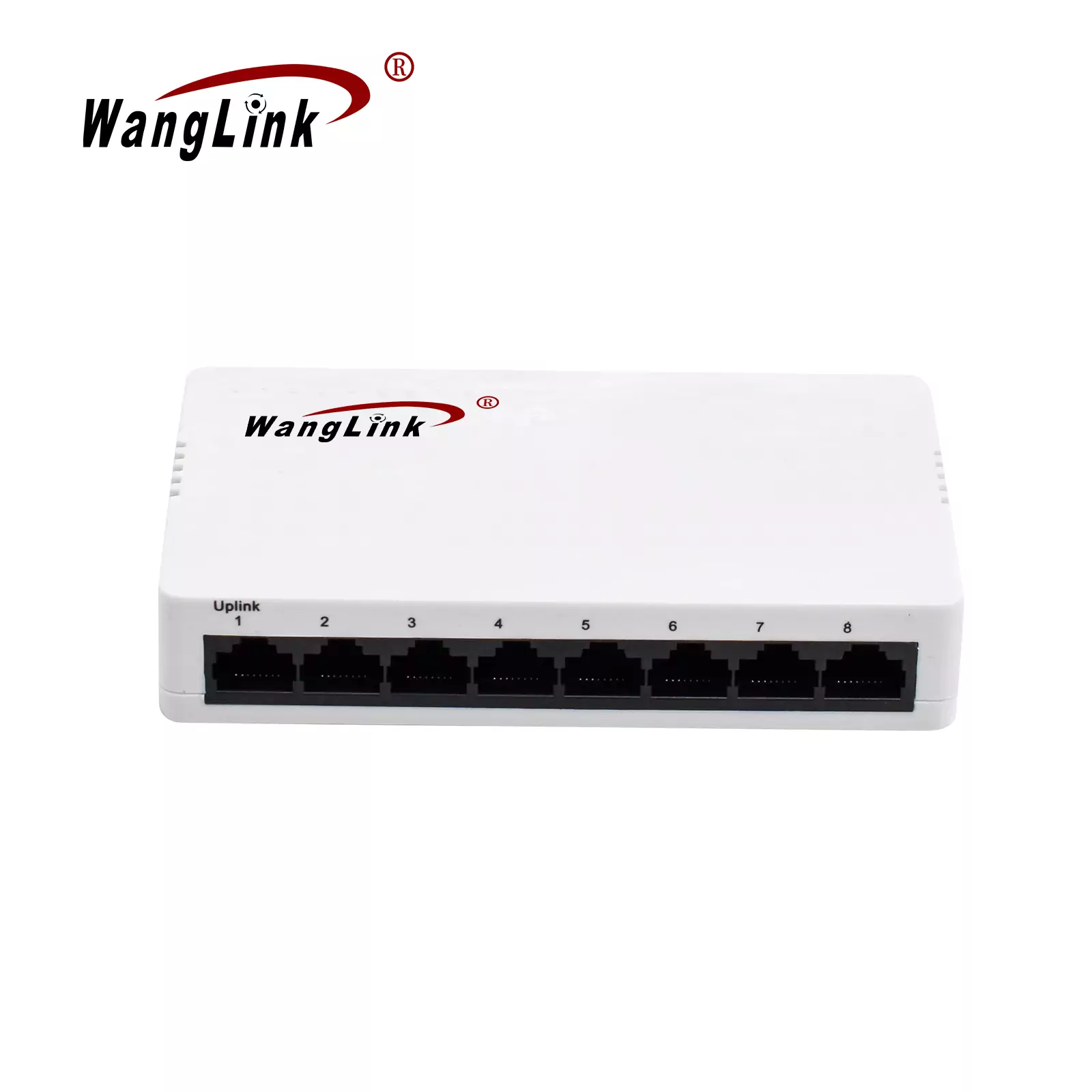

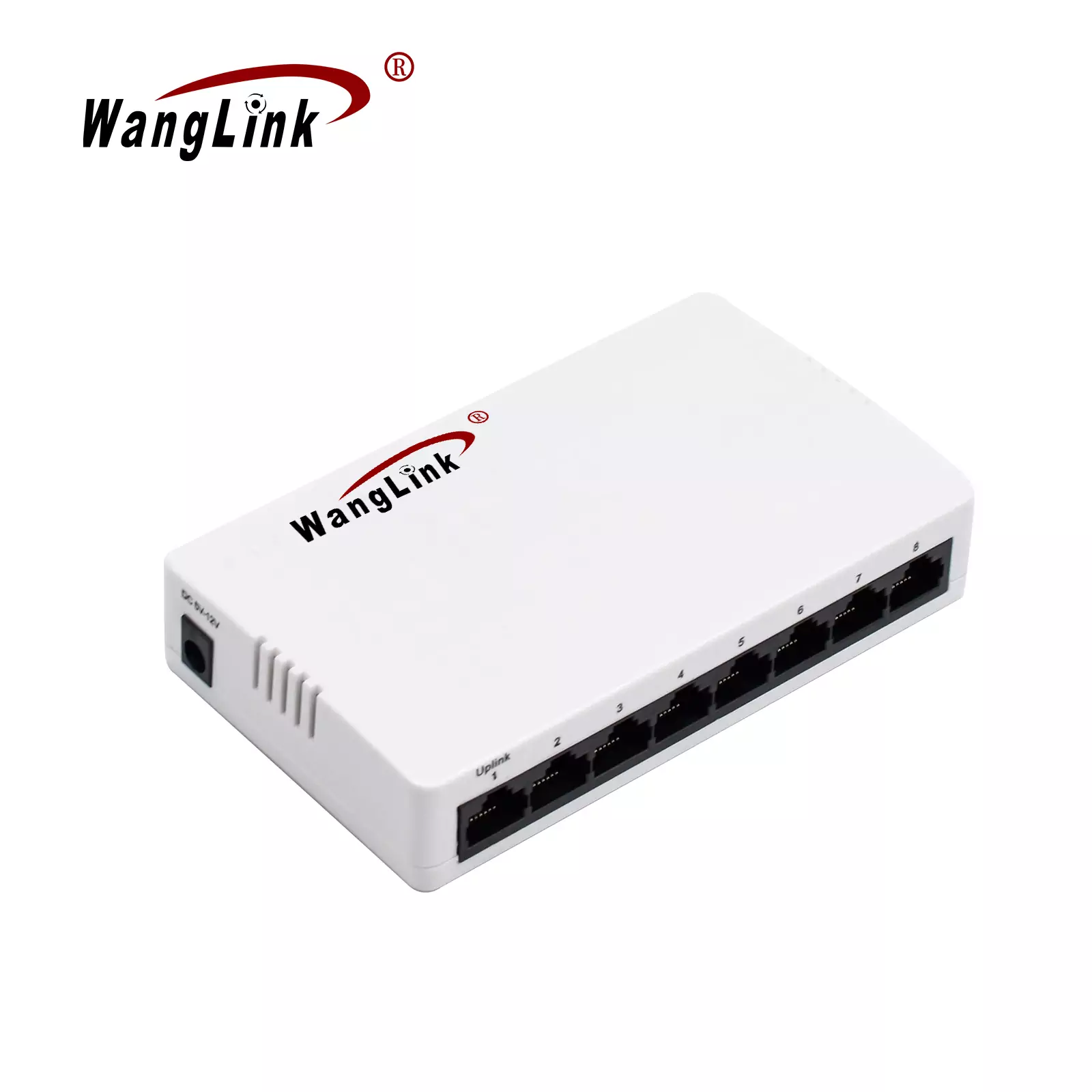

The 100M Fast Ethernet Switch is an ideal networking solution for small to medium-sized environments. Designed for simplicity and efficiency, this switch features 8 adaptive ports that support transmission rates of 10/100Mbps. With its automatic MDI/MDI-X functionality, you can easily connect devices without worrying about crossover cables. Each port offers a maximum bidirectional transmission rate of up to 200Mbps, ensuring smooth and reliable data flow across your network.
Key Features
- 8 10/100Base-TX Ports: Flexible connectivity options for various devices.
- Jumbo Frame Support: Capable of transmitting 9K jumbo packets for enhanced performance.
- Large Address Table: Supports a 4K address table for efficient network management.
- Automatic Rate Adaptation: All ports adapt to network speeds of 10/100/1000Mbps.
- Half/Full Duplex Support: Each port can automatically switch between half and full duplex for optimal performance.
- Wire-Speed Forwarding: Ensures efficient data transmission without bottlenecks.
- Flexible Installation Options: Can be mounted on a desktop or wall to suit your space.
- Plug and Play: Easy to set up with no configuration required.
- Durable Design: Constructed with a plastic shell for excellent heat dissipation, allowing for stable long-term operation.
Product Parameters
| Model | ||
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 1×8 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate； | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 4K | |
| Case space | 1Mb | |
| Packet Forwarding Rate | 1.192Mpps@64byte | |
| Bandwidth | 1.6G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Link/Act indicator | Yellow, per ethernet port | |
| Power parameters | Input voltage | DC 5-12V |
| Power consumption | ≤3W; | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

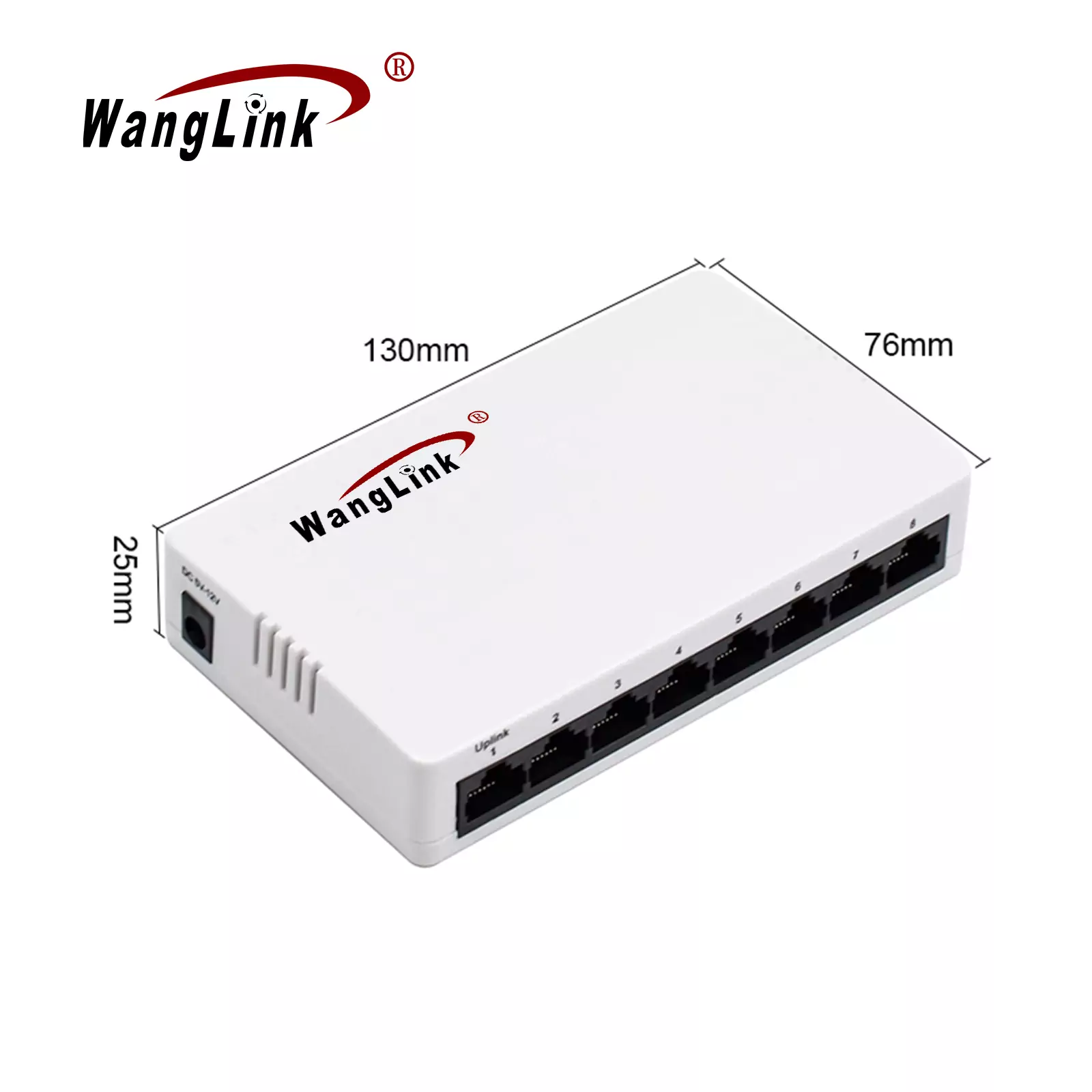

| Physical properties | Size | 130×76×25mm |
| Weight | 120g | |
