Product Overview

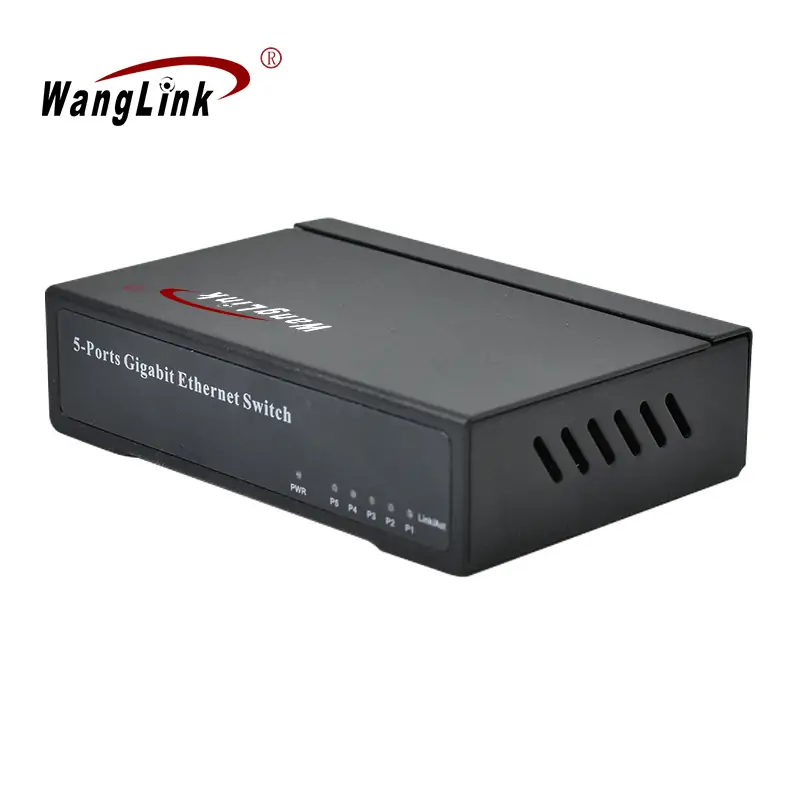

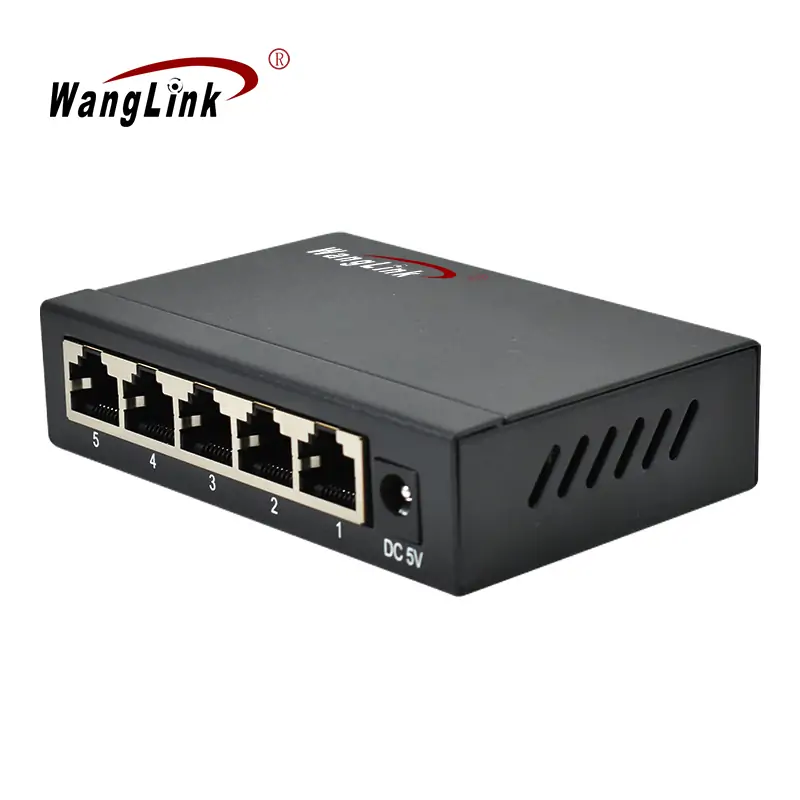

The SG05T is a five port Ethernet switch designed specifically for small to medium-sized network environments. It features five adaptive ports that support 10/100/1000 Mbps speeds, all equipped with automatic cross/parallel twisted-pair cable detection (Auto MDI/MDI-X). Each port can deliver a maximum bidirectional transmission rate of 2 Gbps. With its simple installation and maintenance, the SG05T is an ideal choice for building efficient enterprise networks.
Key Features
- 5 10/100/1000Base-TX ports
- Supports transmission of 9K Jumbo Frames
- Equipped with a 2K MAC address table
- All ports support 10/100/1000 Mbps auto-negotiation
- Half/full duplex auto-negotiation with Auto MDI/MDI-X functionality
- Line-speed forwarding for a smoother transmission experience
- Compatible with both desktop and wall-mount installations
- Plug-and-play design for easy use with no configuration required
- Constructed with a metal shell for superior heat dissipation, ensuring stable long-term operation
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE 802.1p tagged frames IEEE802.1W Spanning Tree IEEE 802.3x flow control |
| Ethernet port Characteristic | Connector Type | 1×5 RJ45 |
| Transmission rate | 10/100/1000Mbps auto-negotiate； | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 1Mb | |
| Jumbo Frames | 9216b | |
| Packet Forwarding Rate | 7.44Mpps@64byte | |
| Bandwidth | 10G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Link/Act indicator | Yellow, per ethernet port | |
| Power parameters | Input voltage | DC 5-12V |
| Power consumption | ≤3W; | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

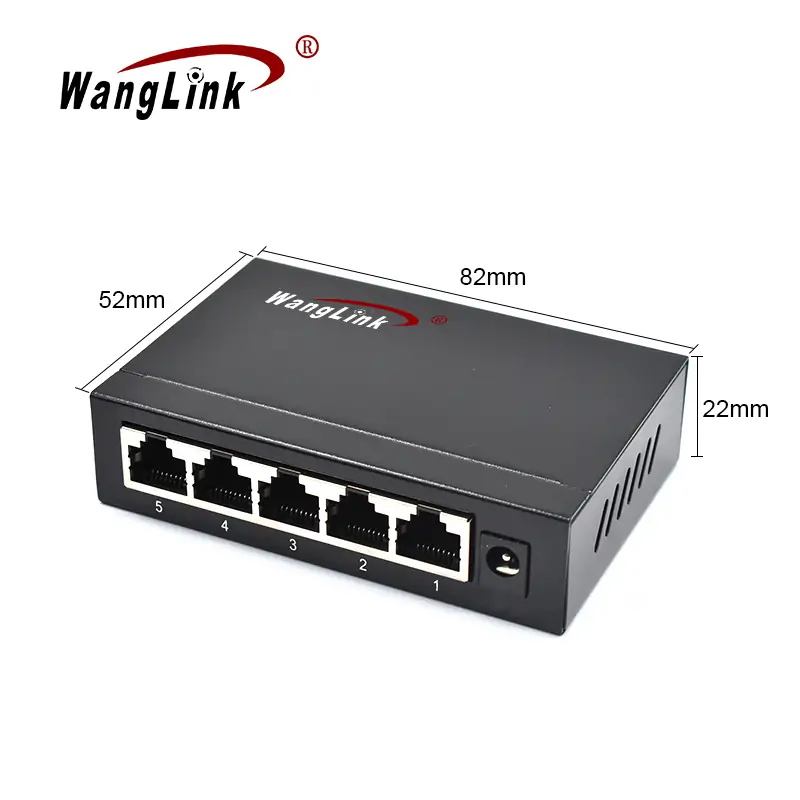

| Physical properties | Size | 82×52×22mm |
| Weight | 230g |
