SG05T-V2 | Unmanaged 5 port ethernet gigabit switch

Discover the SG05T-V2 five port Ethernet gigabit switch, ideal for small to medium environments. Enjoy robust performance, easy installation, and effective QoS features for smooth operation.

Email:

Sample order

Product Overview

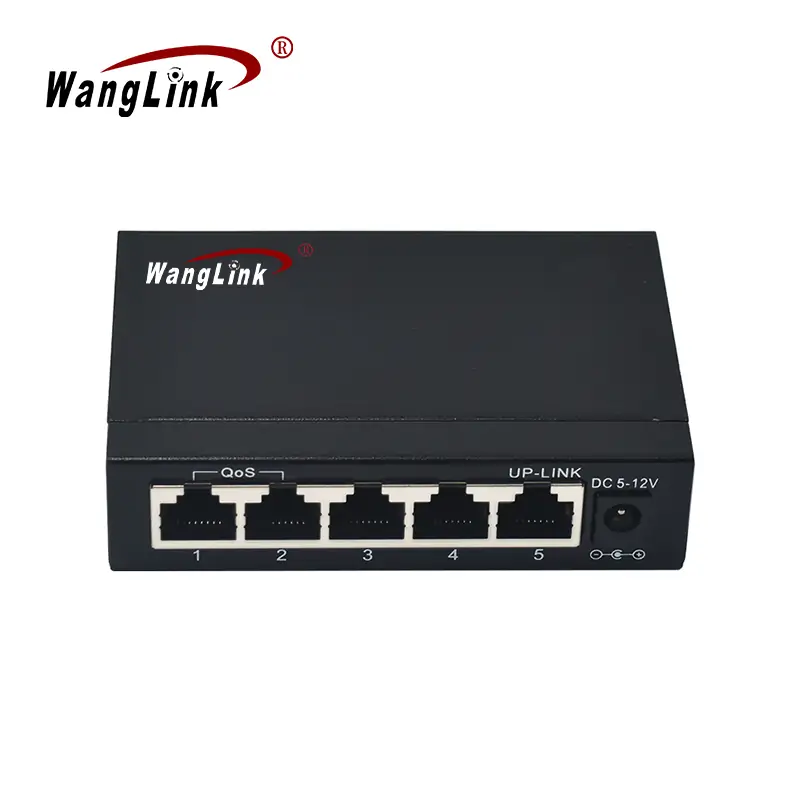

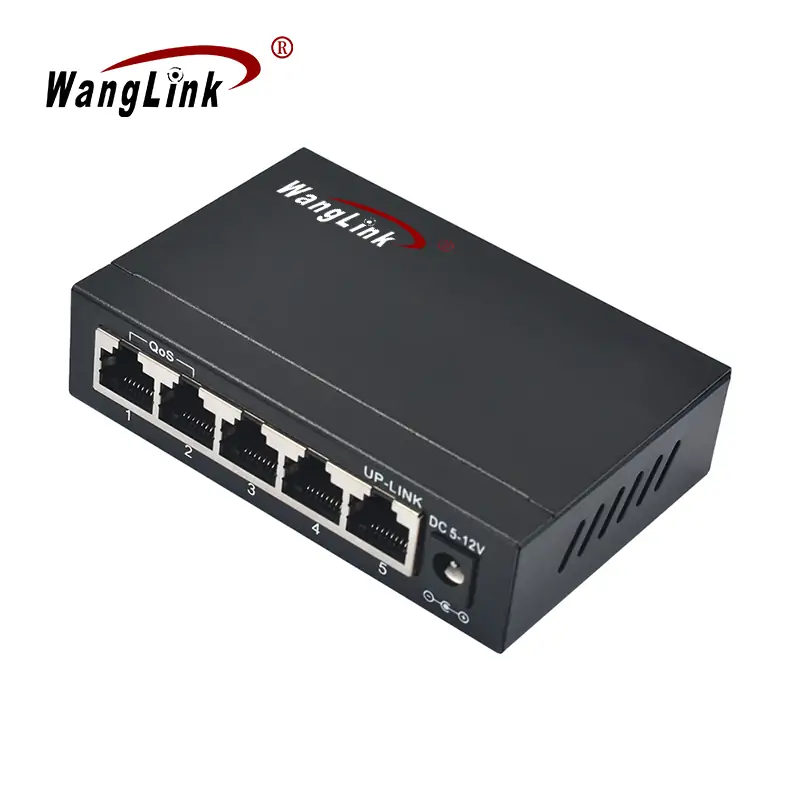

The SG05T-V2 is a 5-port Ethernet gigabit switch featuring 5 standard 10/100/1000Base-TX RJ45 ports. This unmanaged switch is easy to install, highly portable, and supports plug-and-play functionality with no configuration required. All interfaces comply with international standards, ensuring compatibility and reliability.

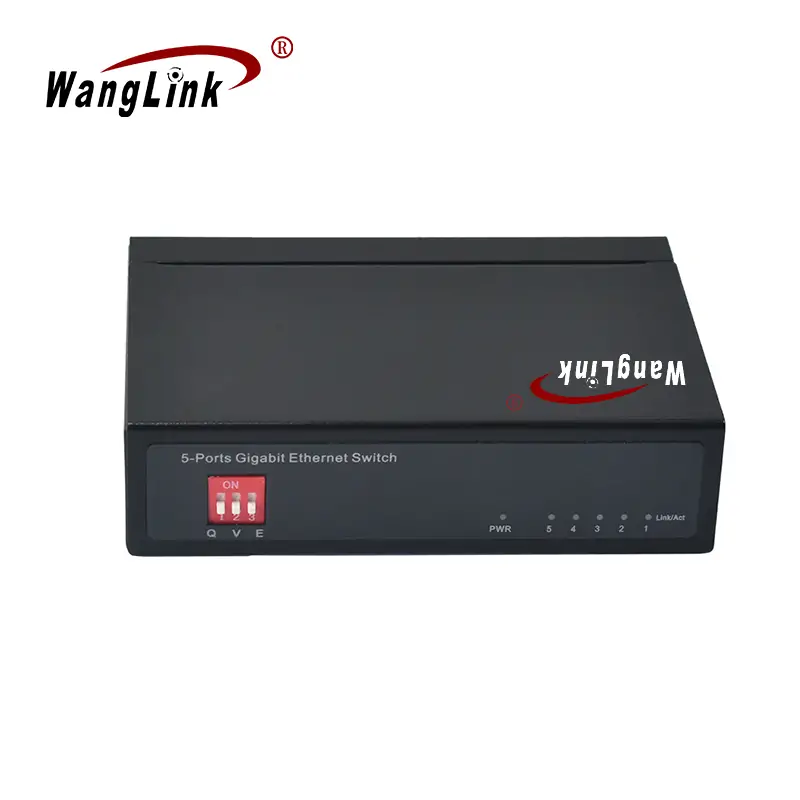

Equipped with DIP switches, the SG05T-V2 allows users to switch between VLAN mode, QoS mode, and Extend mode. This feature facilitates port isolation, enhances data confidentiality, and ensures stable operation for easy maintenance. The QoS function effectively manages network traffic, preventing congestion, reducing packet loss, and ensuring smooth bandwidth distribution across various services. In QoS mode, network data on ports 1 and 2 are prioritized, making this switch ideal for small to medium-sized businesses, offices, hotels, and home environments.

Key Features

  • Ports: 5 x 10/100/1000Base-TX RJ45
  • Speed: All ports support 10/100/1000 Mbps auto-negotiation
  • Duplex: All ports support half/full duplex auto-negotiation
  • MDI/MDI-X: Automatic configuration on all ports for MDI/MDI-X
  • Forwarding: Wire-speed forwarding on all ports for smoother transmission
  • Functions: One-Key Switch for VLANQoS, and Extend functionalities
  • Jumbo Frame: Supports 10K jumbo frame transmission
  • MAC Table: Supports up to 2K MAC addresses
  • Installation: Compatible with desktop and wall-mount installations
  • Ease of UsePlug-and-play operation with no configuration needed
  • Housing: Durable plastic housing with excellent heat dissipation, ensuring long-term stable operation

Product Parameters

Standards & ProtocolIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE 802.1p General Registration Protocol
IEEE 802.1Q VLAN
IEEE 802.3x flow control
Interface informationRJ45 port: 5 10/100/1000M Base-TX ports
Mechanical propertiesShell material: Metal Shell
Appearance dimensions (length*depth*height): 95mm×65mm×24mm
Installation method: Desktop, Wall-mount
Heat dissipation method: natural cooling, no fan
G.W: < 155g
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 10Gbps
Packet forwarding rate (whole machine) : 7.44Mpps
Exchange method: store-and-forward
MAC table : 2K
Packet buffer : 384Kbit
Jumbo frame: 10k
Power supplyInput voltage: 5-12V
Power consumption: < 3W
IndicatorEthernet port (fluctuation switch control):· Power LED: Green· Port Status LEDs: 10/100/1000M Link/ACT Green· E Switch: (Ports 1-4 forced to 10M for long-distance communication)· Q Switch: (Ports 1-2 data prioritized, passing through port 5 UP-LINK)· V Switch: (Ports 1-4 isolated, each can communicate with port 5 UP-LINK)

Product size

Product size: SG05T-V2 | non géré 5 port ethernet gigabit switch

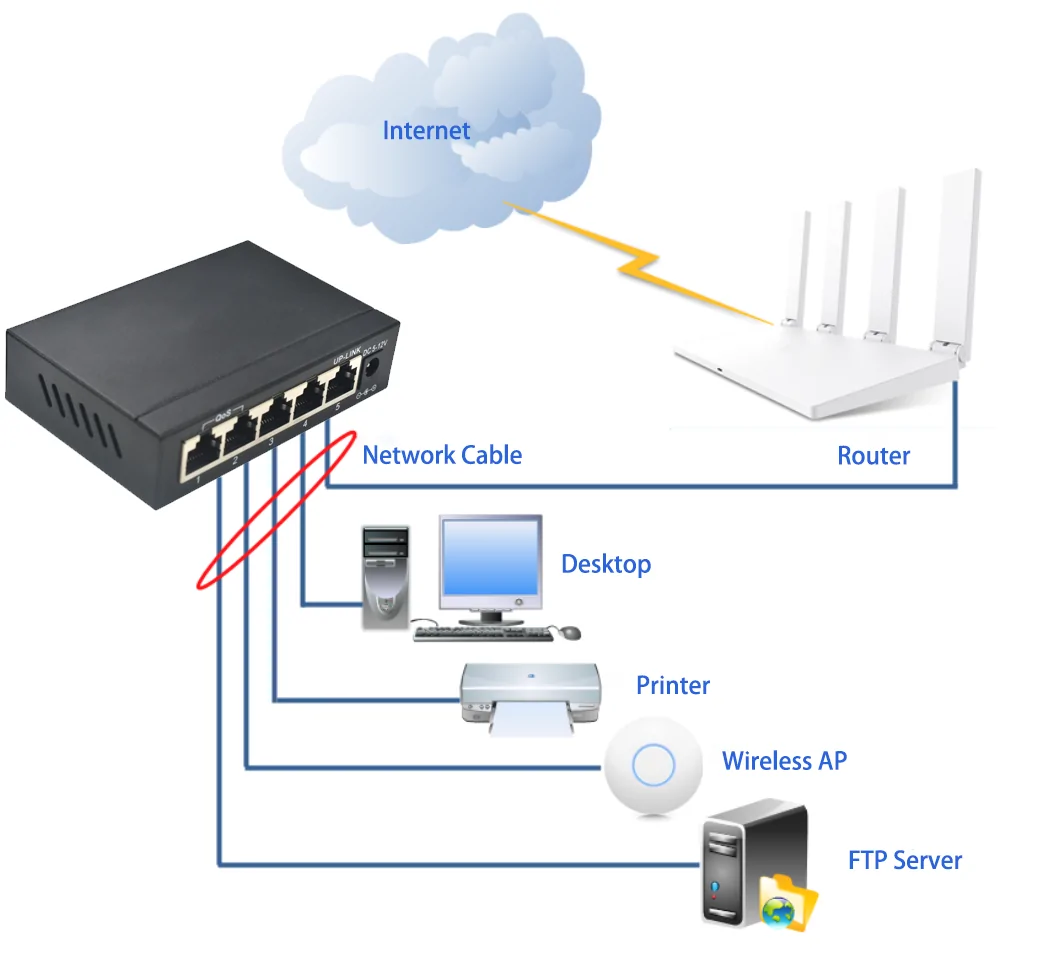

Application

Application: SG05T-V2 | non géré 5 port ethernet gigabit switch
Product size: SG05T-V2 | non géré 5 port ethernet gigabit switch
Application: SG05T-V2 | non géré 5 port ethernet gigabit switch
