SG08T-V2 | Unmanaged 8 port gigabit ethernet switch

Explore the SG08T-V2, an 8-port Gigabit unmanaged Ethernet switch suitable for small to medium networks. Enjoy versatile modes, plug-and-play installation, and reliable performance.

Email:

Sample order

Product Overview

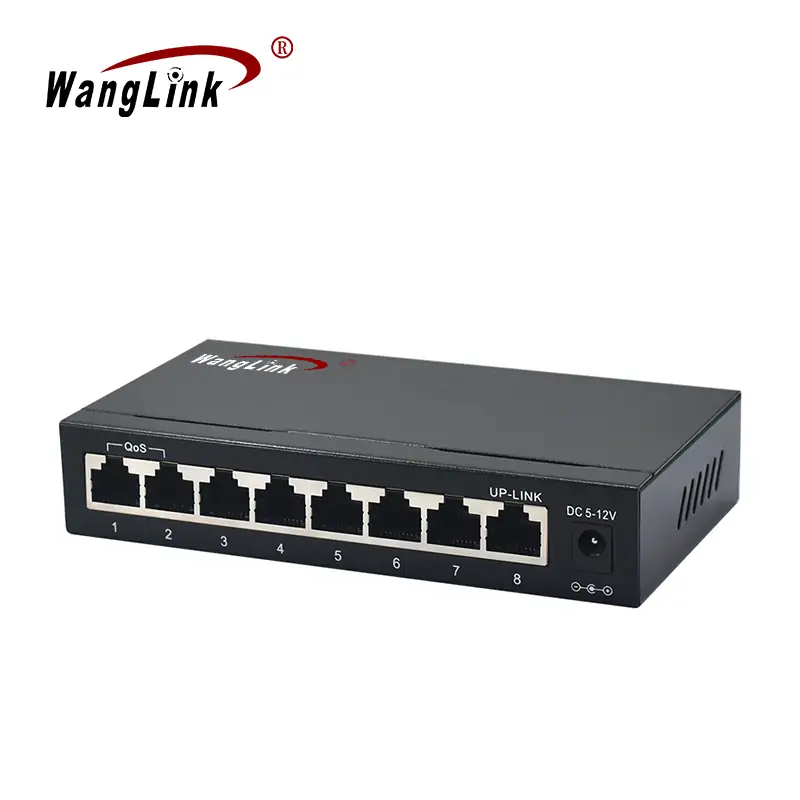

The SG08T-V2 is an 8-port Gigabit unmanaged Ethernet switch featuring 8 standard 10/100/1000Base-TX RJ45 ports. This device is easy to install, highly portable, and supports plug-and-play functionality without any need for configuration. All interfaces comply with international standards, ensuring compatibility and reliability.

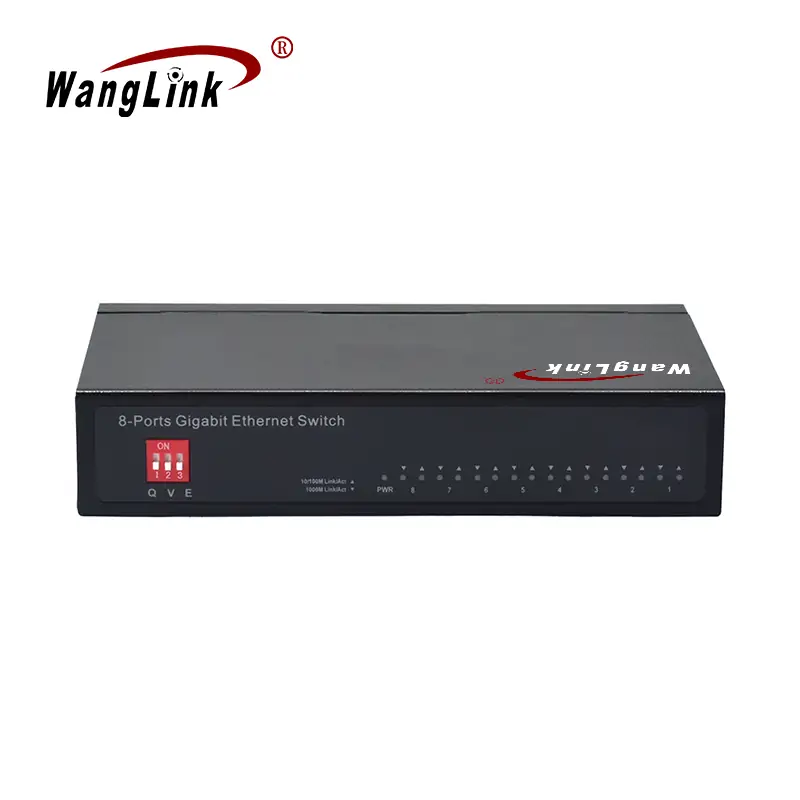

Equipped with DIP switches, the SG08T-V2 allows users to switch between VLAN mode, QoS mode, and Extend mode. This feature facilitates port isolation, enhances data confidentiality, and ensures stable operation for easy maintenance. The QoS function effectively manages network traffic, preventing congestion, reducing packet loss, and ensuring smooth bandwidth distribution for various services. In QoS mode, network data on ports 1 and 2 are prioritized, making this switch ideal for small to medium-sized businesses, offices, hotels, and home environments.

Key Features

  • Ports: 8 x 10/100/1000Base-TX RJ45
  • Speed: All ports support 10/100/1000 Mbps auto-negotiation
  • Duplex: All ports support half/full duplex auto-negotiation
  • MDI/MDI-X: Automatic configuration on all ports for MDI/MDI-X
  • Forwarding: Wire-speed forwarding on all ports for smoother transmission
  • Functions: One-Key Switch for VLANQoS, and Extend functionalities
  • Jumbo Frame: Supports 10K jumbo frame transmission
  • MAC Table: Supports up to 8K MAC addresses
  • Installation: Compatible with both desktop and wall-mount installations
  • Ease of UsePlug-and-play operation with no configuration needed
  • Housing: Durable plastic housing with excellent heat dissipation, ensuring long-term stable operation

Product Parameters

Standards & ProtocolIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE 802.1p General Registration Protocol
IEEE 802.1Q VLAN
IEEE 802.3x flow control
Interface informationRJ45 port: 8 10/100/1000M Base-TX ports
Mechanical propertiesShell material: Metal Shell
Appearance dimensions (length*depth*height): 140mm×77mm×27mm
Installation method: Desktop, Wall-mount
Heat dissipation method: natural cooling, no fan
G.W: < 258g
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 16Gbps
Packet forwarding rate (whole machine) : 11.904Mpps
Exchange method: store-and-forward
MAC table : 8K
Packet buffer : 4M
Jumbo frame: 10k
Power supplyInput voltage: 5-12V
Power consumption: < 3W

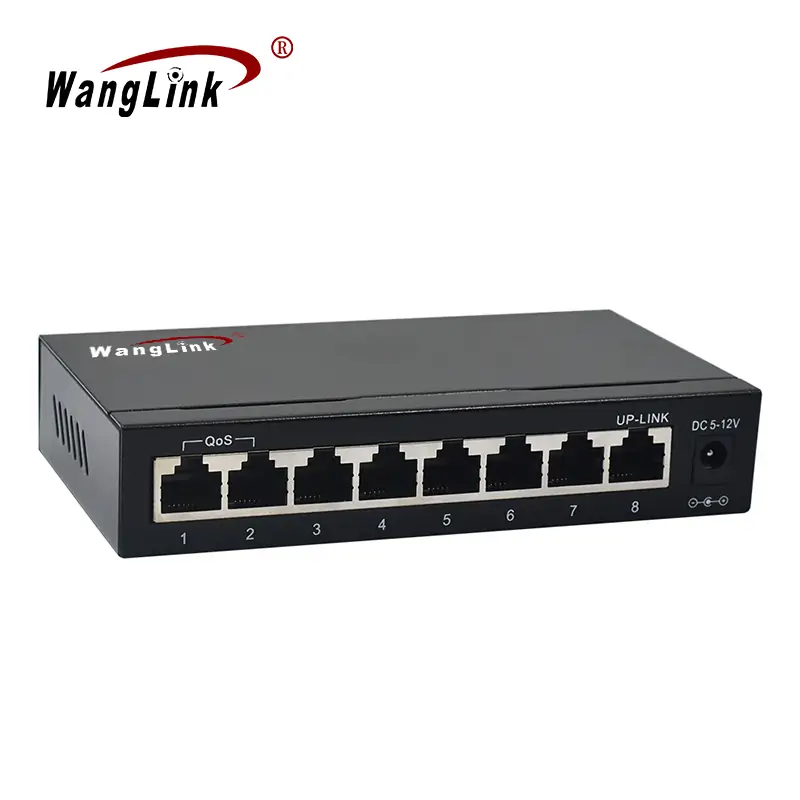

IndicatorEthernet port (fluctuation switch control):· Power LED: Green· Port Status LEDs: 10/100/1000M Link/ACT Green· E Switch: (Ports 1-7 forced to 10M for long-distance communication)· Q Switch: (Ports 1-2 data prioritized, passing through port 8 UP-LINK)· V Switch: (Ports 1-7 isolated, each can communicate with port 8 UP-LINK)

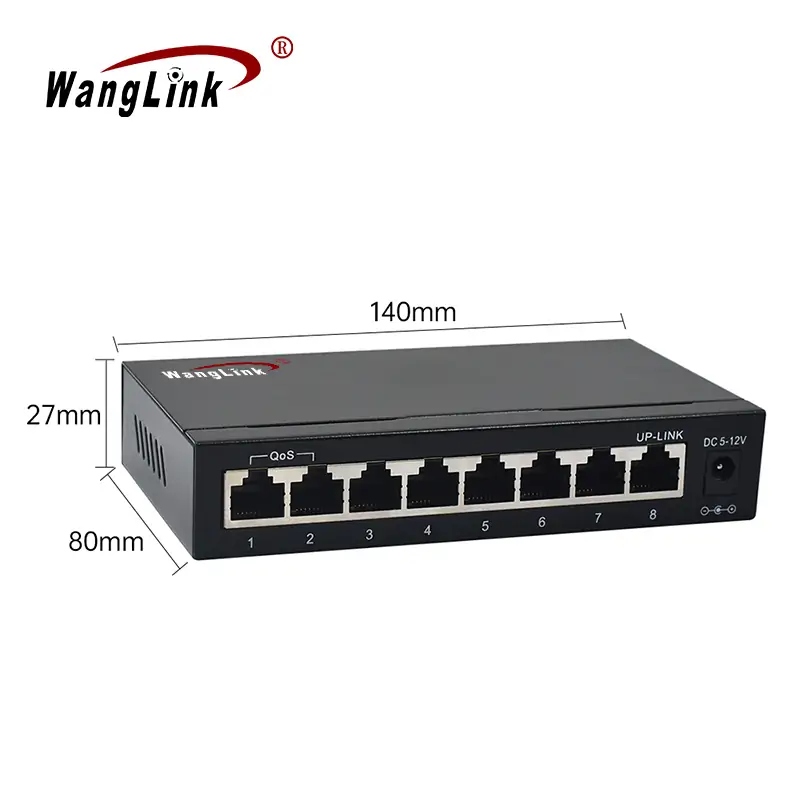

Product size

Product size: SG08T-V2 | Unmanaged 8 port gigabit ethernet switch

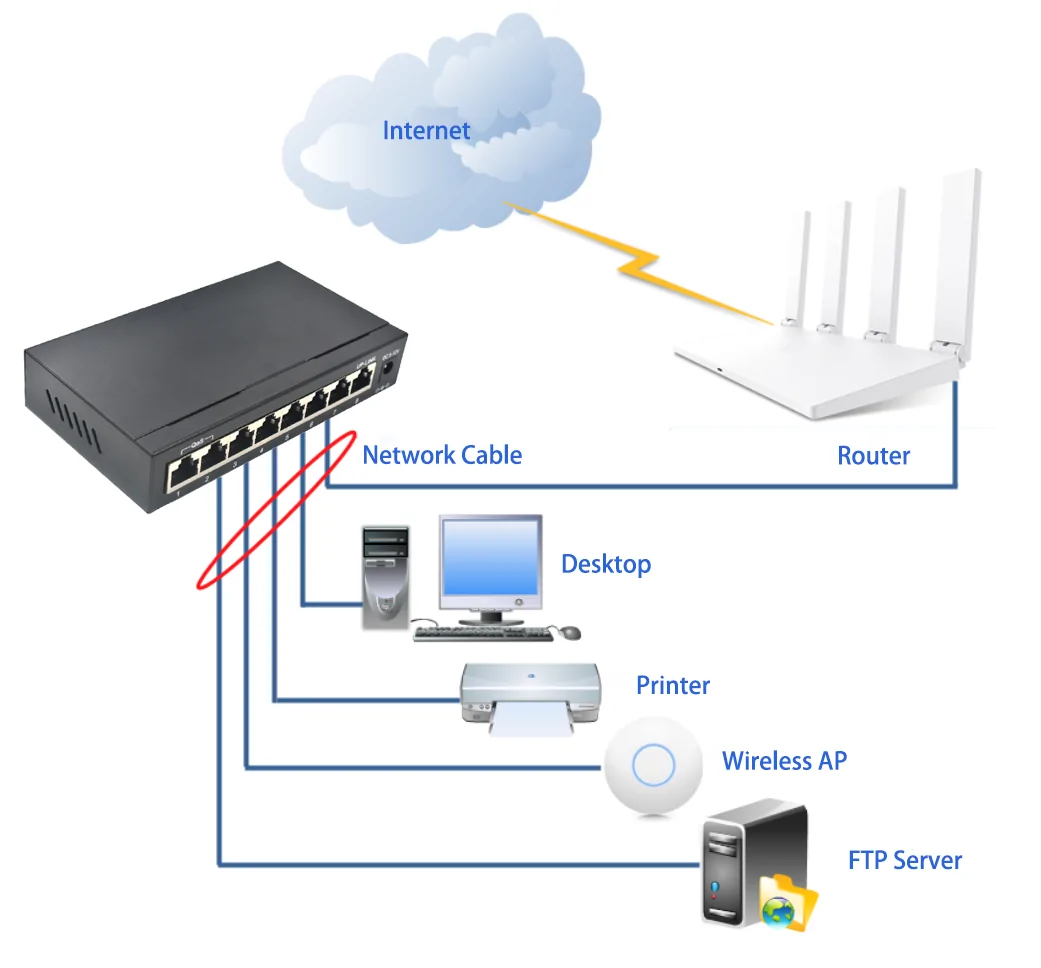

Application

Application: SG08T-V2 | Unmanaged 8 port gigabit ethernet switch
Product size: SG08T-V2 | Unmanaged 8 port gigabit ethernet switch
Application: SG08T-V2 | Unmanaged 8 port gigabit ethernet switch
