SG08T | Unmanaged switch ethernet gigabit 8 ports

Discover the SG08T switch, an 8-port Gigabit Ethernet solution for small to medium networks. Enjoy reliable performance, plug-and-play installation, and effective heat dissipation.

Email:

Sample order

Product Overview

The SG08T is an 8-port Gigabit Ethernet switch specifically designed for small to medium-sized network environments. It features eight adaptive 10/100/1000 Mbps RJ45 ports, all equipped with automatic crossover/parallel twisted-pair cable detection (Auto MDI/MDI-X). Each port can achieve a maximum bidirectional transmission rate of 2 Gbps. This switch is easy to install and maintain, making it an ideal choice for building efficient enterprise networks.

Key Features

  • 8 10/100/1000Base-TX ports
  • Supports a 4K MAC address table
  • Capable of transmitting 9K Jumbo Frames
  • Built-in 1.5 Mbit cache space
  • All ports support 10/100/1000 Mbps speed auto-negotiation
  • Supports half/full duplex auto-negotiation and automatic MDI/MDI-X functionality
  • Line-speed forwarding on all ports for smoother transmission
  • Compatible with desktop and wall-mount installations
  • Plug-and-play operation for easy use with no configuration needed
  • Constructed with a metal shell for excellent heat dissipation, ensuring stable and long-term operation

Product Parameters

ProtocolStandardIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE 802.3x flow control
Ethernet port CharacteristicConnector Type1×8  RJ45
Transmission rate10/100/1000Mbps auto-negotiate;
Transmission distance10Base-T: ≤250m(CAT3,4,5 UTP)100Base-TX: ≤100m(CAT3,4,5 UTP)1000Base-T: ≤100m(CAT3,4,5 UTP)
Exchange performanceForward methodStore-and-forward(full wire-speed)
Transmission modeHalf/Full duplex adaptive
MAC address table4K
Case space1.5Mb
Jumbo frame9216b
Packet Forwarding Rate7.44Mpps@64byte
Bandwidth16G(non-blocking)
LED indicatorPower indicatorGreen, power
Link/Act indicatorYellow, per ethernet port
Power parametersInput voltageDC 5-12V
Power consumption≤5W;
EnvironmentOperating Temperature-20℃~60℃
Storage Temperature:-40℃~85℃
Operating Humidity5%~95% non-condensing
Heat dissipation methodNatural heat dissipation
Physical propertiesSize141×79×28mm
Weight280g

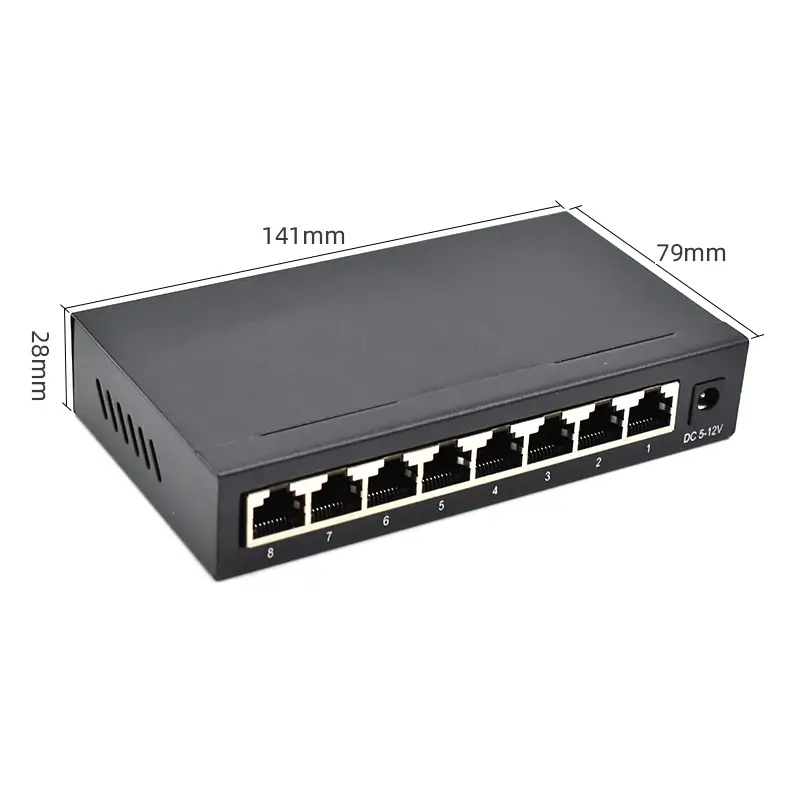

Product size

Product size: SG08T | Unmanaged switch ethernet gigabit 8 ports

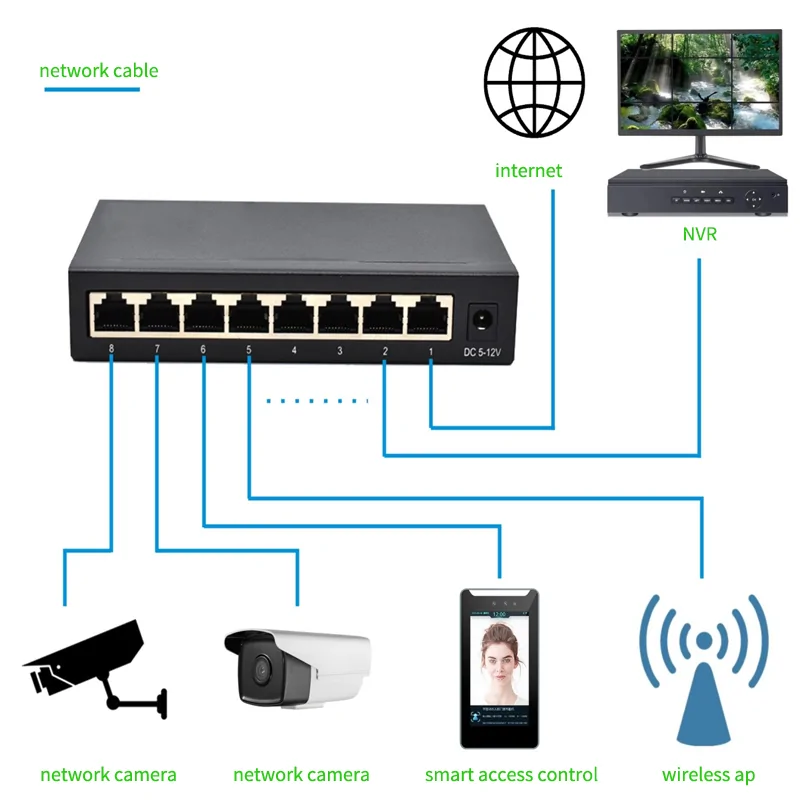

Application

Application: SG08T | Unmanaged switch ethernet gigabit 8 ports
Product size: SG08T | Unmanaged switch ethernet gigabit 8 ports
Application: SG08T | Unmanaged switch ethernet gigabit 8 ports
