Product Overview
The SL82P-E Switch PoE 8 Ports is a versatile networking solution designed to power and connect devices efficiently. Equipped with 8 10/100Base-TX Ethernet ports and 2 10/100/1000Base-T Ethernet uplink ports, this switch PoE 8 ports supports the IEEE802.3 af/at Power over Ethernet (PoE) protocol. Each of the PoE ports can provide a maximum output of 25.4W, with a total PoE power output of 96W for the entire device. This switch features intelligent PoE detection, which ensures power is supplied only to compatible devices, thus protecting non-PoE devices from damage.
Key Features

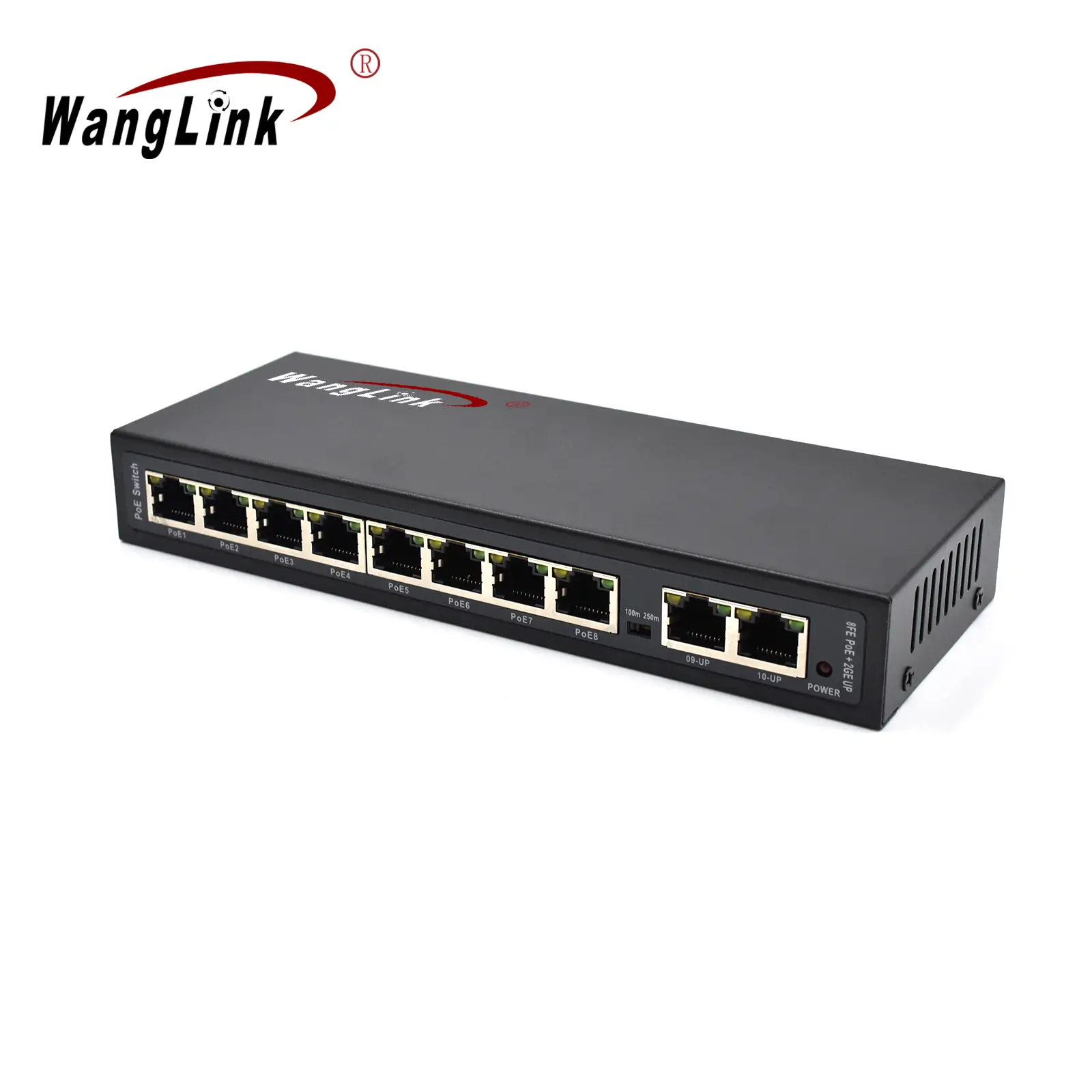

- 8 10/100Base-TX PoE ports and 2 10/100/1000Base-T uplink ports for enhanced connectivity.
- Each PoE port supports the IEEE802.3 af/at standard, with a maximum power output of 25.4W per port.
- Supports one-key switching to VLAN mode and long-distance transmission mode (up to 250m) by reducing the port speed to 10Mbps using a DIP switch.
- Ports 1-8 support 10/100Mbps auto-negotiation, while ports 9-10 support 10/100/1000Mbps auto-negotiation for seamless connection.
- Full support for half/full duplex adaptive mode and automatic MDI/MDI-X functionality.
- All ports feature wire-speed forwarding, ensuring efficient data handling.

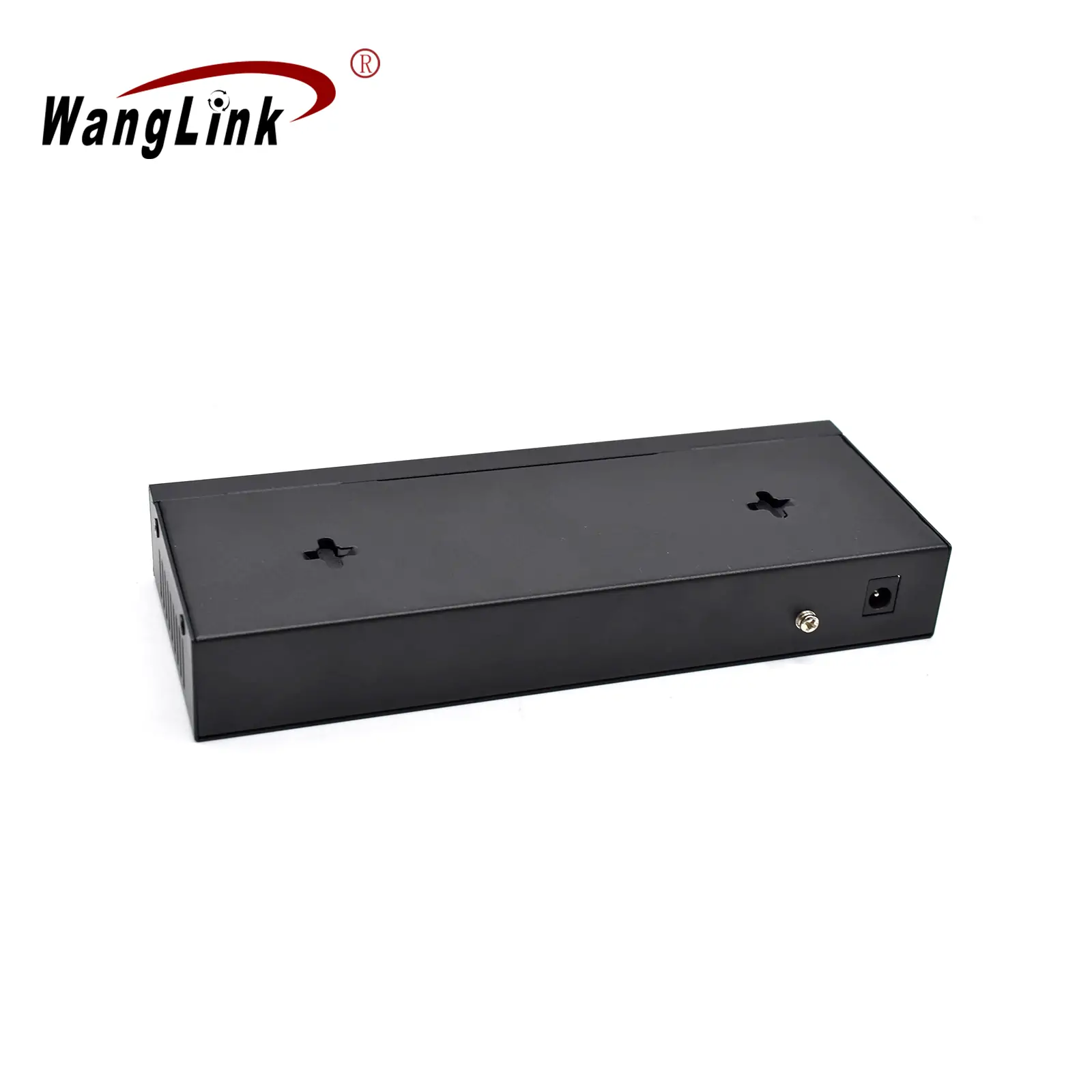

- Designed for easy desktop or wall-mounted installation.
- Plug and Play feature for quick setup without any configuration needed.
- Constructed with a durable metal casing and equipped with an internal power supply, providing excellent heat dissipation for stable long-term operation.
- Optional 6KV common mode/4KV differential mode surge protection to safeguard your devices.
- Optional AI network self-healing (watchdog) function for added network resilience.
Ideal Applications

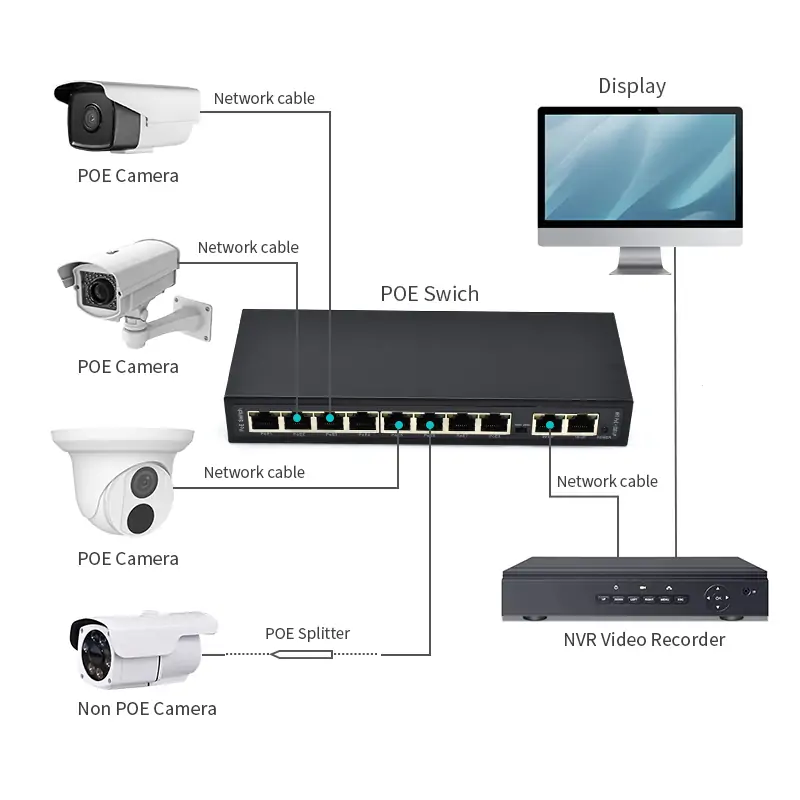

The SL82P-E Switch PoE 8 Ports is an excellent choice for video surveillance networking, making it suitable for deployment in hotels, shops, supermarkets, residential homes, and small to medium-sized enterprises.
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Interface information | Downlink ports: 8 10/100M Base-T ports (supports POE, POE+) |
| Uplink port: 2 10/100/1000M Base-T ports | |
| Mechanical properties | Shell material: metal shell |

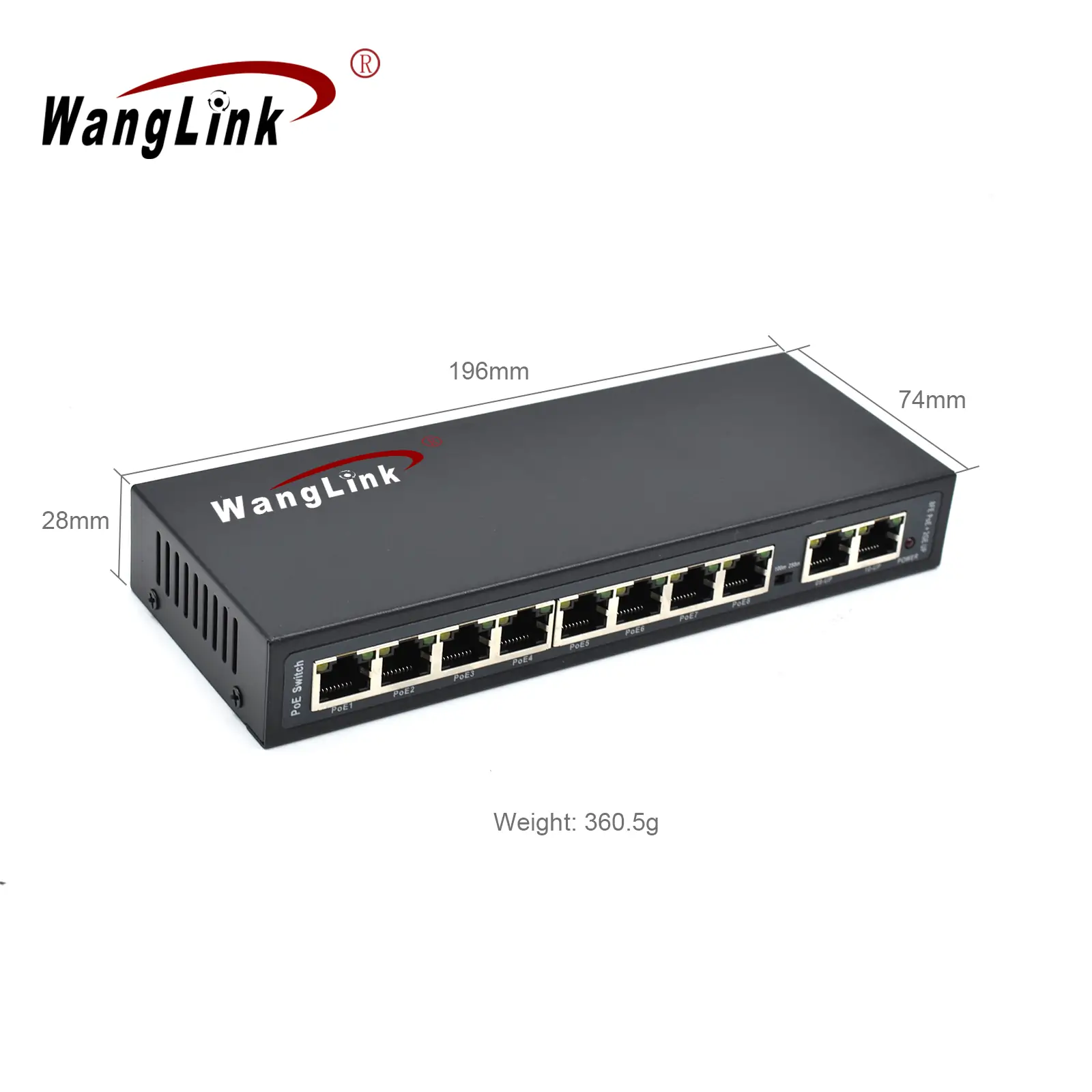

| Appearance dimensions (length*depth*height): 196mm×74mm×28mm | |
| Installation method: Desktop | |
| Heat dissipation method: natural cooling, no fan | |
| Weight: <0.4KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth:5.6Gbps |
| Packet forwarding rate (whole machine) : 4.1664 Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 2K | |
| Case space : 1m | |
| Jumbo frame: 9216b | |

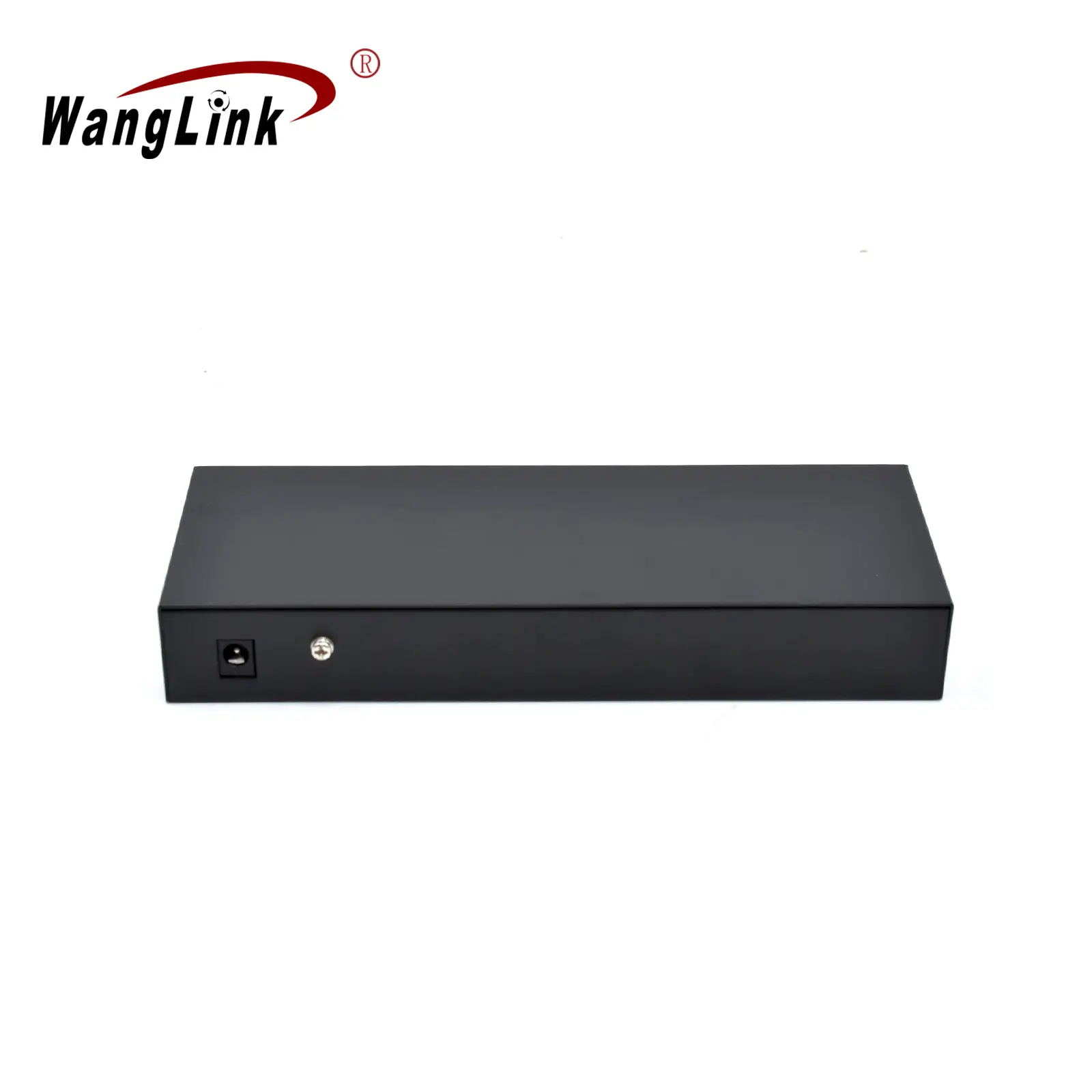

| Power supply | Input voltage: DC48V-57V |
| Power consumption: < 3 W | |
| PoE | Pin: 1/2+, 3/6-; Maximum output: 25.4W |
| (Full load) AF mode ≤ 120W, AT mode ≤ 200W | |

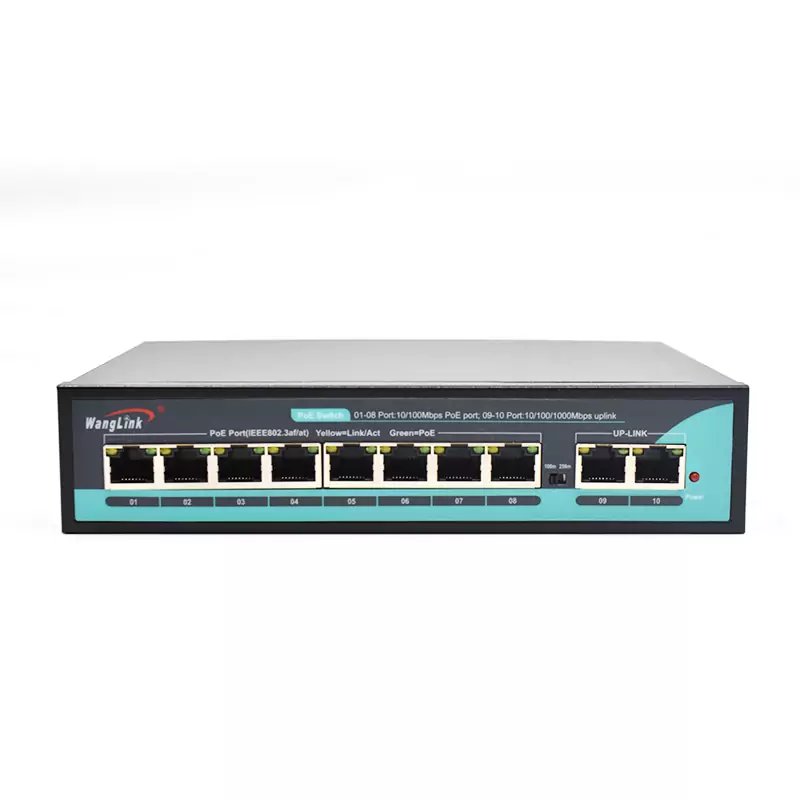

| indicator light | Port light (fluctuation switch control):Link/Act: Green for each ethernet portPoE indicator light: green for poe port100M: Yellow, downlink port1000M: Yellow, uplink portExtend Mode/ Normal Mode |
| POWER(Power system indicator light): Red |
