SL821P-V2 | Fast ethernet Unmanaged 8 ports poe switch 2 gigabit uplink 1 SFP

The SL821P-V2 8 Ports PoE Switch offers 8 Fast Ethernet PoE ports, 2 Gigabit Ethernet ports, and an SFP slot. Supporting IEEE802.3af/at/bt, it’s perfect for powering IP cameras, access points, and VoIP phones.

Email:

Sample order

Product Overview

The SL821P-V2 8 Ports PoE Switch is a versatile networking solution designed for businesses needing both power and high-speed data transfer. This 8 ports PoE switch features 8 10/100Base-TX Ethernet ports2 10/100/1000Base-T Ethernet ports, and a 1000Base-X SFP slot for fiber connectivity. Equipped with comprehensive PoE capabilities, ports 2-8 support IEEE 802.3af/at with up to 25.4W per port, while port 1 supports IEEE 802.3BT (PoE++) delivering up to 60W. With intelligent PoE detection, the SL821P-V2 ensures power is supplied only to PoE-compatible devices, preventing damage to non-PoE equipment.

Key Features

  • 8 10/100Base-TX PoE ports2 10/100/1000Base-T uplink ports, and 1 1000Base-X SFP uplink slot for diverse connectivity options.
  • 7 RJ45 ports support IEEE802.3 af/at Ethernet power supply standards with a maximum output power of 25.4W per port.
  • 1 RJ45 port supports IEEE802.3 af/at/poe++/bt Ethernet power supply standards with a maximum output power of 60W per port.
  • Supports one-key switching to VLAN mode and 250m long-distance transmission mode for extended network reach.
  • Digital tube display for real-time monitoring of PoE online utilization rate.
  • All ports support half/full duplex adaptive and automatic MDI/MDI-X functions.
  • All ports support line-speed forwarding for smooth data transmission.
  • Optional network port supports 6KV common mode/4KV differential mode surge protection function.
  • Optional AI network self-healing (watchdog) function for enhanced network reliability.
  • Supports both desktop and wall-mounted installation for flexible deployment.
  • Plug and play design for simple operation and no configuration required.
  • Metal shell and built-in power supply design for excellent heat dissipation and long-term stable operation.

Product Parameters

ProtocolStandardIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.1p tagged frames
IEEE 802.3x flow control
Fiber Port CharacteristicConnector TypeSFP slot
Transmission rate1.25Gbps
Transmission distanceMulti-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km
WavelengthMulti-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm
Ethernet port CharacteristicConnector Type1×8 RJ45,1×2 RJ45
Transmission rate10/100Mbps auto-negotiate;10/100/1000Mbps auto-negotiate
Transmission distance10Base-T: ≤250m(CAT3,4,5 UTP)100Base-TX: ≤100m(CAT3,4,5 UTP)1000Base-T: ≤100m(CAT3,4,5 UTP)
Exchange performanceForward methodStore-and-forward(full wire-speed)
Transmission modeHalf/Full duplex adaptive
MAC address table2K
Case space1Mb
Jumbo frame9216b
Packet Forwarding Rate5.6544Mpps@64byte
Bandwidth7.6G(non-blocking)
LED indicatorPower indicatorGreen
Link/Act indicatorGreen
Function switch100mNormal mode
250mPort isolation(VLAN) on
Power parametersInput voltageAC:AC100~240V,50Hz
Power consumptionStandby: ≤3W; whole: ≤120W
PoE pin1/2+,3/6-
The port max rateBt port≤60W,af/at port≤25.4W
EnvironmentOperating Temperature-20℃~60℃
Storage Temperature:-40℃~85℃
Operating Humidity5%~95% non-condensing
Heat dissipation methodNatural heat dissipation
Physical propertiesSize201×140×44mm
WeightNet weight:0.7kg,Gross weight:0.9kg

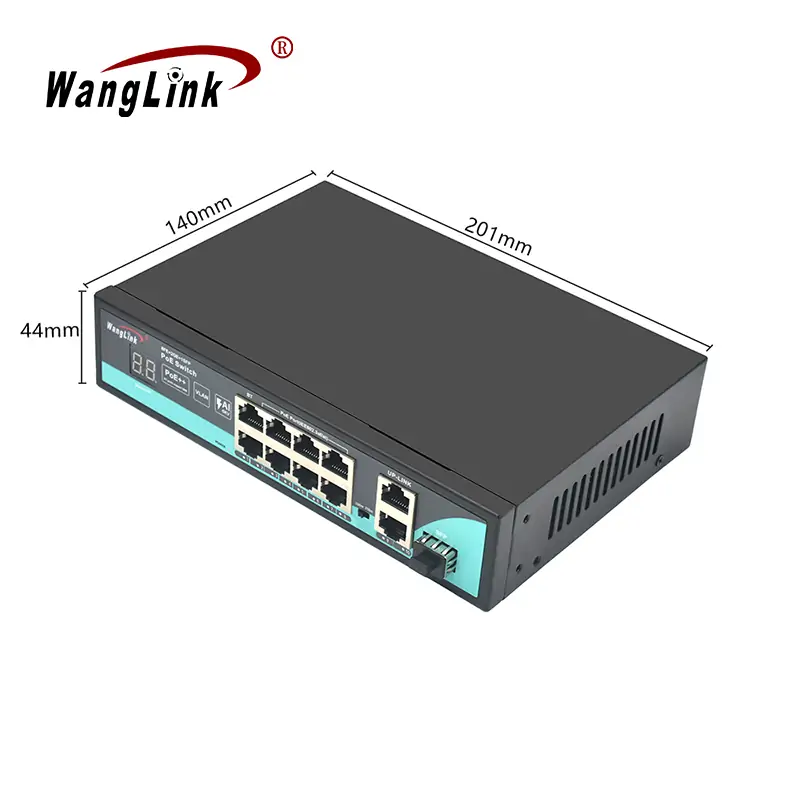

Product size

Product size: SL821P-V2 | Fast-ethernet-Unmanaged 8 ports poe Schalter 2 gigabit uplink 1 SFP

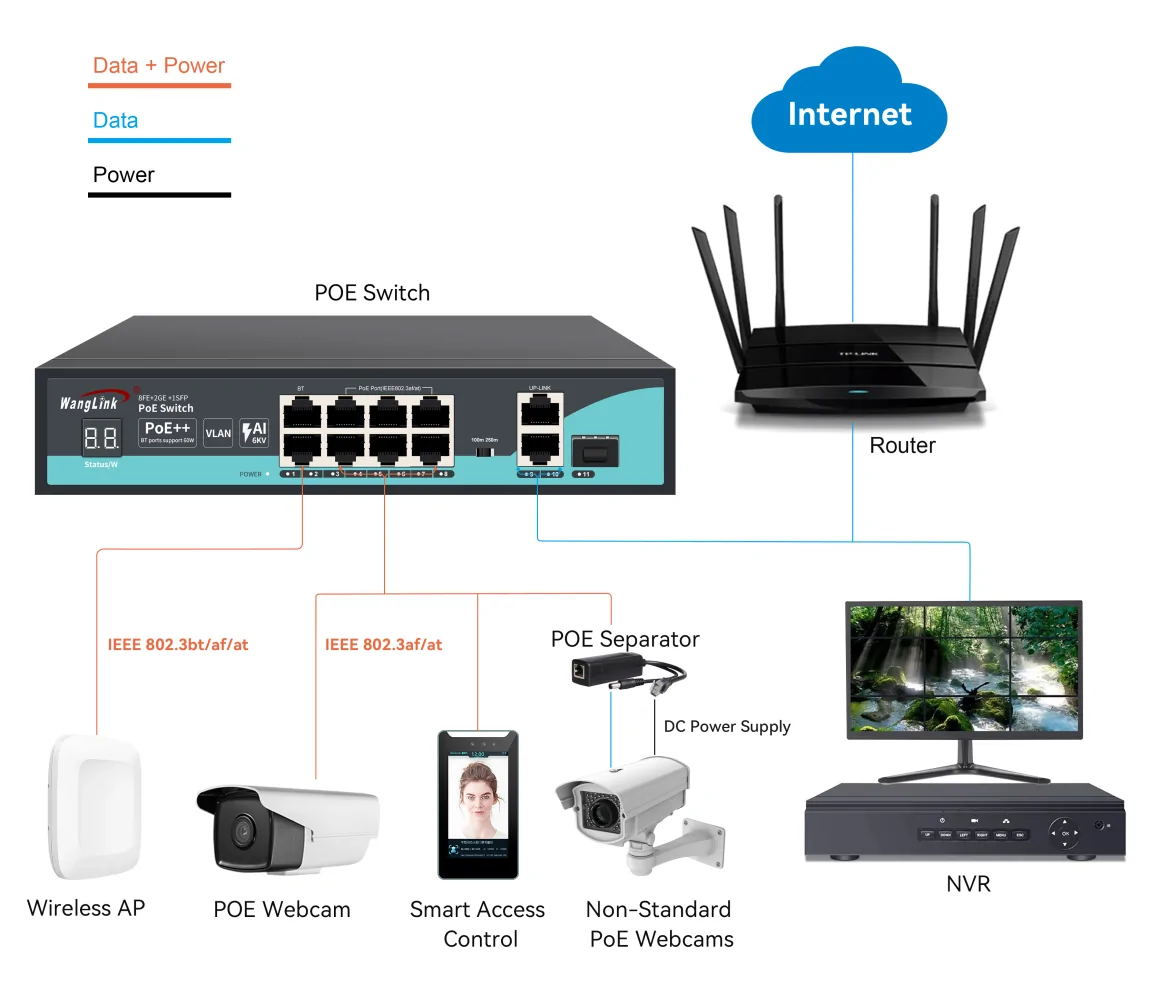

Application

Application: SL821P-V2 | Fast-ethernet-Unmanaged 8 ports poe Schalter 2 gigabit uplink 1 SFP
Product size: SL821P-V2 | Fast-ethernet-Unmanaged 8 ports poe Schalter 2 gigabit uplink 1 SFP
Application: SL821P-V2 | Fast-ethernet-Unmanaged 8 ports poe Schalter 2 gigabit uplink 1 SFP
