SG208RP | Gigabit 2 RJ45 8 Port Fiber optical reverse poe switch

The SG208RP Gigabit 2-Port Reverse PoE Switch features 2 Ethernet ports and 8 fiber ports, offering efficient power and data management for access equipment. Easy installation with plug-and-play functionality.

Email:

Sample order

Product Overview

The SG208RP Gigabit 2-Port Reverse PoE Switch is a versatile networking solution designed for efficient data transmission and power management. This switch features 2 10/100/1000Base-T Ethernet ports and 8 1000Base-X SC fiber ports, providing robust connectivity options. The Ethernet ports support PoE power input to facilitate powering access equipment, while a DC jack is capable of outputting 12V/1A to power additional devices, effectively addressing challenges in special environments.

With its simple installation and plug-and-play functionality, the SG208RP requires no configuration, making it easy to set up and maintain. Both fiber and Ethernet ports comply with international standards, and the switch employs low-power consumption chips, ensuring stable operation suitable for various working environments.

Key Features

  • 2 x 10/100/1000Base-T Ethernet ports and 8 x 1000Base-X SC fiber ports for flexible connectivity options.
  • Both Ethernet ports support PoE power input (12-24V), allowing for easy power delivery to connected devices.
  • All Ethernet ports support 10/100/1000 Mbps auto-negotiation for seamless integration into existing networks.
  • Supports wire-speed forwarding on all ports, ensuring smoother and more efficient data transmission.
  • Plug-and-play functionality enables simple operation with no configuration required, streamlining the setup process.
  • Versatile installation options support desktop, wall-mount, and rack-mount configurations for better adaptability to different environments.
  • Constructed with a metal housing that provides excellent heat dissipation, ensuring long-term stable operation even under demanding conditions.

Product Parameters

Standards and protocolsIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3x flow control
Interface informationSingle mode SC optical port: 8 1000Base-X optical ports(SC/FC/SFP optional)
Transmission rate: 1.25G
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm
RJ45 ethernet port: 2 10/100/1000M Base-T ethernet ports (POE)
10/100/1000Mbps auto-negotiation
10Base-T: ≤100m (CAT5e or above)
100Base-TX: ≤100m (CAT5e or above)
1000Base-TX: ≤100m (CAT5e or above)
Mechanical PropertiesShell material: metal shell
Appearance size (length * depth * height): 215×94×27mm
Installation method: Desktop
Cooling method: natural cooling, no fan
Weight: < 0.60Kg
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 20.0Gbps
Packet forwarding rate (entire device): 14.88 Mpps.
Switching method: Store-and-forward.
MAC address table: 4K
Packet buffer: 1.5m.
Jumbo frame: 9K.
Power supplyInput voltage: DC 12V
Power consumption: < 3 W
PoE pinPoE input voltage 12-24V (for 2 Ethernet ports), with pin: 45+/78-.

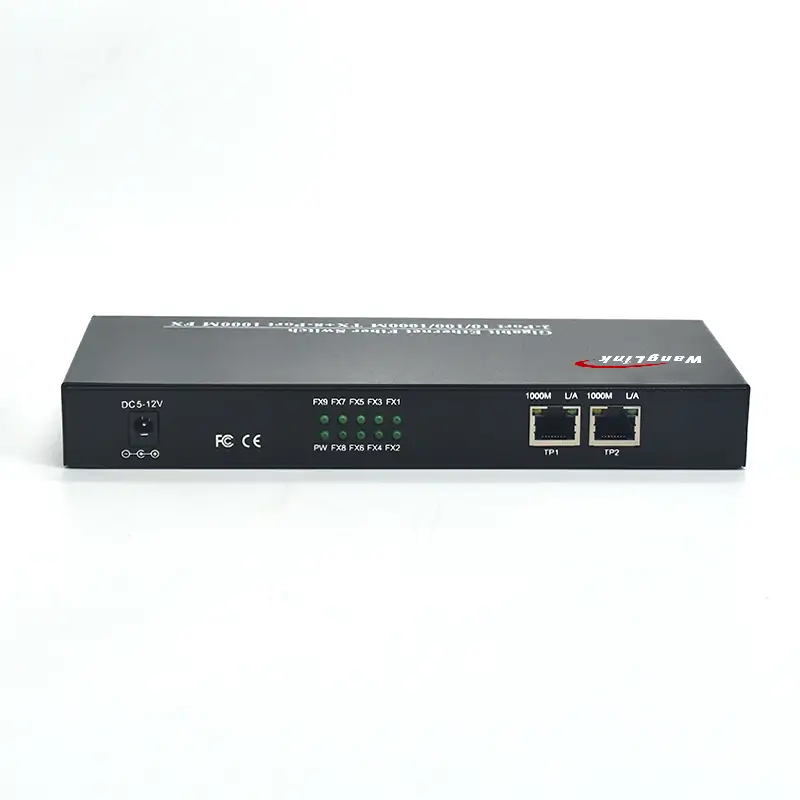

IndicatorsEthernet Port LEDs: POE Indicator: GreenLINK/ACT Indicator: Yellow(10/100/1000M)
Optical Port LED:FX Indicator: Green
Power LED (PWR): Green

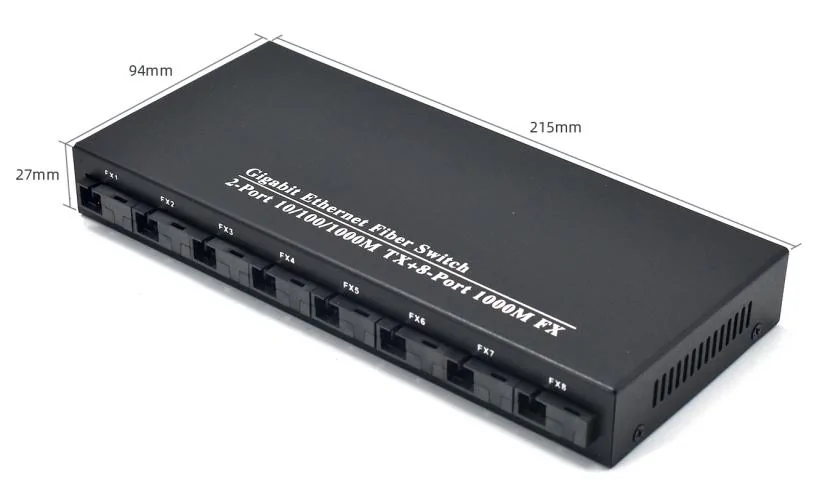

Product size

Product size: SG208RP | 2 Gigabit RJ45 8-Port Fiber optische reverse poe switch

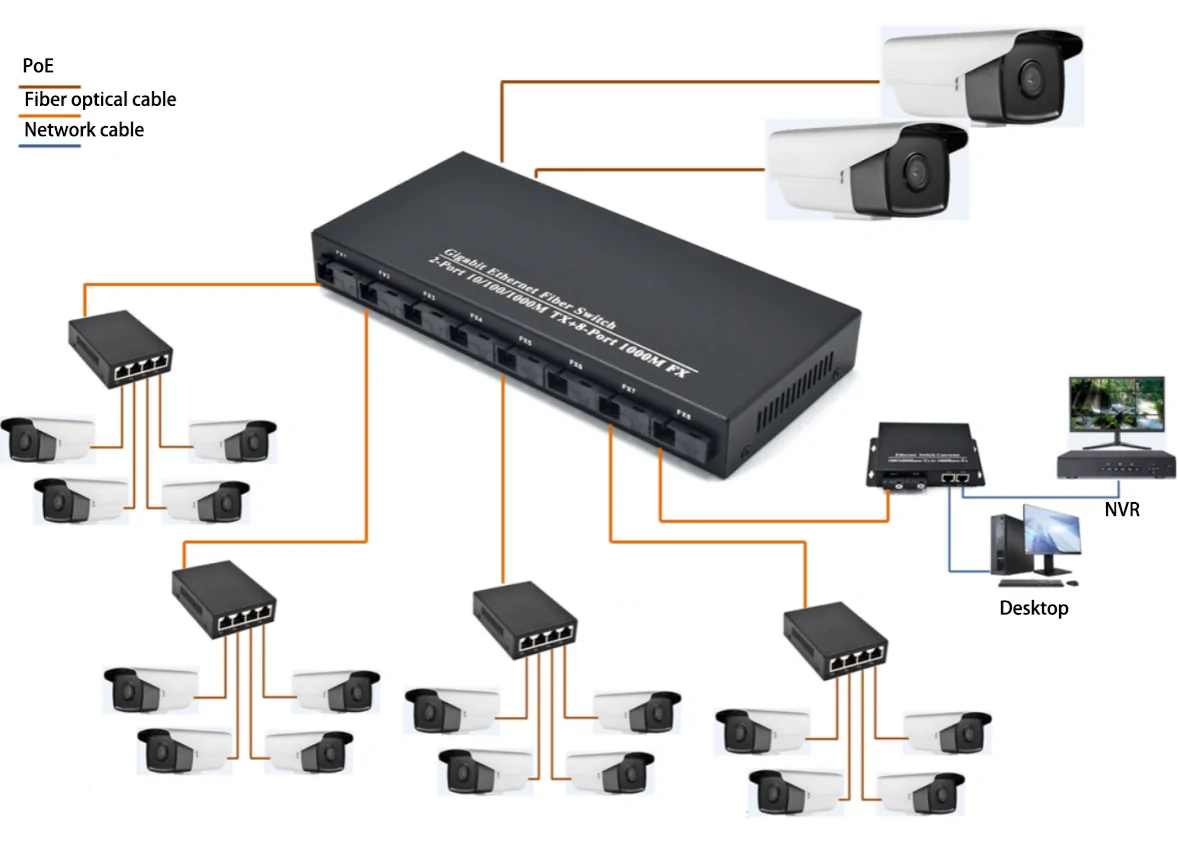

Application

Application: SG208RP | 2 Gigabit RJ45 8-Port Fiber optische reverse poe switch
Product size: SG208RP | 2 Gigabit RJ45 8-Port Fiber optische reverse poe switch
Application: SG208RP | 2 Gigabit RJ45 8-Port Fiber optische reverse poe switch
