Feature image: SG82P | non géré 8 ports gigabit ethernet switch poe avec 2 liaison Montante

Product gallery: SG82P | non géré 8 ports gigabit ethernet switch poe avec 2 liaison Montante

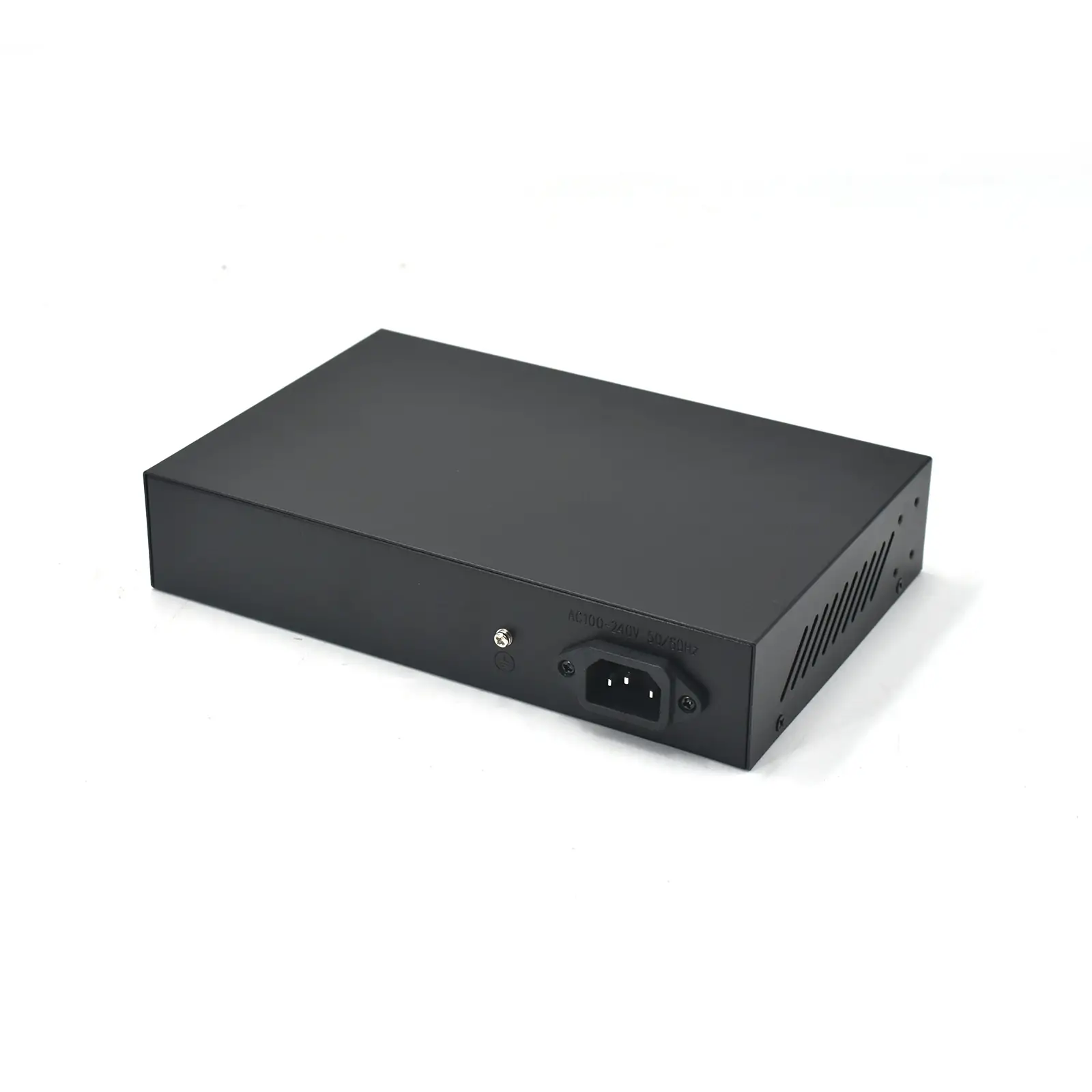

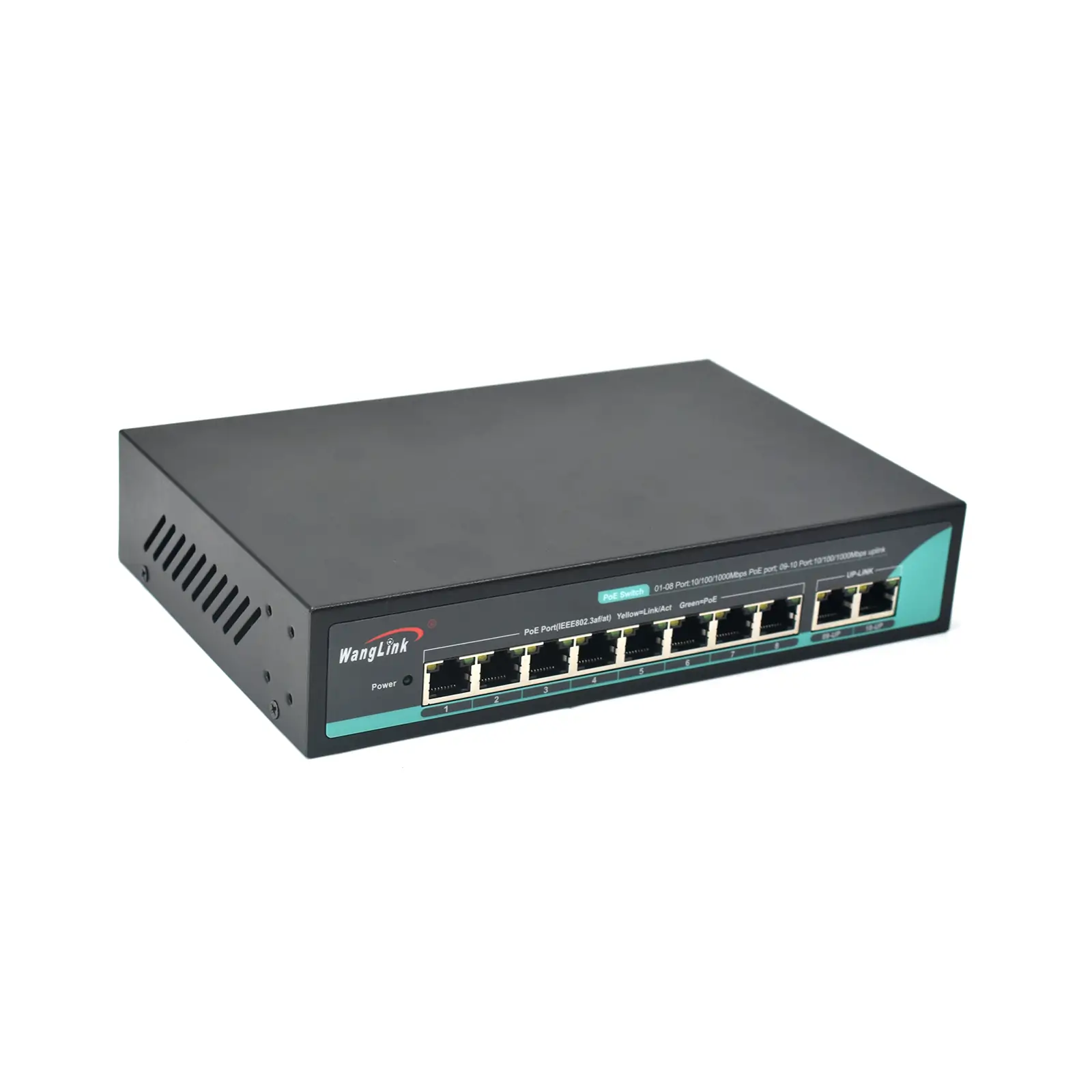

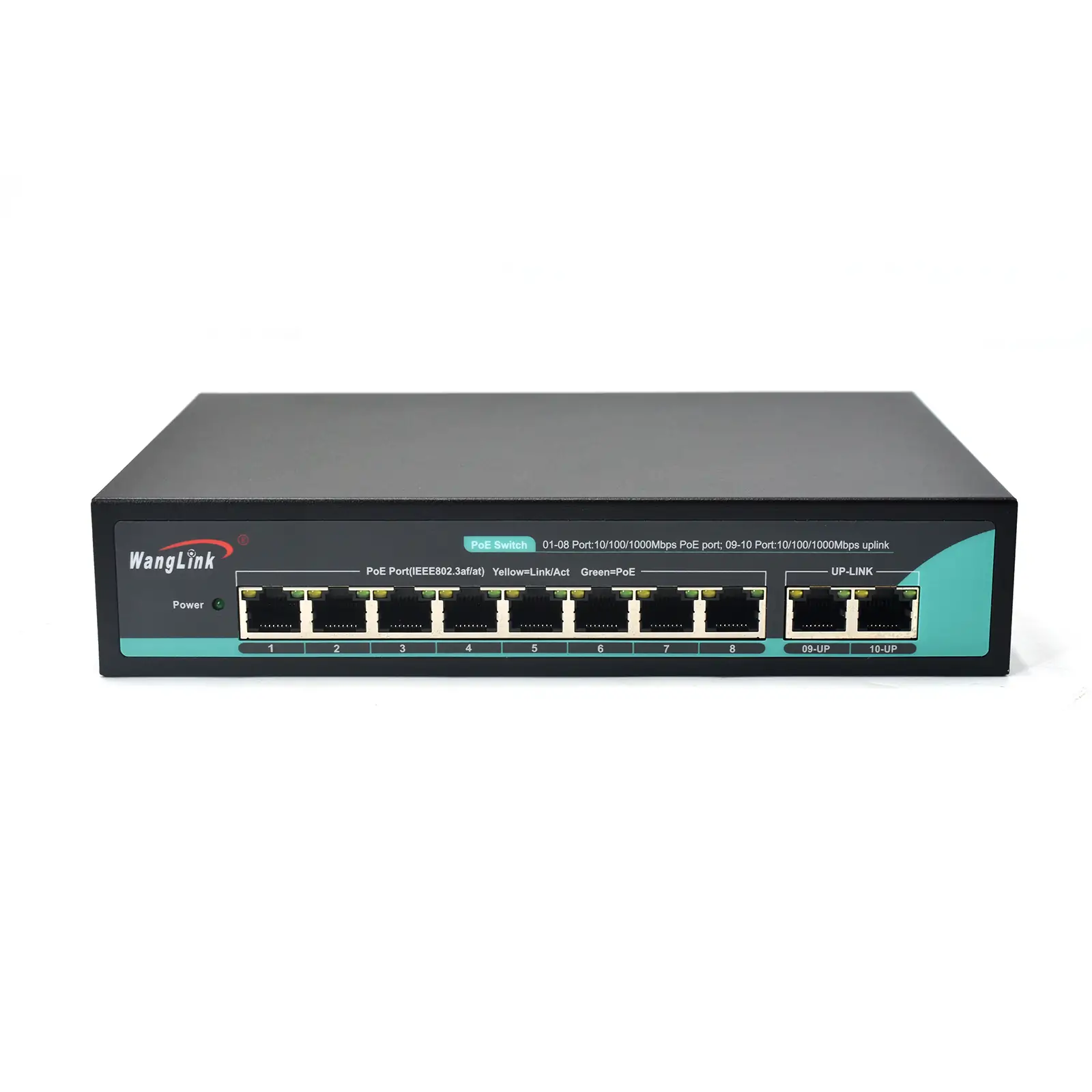

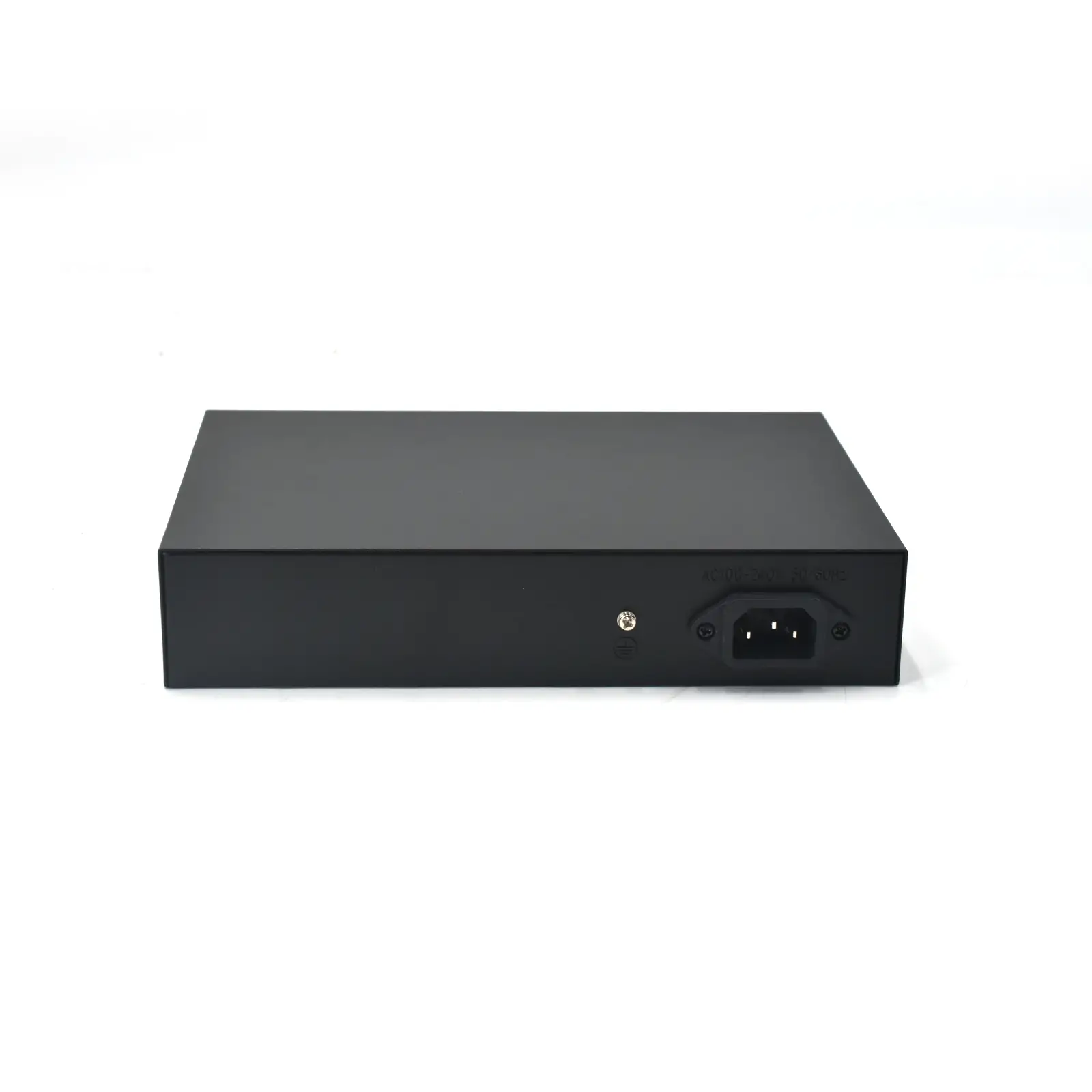

SG82P | Unmanaged 8 port gigabit ethernet switch poe with 2 Uplink

Discover our 8 Port PoE Gigabit Switch, featuring 8 PoE ports that deliver up to 25.4W of power per port. Perfect for powering IP cameras and other devices, this switch offers seamless connectivity and a robust design for reliable network performance.

Product Overview

Introducing our 8 Port PoE Gigabit Switch, designed to provide seamless connectivity and power supply to your network devices. This switch features 8 10/100/1000Base-T Ethernet ports that support the IEEE 802.3 af/at PoE protocol, allowing you to power devices such as IP cameras, wireless access points, and VoIP phones directly through the Ethernet cable. With a total PoE power output of 96W and individual port output of up to 25.4W, this switch ensures efficient power distribution while maintaining optimal network performance.

Key Features

8 PoE Ethernet Ports: 8 RJ45 ports support IEEE 802.3 af/at PoE, delivering up to 25.4W per port.
Uplink Ports: 2 additional 1000Base-T uplink ports for connecting to higher-level network devices.
Auto-Negotiation: Supports 10/100/1000Mbps auto-negotiation for optimal speed and performance.
Adaptive Duplex: Half/Full duplex adaptive mode and auto MDI/MDI-X functionality for easy integration.
Wire-Speed Forwarding: All ports support wire-speed forwarding, ensuring high data transfer rates.
Flexible Installation: Suitable for desktop and wall-mounted installation, providing versatility for various setups.
Plug and Play: No configuration required; simply connect your devices and start using.
Durable Design: Metal casing with internal power supply ensures excellent heat dissipation and long-term stability.
Surge Protection: Optional 6KV common mode and 4KV differential mode surge protection to safeguard your devices.
AI Network Self-Healing: Optional watchdog function for automatic network recovery.

Product Parameters

Protocol	Standard	IEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE802.3ab 1000Base-TIEEE 802.3x flow control
Ethernet port Characteristic	Connector Type	1×8 RJ45，1×2 RJ45
	Transmission rate	10/100/1000Mbps auto-negotiate
	Transmission distance	10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP）
Exchange performance	Forward method	Store-and-forward（full wire-speed）
	Transmission mode	Half/Full duplex adaptive
	MAC address table	2K
	Case space	1Mb
	Jumbo frames	9216b
	Packet Forwarding Rate	14.88Mpps@64byte
	Bandwidth	20G（non-blocking）
LED indicator	Power indicator	Green, PWR
	Link/Act indicator	Yellow, 1 for each ethernet port
	1000M indicator	Green, 1 for uplink port 9-10
	PoE indicator	Green, 1 for each poe port 1-8
Power parameters	Input voltage	AC100~240V, 50Hz
	Power consumption	Standby: ≤3W; whole: ≤96W
	PoE pin	1/2+,3/6-
	The port max rate	≤25.4W
Environment	Operating Temperature	-20℃～60℃
	Storage Temperature:	-40℃～85℃
	Operating Humidity	5%～95% non-condensing
	Heat dissipation method	Natural heat dissipation
Physical properties	Size	220×145×44mm
Physical properties	Weight	Net weight:0.8kg,Gross weight: 1kg

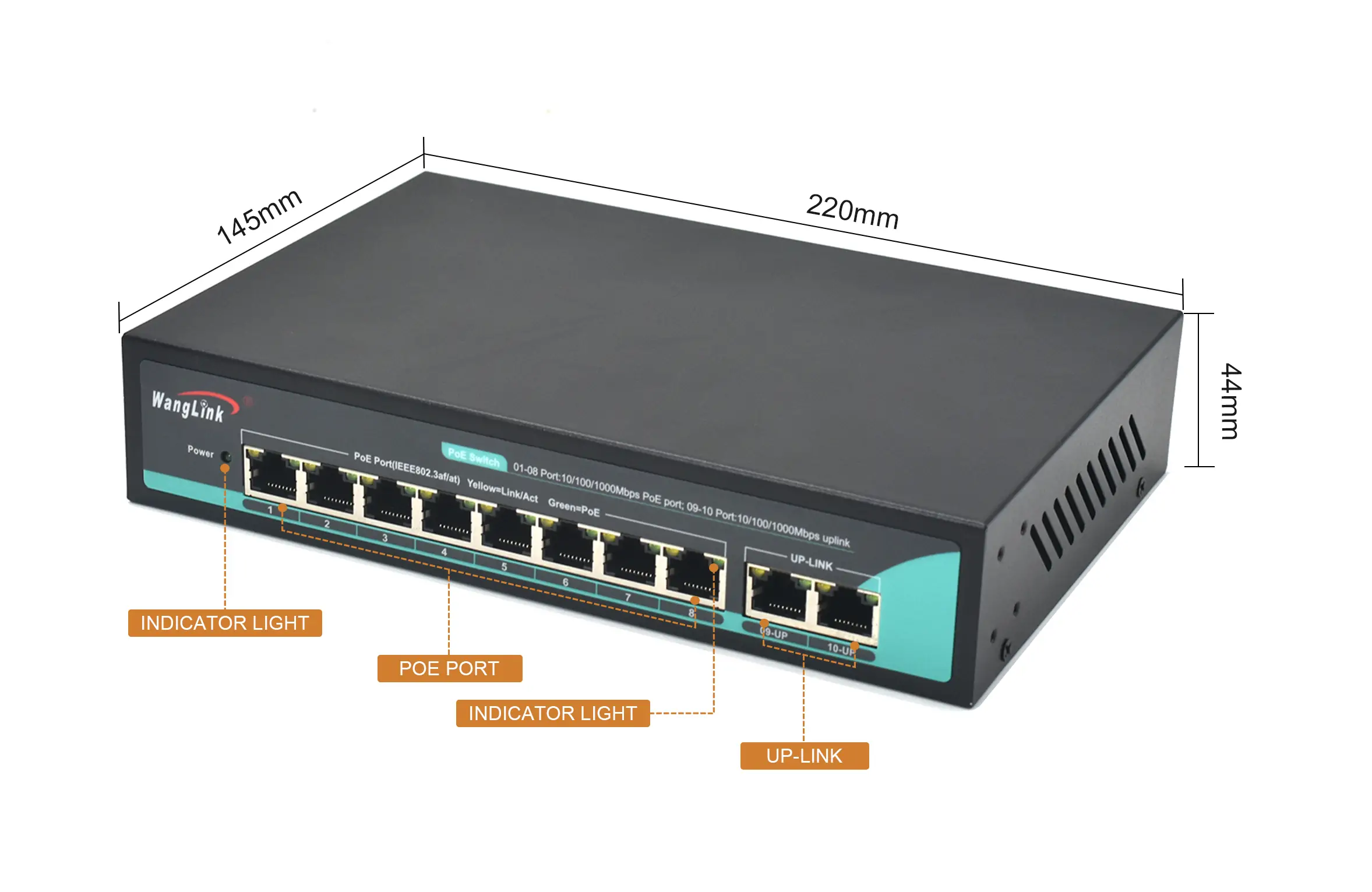

Product size

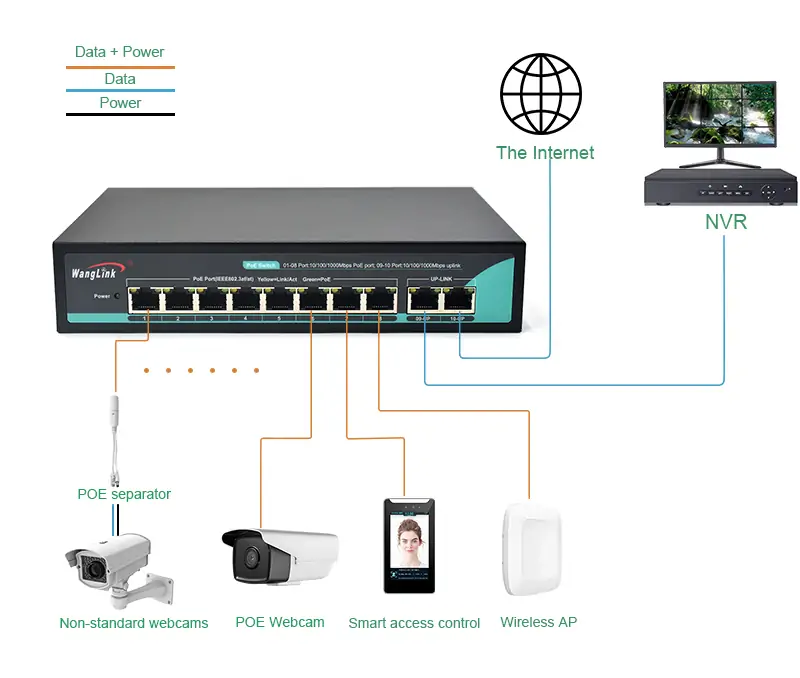

Application
