Product Overview
Introducing our Switch Gigabit PoE 8 Port, a versatile and efficient networking solution designed to support both power and data transmission for various applications. This switch features 8 10/100Base-TX Ethernet ports, 2 10/100/1000Base-T Ethernet ports, and 1 1000Base-X SFP slot. Ports 1-8 comply with IEEE 802.3 af/at standards for Power over Ethernet (PoE), each providing a maximum output power of 25.4W. The switch automatically detects PoE-compatible devices and supplies power only to them, effectively preventing damage to non-PoE devices.

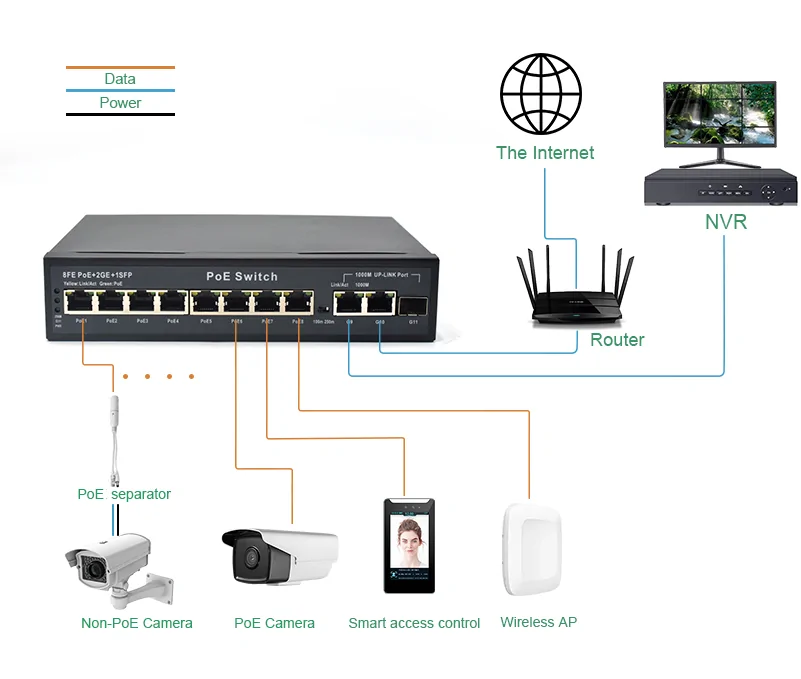

With a unique feature that allows ports 1-8 to be forced to operate at 10M using a switch, this device can achieve transmission distances of up to 250m over existing twisted-pair cabling. Furthermore, ports 1-8 are isolated from each other while permitting communication with the uplink ports (9-10), which helps to isolate collision and broadcast domains, reducing broadcast storms, and enhancing overall network efficiency. This makes the Switch Gigabit PoE 8 Port an ideal choice for video surveillance networks in hotels, shops, supermarkets, residential homes, and small to medium-sized enterprises.
Key Features
- 8 PoE Ports: 8 10/100Base-TX PoE ports, 2 10/100/1000Base-T uplink ports, and 1 1000Base-X SFP uplink port for versatile connectivity.
- Power over Ethernet: Each of the 8 RJ45 ports supports the IEEE 802.3 af/at standard, delivering a maximum output power of 25.4W per port.
- VLAN Switching: Supports one-click switching to VLAN mode for enhanced network segmentation.
- Extended Transmission: Capable of ultra-long-distance transmission up to 250m for ports 1-8.
- Adaptive Speed: Ports 1-8 support 10/100Mbps adaptive speed, while ports 9-10 support 10/100/1000Mbps adaptive speed.
- Collision Domain Isolation: Ports 1-8 are isolated from each other, enhancing network efficiency by reducing broadcast storms.
- Line-Speed Forwarding: All ports support line-speed forwarding for smooth and efficient data transmission.
- Optional Surge Protection: Provides 6KV common mode and 4KV differential mode surge protection for increased reliability.
- AI Network Self-Healing: Optional AI network self-healing (watchdog) functionality for automatic recovery from network issues.
- Easy Installation: Plug-and-play design with no configuration required, making it simple to set up and use.
- Durable Design: Metal casing with a built-in power supply offers excellent heat dissipation for long-term stable operation.
Product Parameters
| Protocol | Standard | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3x flow control |
| Fiber Port Characteristic | Connector Type | SFP Slot |
| Transmission rate | 1.25Gbps | |
| Transmission distance | Multi-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km | |
| Wavelength | Multi-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm | |
| Ethernet port Characteristic | Connector Type | 1×8 RJ45，1×2 RJ45 |
| Transmission rate | 10/100Mbps auto-negotiate；10/100/1000Mbps auto-negotiate | |
| Transmission distance | 10Base-T: ≤250m（CAT3,4,5 UTP）100Base-TX: ≤100m（CAT3,4,5 UTP）1000Base-T: ≤100m（CAT3,4,5 UTP） | |
| Exchange performance | Forward method | Store-and-forward（full wire-speed） |
| Transmission mode | Half/Full duplex adaptive | |
| MAC address table | 2K | |
| Case space | 1Mb | |
| Jumbo frames | 9216b | |
| Packet Forwarding Rate | 5.6544Mpps@64byte | |
| Bandwidth | 7.6G（non-blocking） | |
| LED indicator | Power indicator | Green, power |
| Fiber indicator | Green, per SFP optical fiber port | |
| Link/Act indicator | Yellow, per ethernet port | |
| 1000M indicator | Green, per uplink port | |
| PoE indicator | Green, per PoE port | |
| DIP switch | 100m | Standard mode – All ports can communicate with each other. |
| 250m | Extend mode, port 1-8 is isolated from each other, transmission distance can up to 250m, and can communicate with port 9-10. | |
| Power parameters | Input voltage | AC100~240V, 50Hz |
| Power consumption | Standby: ≤3W; whole: ≤120W | |
| PoE pin | 1/2+,3/6- | |
| The port max rate | ≤25.4W | |
| Environment | Operating Temperature | -20℃～60℃ |
| Storage Temperature: | -40℃～85℃ | |
| Operating Humidity | 5%～95% non-condensing | |
| Heat dissipation method | Natural heat dissipation | |

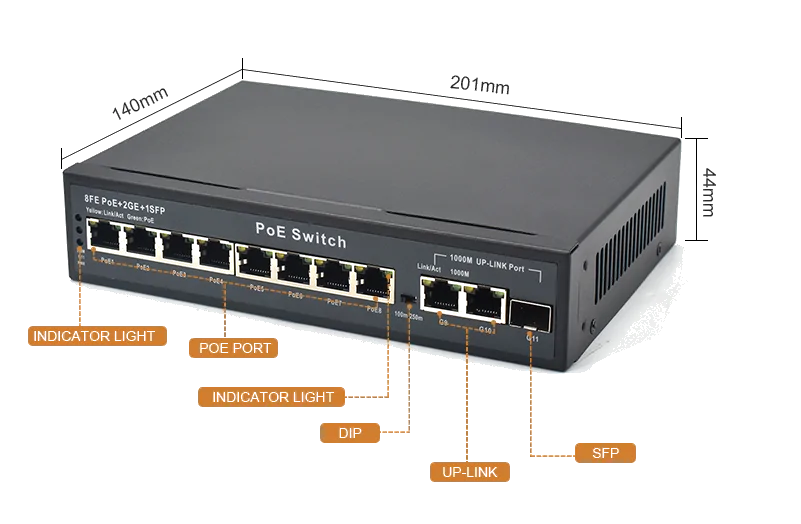

| Physical properties | Size | 201×140×44mm |
| Weight | Net weight:0.7kg,Gross weight: 0.9kg |
