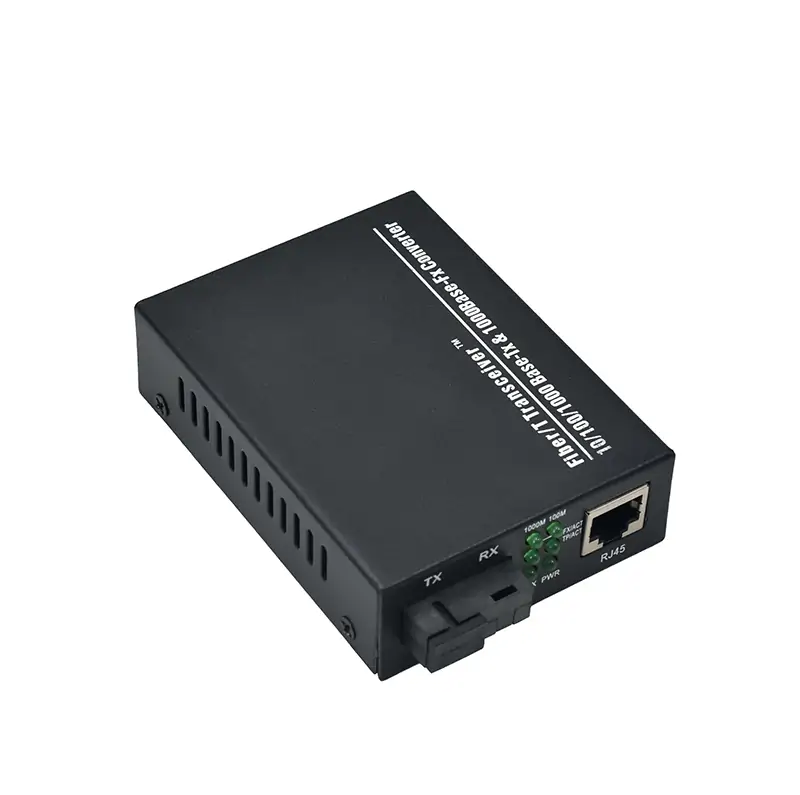

CG101P | Gigabit media converter poe 1 RJ45 1 Fiber port

The CG101P Media Converter PoE features 1 SC fiber port and 1 10/100/1000Mbps Ethernet port, supporting 25.4W PoE for efficient connectivity in commercial applications.

Email:

Sample order

Product Overview

The CG101P Media Converter PoE is a reliable fiber optic transceiver designed to provide seamless connectivity between fiber optic and Ethernet networks. It features 1 1.25Gbps SC fiber port and 1 10/100/1000Mbps Ethernet port, supporting IEEE 802.3 af/at Power over Ethernet (PoE) standards with a maximum power output of 25.4W per Ethernet port. This device automatically detects whether connected devices are PoE compliant, supplying power only to those devices, effectively protecting non-PoE equipment from damage.

Key Features

  • One 10/100/1000Base-TX Ethernet port and one 1000Base-X SC fiber optic port for versatile connectivity.
  • Complies with IEEE 802.3 af/at PoE standards, delivering up to 25.4W of power through the RJ45 Ethernet port.
  • Supports 10/100/1000Mbps speed auto-negotiation for all Ethernet ports, ensuring optimal performance.
  • Each Ethernet port supports half/full duplex auto-negotiation and automatic MDI/MDI-X crossover for easy installation.
  • Features wire-speed forwarding for all Ethernet ports, enhancing data transmission efficiency.
  • Built with low-power consumption chips for stable performance and easy maintenance.
  • Plug-and-play design allows for quick and simple installation with no configuration required.
  • Constructed with a robust metal housing for excellent heat dissipation, ensuring long-term, stable operation.

Ideal Applications

The CG101P Media Converter PoE is ideal for video surveillance networking and is suitable for a wide range of commercial environments, including hotels, retail shops, supermarkets, residential homes, and small to medium-sized enterprises.

Product Parameters

Standards and protocolsIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3af/at Power Over Ethernet
IEEE802.3x Flow control,
Interface informationSingle mode SC optical port: 1 1000Base-X optical ports(SC/FC/SFP optional)
Transmission rate: 1.25G
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm
RJ45 ethernet port: 1 10/100/1000M Base-T ethernet ports (standard RJ45)
10/100/1000Mbps auto-negotiation
10Base-T: ≤100m (CAT5e or above)
100Base-TX: ≤100m (CAT5e or above)
1000Base-TX: ≤100m (CAT5e or above)
Mechanical PropertiesShell material: metal shell
Appearance size (length * depth * height): 94mm×71mm×26mm
Installation method: Desktop, Rack-mount
Cooling method: natural cooling, no fan
Weight: < 0.18Kg
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 4.0Gbps
Packet forwarding rate (entire device): 2.976 Mpps.
Switching method: Store-and-forward.
MAC address table: 2K
Packet buffer: 1m.
Jumbo frame: 9K.

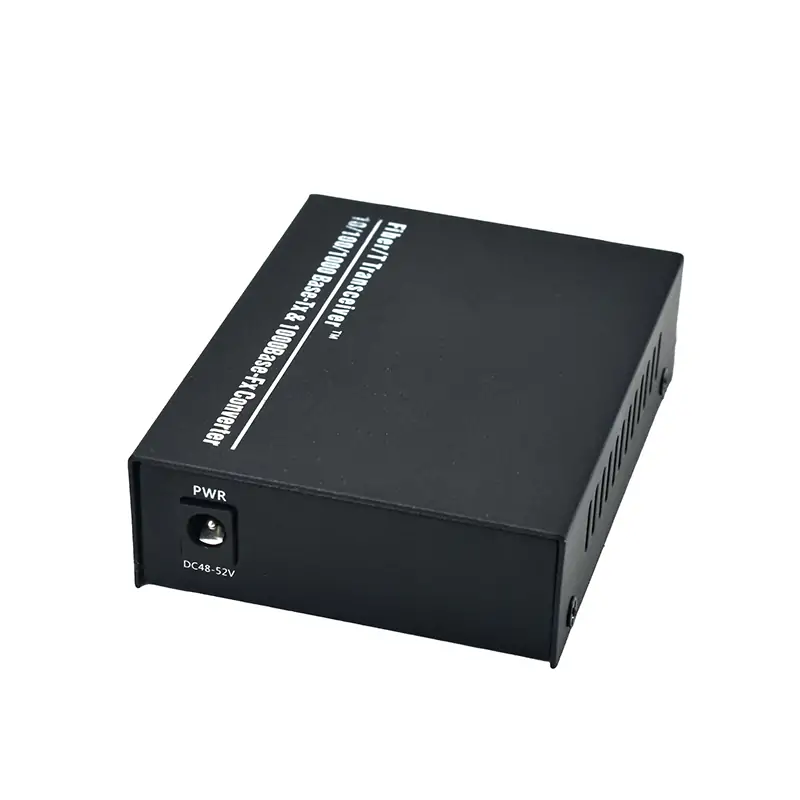

Power supplyInput voltage: DC 44V-52V
Power consumption: < 3 W
PoE pin802.3AF/AT(1/2+,3/6-)
IndicatorsEthernet Port LEDs: POE Indicator: YellowTP/ACT Indicator: Green
Optical Port LED:FX/ Act Indicator: Green
FDX(PoE): Green
Power LED (PWR): Green

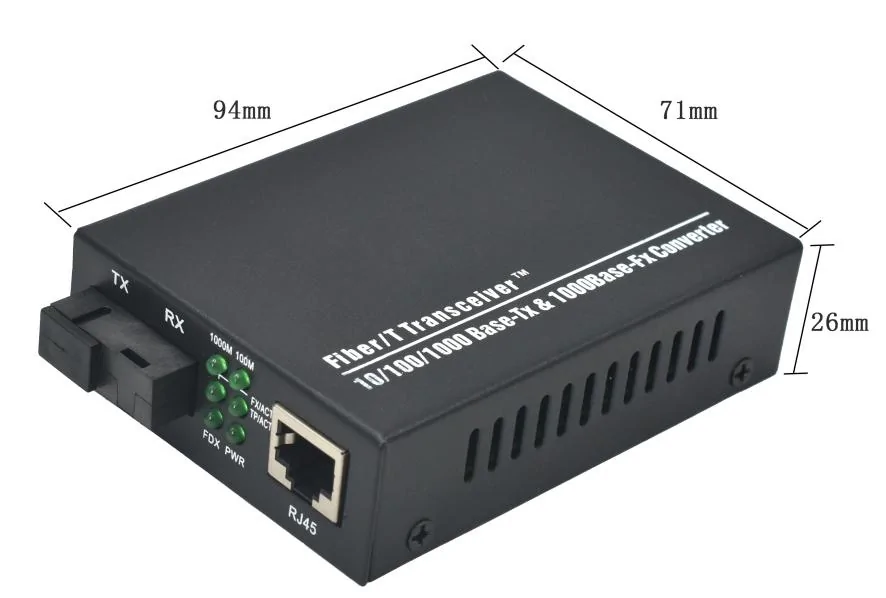

Product size

Product size: CG101P | Gigabit media converter poe-1 RJ45-1 LWL-port

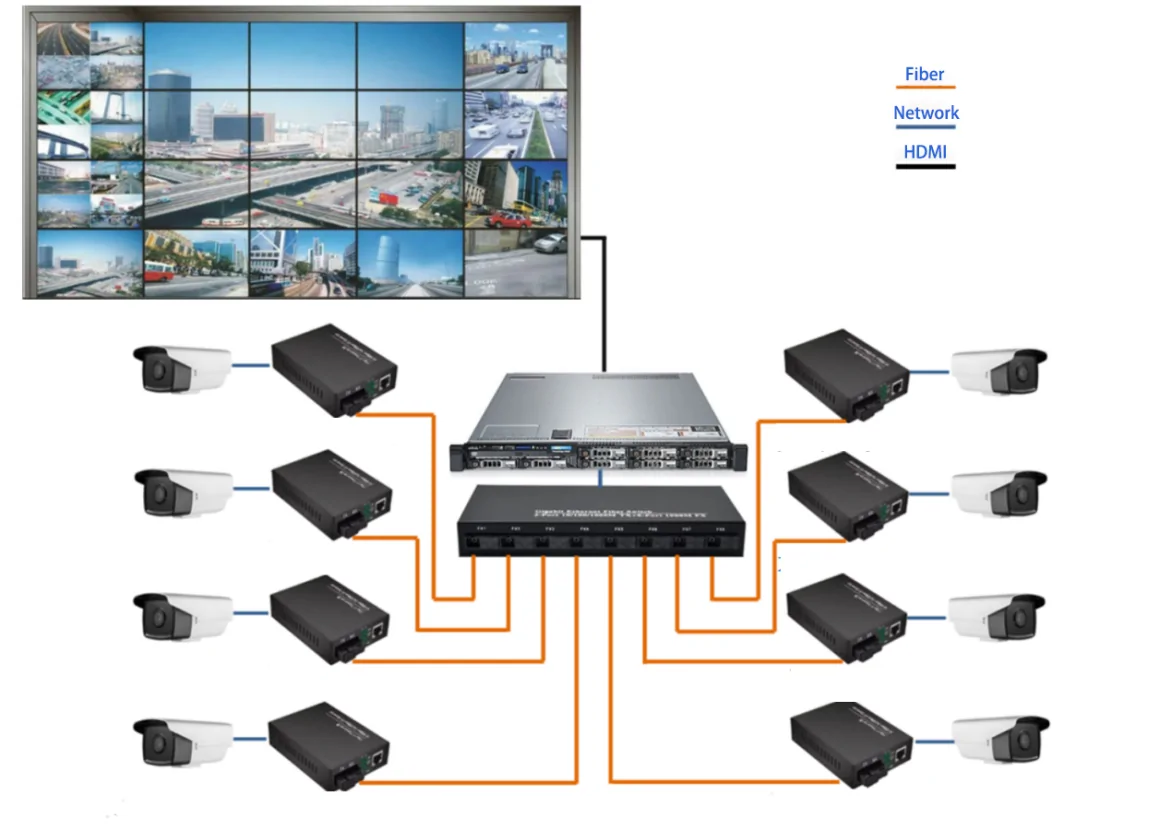

Application

Application: CG101P | Gigabit media converter poe-1 RJ45-1 LWL-port
Product size: CG101P | Gigabit media converter poe-1 RJ45-1 LWL-port
Application: CG101P | Gigabit media converter poe-1 RJ45-1 LWL-port
