CG402P | Gigabit PoE 4 port fiber media converter 2 SC fiber port

The CG402P 4-Port Fiber Media Converter features 2 SC fiber ports and 4 10/100/1000Mbps Ethernet ports, providing 25.4W PoE for reliable networking solutions in commercial applications.

Email:

Sample order

Product Overview

The CG402P 4-Port Fiber Media Converter is a high-performance fiber optic transceiver designed to bridge the gap between fiber optic and Ethernet networks. This unit is equipped with 2 1.25Gbps SC fiber ports and 4 10/100/1000Mbps Ethernet ports. It supports IEEE 802.3 af/at Power over Ethernet (PoE) standards, providing a maximum power output of 25.4W per Ethernet port. The device intelligently detects whether connected powered devices are PoE compliant, ensuring only compliant devices receive power, thus protecting non-PoE devices from damage.

Key Features

  • Four 10/100/1000Base-TX Ethernet ports and two 1000Base-X SC fiber optic ports for versatile connectivity options.
  • Complies with IEEE 802.3 af/at PoE standards, delivering up to 25.4W of power through each RJ45 port.
  • Each Ethernet port supports 10/100/1000Mbps speed auto-negotiation for optimal performance.
  • Features half/full duplex auto-negotiation and automatic MDI/MDI-X crossover for straightforward setup.
  • Supports wire-speed forwarding across all Ethernet ports to facilitate efficient data transmission.
  • Built with low-power consumption chips, ensuring stable operation and reducing energy costs.
  • Plug-and-play design allows for easy installation without any configuration, perfect for rapid deployment.
  • Constructed with a robust metal housing for excellent heat dissipation and long-term stability.

Ideal Applications

The CG402P 4-Port Fiber Media Converter is perfect for video surveillance networking and is ideal for various commercial environments, including hotels, retail shops, supermarkets, residential homes, and small to medium-sized enterprises.

Product Parameters

Standards and protocolsIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3af/at Power Over Ethernet
IEEE802.3x Flow control,
Interface informationSingle mode SC optical port: 2 1000Base-X optical ports(SC/FC/SFP optional)
Transmission rate: 1.25G
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm
RJ45 ethernet port: 4 10/100/1000M Base-T ethernet ports (standard RJ45)
10/100/1000Mbps auto-negotiation
10Base-T: ≤100m (CAT5e or above)
100Base-TX: ≤100m (CAT5e or above)
1000Base-TX: ≤100m (CAT5e or above)
Mechanical PropertiesShell material: metal shell
Appearance size (length * depth * height): 201×100×39mm
Installation method: Desktop, Rack-mount
Cooling method: natural cooling, no fan
Weight: < 0.30Kg
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 12.0Gbps
Packet forwarding rate (entire device): 8.928 Mpps.
Switching method: Store-and-forward.
MAC address table: 4K
Packet buffer: 1.5m.
Jumbo frame: 9K.

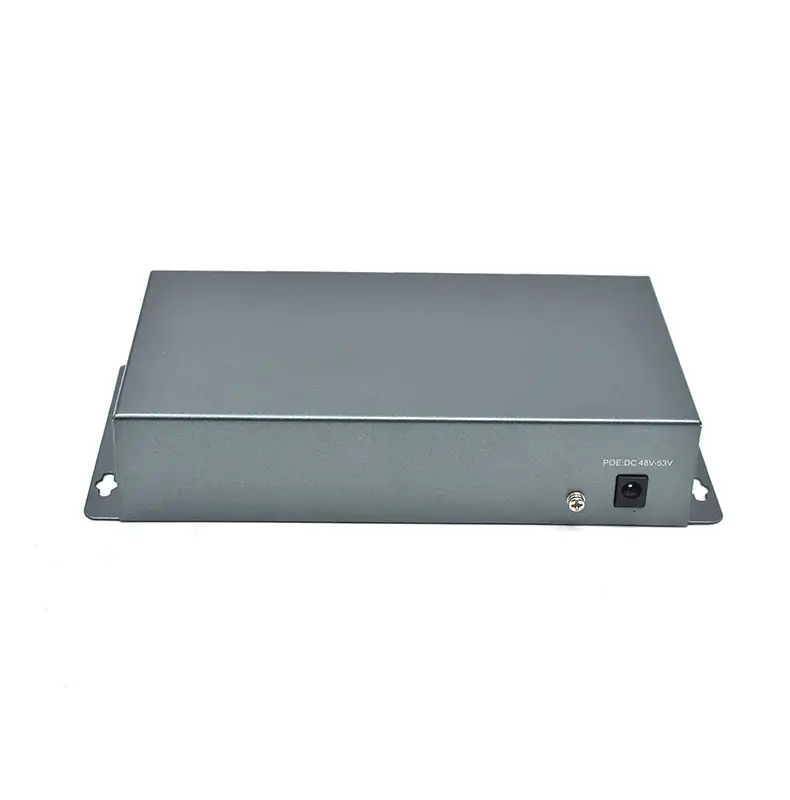

Power supplyInput voltage: DC 48V-53V
Power consumption: < 3 W
PoE pin802.3AF/AT(1/2+,3/6-)
IndicatorsEthernet Port LEDs: POE Indicator: YellowLINK/ACT Indicator: Green(10/100/1000M)
Optical Port LED:FX Indicator: Green
Power LED (PWR): Green

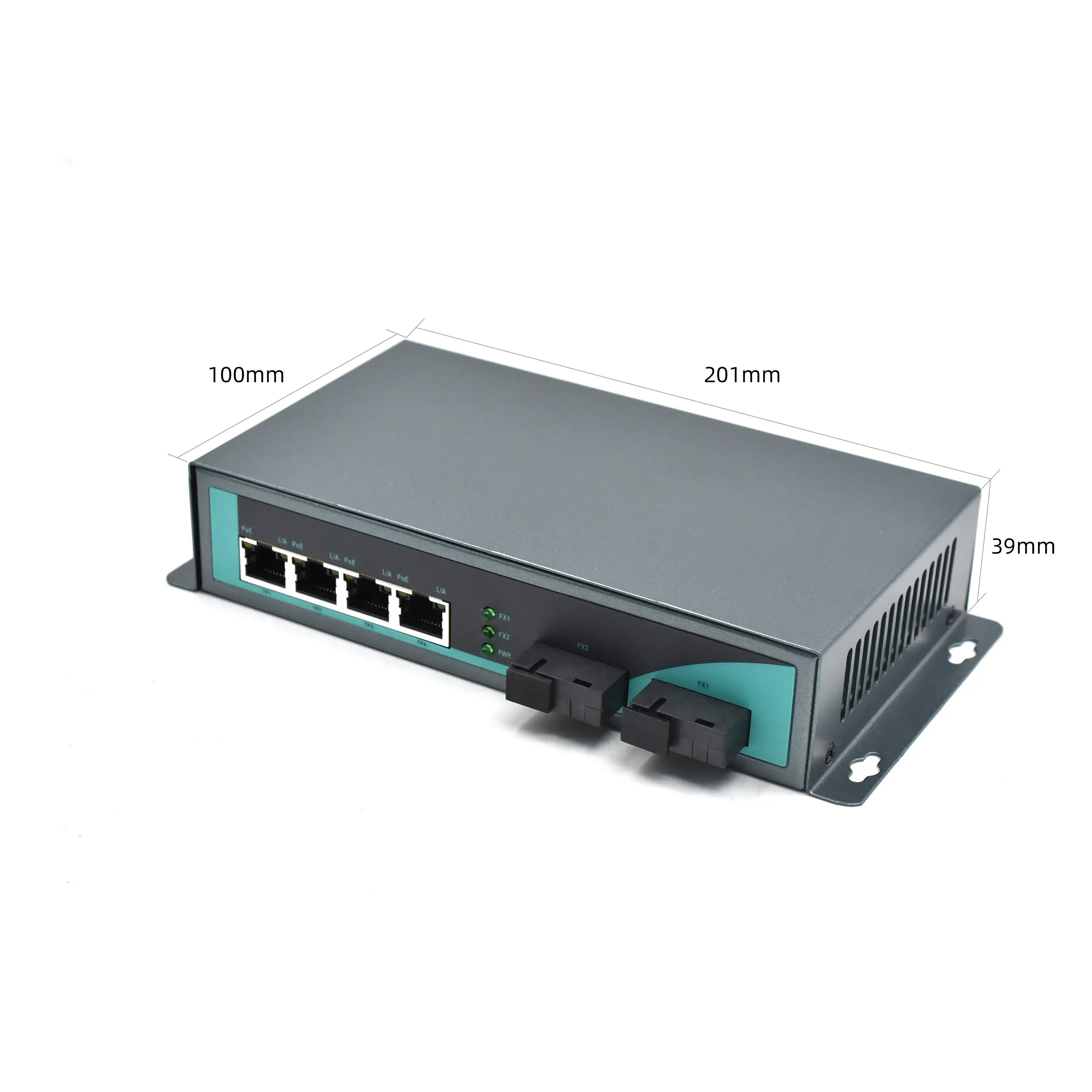

Product size

Product size: CG402P | Gigabit PoE 4-port fiber media converter 2 SC Faser port

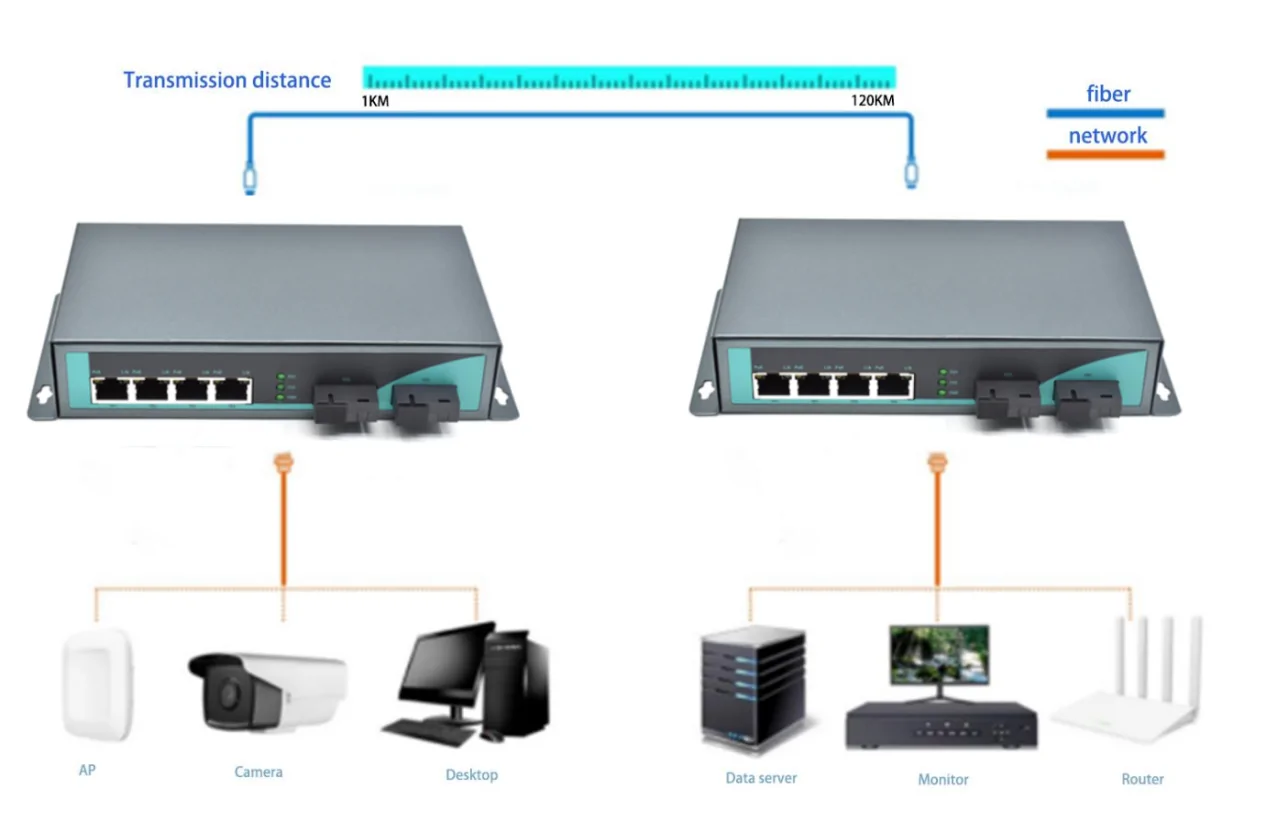

Application

Application: CG402P | Gigabit PoE 4-port fiber media converter 2 SC Faser port
Product size: CG402P | Gigabit PoE 4-port fiber media converter 2 SC Faser port
Application: CG402P | Gigabit PoE 4-port fiber media converter 2 SC Faser port
