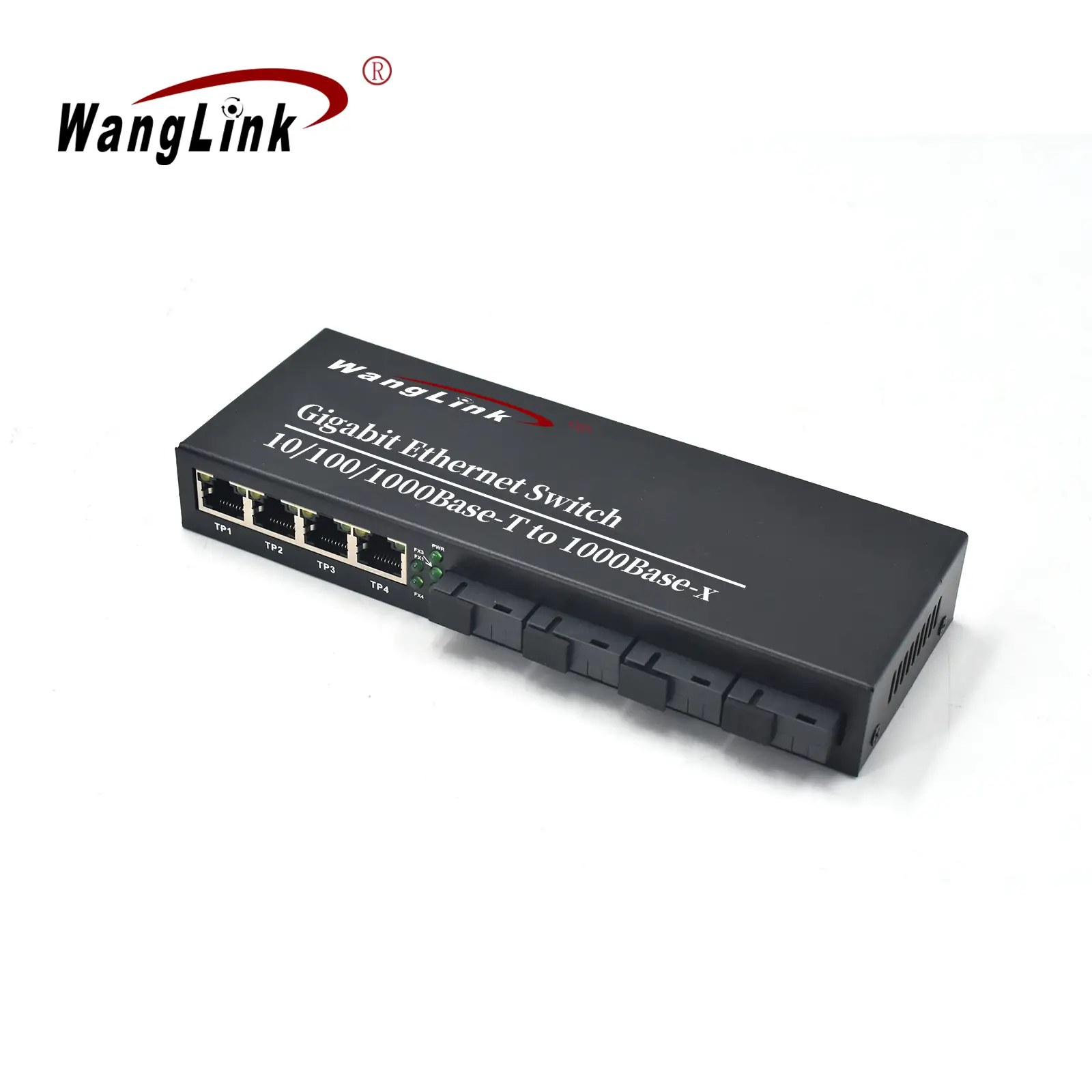

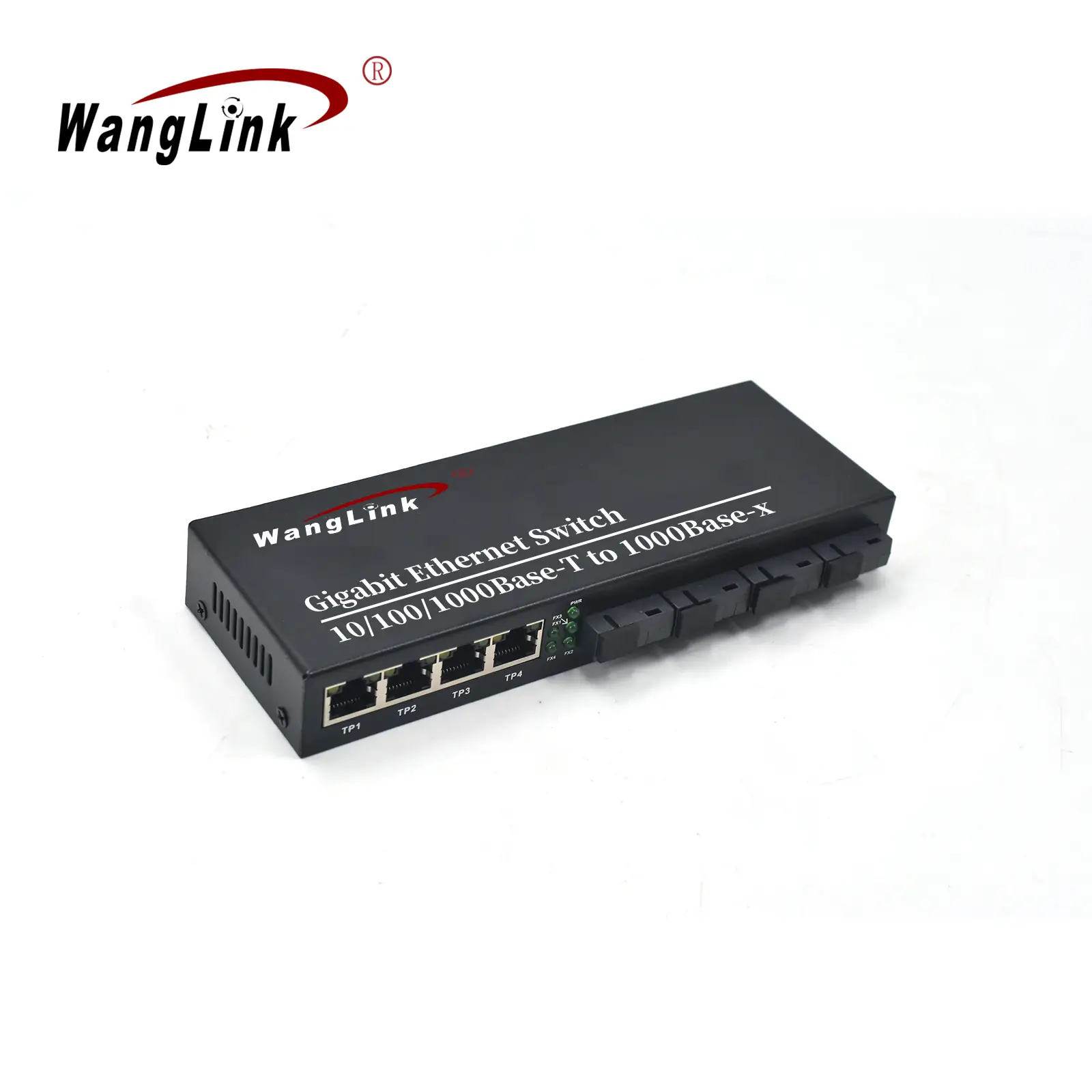

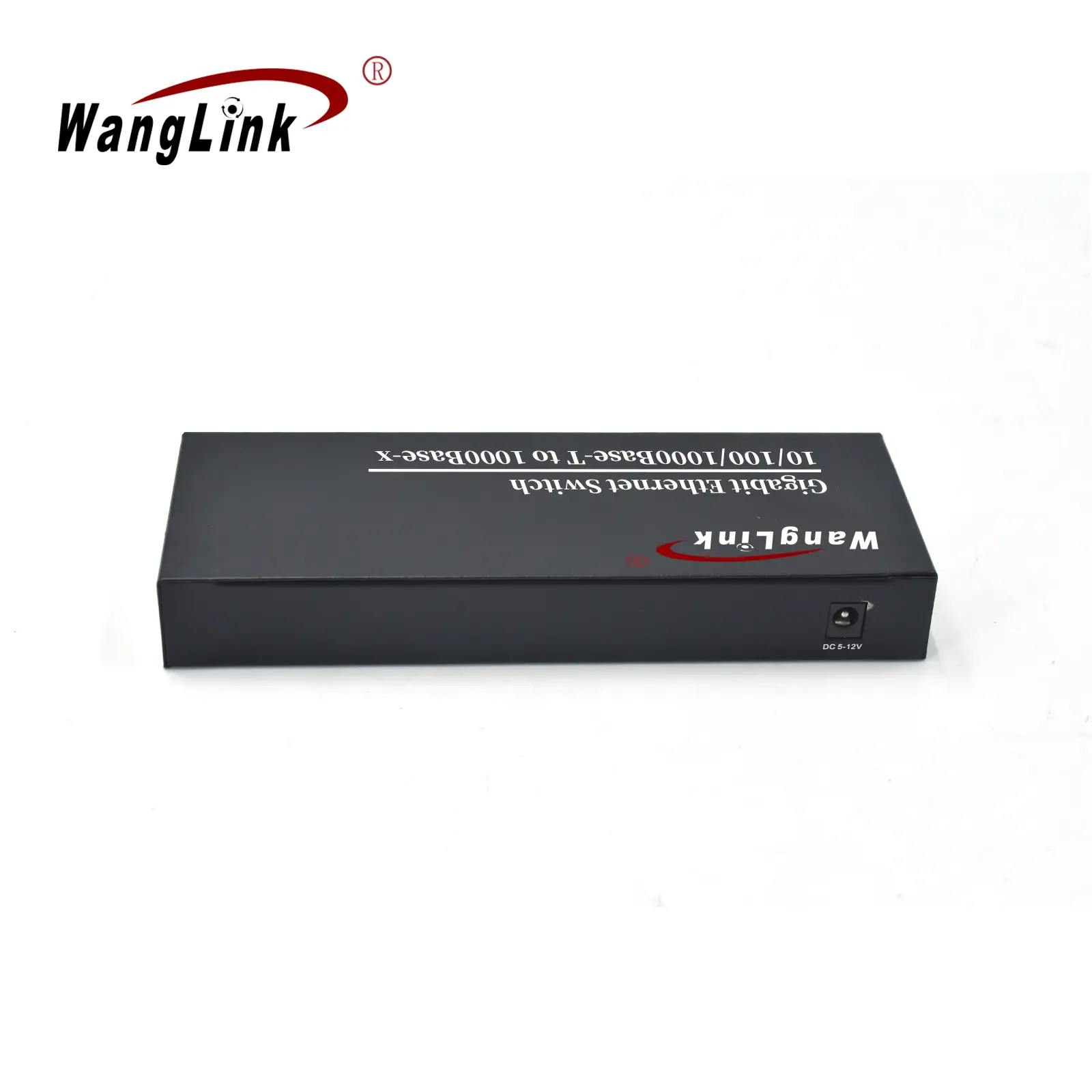

Product gallery: CG404 | Gigabit convertisseur de média fibre optique monomode 4 Port 4 RJ45

CG404 | Gigabit media converter single mode fiber 4 Port 4 RJ45

Discover the CG404 media converter, featuring 4 fiber optic ports and 4 Ethernet ports, extending distances up to 120km with hassle-free plug-and-play operation.

Product Overview

The CG404 is a versatile single mode fiber media converter designed to enhance network connectivity. It features four 1.25Gbps fiber optic ports and four 10/100/1000Mbps Ethernet ports, enabling effective data communication between 100Base-TX twisted pairs and 1000Base-FX optical cables. This media converter significantly extends the maximum transmission distance of networks from the standard 100-meter limit over twisted pairs to an impressive 120 kilometers when utilizing fiber optic cables.

The CG404 offers an easy installation process with a plug-and-play design that requires no additional configuration. All fiber optic ports comply with international standards, ensuring reliability and broad compatibility. With features such as superior data confidentiality, stable operation, and minimal maintenance requirements, this transceiver is ideally suited for a variety of commercial and industrial environments.

Key Features

Port Configuration:
- 4 x 10/100/1000Base-T Ethernet ports
- 4 x 1.25Gbps fiber optic ports
Extended Transmission Distance: Expands network transmission distances up to 120 kilometers using fiber optic cables.
User-Friendly Design: Plug-and-play functionality ensures easy operation with no configuration needed.
Compliance: All optical ports comply with international standards for dependable performance.
Reliable Operation: Equipped with features that provide superior data confidentiality and stability.
Minimal Maintenance: Designed for long-term operation with reduced maintenance requirements.

Product Parameters

Standards and protocols	IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE802.3x Flow control,
Interface information	Single-mode SC optical port: 4 1000Base-X optical port (SC/FC/SFP optional)
	Transmission rate: 1.25G
	Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
	Multi-mode: 850nm/1310nm, Single-mode: 1310nm/1550nm/1490nm
	RJ45 network port: 4 10/100/1000M Base-T ethernet ports (standard RJ45)
	10/100/1000Mbps adaptive
	10Base-T: ≤100m (CAT3,4,5 UTP)
	100Base-TX: ≤100m (CAT3,4,5 UTP)
	1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical properties	Shell material: metal shell
	Appearance dimensions (lengthdepthheight): 189mm×67mm×26mm
	Installation method: Desktop, wall-mounted
	Heat dissipation method: natural cooling, no fan
	Weight: <0.6KG
Environmental properties	Working temperature: -20℃～+60℃
	Storage temperature: -20℃～+85℃
	Relative humidity: 5% ~ 95% (non-condensing)
Exchange properties	Bandwidth: 16.0Gbps
	Packet forwarding rate (whole machine) : 11.904 Mpps
	Exchange method: store-and-forward
	MAC table : 2K
	Packet buffer : 1m
	Jumbo frame: 10k
Power supply	Input voltage: DC 5V-12V
Power supply	Power consumption: < 3 W
Indicator	Ethernet port: 1000M Link/ACT: Orange100M Link/ Act: Green
	Fiber port:SC1-SC4: Green.
	Power supply: Green
	System: Green

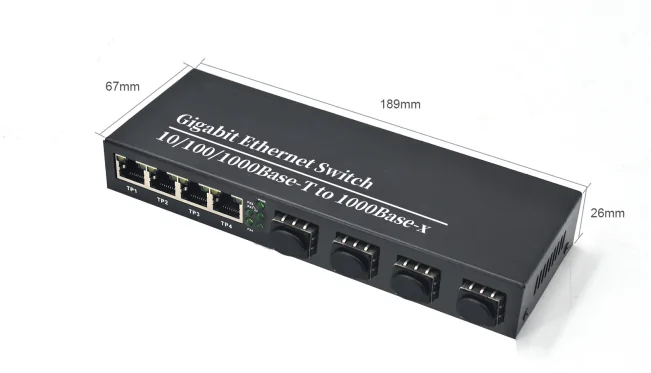

Product size

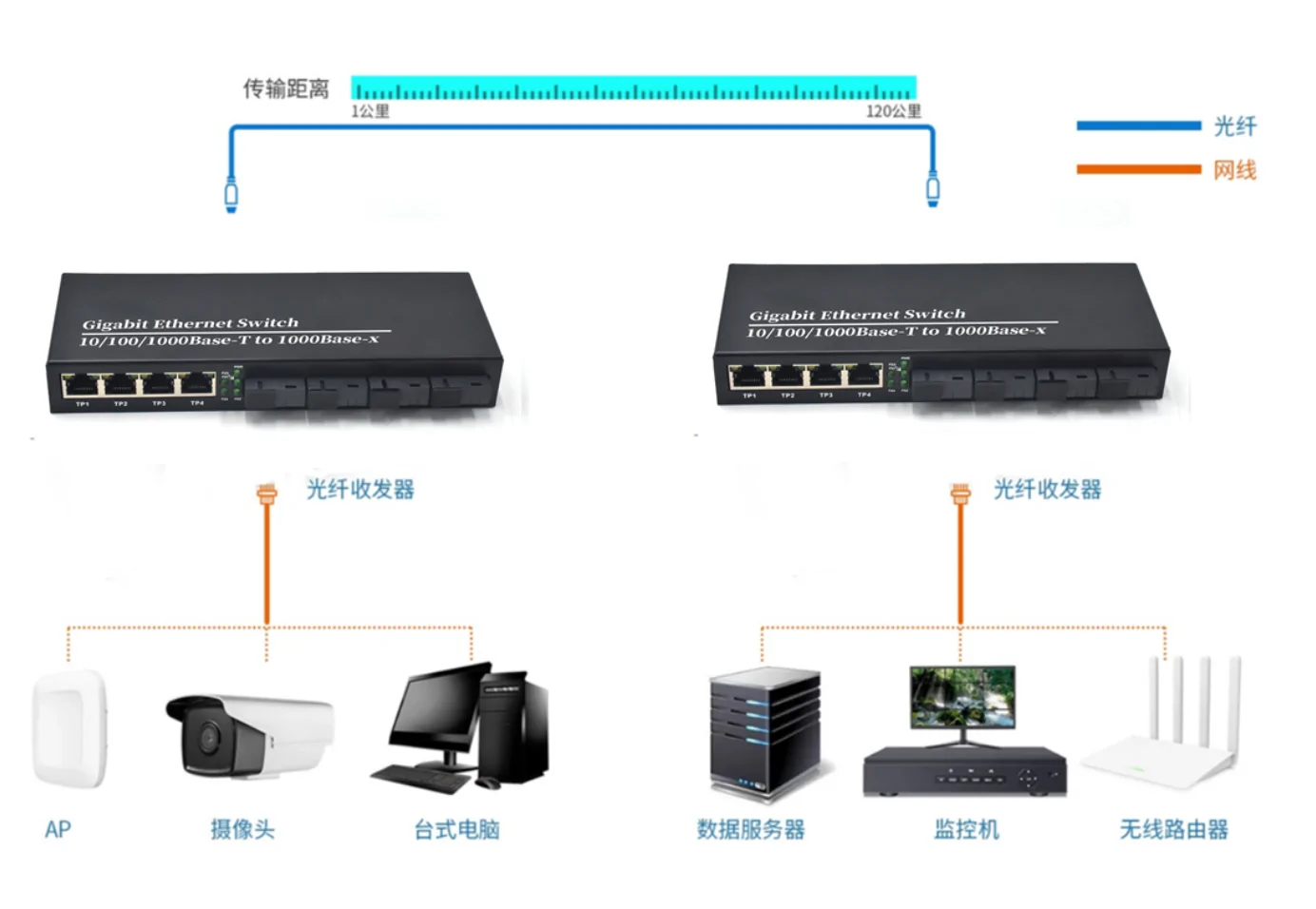

Application
