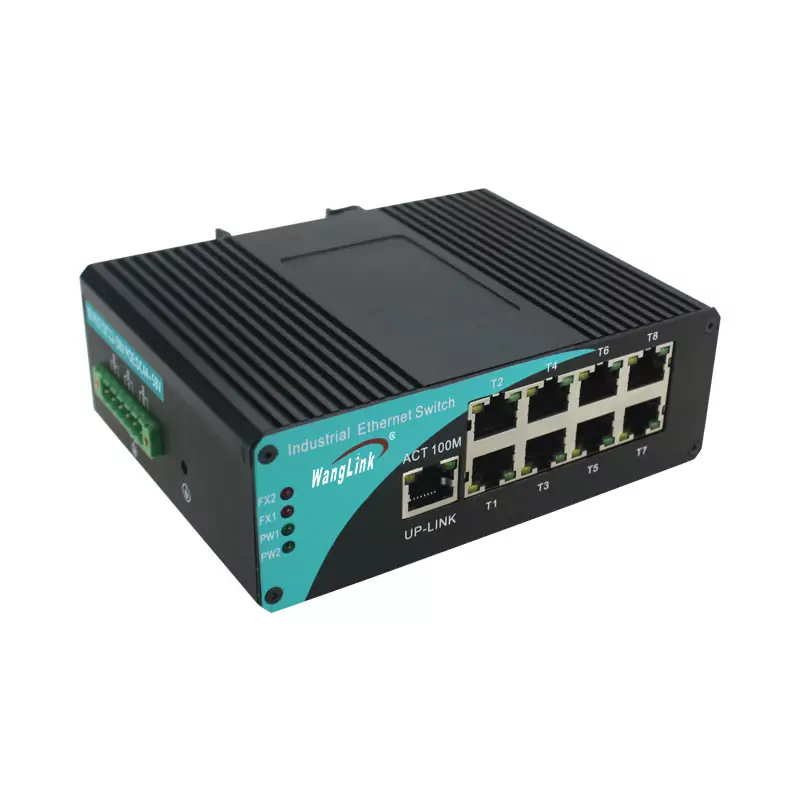

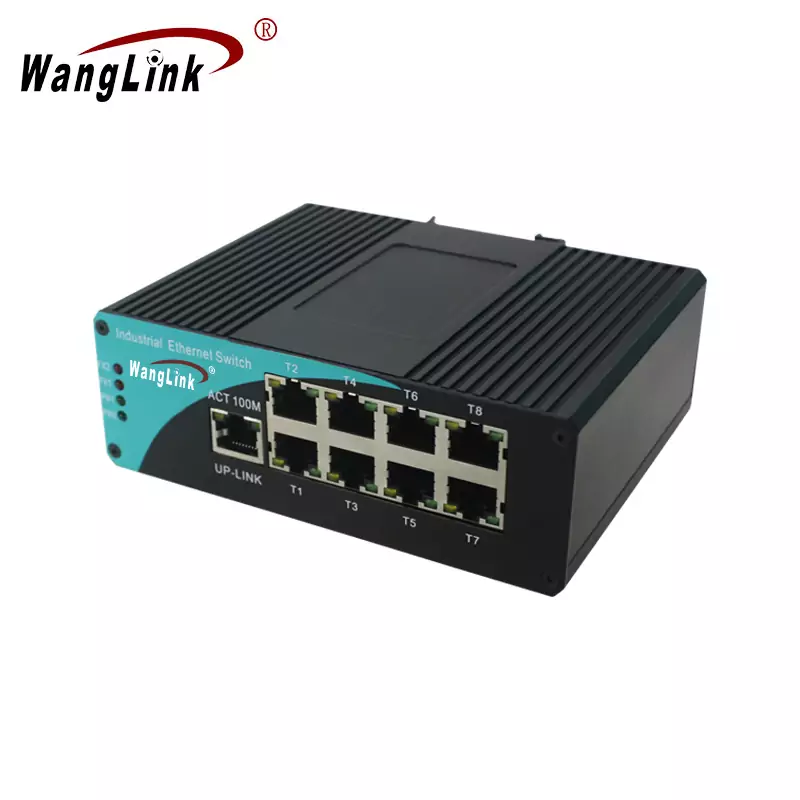

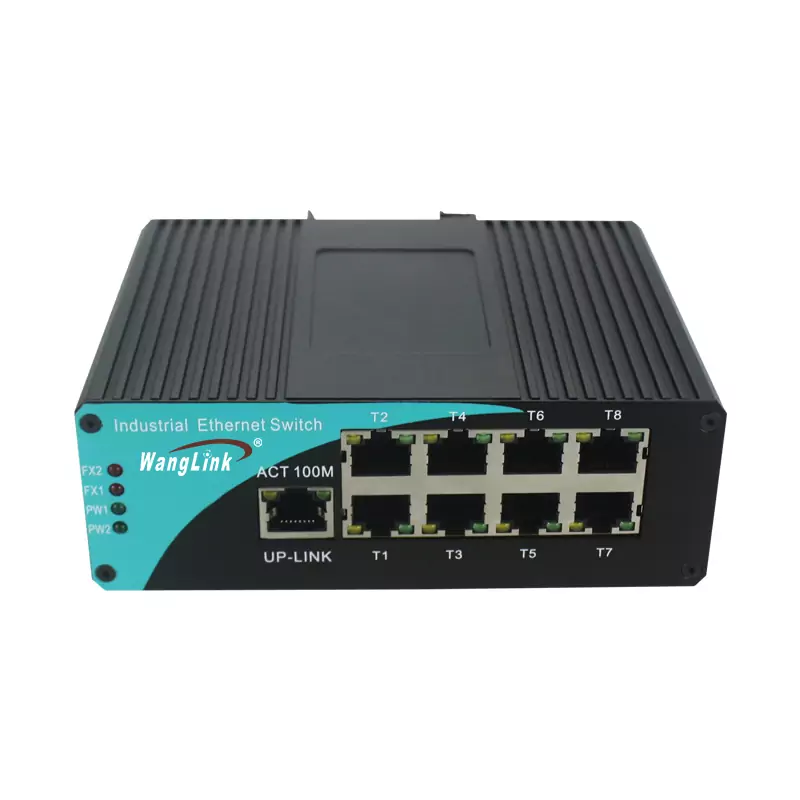

ISF810P | Unmanaged Industrial PoE Switch 8 Port 1 UPLINK

“Discover our industrial PoE switch 8 port featuring 9 Ethernet ports designed for harsh environments. With 8 ports supporting IEEE 802.3 af/at standards and 25.4W output, this unmanaged network switch is perfect for industrial automation and IoT applications.”

Email:

Sample order

Product Overview

This industrial PoE switch 8 port is specifically designed for harsh industrial environments, featuring 9 x 10/100Mbps Ethernet ports. Ports 1-8 support IEEE 802.3 af/at PoE standards, providing a maximum output of 25.4W per port. The switch automatically detects whether powered devices support PoE, ensuring that only compliant devices receive power and effectively preventing damage to non-PoE devices.

Designed to meet industrial standards, this switch supports dual redundant power supplies and offers dust and moisture resistance, surge protection, and high/low temperature durability. With an average failure time of 300,000 hours, it is ideal for applications in industrial automation, traffic control, building automation, and monitoring systems, ensuring stable, reliable, and efficient operation in harsh environments.

Key Features

  • Port Configuration: 9 x 10/100Base-TX Ethernet ports, with 8 RJ45 ports supporting IEEE 802.3 af/at PoE standards and a maximum output power of 25.4W per port.
  • Adaptive Performance: All Ethernet ports support 10/100Mbps adaptive rates, half/full duplex modes, and automatic MDI/MDI-X functionality for seamless integration.
  • Line-Speed Forwarding: All Ethernet ports support line-speed forwarding for smoother data transmission.
  • Robust Protection: Equipped with imported surge protection devices, this switch is resistant to lightning strikes and can withstand high voltage and surges.
  • Wide Temperature Range: Operates effectively in extreme temperatures from -45°C to +85°C, ensuring reliability in various harsh environments.
  • High Reliability: With an average failure time of 300,000 hours, this unmanaged industrial PoE switch is perfect for industrial automation, traffic control, building automation, and monitoring systems.
  • User-Friendly: Supports DIN rail installation and features a plug-and-play design for easy operation with no configuration required. The IP40 protection level and durable corrugated metal casing ensure longevity, while the fanless design promotes low power consumption.
  • Electromagnetic Compatibility: Complies with IEC Class A electromagnetic protection standards, ensuring high EMC compatibility.

This industrial PoE switch 8 port is the ideal solution for building a robust industrial IoT network, ensuring stable and reliable operation even in the most challenging environments. Its combination of power, protection, and performance makes it the perfect choice for your industrial networking needs.

Product Parameters

Standards and protocolsIEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE 802.3af/at Power Over EthernetIEEE 802.3x flow control
Interface informationRJ45 Ethernet port: 9 10/100Base-TX Ethernet port (standard RJ45)
10/100 Mbps auto-negotiation
10Base-T: ≤100 m (CAT3, CAT4, CAT5 UTP)
100Base-TX: ≤100 m (CAT3, CAT4, CAT5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height): 139mm×108mm×50mm

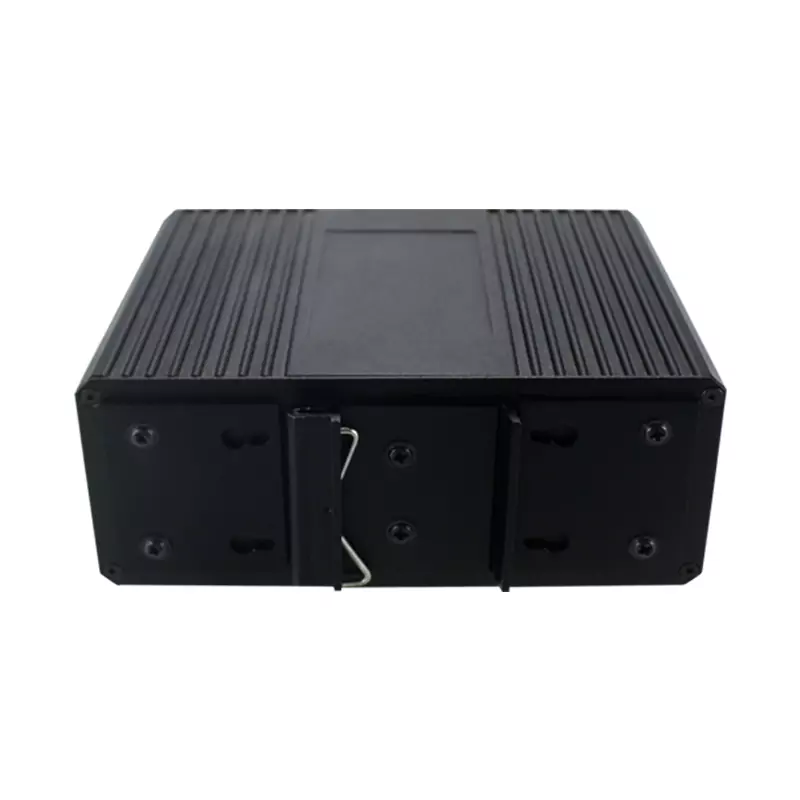

Installation method: DIN rail type
Heat dissipation method: natural cooling, no fan
Weight: < 0.6KG
Environmental propertiesWorking temperature: -40 ℃ ~+ 85 ℃
Storage temperature: -40 ℃ ~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 2.0 Gbps
Packet forwarding rate (whole machine) : 1.488 Mpps
Exchange method: store-and-forward
MAC table : 2K
Packet buffer : 512K
Jumbo frame: 10K
Power supplyInput voltage: DC 44V-58V (dual redundant)
Power interface: 6-pin Phoenix terminal.
Power supply protection: positive and negative pole misconnection protection
Minimum power consumption: < 5W, maximum power consumption: <240W.
PoE pin802.3AF/AT(1/2+,3/6-)
indicator lightEthernet port :100M Link/ACT yellow, Link/Act green;PoE: green
Power light: green(PW1-PW2)
      Security propertiesShell protection: IP40
Surge impact IEC61000-4-5 : (optional)Signal end: common mode ± 4KV, differential mode ± 2KVPower supply end: common mode ± 4KV, differential mode ± 2KV
Anti-static interference IEC61000-4-2 : contact discharge ± 8KV, air discharge ± 15KV
Pulse immunity IEC61000-4-4 : signal terminal: ± 2KV, power terminal: ± 2KV
Shock: IEC 60068-2-27
Free fall: IEC 60068-2-32
Vibration: IEC 60068-2-6
MTBF: 100000 hours
warranty period3 years

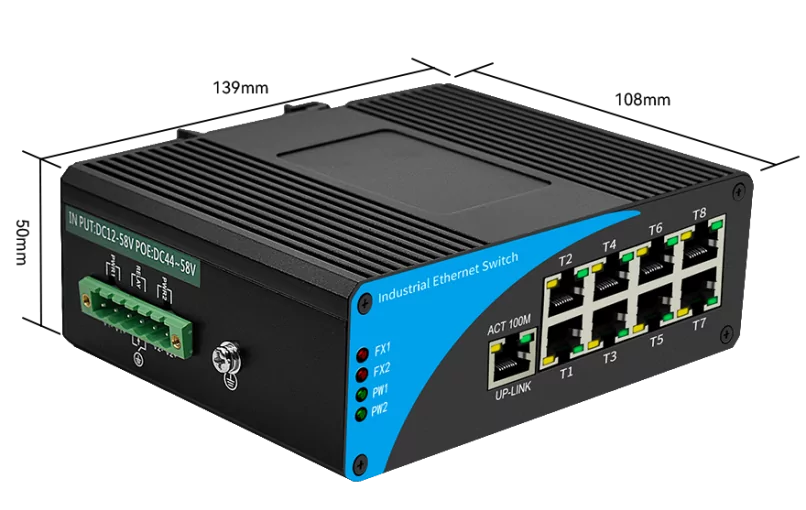

Product size

Product size: ISF810P | Unmanaged Industrial PoE Switch 8 Port 1 UPLINK

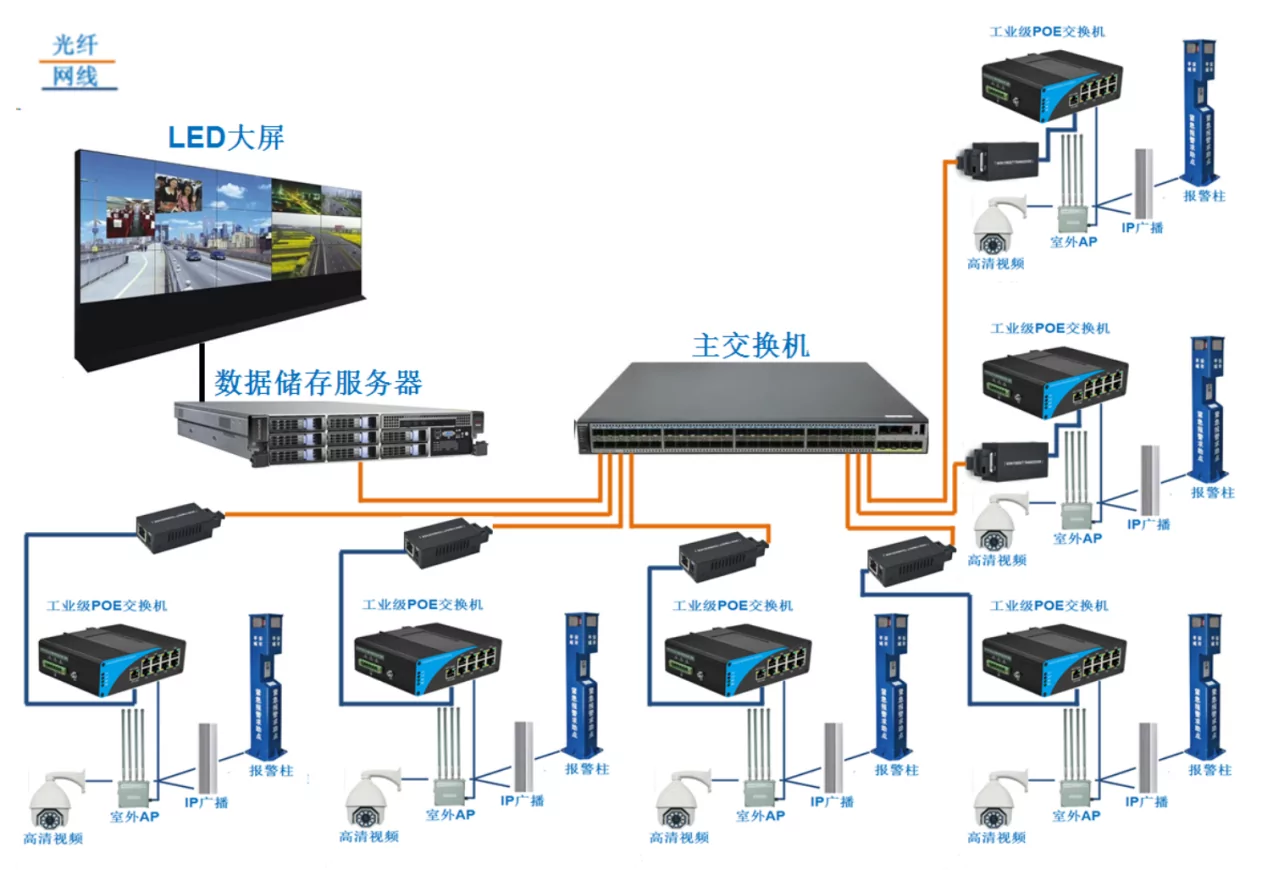

Application

Application: ISF810P | Unmanaged Industrial PoE Switch 8 Port 1 UPLINK
Product size: ISF810P | Unmanaged Industrial PoE Switch 8 Port 1 UPLINK
Application: ISF810P | Unmanaged Industrial PoE Switch 8 Port 1 UPLINK
