SF42NP | Unmanaged non-standard poe ethernet switch 4 port 2 uplink

Discover the POE Ethernet Switch 4 Port SF42NP—a reliable 100M PoE switch with 4 PoE ports, customizable voltage output, and easy installation. Perfect for enterprise networks!

POE Ethernet Switch 4 Port SF42NP Product Overview

The POE Ethernet Switch 4 Port SF42NP is a high-performance 100M PoE switch designed for small and medium-sized enterprise networks. This device features a non-standard PoE power supply protocol, providing 4 PoE downlink ports and 2 uplink ports. With flexible voltage output options of 12V and 24V, it ensures compatibility with various devices.

POE Ethernet Switch 4 Port SF42NP Key Features

4 x 10/100Base-TX PoE Ethernet Ports: Each port supports PoE power supply with a maximum output current of 0.75A.
2 x 10/100Base-T Uplink Ethernet Ports: For seamless network integration.
Adaptive Network Ports: Supports auto MDI/MDI-X for easy connection of cross/parallel twisted pair cables.
High Transmission Rate: Each port can achieve a maximum bidirectional transmission rate of 200 Mbps.
Power Supply Compatibility: Designed for devices using 45+/78- power supply modes; caution is advised for devices not supporting this mode to avoid damage.
PoE Splitter Support: Capable of separating power and data signals for enhanced Ethernet power supply flexibility.
User-Friendly Installation: Plug-and-play design, with options for desktop or wall-mounted installation.
Durable Construction: Metal shell and external power supply design ensure excellent heat dissipation and long-term stability.
No Configuration Required: Simple operation makes it ideal for quick deployments.

POE Ethernet Switch 4 Port SF42NP Product Parameters

Standards & Protocol	IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.3x flow control
Interface information	Downlink Ethernet port: 4 10/100M Base-TX ports (supports POE, POE+)
	Uplink Ethernet port: 2 10/100M Base-TX ports (uplink port)
	RJ45 network port: 6 10/100M Base-TX ethernet ports
	10/100Mbps adaptive
	10Base-T: ≤100m (CAT3,4,5 UTP)
	100Base-TX: ≤100m (CAT3,4,5 UTP)
Mechanical properties	Shell material: metal shell
	Appearance dimensions (lengthdepthheight): 132×67×32mm
	Installation method: Desktop
	Heat dissipation method: natural cooling, no fan
	Weight: <0.30KG
Environmental properties	Working temperature: -20℃～+60℃
	Storage temperature: -20℃～+85℃
	Relative humidity: 5% ~ 95% (non-condensing)
Exchange properties	Bandwidth:1.2Gbps
	Packet forwarding rate (whole machine) : 0.89 Mpps
	Exchange method: store-and-forward
	MAC table : 2K
	Case space : 768kb
	Jumbo frame: 2K
Power supply	Input voltage: DC 12V-24V
Power supply	Power consumption: < 2W
PoE	Non-standard PoE (Pin: 4/5+, 7/8-)
Indicator	Ethernet Port indicator(fluctuation switch control):PoE: Yellow;10/100M Link/ACT: Green
Indicator	Power(Power system indicator light): Red

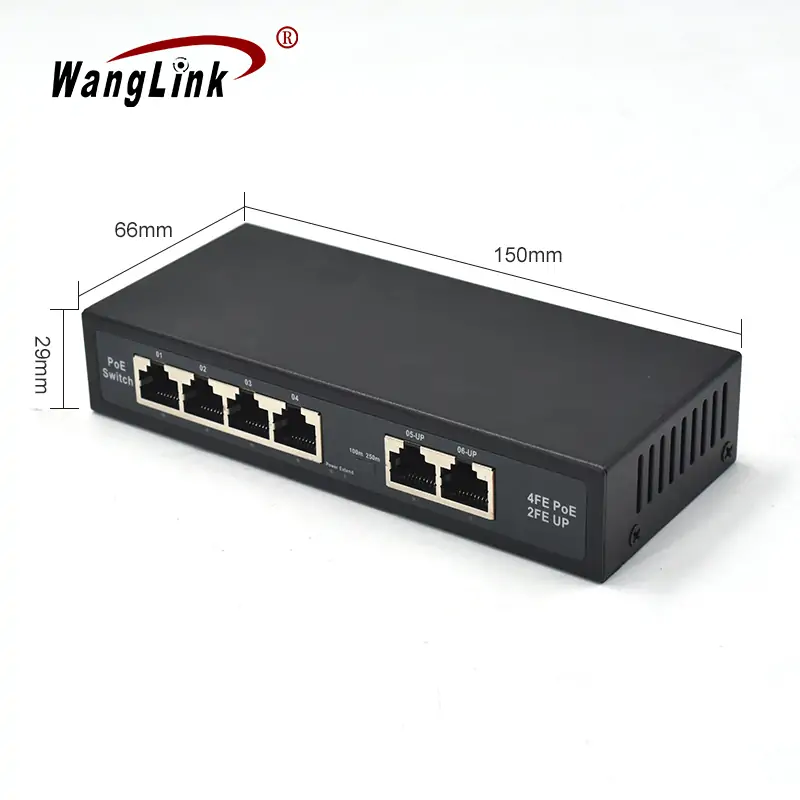

Product size

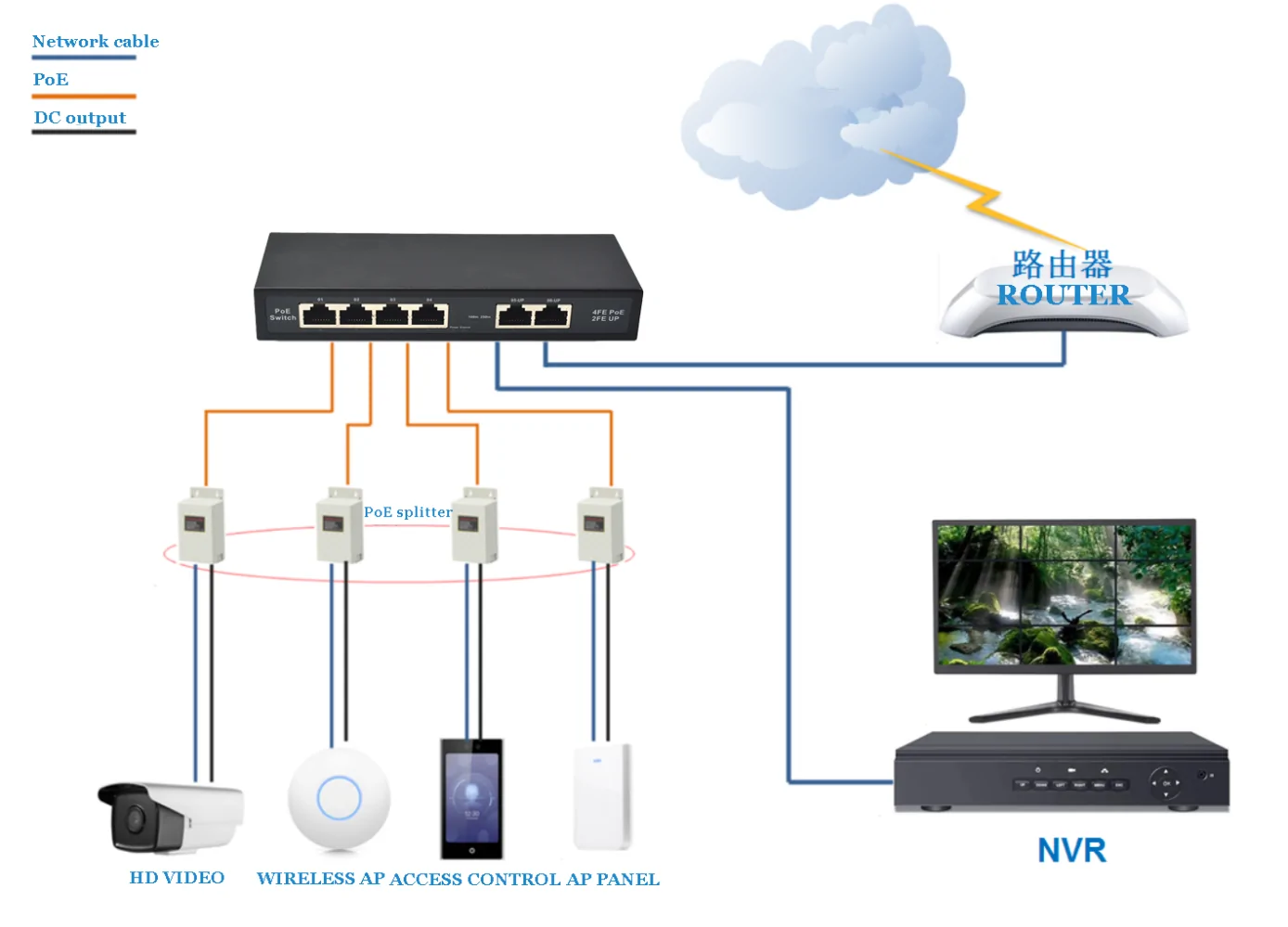

Application
