SG202P | Gigabit unmanaged 2 port poe switch with 2 fiber port (SC/FC/ST/SFP)

Discover the SG202P 2 Port PoE Switch with 2 Ethernet ports and 2 fiber ports. Supports IEEE802.3 af/at PoE protocol, delivering reliable power and performance for your network.

Email:

Sample order

Product Overview

The SG202P 2 Port PoE Switch is designed to meet the demands of modern networking environments. This switch features 2 10/100/1000Base-T Ethernet ports and 2 1000Base-X fiber ports, making it an ideal solution for both wired and fiber connections. The PoE switch supports the IEEE802.3 af/at PoE (Power over Ethernet) protocol, allowing for efficient power distribution to connected devices.

Key Features

  • 2 10/100/1000Base-T Ethernet ports and 2 1000Base-X fiber ports for versatile connectivity.
  • Complies with IEEE802.3 af/at PoE protocol, with a maximum output power of 25.4W per PoE RJ45 port.
  • Total PoE power output of 50W for the entire device, ensuring sufficient power for multiple devices.
  • Automatically detects PoE-compatible devices, preventing damage to non-PoE devices by supplying power only to compliant devices.
  • Supports 10/100/1000Mbps auto-negotiation for optimal performance.
  • Half/Full duplex adaptive and auto MDI/MDI-X functionality for seamless integration.
  • All ports support wire-speed forwarding for efficient data transmission.
  • Flexible installation options: can be desktop, wall-mounted, or rack-mounted.
  • Plug and Play design with no configuration required for easy setup.
  • Constructed with a metal case and an internal power supply for excellent heat dissipation, ensuring stable long-term operation.

Product Parameters

ProtocolStandardIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3x flow control
Fiber Port CharacteristicConnector TypeSC/FC/ST/SFP
Transmission rate1.25Gbps
Transmission distanceMulti-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km
WavelengthMulti-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm
Ethernet port CharacteristicConnector Type1×1 RJ45
Transmission rate10/100/1000Mbps auto-negotiate
Transmission distance10Base-T: ≤250m(CAT3,4,5 UTP)100Base-TX: ≤100m(CAT3,4,5 UTP)1000Base-T: ≤100m(CAT3,4,5 UTP)
Exchange performanceForward methodStore-and-forward(full wire-speed)
Transmission modeHalf/Full duplex adaptive
MAC address table8K
Case space1Mb
Jumbo frames10Kb
Packet Forwarding Rate5.952Mpps@64byte
Bandwidth8G(non-blocking)
LED indicatorPower indicatorGreen, PWR
Fiber port indicatorGreen, per fiber port
Link/Act indicatorYellow, per ethernet port and fiber port
PoE indicatorGreen, per poe port
Power parametersInput voltageAC100~240V, 50Hz
Power consumptionStandby: ≤3W; whole: ≤53W
PoE pin1/2+,3/6-
The port max rate≤25.4W
EnvironmentOperating Temperature-20℃~60℃
Storage Temperature:-40℃~85℃
Operating Humidity5%~95% non-condensing
Heat dissipation methodNatural heat dissipation
Physical propertiesSize121×91×26mm
WeightNet weight:0.25kg,Gross weight: 0.8kg

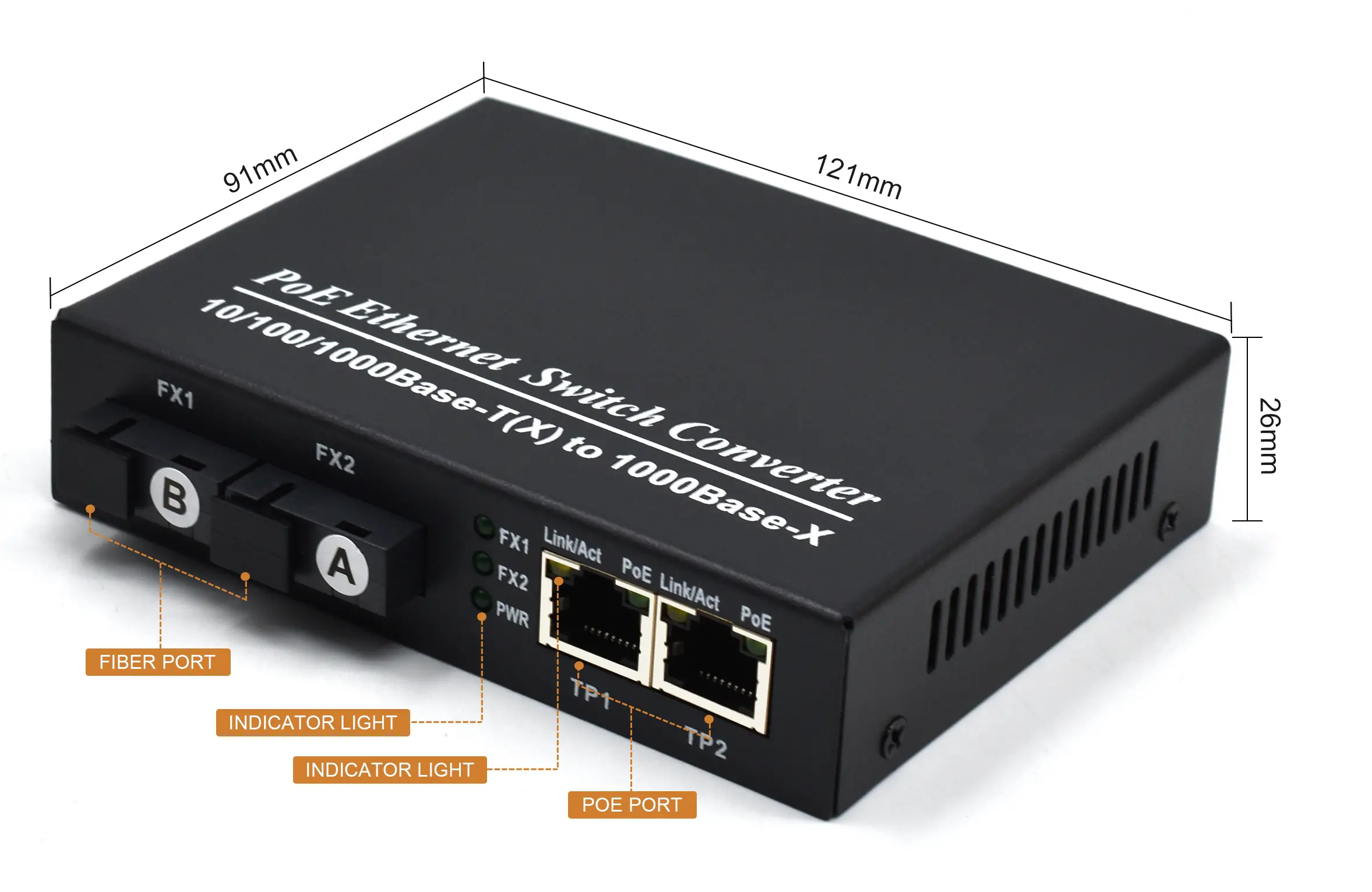

Product size

Product size: SG202P | Gigabit-unmanaged 2 port poe Schalter mit 2 fiber port (SC/FC/ST/SFP)

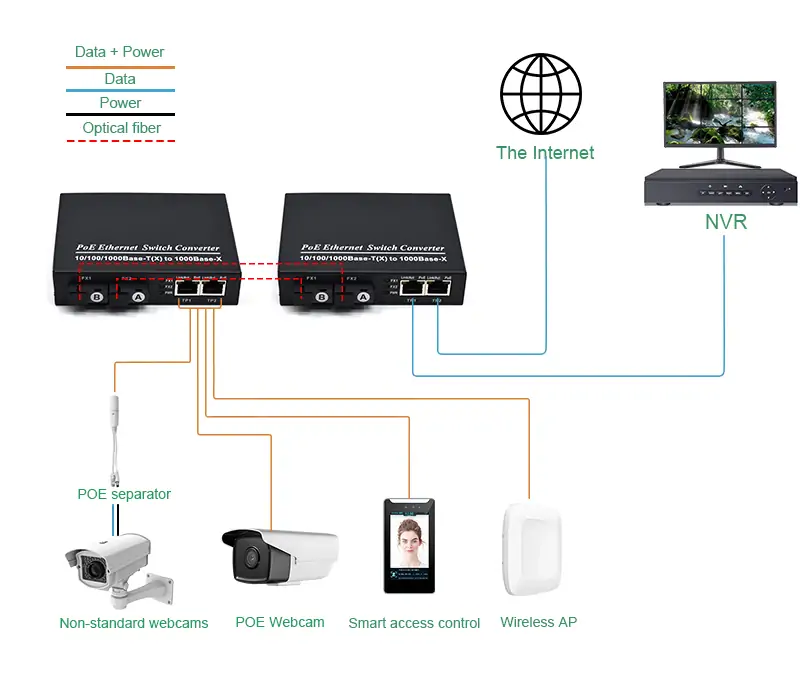

Application

Application: SG202P | Gigabit-unmanaged 2 port poe Schalter mit 2 fiber port (SC/FC/ST/SFP)
Product size: SG202P | Gigabit-unmanaged 2 port poe Schalter mit 2 fiber port (SC/FC/ST/SFP)
Application: SG202P | Gigabit-unmanaged 2 port poe Schalter mit 2 fiber port (SC/FC/ST/SFP)
