Product Overview

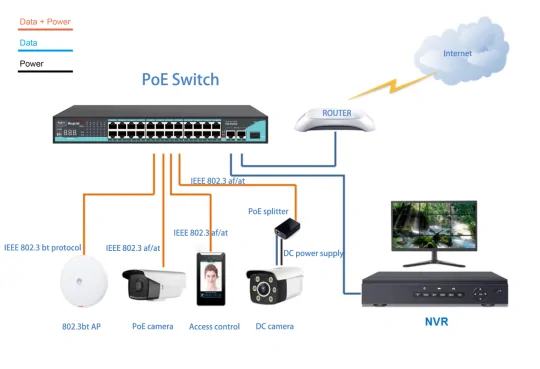

The SG2421P-V2 24 Port PoE Network Switch is a high-performance solution for demanding network environments. This poe network switch 24 port features 26 10/100/1000Base-T Ethernet ports, and 1 1000Base-X SFP slot for flexible fiber uplinks. 24 of the Ethernet ports are IEEE802.3 af/at compliant, delivering up to 25.4W of PoE power per port. One port supports the IEEE 802.3BT (PoE++) standard, providing up to 60W for high-power devices. As a PoE power supply device, this switch can automatically detect whether the powered device supports PoE power supply. It only supplies power to compliant powered devices, effectively preventing damage to non-PoE powered devices. Enhanced with features like extended transmission distance and port isolation, this switch ensures optimal performance and security.
Key Features
- 24 10/100/1000Base-T PoE ports, 2 10/100/1000Base-T uplink port, and 1 1000Base-X SFP uplink slot offer versatile connectivity.
- Ethernet ports support IEEE802.3 BT/af/at protocols for flexible power delivery.
- Supports one-key switching to VLAN mode and 250m long-distance transmission mode. (Ports 1-24 operate at 10Mbps in extended mode.)
- Supports digital tube for real-time display of PoE online utilization rate.
- All Ethernet ports support half/full duplex adaptive and automatic MDI/MDI-X functions.
- All Ethernet ports support line-speed forwarding for optimal performance.
- Ports 1-24 can be isolated from each other to isolate collision and broadcast domains.
- Supports desktop and wall-mounted installation.
- Plug and play for easy setup, no configuration required.
- Durable metal shell and built-in power supply design for excellent heat dissipation and long-term stability.
- Optional: 6KV common mode/4KV differential mode surge protection.
- Optional: AI network self-healing (watchdog) function.
Product Parameters
| Standards & Protocol | IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX standards IEEE 802.3af/at/bt Power Over Ethernet IEEE 802.1p tagged frames IEEE 802.3x flow control |
| Interface information | Single-mode SFP: 1 1000Base-X SFP optical ports (uplink port) |
| Transmission rate: 1.25 | |
| Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km | |
| Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm | |
| Downstream ethernet port: 24 10/100/1000M Base-T ports (supports POE, POE+, POE++) | |
| Uplink ethernet port: 2 10/100/1000M Base-T ports (uplink ports) | |
| 10/100/1000Mbps adaptive | |
| 10Base-T: ≤250m (CAT3,4,5 UTP) | |
| 100Base-TX: ≤100m (CAT3,4,5 UTP) | |
| 1000Base-T: ≤100m (CAT3,4,5 UTP) | |
| Mechanical properties | Shell material: metal shell |

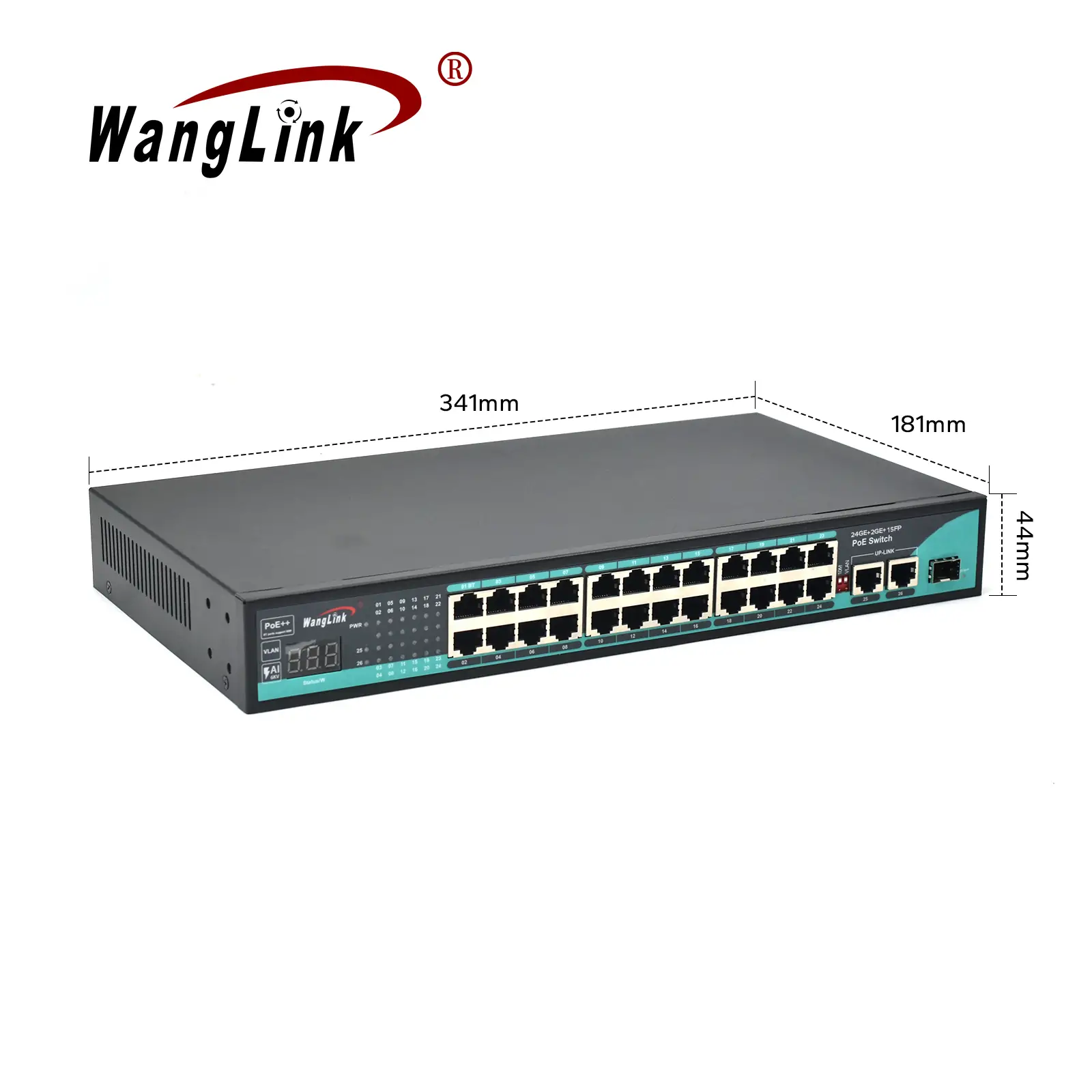

| Appearance dimensions (length*depth*height):341×181×44mm | |
| Installation method: Desktop | |
| Heat dissipation method: natural cooling, no fan | |
| P.W.: 1.5KG, G.W.:1.8KG | |
| Environmental properties | Working temperature: -20℃～+60℃ |
| Storage temperature: -20℃～+85℃ | |
| Relative humidity: 5% ~ 95% (non-condensing) | |
| Exchange properties | Bandwidth:54Gbps |
| Packet forwarding rate (whole machine) : 42Mpps | |
| Exchange method: store-and-forward | |
| MAC table : 8K | |
| Case space : 4m | |
| Jumbo frame: 10k | |
| Power supply | Input voltage: AC100~240V，50Hz |
| Power consumption: < 10W, full load: ≤200W | |
| PoE pin | 802.3AF/AT/BT(1/2+，3/6-) |
| Indicator | Ethernet port (fluctuation switch control):Link/Act: Green(10/100/1000M)PoE indicator light: YellowVlan offVlan on |
| Fiber port: Green(Port 27-28)) | |
| PWR: Green | |
| Warranty | 3 year |
