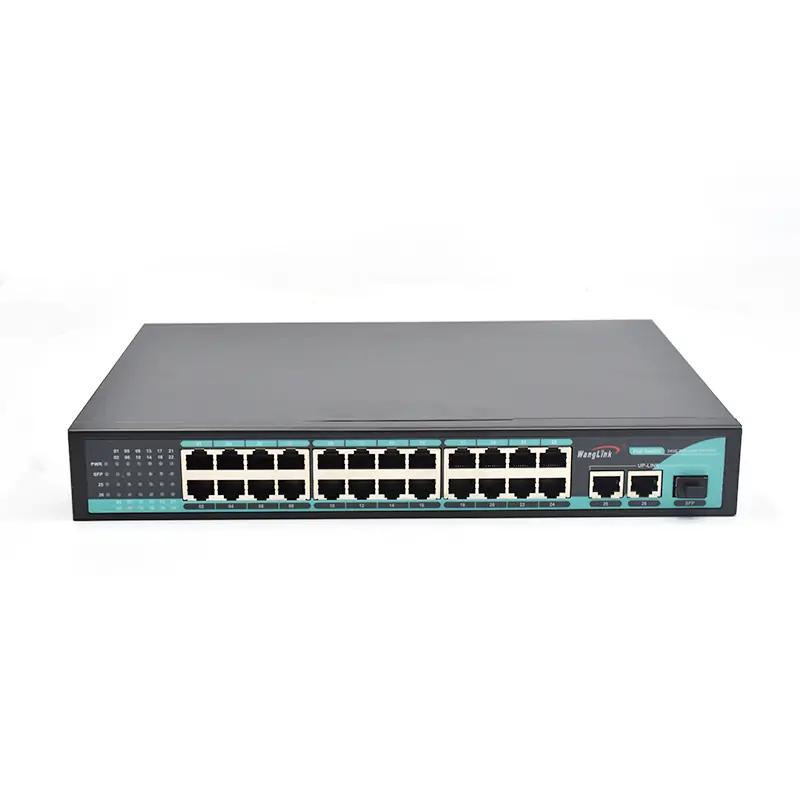

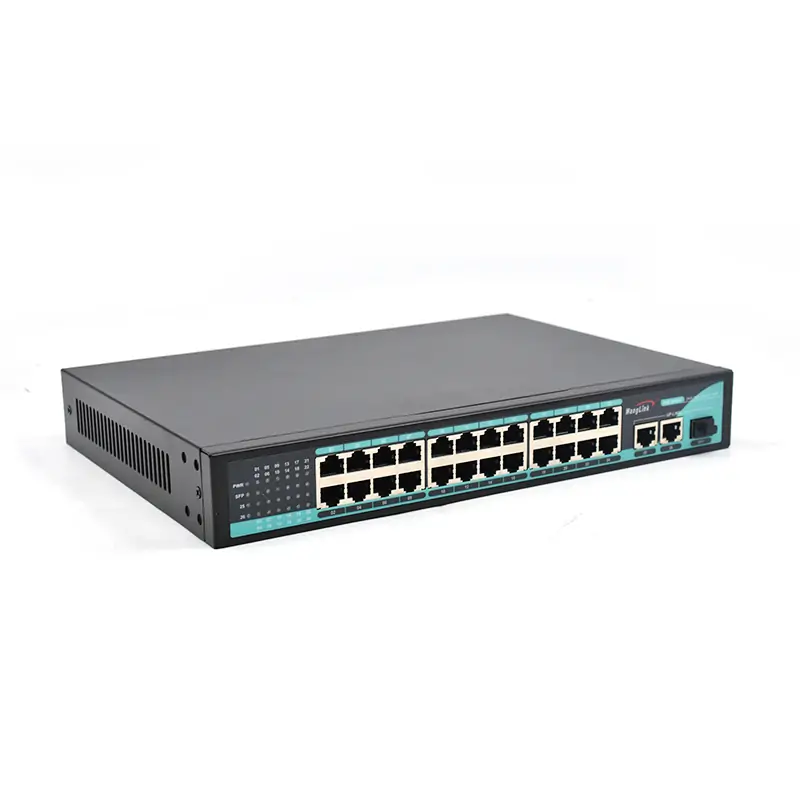

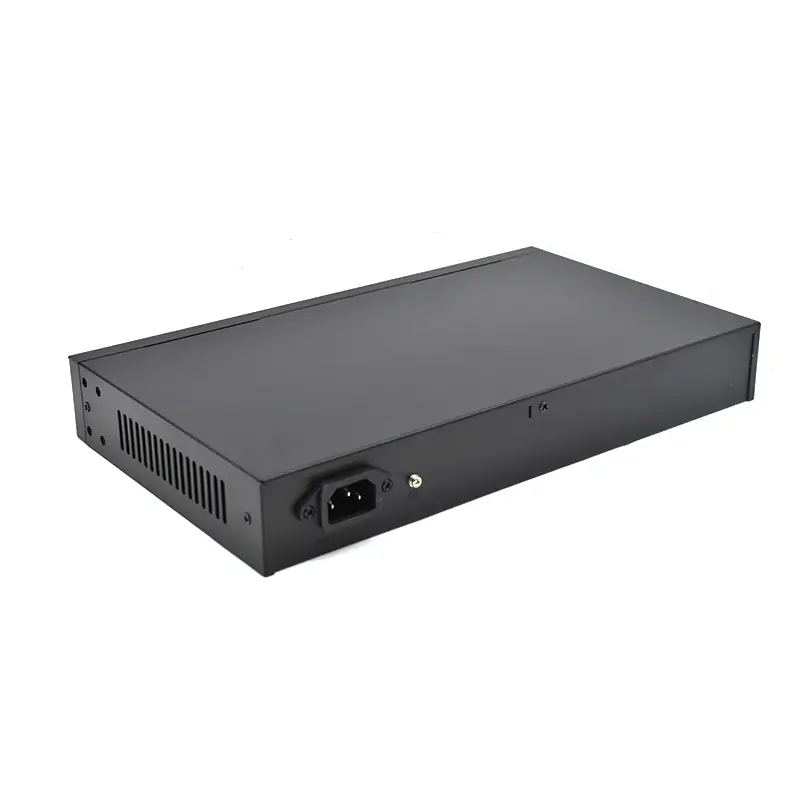

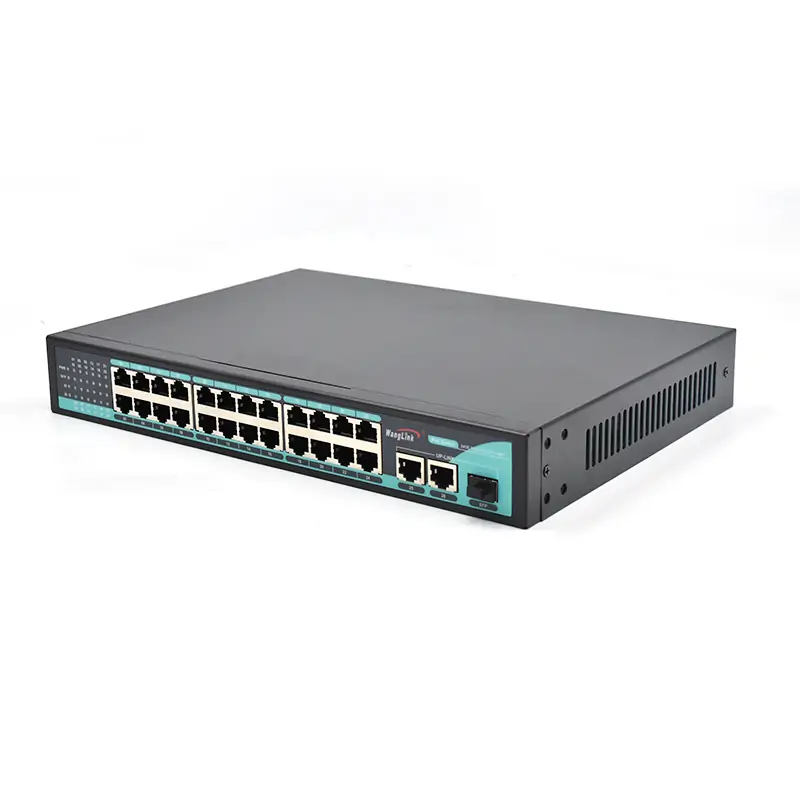

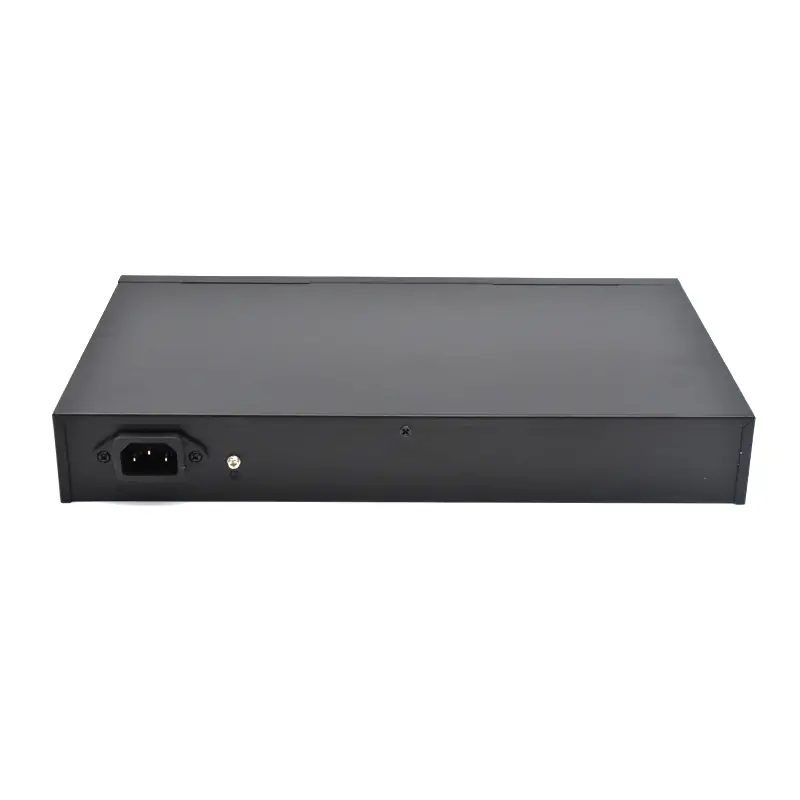

SG2421P | Gigabit unmanaged 24 port poe network switch 2 uplink 1 SFP

Discover our 24 Port PoE Network Switch, featuring 24 PoE ports with up to 25.4W power output each. Ideal for powering network devices, this switch offers flexible installation and reliable performance, making it perfect for various commercial and residential applications.

Email:

Sample order

Product Overview

Introducing our 24 Port PoE Network Switch, a powerful and efficient solution for powering and connecting multiple devices in your network. This switch features 26 10/100/1000Base-T Ethernet ports and 1 1000Base-X SFP uplink slot. Ports 1-24 support the IEEE 802.3 af/at Power over Ethernet (PoE) protocol, providing a maximum output power of 25.4W per port, with a total PoE power budget of 360W for the entire unit. This ensures reliable power delivery to devices such as IP cameras, wireless access points, and VoIP phones, while automatically detecting and supplying power only to PoE-compatible devices, effectively preventing damage to non-PoE devices.

Designed for versatility, this 24 port PoE network switch supports auto-negotiation for 10/100/1000Mbps speeds and features half/full duplex adaptive mode along with automatic MDI/MDI-X functionality. The switch is easy to install with options for desktop, wall-mount, and rack-mount setups. Its plug-and-play design requires no configuration, making it user-friendly. The durable metal casing and internal power supply ensure excellent heat dissipation, promoting stable operation over extended periods.

Key Features

  • 26 Ethernet Ports: 26 10/100/1000Base-T ports and 1 1000Base-X SFP uplink slot for versatile connectivity.
  • Power over Ethernet: Supports IEEE 802.3 af/at PoE protocol, with each RJ45 port delivering a maximum output power of 25.4W.
  • Auto-Negotiation: Supports 10/100/1000Mbps auto-negotiation for optimal speed and performance.
  • Adaptive Duplex: All ports support half/full duplex adaptive mode and automatic MDI/MDI-X functionality.
  • Wire-Speed Forwarding: All ports support wire-speed forwarding for efficient data transmission.
  • Flexible Installation: Suitable for desktop, wall-mounted, and rack-mounted installations to fit various environments.
  • Plug and Play: Simple operation with no configuration required; just connect your devices and start using.
  • Durable Design: Metal casing with an internal power supply provides excellent heat dissipation for stable long-term operation.

Product Parameters

ProtocolStandardIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3x flow control
Fiber Port Characteristic  Connector TypeSFP slot
Transmission rate1.25Gbps
Transmission distanceMulti-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km
WavelengthMulti-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm
Ethernet port CharacteristicConnector Type2×4 RJ45,1×1 RJ45
Transmission rate10/100/1000Mbps auto-negotiate
Transmission distance10Base-T: ≤250m(CAT3,4,5 UTP)100Base-TX: ≤100m(CAT3,4,5 UTP)1000Base-T: ≤100m(CAT3,4,5 UTP)
Exchange performanceForward methodStore-and-forward(full wire-speed)
Transmission modeHalf/Full duplex adaptive
MAC address table4K
Case space1.5Mb
Jumbo frames9216b
Packet Forwarding Rate40.176Mpps@64byte
Bandwidth54G(non-blocking)
LED indicatorPower indicatorGreen, PWR.
Link/Act indicatorYellow, 1 for each ethernet port and fiber port
Power parametersInput voltageAC100~240V, 50Hz
Power consumptionStandby: ≤5W; whole: ≤320W
PoE pin1/2+,3/6-
The port max rate≤25.4W
EnvironmentOperating Temperature-20℃~60℃
Storage Temperature:-40℃~85℃
Operating Humidity5%~95% non-condensing
Heat dissipation methodNatural heat dissipation
Physical propertiesSize305×220×44mm
WeightNet weight:2.1kg,Gross weight: 2.3kg

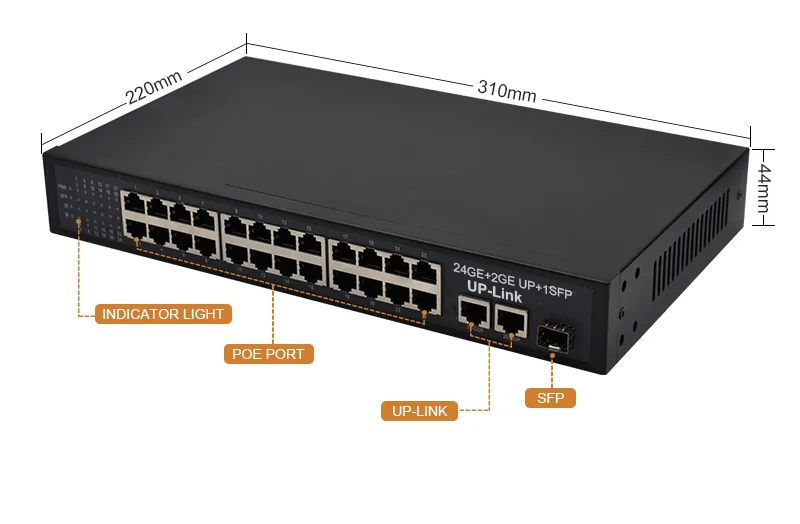

Product size

Product size: SG2421P | Gigabit unmanaged 24-port-poe-Netzwerk-switch 2 uplink 1 SFP

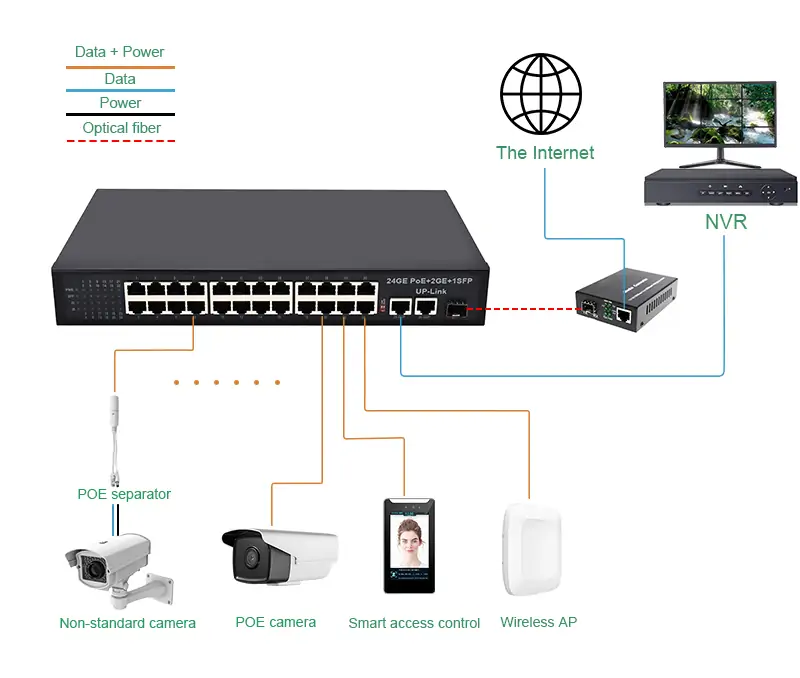

Application

Application: SG2421P | Gigabit unmanaged 24-port-poe-Netzwerk-switch 2 uplink 1 SFP
Product size: SG2421P | Gigabit unmanaged 24-port-poe-Netzwerk-switch 2 uplink 1 SFP
Application: SG2421P | Gigabit unmanaged 24-port-poe-Netzwerk-switch 2 uplink 1 SFP
