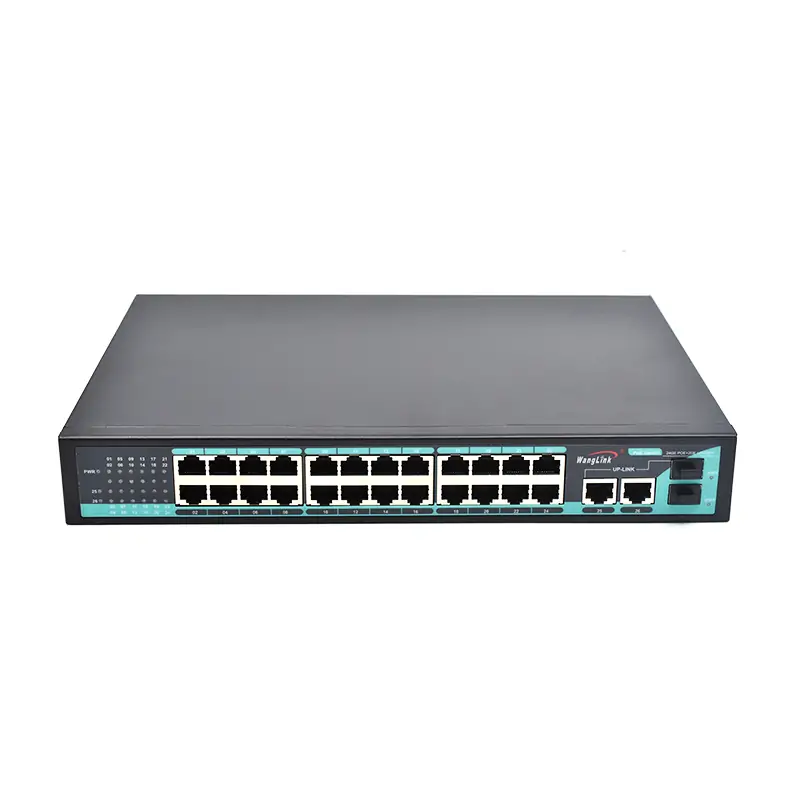

SG2422P-V2 | Unmanaged Gigabit 24 port poe network switch 2 uplink 2 SFP

The SG2422P-V2 24 Port PoE Network Switch offers a flexible and powerful PoE solution. Featuring 24 Gigabit PoE ports, Gigabit Uplink ports and SFP slots, it’s suitable for a wide range of network applications.

Email:

Sample order

Product Overview

The SG2422P-V2 24 Port PoE Network Switch is a versatile solution designed for both performance and scalability. This 24 port poe network switch features 26 10/100/1000Base-T Ethernet ports and 2 1000Base-X SFP slots offering flexible connectivity. Twenty-three of the Ethernet ports support IEEE802.3 af/at, delivering up to 25.4W of PoE power per port, while one port supports the more powerful IEEE 802.3BT (PoE++) standard, providing up to 60W. Intelligent PoE detection ensures power is only supplied to compatible devices. With features like extended transmission capabilities and port isolation, this switch is perfect for a variety of applications.

Key Features

  • 24 10/100/1000Base-T PoE ports2 10/100/1000Base-T uplink port, and 2 1000Base-X SFP uplink slot offer versatile connectivity options.
  • Ethernet ports support IEEE802.3 BT/af/at protocols for flexible power delivery.
  • Supports one-key switching to VLAN mode and 250m long-distance transmission mode. (Ports 1-24 operate at 10Mbps in extended mode.)
  • Supports digital tube for real-time display of PoE online utilization rate.
  • All Ethernet ports support half/full duplex adaptive and automatic MDI/MDI-X functions.
  • All Ethernet ports support line-speed forwarding for optimal performance.
  • Ports 1-24 can be isolated from each other to isolate collision and broadcast domains.
  • Supports desktop and wall-mounted installation.
  • Plug and play for easy setup, no configuration required.
  • Durable metal shell and built-in power supply design for excellent heat dissipation and long-term stability.
  • Optional: 6KV common mode/4KV differential mode surge protection.
  • Optional: AI network self-healing (watchdog) function.

Product Parameters

Standards & ProtocolIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3af/at/bt Power Over Ethernet
IEEE 802.1p tagged frames
IEEE 802.3x flow control
Interface informationSingle-mode SFP: 2 1000Base-X SFP optical ports (uplink port)
Transmission rate: 1.25
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm
Downstream ethernet port: 24 10/100/1000M Base-T ports (supports POE, POE+, POE++)
Uplink ethernet port: 2 10/100/1000M Base-T ports (uplink ports)
10/100/1000Mbps adaptive
10Base-T: ≤250m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height):341×181×44mm
Installation method: Desktop
Heat dissipation method: natural cooling, no fan
P.W.: 1.5KG, G.W.:1.8KG
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth:56Gbps
Packet forwarding rate (whole machine) : 42Mpps
Exchange method: store-and-forward
MAC table : 8K
Case space : 4m
Jumbo frame: 10k
Power supplyInput voltage: AC100~240V,50Hz
Power consumption: < 10W, full load: ≤200W
PoE pin802.3AF/AT/BT(1/2+,3/6-)
IndicatorEthernet port (fluctuation switch control):Link/Act: Green(10/100/1000M)PoE indicator light: YellowVlan offVlan on
Fiber port: Green(Port 27-28))
PWR: Green
Warranty3 year

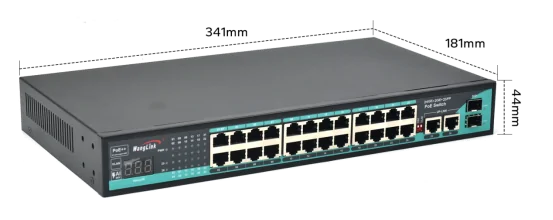

Product size

Product size: SG2422P-V2 | Unmanaged Gigabit 24 port poe Netzwerk Schalter mit 2 uplink 2 SFP

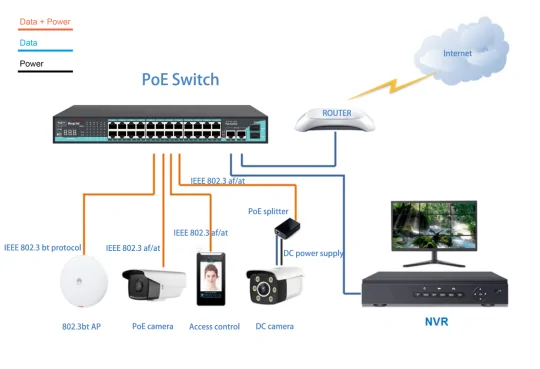

Application

Application: SG2422P-V2 | Unmanaged Gigabit 24 port poe Netzwerk Schalter mit 2 uplink 2 SFP
Product size: SG2422P-V2 | Unmanaged Gigabit 24 port poe Netzwerk Schalter mit 2 uplink 2 SFP
Application: SG2422P-V2 | Unmanaged Gigabit 24 port poe Netzwerk Schalter mit 2 uplink 2 SFP
