Feature image: SG42P-V2 | non géré Gigabit 4 canaux commutateur poe 2 de liaison montante avec le taux de puissance de fonction d’affichage

SG42P-V2 | Gigabit unmanaged 4 channel poe switch 2 uplink with power rate display function

The SG42P-V2 4 Channel PoE Switch offers 4 PoE ports and 2 uplink ports. Compliant with IEEE802.3 BT/af/at, it’s perfect for video surveillance in small to medium-sized businesses.

Product Overview

The SG42P-V2 4 Channel PoE Switch is a versatile networking solution designed for various applications. Featuring 6 10/100/1000Base-T Ethernet ports, this PoE switch offers flexible connectivity options. It includes one port that supports the IEEE 802.3BT (PoE++) standard, alongside three ports compatible with IEEE 802.3 af/at PoE. The PoE++ port delivers a maximum power output of 60W, while the af/at PoE ports provide 25.4W each, ensuring ample power for connected devices. This intelligent device automatically detects and supplies power only to PoE-compatible devices, preventing potential damage to non-PoE equipment.

Key Features

4 10/100/1000Base-T PoE ports, and 2 10/100/1000Base-T uplink ports for flexible network configurations.
Compliant with IEEE802.3 BT/af/at PoE protocols for efficient power delivery.
Supports one-key switch to VLAN mode and 250m long-distance transmission mode for extended reach.
Real-time PoE online utilization rate displayed via a digital tube for easy monitoring.
Supports 10/100/1000Mbps auto-negotiation for optimal performance.
Half/Full duplex adaptive and auto MDI/MDI-X functionality for seamless integration.
All ports support wire-speed forwarding for efficient data transmission.
Suitable for desktop and wall-mounted installations.
Plug and Play operation, eliminating the need for complex configuration.
Durable metal casing with an internal power supply for reliable operation.
Optional 6KV common mode/4KV differential mode surge protection for enhanced resilience.
Optional AI network self-healing (watchdog) function for improved network stability.

Product Parameters

Standards & Protocol	IEEE802.3 10Base-T IEEE802.3u 100Base-TX IEEE 802.1p tagged frames IEEE 802.3af/at/bt Power Over Ethernet IEEE 802.3x flow control
Interface information	Downstream ethernet port: 4 10/100/1000M Base-TX ports (supports POE, POE+, POE++)
	Uplink ethernet port: 2 10/100/1000M Base-T ports (uplink ports)
	10/100/1000Mbps adaptive
	10Base-T: ≤250m (CAT3,4,5 UTP)
	100Base-TX: ≤100m (CAT3,4,5 UTP)
	1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical properties	Shell material: metal shell
	Appearance dimensions (lengthdepthheight):203×140×44mm
	Installation method: Desktop
	Heat dissipation method: natural cooling, no fan
	P.W.:0.7KG, G.W.:0.9KG
Environmental properties	Working temperature: -20℃～+60℃
	Storage temperature: -20℃～+85℃
	Relative humidity: 5% ~ 95% (non-condensing)
Exchange properties	Bandwidth:12Gbps
	Packet forwarding rate (whole machine) : 8.928Mpps
	Exchange method: store-and-forward
	MAC table : 2K
	Case space : 1m
	Jumbo frame: 9k
Power supply	Input voltage: AC100~240V，50Hz
Power supply	Power consumption: < 3W, full load: ≤65W
PoE pin	802.3AF/AT/BT(1/2+，3/6-)
Indicator	Ethernet port (fluctuation switch control):Link/Act: Green(10/100/1000M)Vlan offVlan on
Indicator	PWR: Green
Warranty	3 year

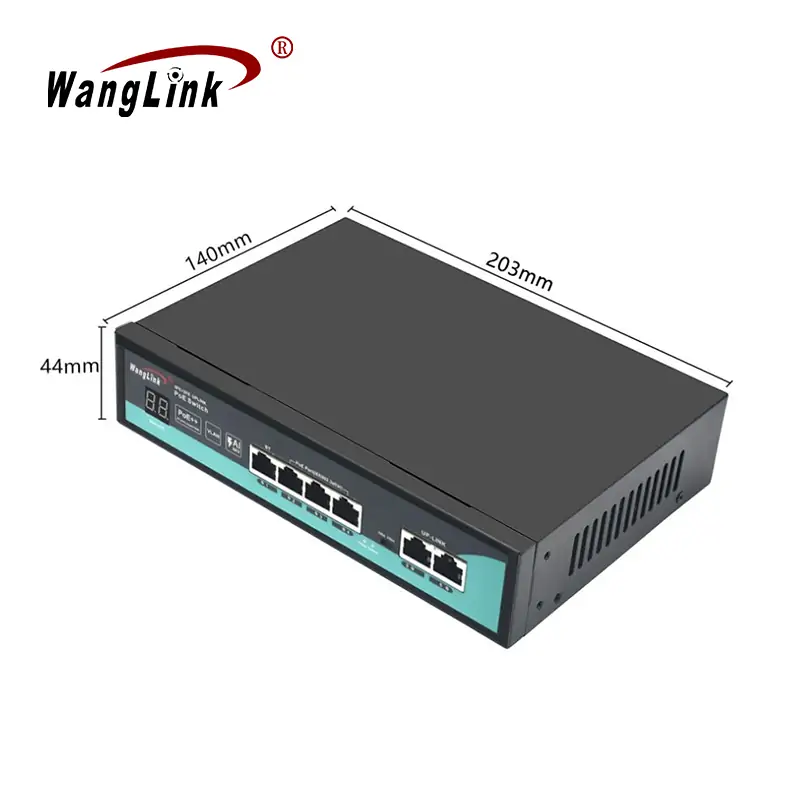

Product size

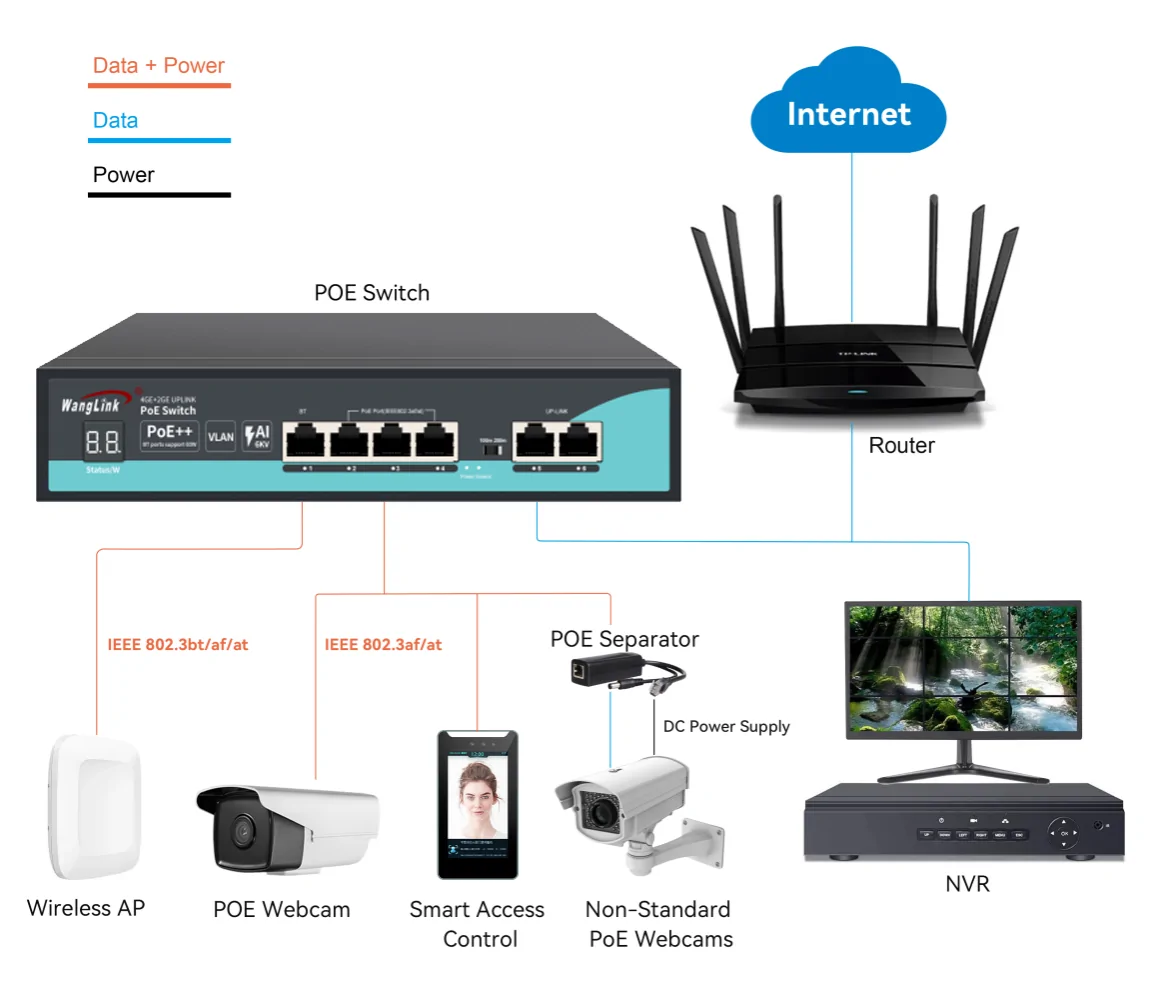

Application
