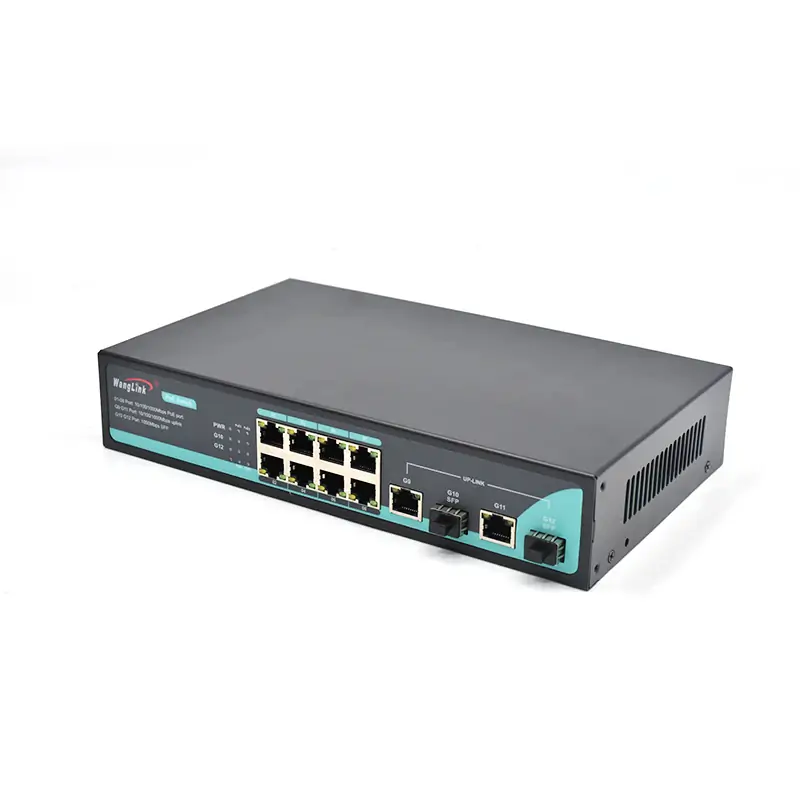

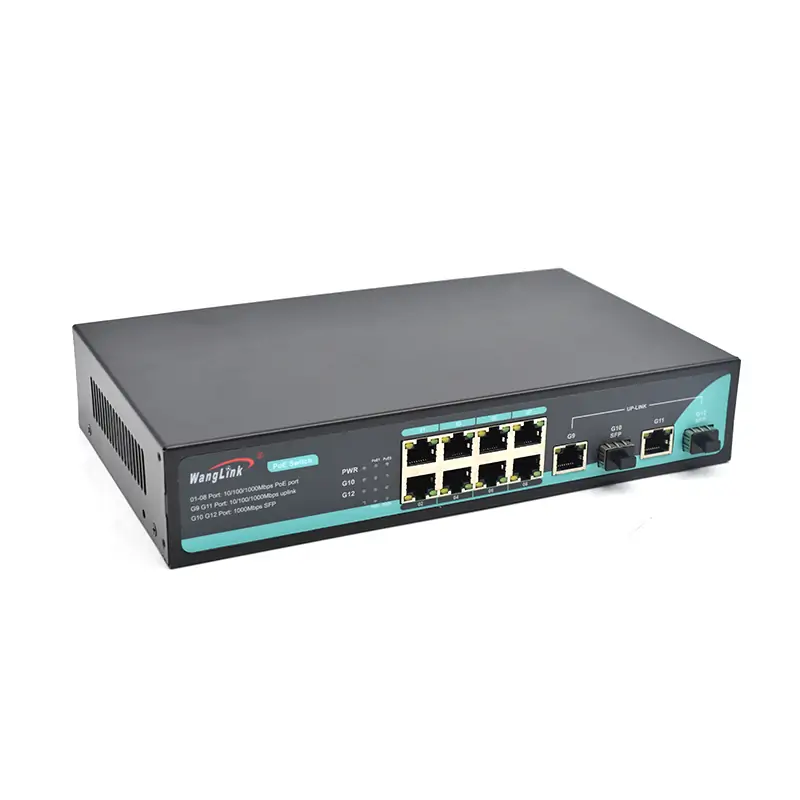

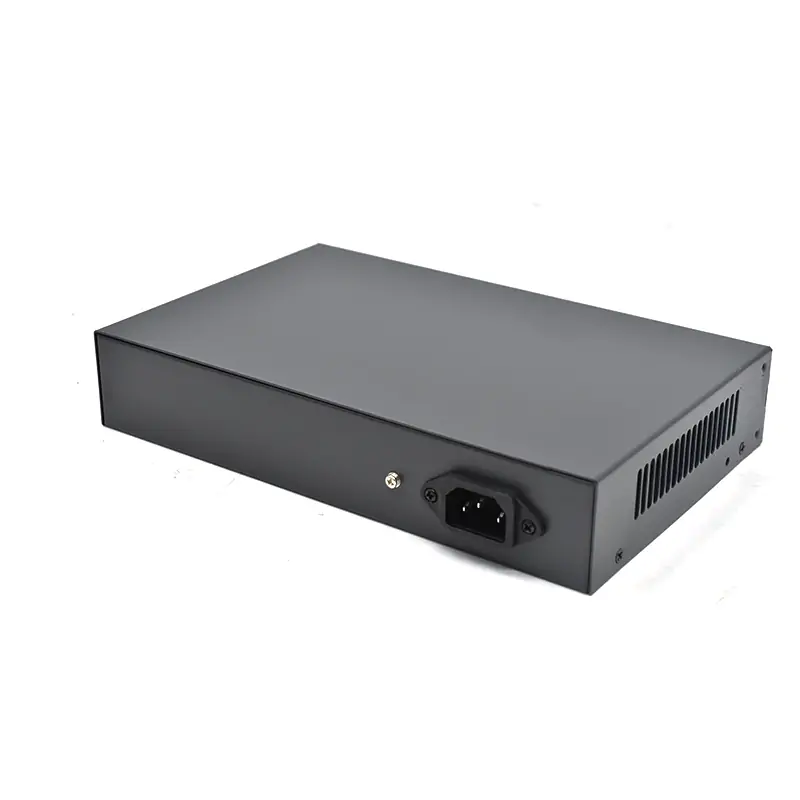

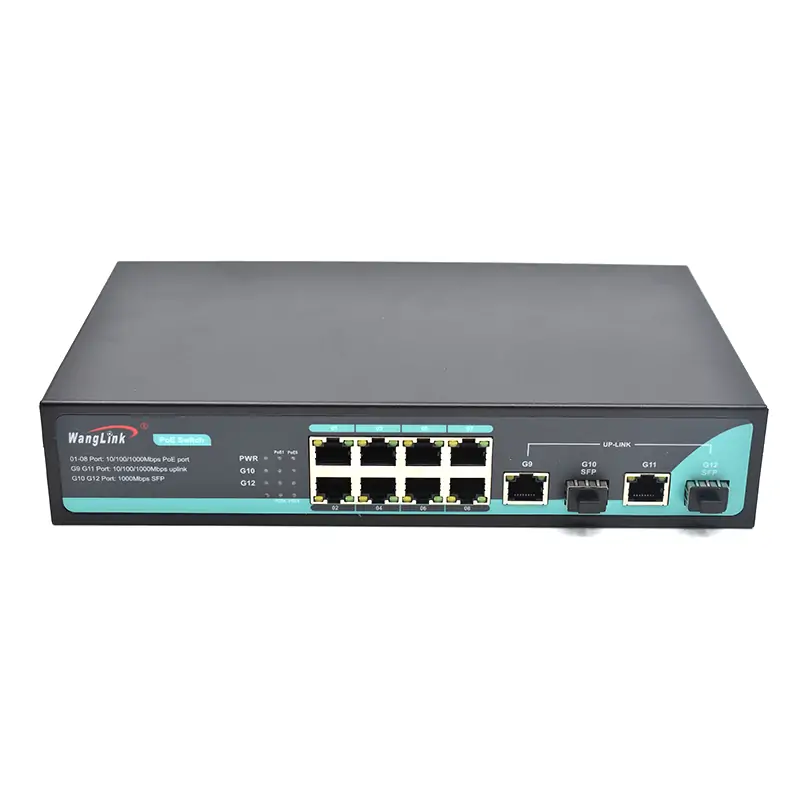

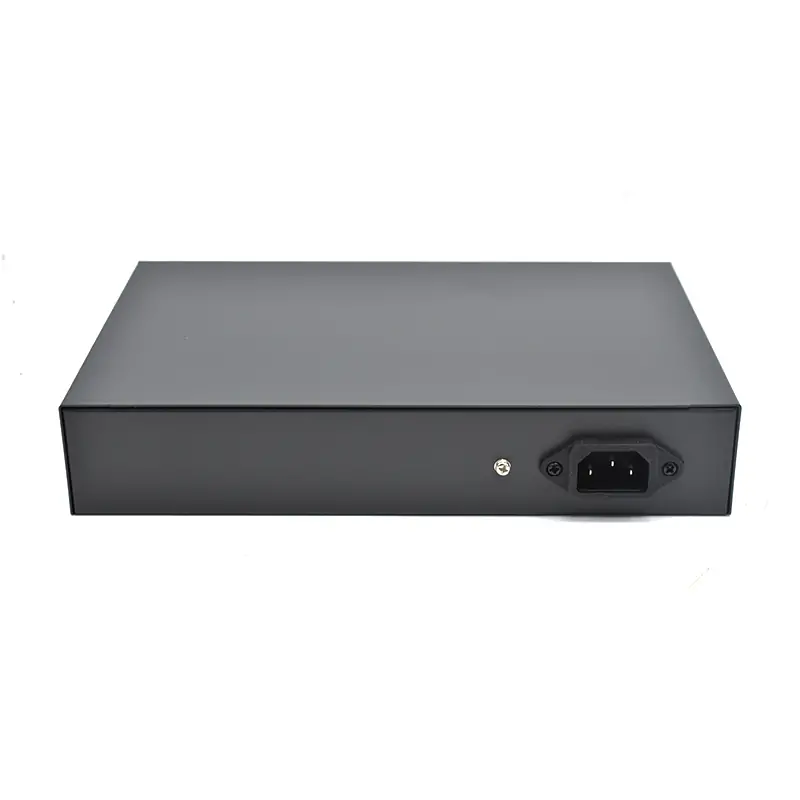

SG822P | gigabit switch poe 8 port 2 uplink 2 SFP/LC/FC/SC/ST

Explore our Gigabit Switch PoE 8 Port, featuring 8 PoE ports that deliver up to 25.4W of power each. Ideal for powering network devices, this switch offers seamless connectivity and flexible installation options for your networking needs.

Email:

Sample order

Product Overview

Introducing our Gigabit Switch PoE 8 Port, a versatile networking solution designed to power and connect your devices efficiently. This switch features 10 10/100/1000Base-T Ethernet ports, including 8 ports that support the IEEE 802.3 af/at Power over Ethernet (PoE) protocol. With a maximum output power of 25.4W per PoE port and a total PoE power budget of 96W, it is ideal for powering IP cameras, wireless access points, and VoIP phones. The additional 2 1000Base-X SFP slots provide flexibility for uplink connections, ensuring robust network performance.

Key Features

  • 8 PoE Ethernet Ports: 8 RJ45 ports support IEEE 802.3 af/at PoE, delivering up to 25.4W per port.
  • Uplink Slots: 2 1000Base-X SFP slots for flexible uplink options.
  • Auto-Negotiation: Supports 10/100/1000Mbps auto-negotiation for optimal speed.
  • Adaptive Duplex: Half/Full duplex adaptive mode with auto MDI/MDI-X functionality for easy integration.
  • Wire-Speed Forwarding: All ports support wire-speed forwarding for high data transfer rates.
  • Flexible Installation: Supports desktop, wall-mounted, and rack-mount installation for various setups.
  • Plug and Play: No configuration required; simply connect your devices and start using.
  • Durable Design: Metal casing with internal power supply ensures excellent heat dissipation and long-term reliability.

Product Parameters

ProtocolStandardIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3x flow control
Fiber Port Characteristic Connector TypeSFP slot
Transmission rate1.25Gbps
Transmission distanceMulti-mode: 550m/2km;Single-mode: 2/20/40/60/80/100km
WavelengthMulti-mode:850nm/1310nm,Single-mode:1310nm/1550nm/1490nm
Ethernet port CharacteristicConnector Type2×4 RJ45,1×1 RJ45
Transmission rate10/100/1000Mbps auto-negotiate
Transmission distance10Base-T: ≤250m(CAT3,4,5 UTP)100Base-TX: ≤100m(CAT3,4,5 UTP)1000Base-T: ≤100m(CAT3,4,5 UTP)
Exchange performanceForward methodStore-and-forward(full wire-speed)
Transmission modeHalf/Full duplex adaptive
MAC address table2K
Case space1Mb
Jumbo frames9216b
Packet Forwarding Rate17.856Mpps@64byte
Bandwidth24G(non-blocking)
LED indicatorPower indicatorGreen, PWR
SFP indicatorGreen, 2 for each SFP fiber port
Link/Act indicatorYellow/Green,2 for each ethernet port
1000M indicatorGreen, 1 for uplink port G9-G10
PoE indicatorGreen, 1 for each poe port
Power parametersInput voltageAC100~240V, 50Hz
Power consumptionStandby: ≤3W; whole: ≤96W
PoE pin1/2+,3/6-
The port max rate≤25.4W
EnvironmentOperating Temperature-20℃~60℃
Storage Temperature:-40℃~85℃
Operating Humidity5%~95% non-condensing
Heat dissipation methodNatural heat dissipation
Physical propertiesSize201×140×44mm
WeightNet weight:0.9kg,Gross weight: 1.1kg

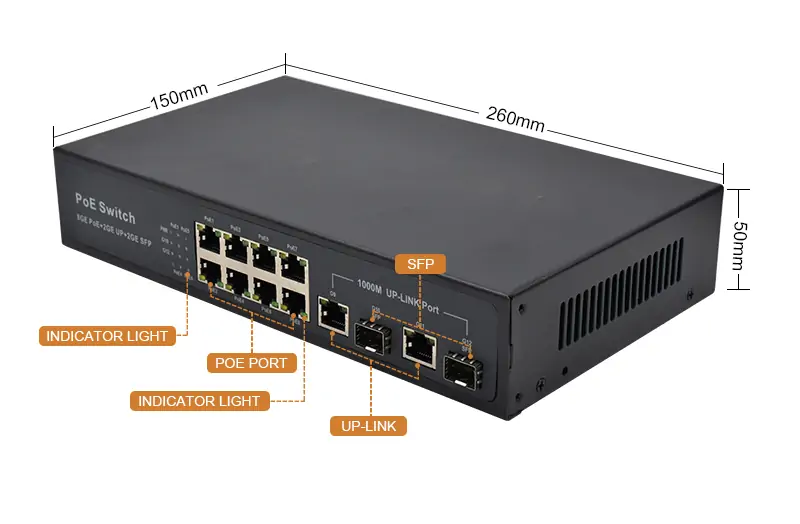

Product size

Product size: SG822P | gigabit-switch poe 8 port 2 uplink 2 SFP/LC/FC/SC/ST

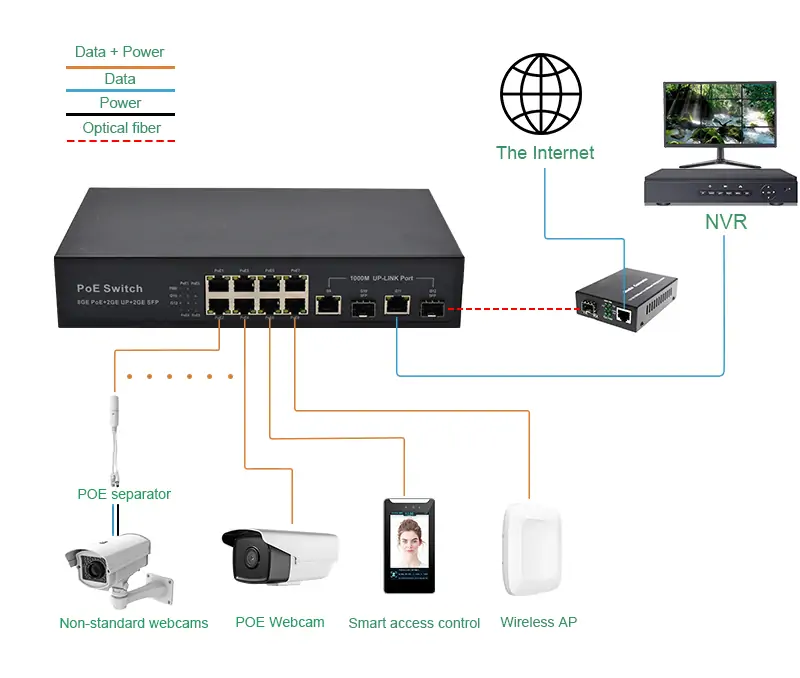

Application

Application: SG822P | gigabit-switch poe 8 port 2 uplink 2 SFP/LC/FC/SC/ST
Product size: SG822P | gigabit-switch poe 8 port 2 uplink 2 SFP/LC/FC/SC/ST
Application: SG822P | gigabit-switch poe 8 port 2 uplink 2 SFP/LC/FC/SC/ST
