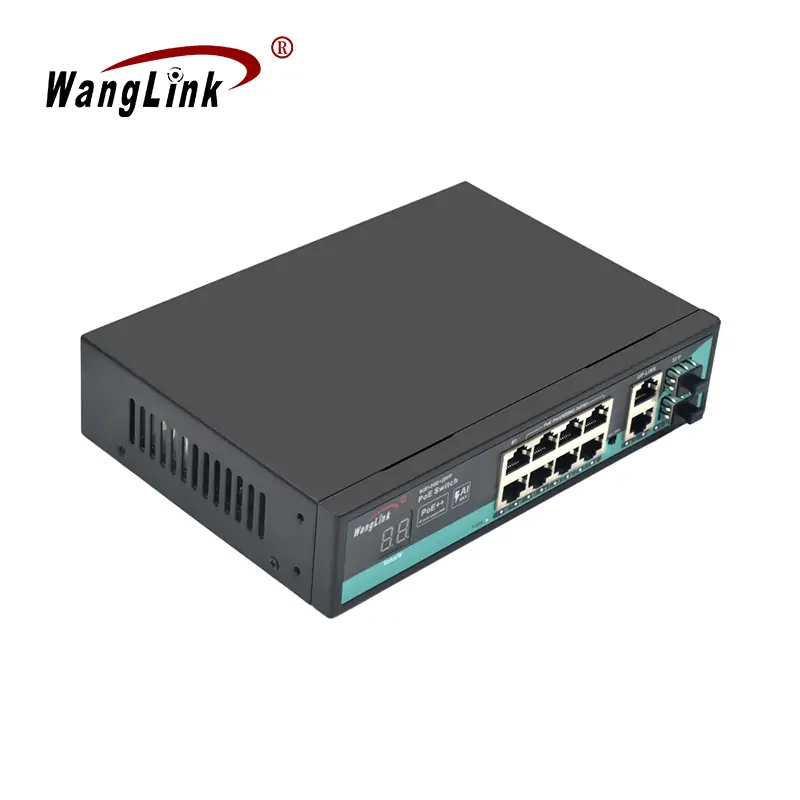

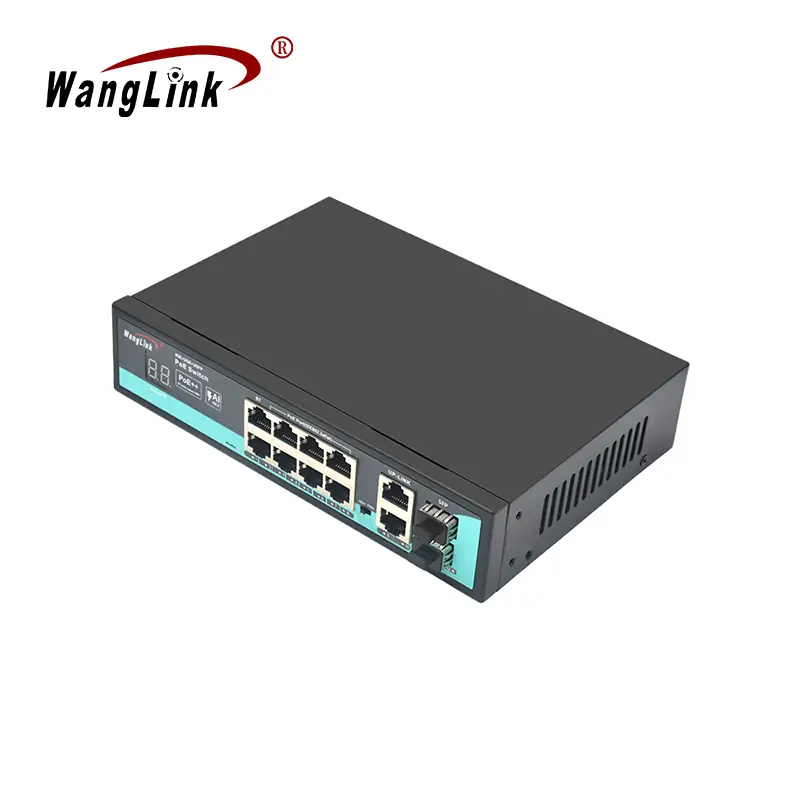

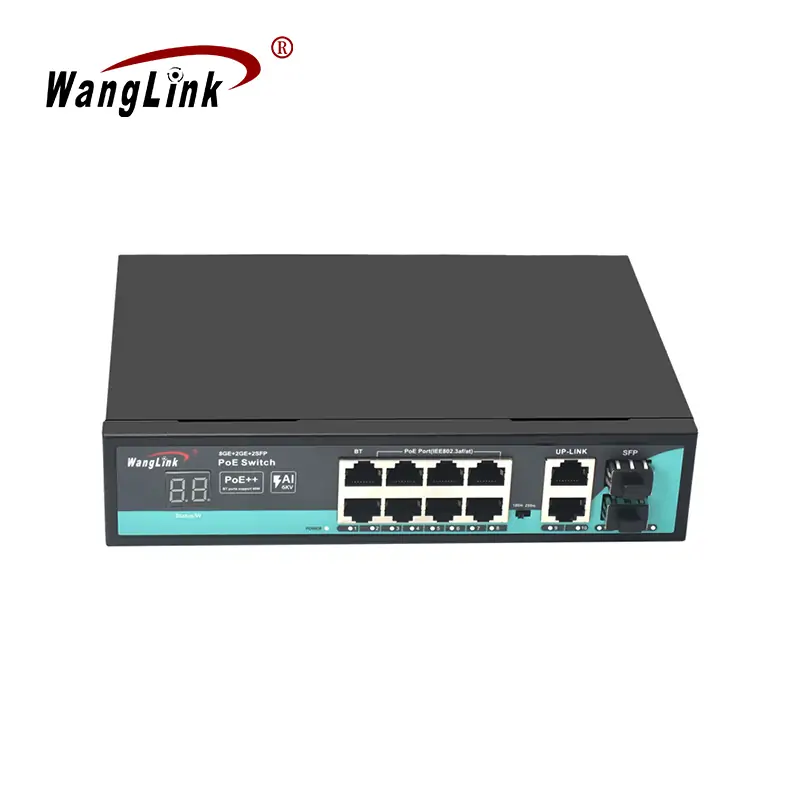

SG822P-V2 | Unmanaged poe switch gigabit 8 port 2 Uplink 2 SFP

The SG822P-V2 Gigabit 8 Port PoE Switch delivers high-speed connectivity and reliable power. Featuring 8 Gigabit PoE ports, 2 Gigabit Uplink ports and 2 SFP slots, it’s ideal for IP cameras, VoIP, and wireless deployments.

Email:

Sample order

Product Overview

The SG822P-V2 Gigabit 8 Port PoE Switch is a high-performance networking solution designed for demanding applications. This 8 port gigabit PoE switch boasts 8 10/100/1000Base-TX Ethernet ports2 10/100/1000Base-T Ethernet ports, and 2 1000Base-X SFP slots for versatile connectivity options. Compliant with IEEE802.3 af/at standards, ports 2-8 deliver PoE power up to 25.4W per port, while port 1 supports IEEE 802.3BT (PoE++) offering up to 60W. With a total PoE power budget of 120W, the SG822P-V2 can easily power multiple devices. Its intelligent PoE detection ensures that only compatible devices receive power, protecting non-PoE equipment. Perfect for video surveillance and other power-hungry applications.

Key Features

  • 8 10/100/1000Base-TX PoE ports2 10/100/1000Base-T uplink ports, and 2 1000Base-X SFP uplink slots providing comprehensive connectivity.
  • Ethernet ports support IEEE802.3 BT/af/at protocols for flexible power delivery.
  • Supports one-key switching to 250m long-distance transmission mode for extended reach. (Note: Reduces speed to 10Mbps)
  • Supports digital tube for real-time display of PoE online utilization rate.
  • All Ethernet ports support half/full duplex adaptive and automatic MDI/MDI-X functions.
  • All Ethernet ports support line-speed forwarding for optimal performance.
  • Supports desktop and wall-mounted installation.
  • Plug and play for easy setup, no configuration required.
  • Durable metal shell and built-in power supply for excellent heat dissipation and long-term stability.
  • Optional: 6KV common mode/4KV differential mode surge protection.
  • Optional: AI network self-healing (watchdog) function.

Product Parameters

Standards & ProtocolIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3af/at/bt Power Over Ethernet
IEEE 802.1p tagged framesIEEE 802.3x flow control
Interface informationSingle-mode SFP: 2 1000Base-X SFP optical ports (uplink port)
Transmission rate: 1.25G
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm
Downstream ethernet port: 8 10/100/1000M Base-T ports (supports POE, POE+, POE++)
Uplink ethernet port: 2 10/100/1000M Base-T ports (uplink ports)
10/100/1000Mbps adaptive
10Base-T: ≤250m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height): 201×140×44mm
Installation method: Desktop
Heat dissipation method: natural cooling, no fan
Weight: 0.9KG
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth: 24Gbps
Packet forwarding rate (whole machine) : 17.856Mpps
Exchange method: store-and-forward
MAC table : 2K
Case space : 1m
Jumbo frame: 9k
Power supplyInput voltage: AC100~240V,50Hz
Power consumption: < 3W, full load: ≤120W
PoE pin802.3AF/AT/BT(1/2+,3/6-)
IndicatorEthernet port (fluctuation switch control):Link/Act: Green(10/100/1000M)PoE indicator light: Yellow100m – Standard mode250m – Extend mode
Fiber port: Green(Port 19-20))
PWR: Green
Warranty3 year

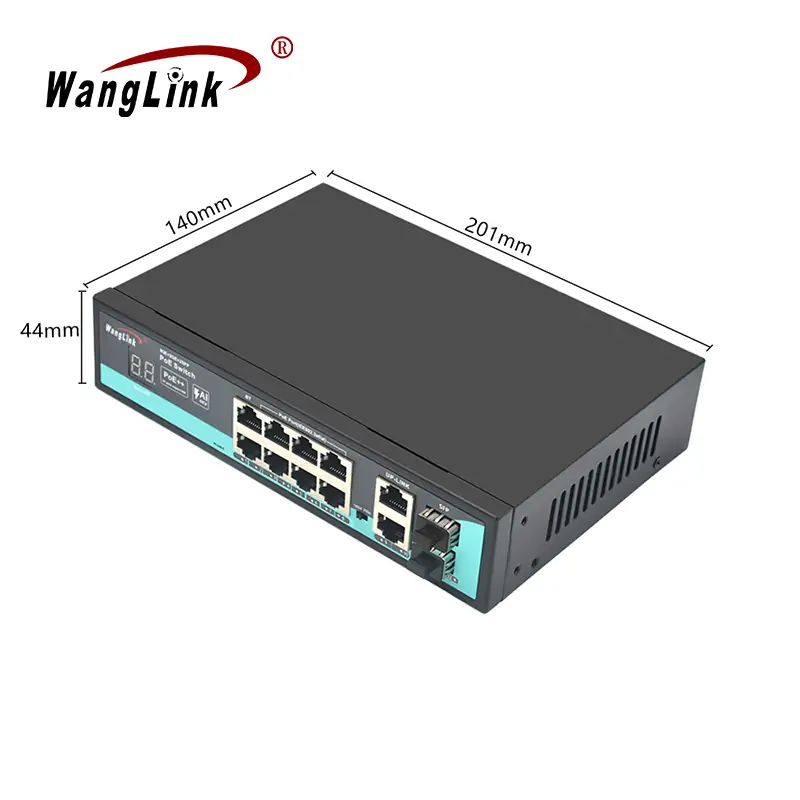

Product size

Product size: SG822P-V2 | nicht verwaltete poe-switch gigabit 8-port 2 Uplink 2 SFP

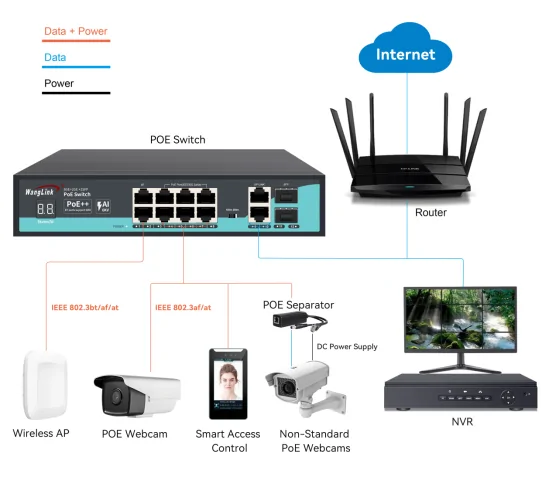

Application

Application: SG822P-V2 | nicht verwaltete poe-switch gigabit 8-port 2 Uplink 2 SFP
Product size: SG822P-V2 | nicht verwaltete poe-switch gigabit 8-port 2 Uplink 2 SFP
Application: SG822P-V2 | nicht verwaltete poe-switch gigabit 8-port 2 Uplink 2 SFP
