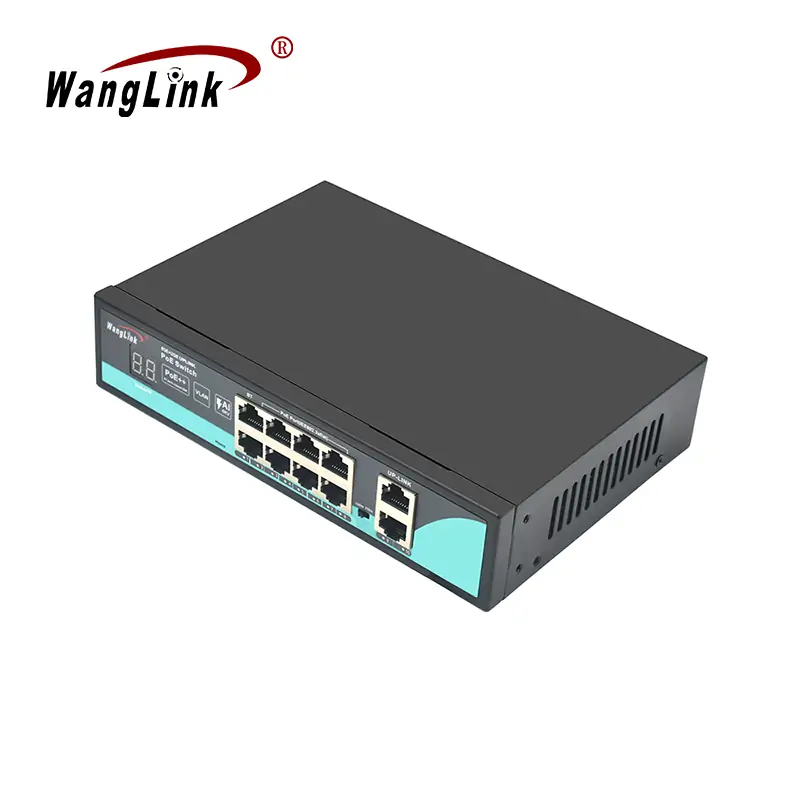

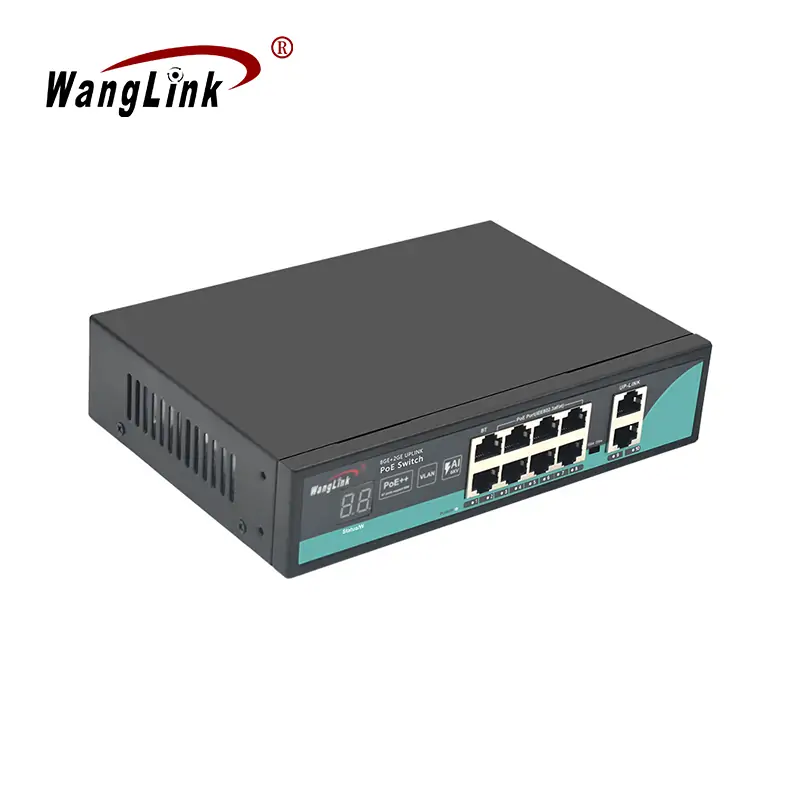

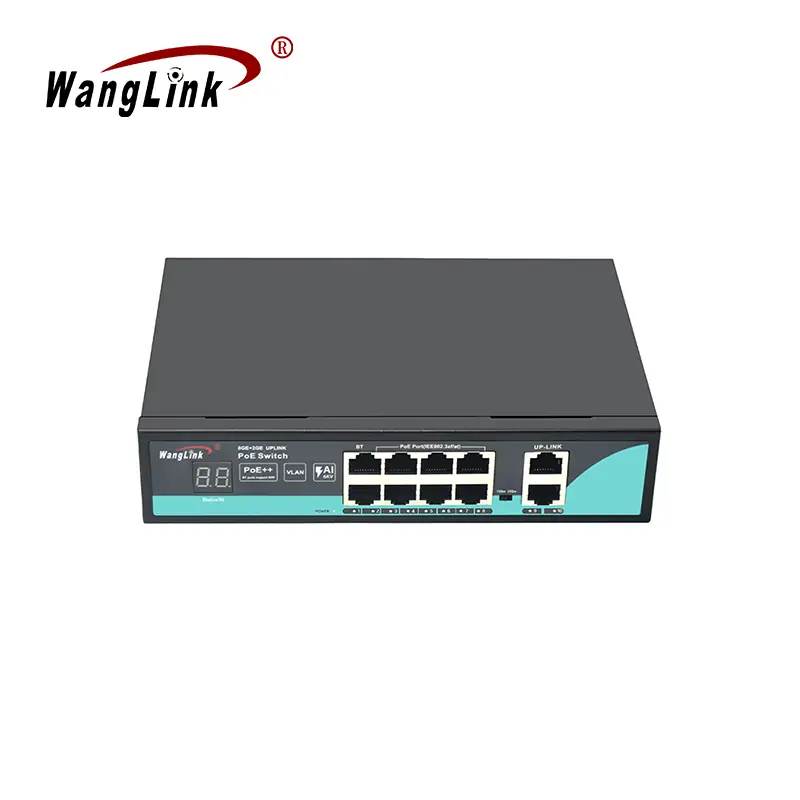

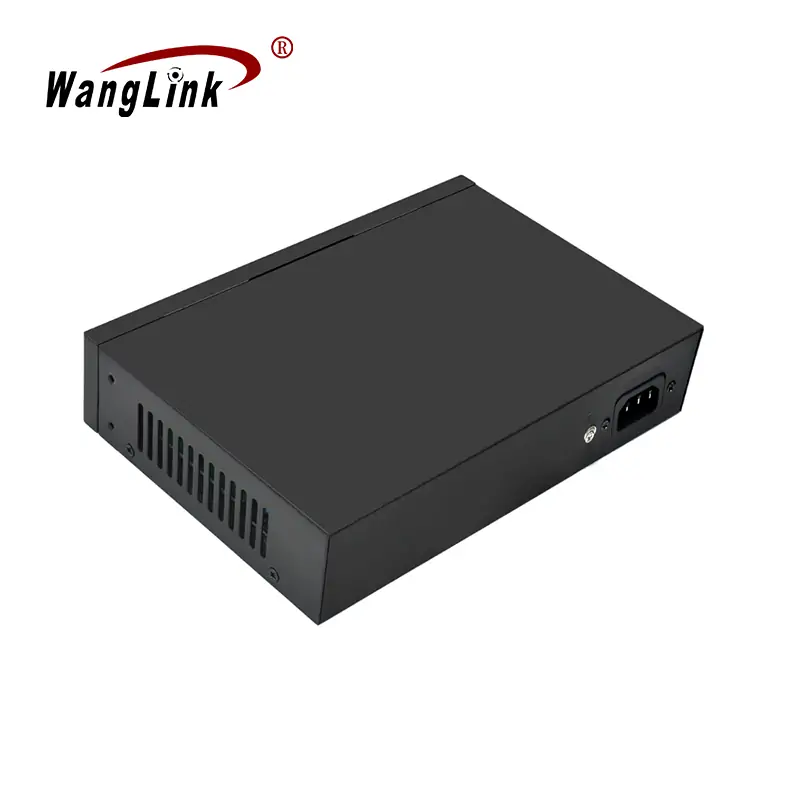

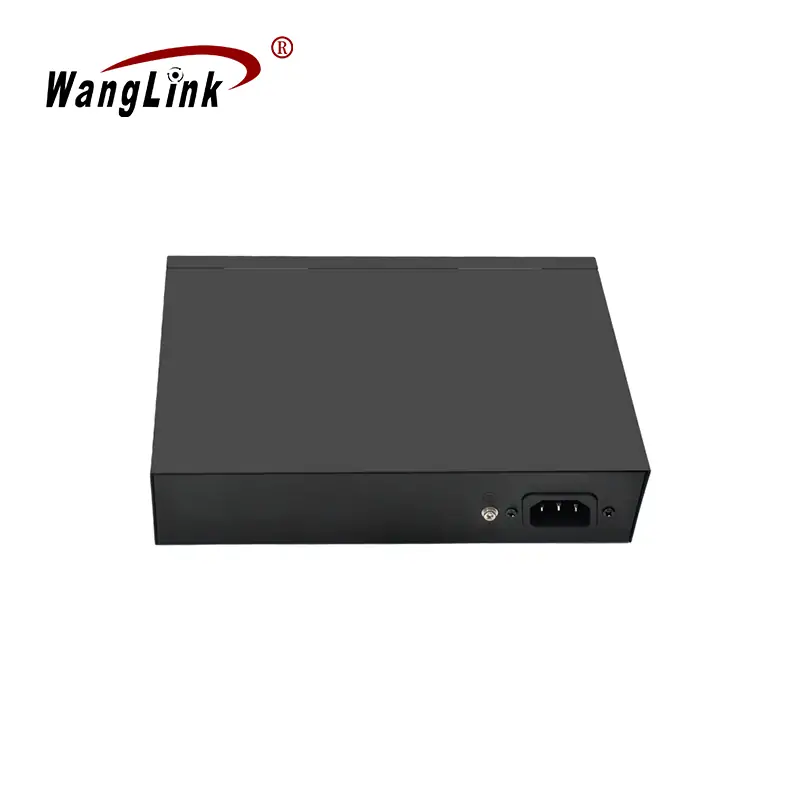

SG82P-V2 | Unmanaged 8 port switch poe gigabit with 2 Uplink

Upgrade your network with the WOR-SG82P V2, an 8 port PoE Gigabit switch featuring advanced PoE++ technology, long-distance transmission, and built-in network isolation for improved performance and reliability. Perfect for video surveillance and small to medium-sized enterprise applications.

Email:

Sample order

Product Description

The SG82P-V2 is a high-performance 8-port PoE Gigabit switch designed for reliable and efficient networking solutions. It features 8 10/100/1000Base-TX Ethernet ports, with ports 1-8 supporting IEEE802.3 af/at PoE protocol and port 1 supporting the IEEE802.3BT (PoE++) standard, providing up to 60W of power. The switch offers a maximum PoE power output of 120W, ensuring ample power for connected devices.

The SG82P-V2 is equipped with advanced features such as a DIP switch that allows you to reduce the transmission rate of ports 1-8 to 10Mbps, enabling a maximum transmission distance of 250m over existing twisted pair cables. Additionally, ports 1-8 are network-isolated from each other but can communicate with the uplink ports (9-10), effectively isolating conflict and broadcast domains, reducing broadcast storms, and enhancing network communication efficiency.

This PoE switch automatically detects and supplies power only to PoE-compatible devices, preventing damage to non-PoE devices. It also includes a digital tube display for real-time monitoring of PoE power usage. The switch is ideal for video surveillance, retail, hospitality, and small to medium-sized enterprise applications.

Key Features:

  • 8 10/100/1000Base-TX PoE ports (ports 1-8) and 2 10/100/1000Base-T uplink ports
  • Supports IEEE802.3 BT/af/at PoE protocols
  • One-button switch to VLAN mode and 250m long-distance transmission mode
  • Auto-negotiation of 10/100/1000Mbps speeds and Half/Full duplex modes
  • Store-and-forward switching with full wire-speed performance
  • Metal casing with internal power supply for durability
  • Optional 6KV common mode/4KV differential mode surge protection
  • Optional AI network self-healing (watchdog) function

Technical Specifications

ProtocolStandardIEEE802.3 10Base-TIEEE802.3u 100Base-TXIEEE802.3ab 1000Base-TIEEE 802.1p tagged framesIEEE 802.3x flow control
Ethernet port CharacteristicConnector Type1×8 RJ45,1×2 RJ45
Transmission rate10/100/1000Mbps auto-negotiate;
Transmission distance10Base-T: ≤250m(CAT3,4,5 UTP)100Base-TX: ≤100m(CAT3,4,5 UTP)1000Base-T: ≤100m(CAT3,4,5 UTP)
Exchange performanceForward methodStore-and-forward(full wire-speed)
Transmission modeHalf/Full duplex adaptive
MAC address table2K
Case space1Mb
Jumbo frames9216b
Packet Forwarding Rate14.88Mpps@64byte
Bandwidth20G(non-blocking)
LED indicatorPower indicatorGreen, power
Ethernet indicatorGreen, per ethernet port
DIP switch100mStandard mode – All ports can communicate with each other.
250mExtend mode, port 1-4 are isolated from each other, transmission distance can up to 250m, and can communicate with port 5-6.
Power parametersInput voltageAC100~240V, 50Hz
Power consumptionStandby: ≤3W; whole: ≤120W
PoE pin1/2+,3/6-
The port max rateBt port≤60W,af/at port≤25.4W
EnvironmentOperating Temperature-20℃~60℃
Storage Temperature:-40℃~85℃
Operating Humidity5%~95% non-condensing
Heat dissipation methodNatural heat dissipation
Physical propertiesSize201×140×44mm
WeightNet weight:0.7kg,Gross weight: 0.9kg

Product size

Product size: SG82P-V2 | Unmanaged 8-port switch poe gigabit mit 2 Uplink

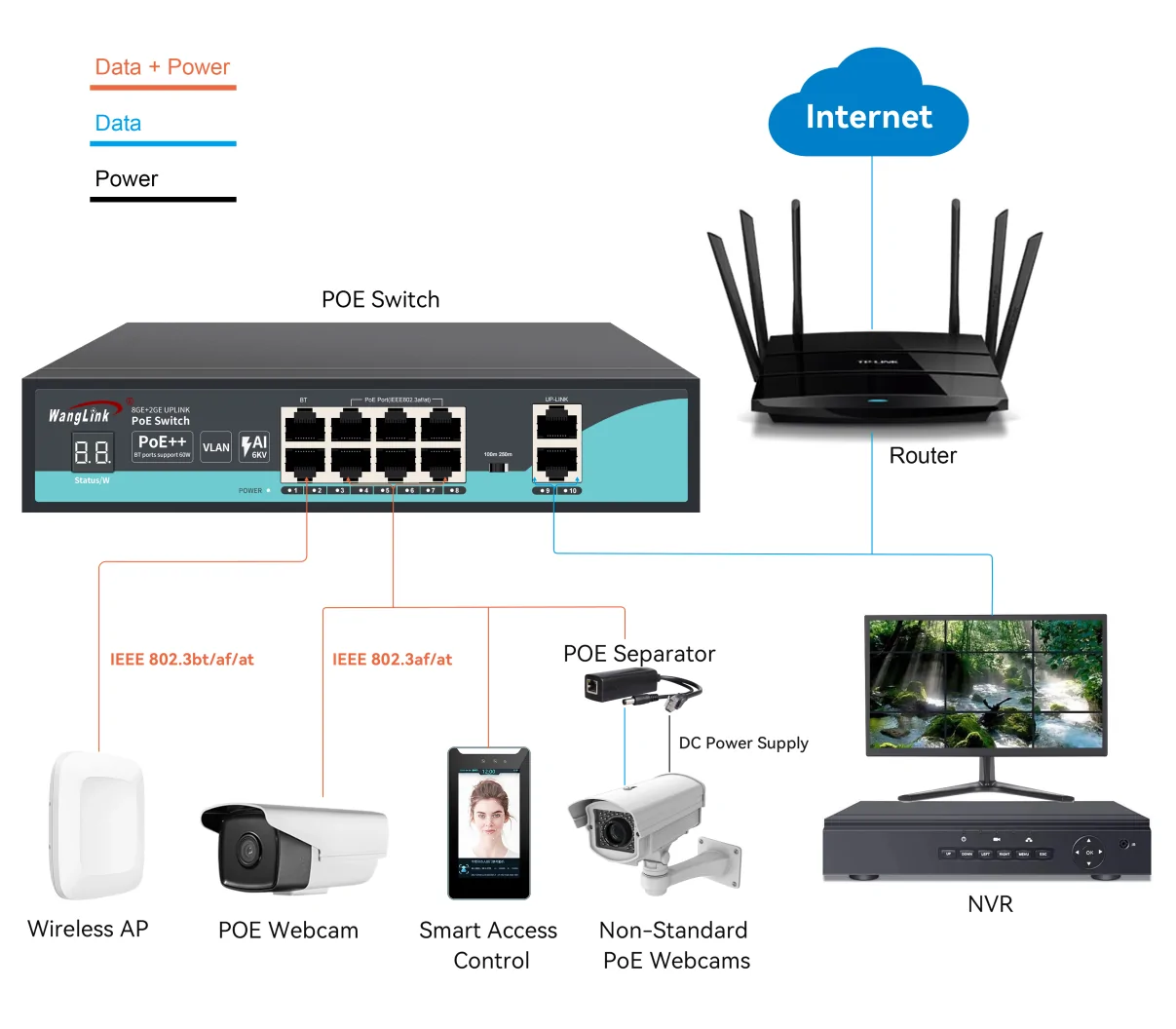

Application

Application: SG82P-V2 | Unmanaged 8-port switch poe gigabit mit 2 Uplink
Product size: SG82P-V2 | Unmanaged 8-port switch poe gigabit mit 2 Uplink
Application: SG82P-V2 | Unmanaged 8-port switch poe gigabit mit 2 Uplink
