SL1622P-V2 | Fast ethernet 16 port poe network switch with 2 Gigabit uplink 2 SFP

The SL1622P-V2 16 Port PoE Network Switch provides a high-density PoE solution. Featuring 16 Fast Ethernet PoE ports, Gigabit Uplink ports and SFP slots, it’s ideal for powering multiple IP cameras, access points, and more.

Email:

Sample order

Product Overview

The SL1622P-V2 16 Port PoE Network Switch is a high-density solution for expanding your network while providing power to PoE-enabled devices. This 16 port poe network switch offers 16 10/100Base-T Ethernet ports2 10/100/1000Base-T uplink ports, and 2 1000Base-X SFP slots for flexible connectivity. Fifteen of the Ethernet ports support IEEE802.3 af/at, delivering up to 25.4W of PoE power per port, while one port supports the more powerful IEEE 802.3BT (PoE++) standard, providing up to 60W. Its intelligent PoE detection supplies power only to compatible devices, protecting non-PoE equipment. This switch also offers extended transmission capabilities and port isolation for enhanced network performance.

Key Features

  • 16 10/100Base-TX PoE ports2 10/100/1000Base-T uplink ports, and 2 1000Base-X SFP uplink slots for versatile connectivity.
  • Ethernet ports support IEEE802.3 BT/af/at protocols for flexible power delivery.
  • Supports one-key switching to VLAN mode and 250m long-distance transmission mode. (Ports 1-16 operate at 10Mbps in extended mode.)
  • Supports digital tube for real-time display of PoE online utilization rate.
  • All Ethernet ports support half/full duplex adaptive and automatic MDI/MDI-X functions.
  • All Ethernet ports support line-speed forwarding for optimal performance.
  • Ports 1-16 can be isolated from each other to isolate collision and broadcast domains.
  • Supports desktop and wall-mounted installation.
  • Plug and play for easy setup, no configuration required.
  • Durable metal shell and built-in power supply for excellent heat dissipation and long-term stability.
  • Optional: 6KV common mode/4KV differential mode surge protection.
  • Optional: AI network self-healing (watchdog) function.

Product Parameters

Standards & ProtocolIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3af/at/bt Power Over Ethernet
IEEE 802.1p tagged framesIEEE 802.3x flow control
Interface informationSingle-mode SFP: 2 1000Base-X SFP optical ports (uplink port)
Transmission rate: 1.25G
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm
Downlink ethernet port: 16 10/100Base-T ports (supports POE, POE+, POE++)
Uplink ethernet port: 2 10/100/1000M Base-T ports (uplink ports)
10/100/1000Mbps adaptive
10Base-T: ≤250m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height):311×182×44mm
Installation method: Desktop
Heat dissipation method: natural cooling, no fan
Weight: <1.4KG
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth:11.2Gbps
Packet forwarding rate (whole machine) : 8.2Mpps
Exchange method: store-and-forward
MAC table : 2K
Case space : 1m
Jumbo frame: 10k
Power supplyInput voltage: AC100~240V,50Hz
Power consumption: < 10W, full load: ≤300W
PoE pin802.3AF/AT/BT(1/2+,3/6-)
IndicatorEthernet port (fluctuation switch control):Link/Act: Green(10/100/1000M)Vlan off: 100m transmission distance, all ports can communicate with each other.Vlan on, 250m transmission distance, port 1-16 can communicate with port 17-20, but isolate with each other.
Fiber port: Green(Port 19-20))
PWR: Green
Warranty3 year

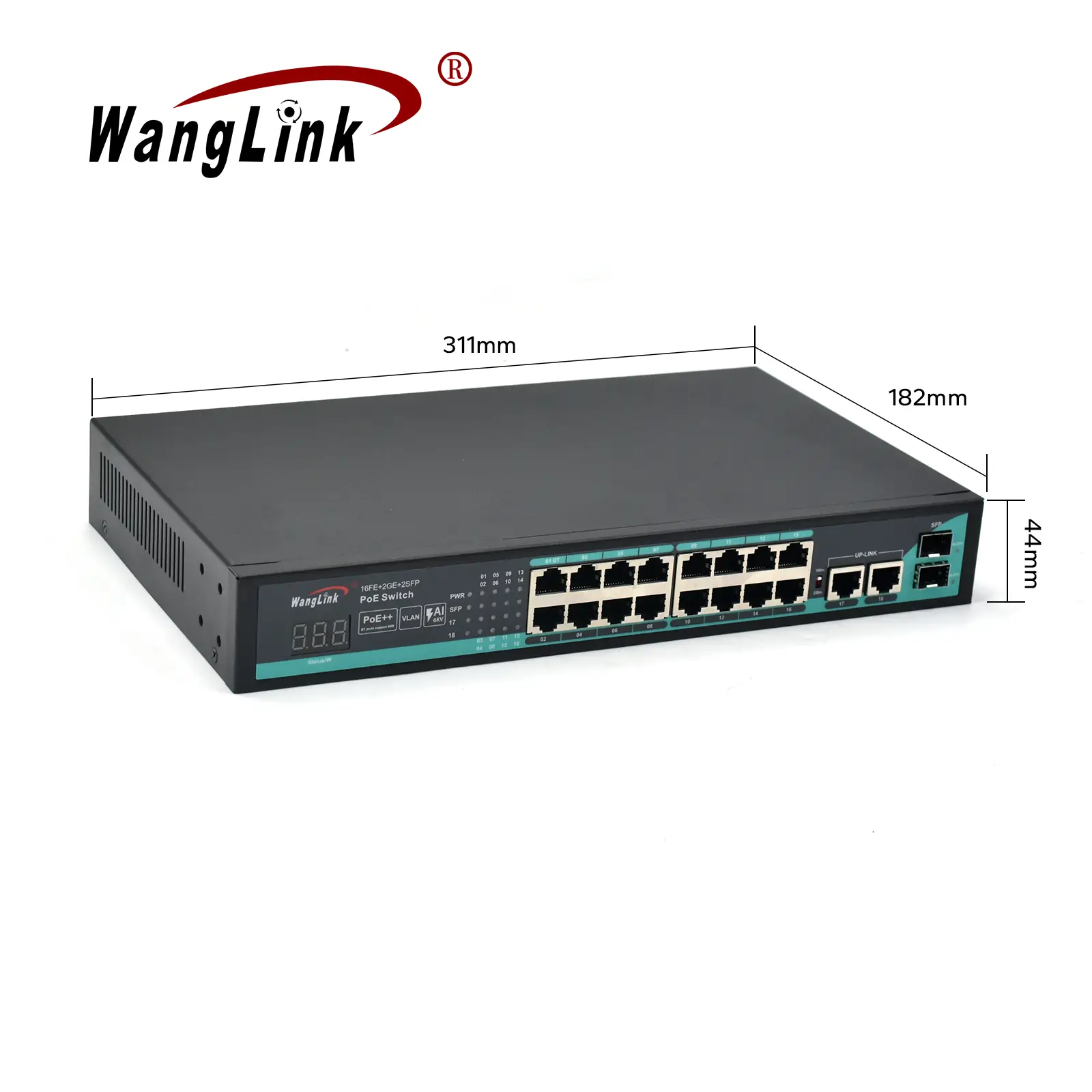

Product size

Product size: SL1622P-V2 | Fast ethernet 16-port-poe-Netzwerk-switch mit 2 Gigabit-uplink 2 SFP

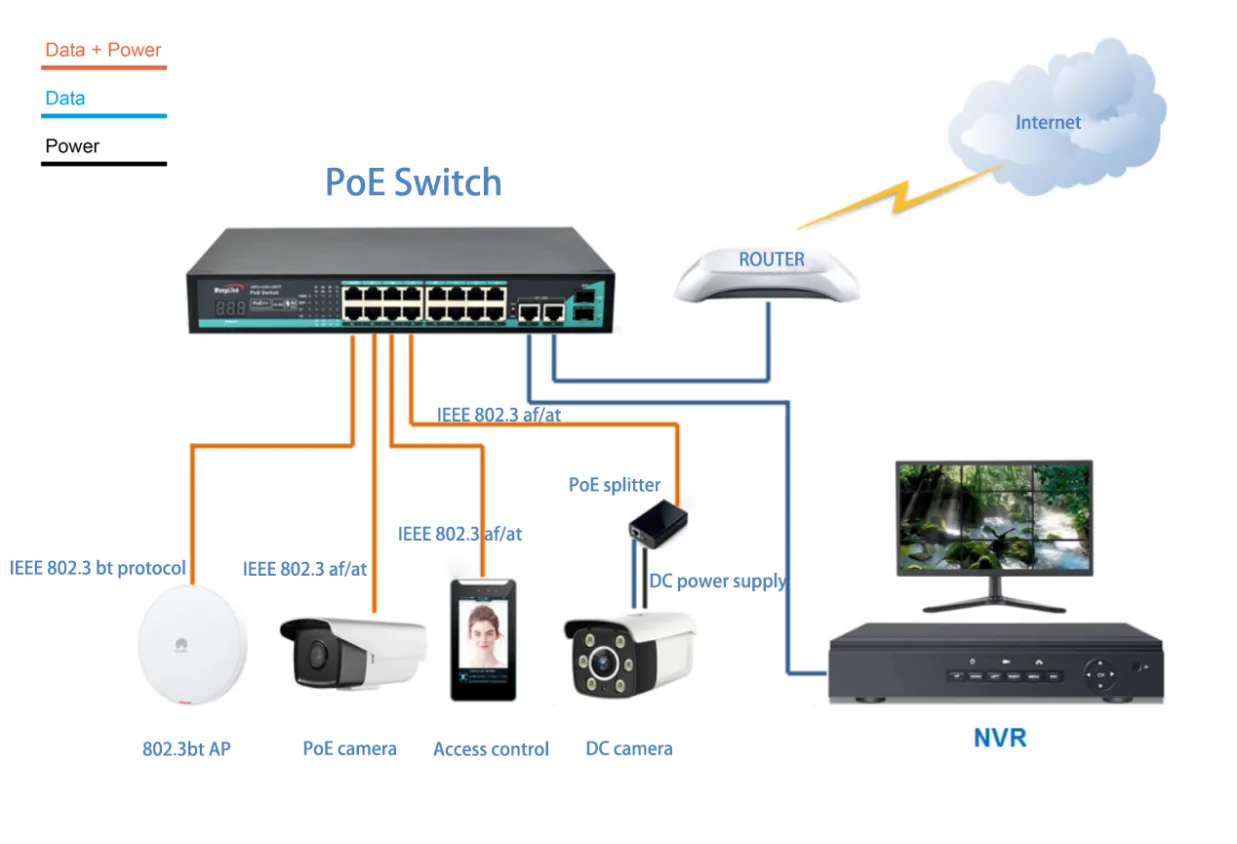

Application

Application: SL1622P-V2 | Fast ethernet 16-port-poe-Netzwerk-switch mit 2 Gigabit-uplink 2 SFP
Product size: SL1622P-V2 | Fast ethernet 16-port-poe-Netzwerk-switch mit 2 Gigabit-uplink 2 SFP
Application: SL1622P-V2 | Fast ethernet 16-port-poe-Netzwerk-switch mit 2 Gigabit-uplink 2 SFP
