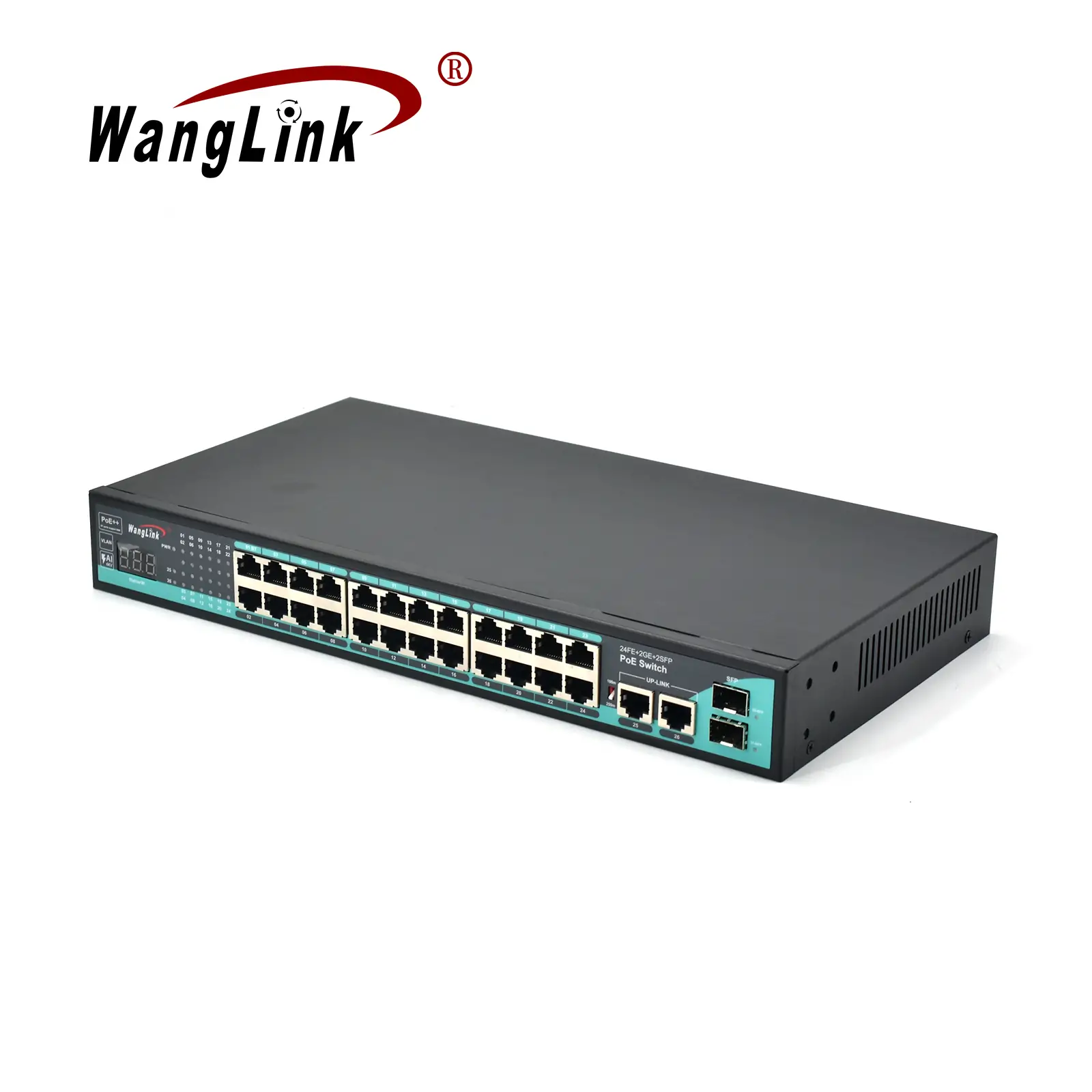

SL2422P-V2 | Unmanaged fast ethernet poe switch 24 port 2 gigabit uplink 2 SFP

The SL2422P-V2 24 Port PoE Switch is ideal for large-scale PoE deployments. With 24 Fast Ethernet PoE ports, Gigabit Uplink ports and SFP slots, it can power a large number of IP cameras, access points, and other PoE devices.

Email:

Sample order

Product Overview

The SL2422P-V2 24 Port PoE Switch is a high-capacity networking solution designed for large-scale deployments. This poe switch 24 port offers 24 10/100Base-T Ethernet ports2 10/100/1000Base-T uplink ports, and 2 1000Base-X SFP slots for versatile connectivity. Twenty-three of the Ethernet ports support IEEE802.3 af/at, delivering up to 25.4W of PoE power per port, while one port supports the more powerful IEEE 802.3BT (PoE++) standard, providing up to 60W. Intelligent PoE detection ensures power is only supplied to compatible devices. It also offers extended transmission capabilities and port isolation for enhanced network security and performance.

Key Features

  • 24 10/100Base-T PoE ports2 10/100/1000Base-T uplink ports, and 2 1000Base-X SFP uplink slots for versatile connectivity options.
  • Ethernet ports support IEEE802.3 BT/af/at protocols for flexible power delivery.
  • Supports one-key switching to VLAN mode and 250m long-distance transmission mode. (Ports 1-24 operate at 10Mbps in extended mode.)
  • Supports digital tube for real-time display of PoE online utilization rate.
  • All Ethernet ports support half/full duplex adaptive and automatic MDI/MDI-X functions.
  • All Ethernet ports support line-speed forwarding for optimal performance.
  • Ports 1-24 can be isolated from each other to isolate collision and broadcast domains.
  • Supports desktop and wall-mounted installation.
  • Plug and play for easy setup, no configuration required.
  • Durable metal shell and built-in power supply for excellent heat dissipation and long-term stability.
  • Optional: 6KV common mode/4KV differential mode surge protection.
  • Optional: AI network self-healing (watchdog) function.

Product Parameters

Standards & ProtocolIEEE802.3 10Base-T
IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T
IEEE802.3z 1000Base-SX/LX standards
IEEE 802.3af/at/bt Power Over Ethernet
IEEE 802.1p tagged frames
IEEE 802.3x flow control
Interface informationSingle-mode SFP: 2 1000Base-X SFP optical ports (uplink port)
Transmission rate: 1.25
Multi-mode: 550m/2km; Single-mode: 2/20/40/60/80/100km
Multi-mode: 850nm/1310nm, single mode: 1310nm/1550nm/1490nm
Downstream ethernet port: 24 10/100M Base-T ports (supports POE, POE+, POE++)
Uplink ethernet port: 1 10/100/1000M Base-T ports (uplink ports)
10/100/1000Mbps adaptive
10Base-T: ≤250m (CAT3,4,5 UTP)
100Base-TX: ≤100m (CAT3,4,5 UTP)
1000Base-T: ≤100m (CAT3,4,5 UTP)
Mechanical propertiesShell material: metal shell
Appearance dimensions (length*depth*height):341×181×44mm
Installation method: Desktop
Heat dissipation method: natural cooling, no fan
P.W.: 1.5KG, G.W.:1.8KG
Environmental propertiesWorking temperature: -20℃~+60℃
Storage temperature: -20℃~+85℃
Relative humidity: 5% ~ 95% (non-condensing)
Exchange propertiesBandwidth:12.8Gbps
Packet forwarding rate (whole machine) : 9.6Mpps
Exchange method: store-and-forward
MAC table : 2K
Case space : 1m
Jumbo frame: 9k
Power supplyInput voltage: AC100~240V,50Hz
Power consumption: < 10W, full load: ≤300W
PoE pin802.3AF/AT/BT(1/2+,3/6-)
IndicatorEthernet port (fluctuation switch control):Link/Act: Green(10/100/1000M)Vlan off: 100m transmission distance, all ports can communicate with each other.Vlan on, 250m transmission distance, port 1-16 can communicate with port 17-20, but isolate with each other.
Fiber port: Green(Port 27-28))
PWR: Green
Warranty3 year

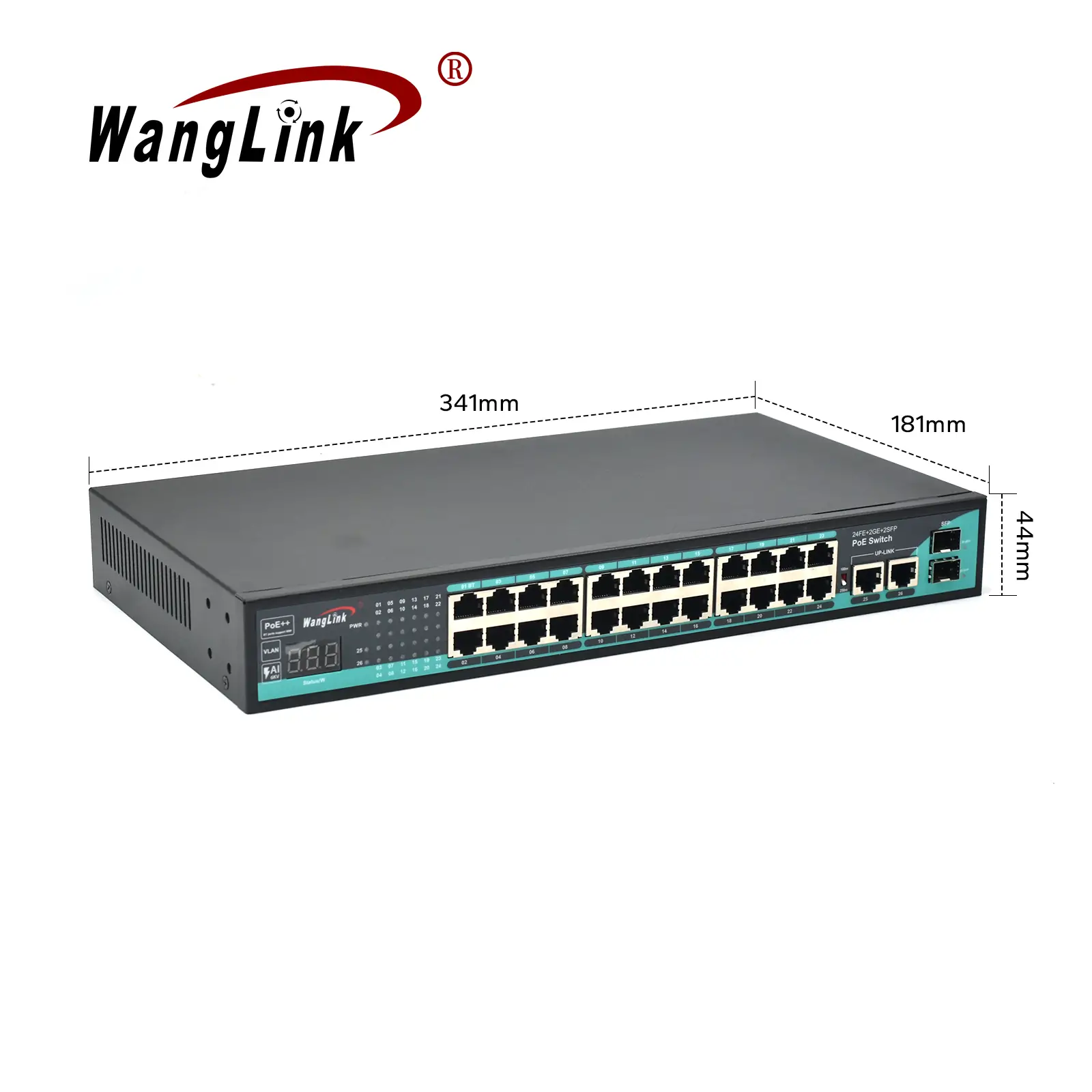

Product size

Product size: SL2422P-V2 | Unmanaged fast-ethernet poe-switch mit 24 Ports 2 gigabit uplink 2 SFP

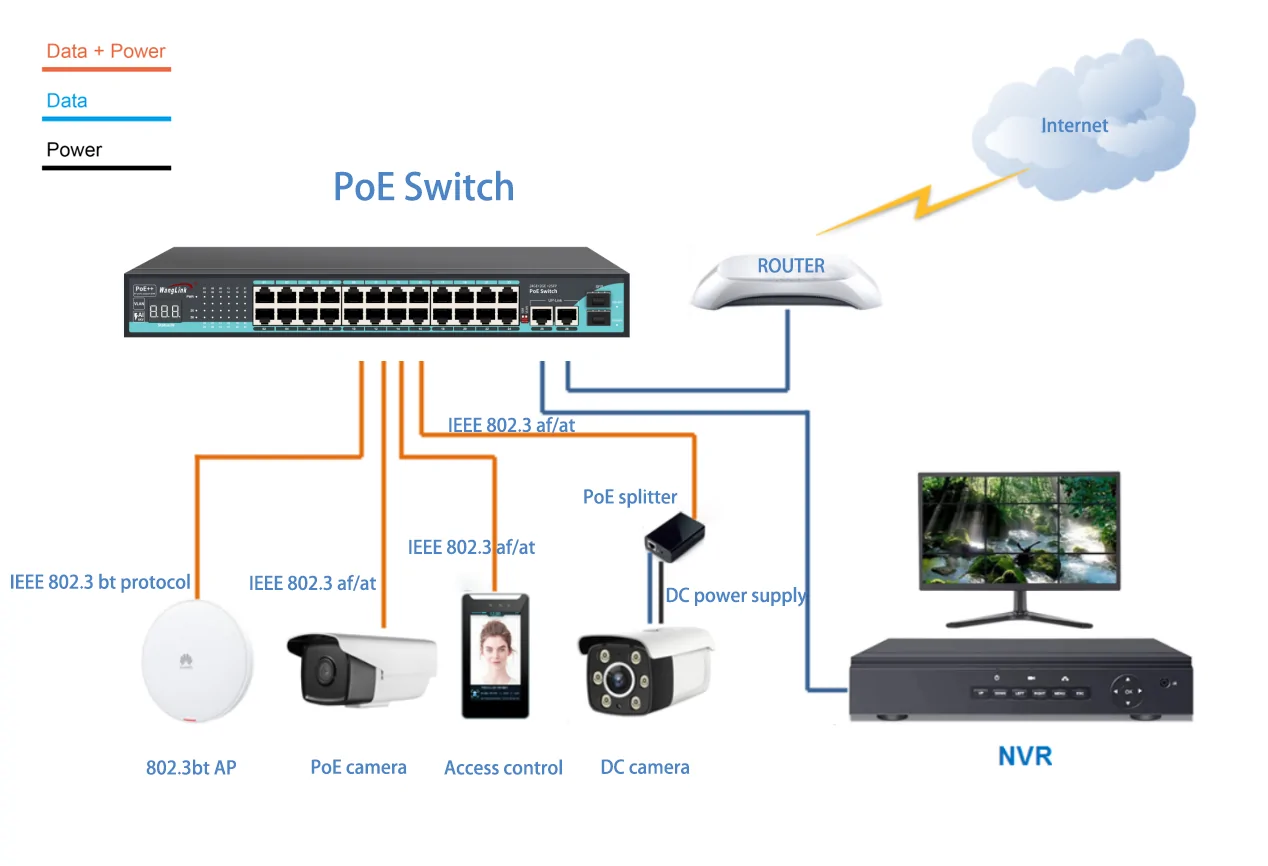

Application

Application: SL2422P-V2 | Unmanaged fast-ethernet poe-switch mit 24 Ports 2 gigabit uplink 2 SFP
Product size: SL2422P-V2 | Unmanaged fast-ethernet poe-switch mit 24 Ports 2 gigabit uplink 2 SFP
Application: SL2422P-V2 | Unmanaged fast-ethernet poe-switch mit 24 Ports 2 gigabit uplink 2 SFP
